◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#144578) — 12 parça

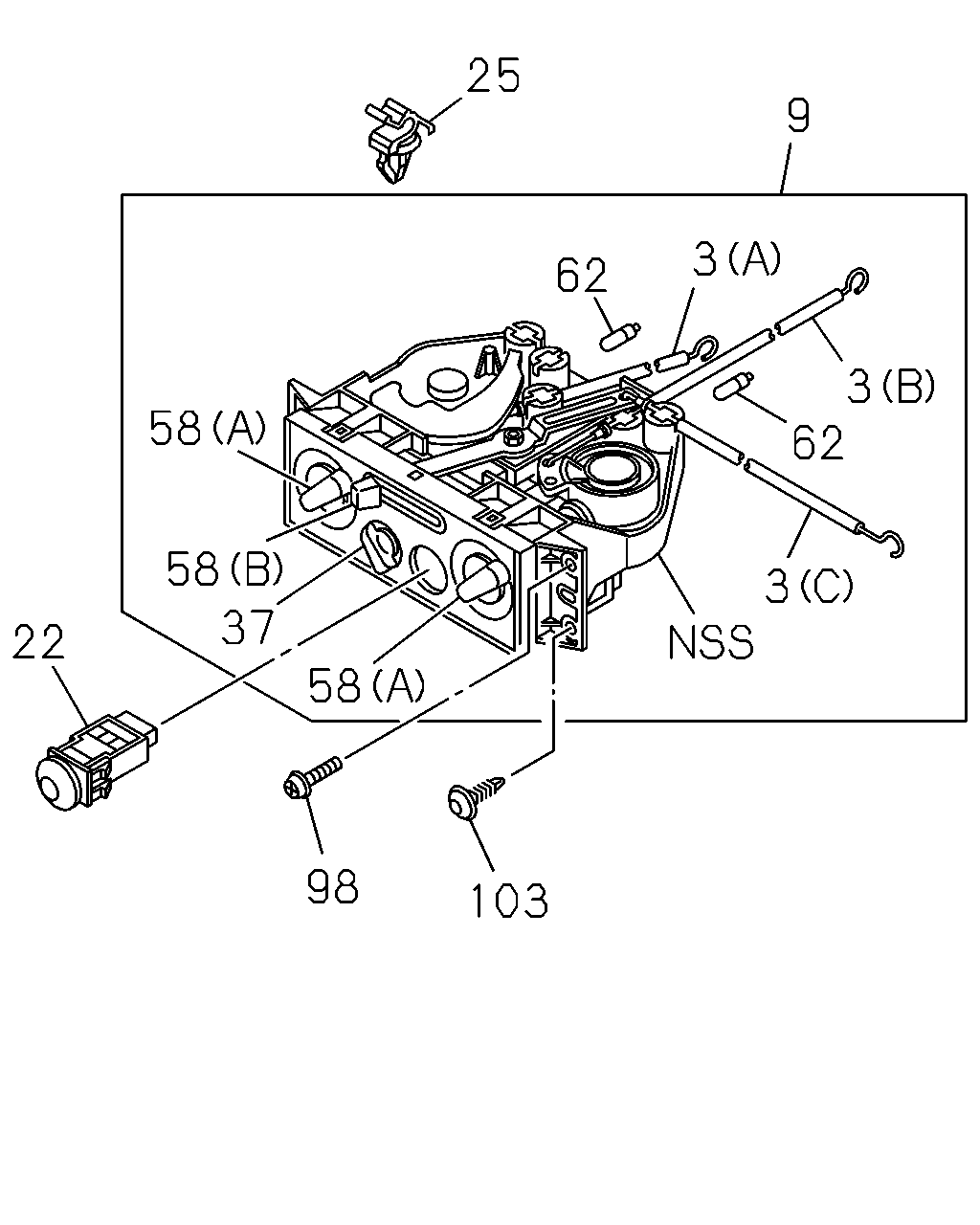

çizim 434354
9 3 3 62 3 62 25 58 58 58 98 103 37 22
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
(A) MODE CHI 		8-98065-643-0 01 1 1404- ● ●
3 CABLE; HTR CONT LVR
(B) A/M CHI 		8-98065-644-0 01 1 1404- ● ●
3 CABLE; HTR CONT LVR
(C) RECIRC/FRESH CHI 		8-98063-316-2 01 1 1404- ● ●
9 LEVER ASM; HTR & A/C CONT 8-97431-268-0 01 1 1404- ● ●
22 SWITCH; A/C,MAIN 8-97431-269-0 01 1 1404- ● ●
25 CLIP; CABLE,CONT LEVER
ID=4.8 CHI 		8-94128-483-0 03 1 1404- ● ●
37 KNOB; SW,HTR CONT LVR
CHI 		8-98037-368-0 01 1 1404- ● ●
58 KNOB; LVR,HTR CONT LVR
(A) CHI 		8-98037-369-0 02 1 1404- ● ●
58 KNOB; LVR,HTR CONT LVR
(B) CHI 		8-98037-370-0 01 1 1404- ● ●
62 BULB; HTR CONT LVR
24V 1.1W CHI 		8-98037-371-0 02 1 1404- ● ●
98 SCREW; CONT PANEL
T25 M5X20 TAPPING HEXALOBULAR CHI 		0-72180-520-0 01 1 1404- ● ●
103 CLIP
DARK GRAY CHI 		8-97098-326-0 01 1 1404- ● ●
