◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#144577) — 45 parça

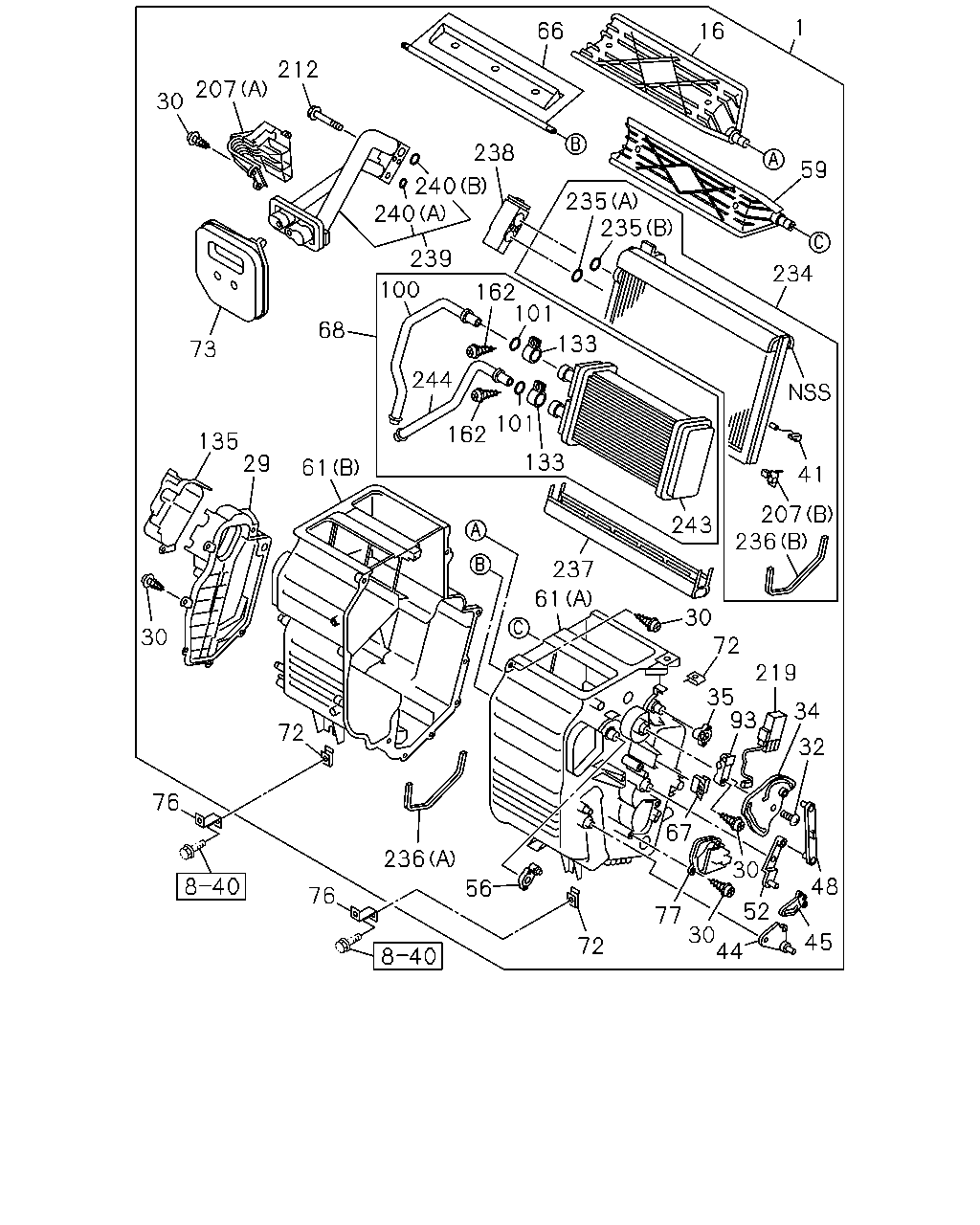

çizim 431746
1 16 59 234 66 235 238 235 240 240 212 207 30 68 73 239 100 162 244 101 162 101 133 133 41 207 236 243 237 61 61 29 135 30 72 236 76 76 56 72 52 77 30 44 32 93 35 30 67 30 45 34 48 219 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 8-97431-259-0 01 1 1404- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
CHI 		8-98047-387-0 01 1 1404- ● ●
29 COVER; HTR UNIT
CHI 		8-98047-480-0 01 1 1404- ● ●
30 SCREW; HTR UNIT
M4X16 TAPPING CHI 		8-97957-708-0 27 1 1404- ● ●
32 SCREW; HTR UNIT
M4X16 CHI 		8-98047-416-0 03 1 1404- ● ●
34 LEVER; SHUTTER,HTR UNIT
CHI 		8-98047-497-0 01 1 1404- ● ●
35 LEVER; SHUTTER,HTR UNIT
CHI 		8-98047-500-0 01 1 1404- ● ●
41 THERMOSTAT; HTR UNIT
CHI 		8-98047-412-0 01 1 1404- ● ●
44 LEVER; SHUTTER,HTR UNIT
CHI 		8-98047-502-0 01 1 1404- ● ●
45 LEVER; SHUTTER,HTR UNIT
CHI 		8-98047-503-0 01 1 1404- ● ●
48 LEVER; HTR UNIT
CHI 		8-98047-391-0 01 1 1404- ● ●
52 LEVER; SHUTTER,HTR UNIT
CHI 		8-98047-498-0 01 1 1404- ● ●
56 LEVER; SHUTTER,HTR UNIT
CHI 		8-98047-501-0 01 1 1404- ● ●
59 SHUTTER; HTR UNIT,SIDE
CHI 		8-98047-386-0 01 1 1404- ● ●
61 CASE; HTR UNIT
(A) CHI 		8-98047-478-0 01 1 1404- ● ●
61 CASE; HTR UNIT
(B) CHI 		8-98047-479-0 01 1 1404- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
CHI 		8-98047-385-0 01 1 1404- ● ●
67 CLIP; HTR UNIT
CHI 		8-98047-417-0 02 1 1404- ● ●
68 CORE; HTR UNIT
CHI 		8-98047-494-0 01 1 1404- ● ●
72 NUT; CASE,HTR UNIT
M6 CHI 		8-98047-428-0 03 1 1404- ● ●
73 PLATE; HTR UNIT
CHI 		8-98047-491-0 01 1 1404- ● ●
76 BRACKET; HTR UNIT 8-97431-255-0 02 1 1404- ● ●
77 COVER; HTR CASE
CHI 		8-98047-482-0 01 1 1404- ● ●
93 PLATE; HTR UNIT
CHI 		8-98047-427-0 01 1 1404- ● ●
100 PIPE; CORE,HTR UNIT
CHI 		8-98072-532-0 01 1 1404- ● ●
101 GASKET; CORE,HTR UNIT
CHI 		8-98072-531-0 02 1 1404- ● ●
133 CLIP; PIPE
CHI 		8-98072-530-0 02 1 1404- ● ●
135 COVER; HTR
CHI 		8-98047-481-0 01 1 1404- ● ●
162 SCREW; CLIP FIX
CHI 		8-98072-529-0 02 1 1404- ● ●
207 CLAMP; HTR UNIT
(A) CHI 		8-98047-493-0 01 1 1404- ● ●
207 CLAMP; HTR UNIT
(B) CHI 		8-98047-413-0 01 1 1404- ● ●
212 BOLT; HTR UNIT
M5X61 CHI 		8-98047-415-0 02 1 1404- ● ●
219 AMPLIFIER; HEATER UNIT
CHI 		8-98047-429-0 01 1 1404- ● ●
234 EVAPORATOR ASM; HEATER
CHI 		8-98074-120-1 01 1 1404- ● ●
235 GASKET; EVAPORATOR
(A) ID=11.7 CHI 		8-97095-907-0 01 1 1404- ● ●
235 GASKET; EVAPORATOR
(B) ID=14.5 CHI 		8-97095-908-0 01 1 1404- ● ●
236 GASKET; HEATER
(A) CHI 		8-98047-420-0 01 1 1404- ● ●
236 GASKET; HEATER
(B) CHI 		8-98047-421-0 01 1 1404- ● ●
237 INSULATOR; EVAPORATOR
CHI 		8-98047-382-0 01 1 1404- ● ●
238 VALVE; EXPANSION
CHI 		8-98047-383-0 01 1 1404- ● ●
239 TUBE ASM; HEATER
CHI 		8-98047-504-0 01 1 1404- ● ●
240 GASKET; HEATER
(A) ID=7.4 CHI 		8-97095-906-0 01 1 1404- ● ●
240 GASKET; HEATER
(B) ID=14.5 CHI 		8-97095-908-0 01 1 1404- ● ●
243 CORE
CHI 		8-98048-508-0 01 1 1404- ● ●
244 PIPE; INLET
CHI 		8-98048-511-0 01 1 1404- ● ●
