◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#144576) — 25 parça

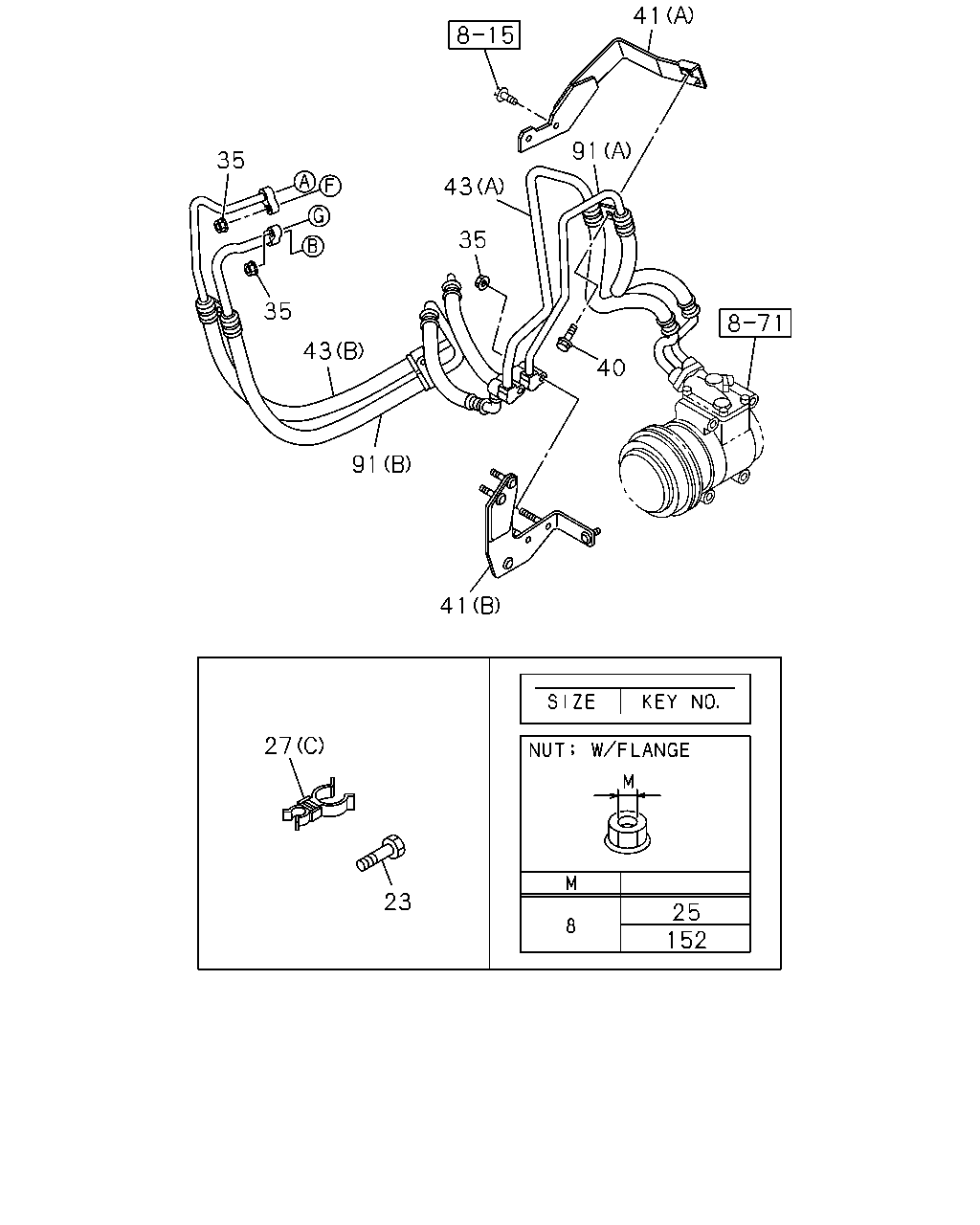

çizim 434119
43 35 91 41 35 35 43 91 41 27 25 152 23 40
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT 8-97431-302-0 02 1 1404- ● ●
25 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
27 CLIP; COOLER PIPE
(A) ID=16 L=20 		8-97431-310-0 01 1 1404- ● ●
27 CLIP; COOLER PIPE
(B) 		8-97431-311-0 01 1 1404- ● ●
27 CLIP; COOLER PIPE
(C) 		8-97431-312-0 01 1 1404- ● ●
35 NUT; FLEX HOSE,A/C 8-97431-309-0 04 1 1404- ● ●
40 BOLT; CLIP BRKT
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ● ●
40 BOLT; CLIP BRKT 8-97431-301-0 02 1 1404- ● ●
41 BRACKET; PIPE CLIP
(A) CHI 		8-98228-385-0 01 1 1404- ● ●
41 BRACKET; PIPE CLIP
(B) CHI 		8-98228-387-0 01 1 1404- ● ●
43 HOSE; FLEX,A/C,EVAP TO CMPR
(A) CHI 		8-98236-299-0 01 1 1404- ● ●
43 HOSE; FLEX,A/C,EVAP TO CMPR
(B) CHI 		8-98236-300-0 01 1 1404- ● ●
91 HOSE; FLEX,CMPR
(A) CHI 		8-98236-301-0 01 1 1404- ● ●
91 HOSE; FLEX,CMPR
(B) CHI 		8-98236-302-0 01 1 1404- ● ●
152 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●

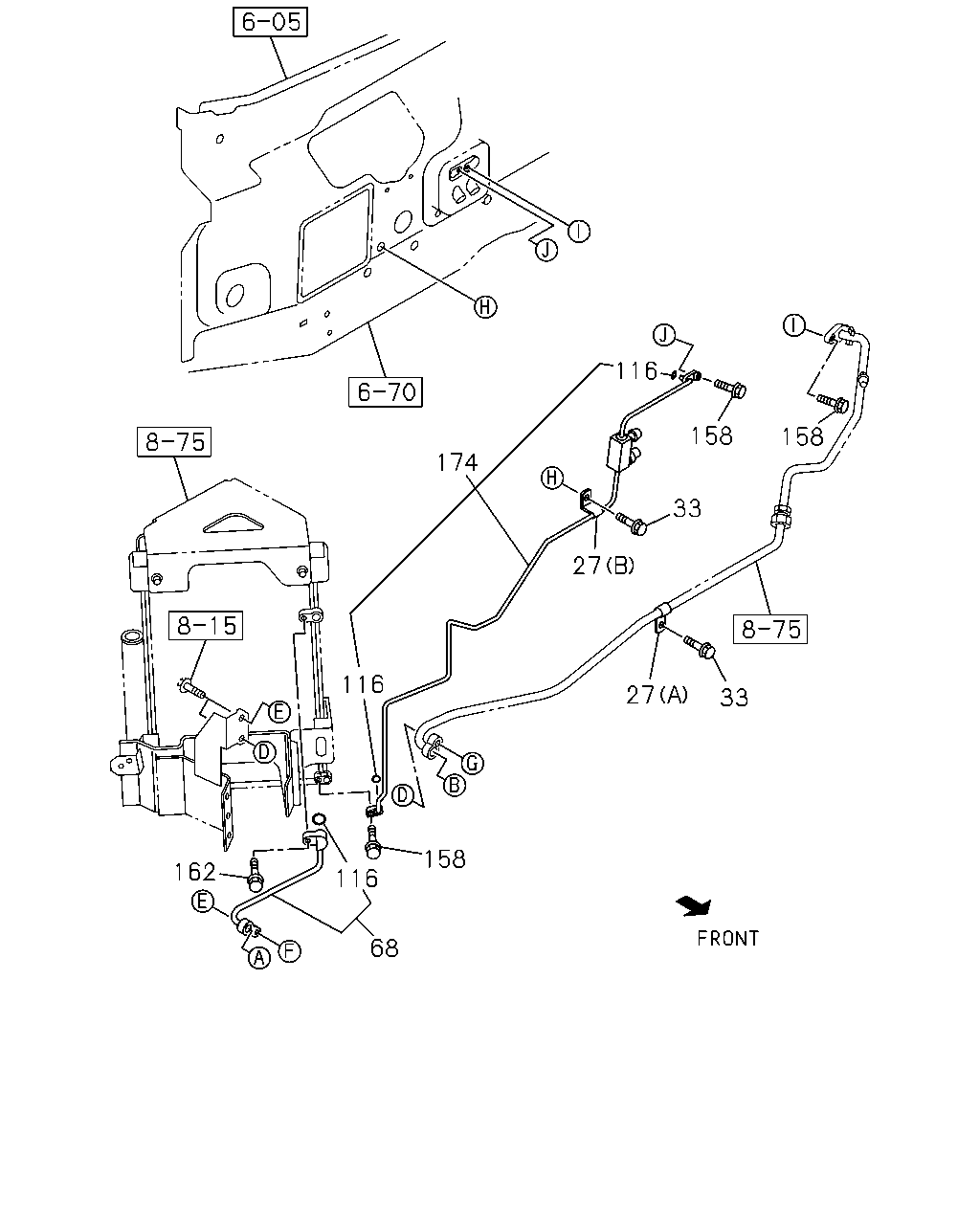

çizim 434249
174 27 33 158 116 158 27 33 158 116 68 162 116
BalonParca AdiParca NoAdetTipApplied Date A B
27 CLIP; COOLER PIPE
(A) ID=16 L=20 		8-97431-310-0 01 1 1404- ● ●
27 CLIP; COOLER PIPE
(B) 		8-97431-311-0 01 1 1404- ● ●
27 CLIP; COOLER PIPE
(C) 		8-97431-312-0 01 1 1404- ● ●
33 BOLT; CLIP
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ● ●
68 PIPE; EVAP TO UNION
CHI 		8-98228-345-0 01 1 1404- ● ●
116 GASKET; PIPE
ID=11.7 CHI 		8-97095-907-0 01 1 1404- ● ●
116 GASKET; PIPE
ID=11.7 CHI 		8-97095-907-0 01 1 1404- ● ●
158 BOLT; PIPE FIX
M6X25 FLANGE CHI 		0-28050-625-0 04 1 1404- ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE CHI 		0-28050-625-0 02 1 1404- ● ●
174 PIPE; COOLER,CONDENSER TO FLEX HOSE
CHI 		8-98228-347-0 01 1 1404- ● ●
