◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#144573) — 29 parça
çizim 434147
223 50 476 407 206
BalonParca AdiParca NoAdetTipApplied Date A B
50 VALVE ASM; HTR
CHI 		8-98080-998-1 01 1 1404- ● ●
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-97431-263-0 01 1 1404- ● ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 CHI 		8-94441-539-0 01 1 1404- ● ●
407 JOINT; HOSE
CHI 		8-98041-758-0 01 1 1404- ● ●
476 SCREW; VALVE
T25 M5X16 TAPPING HEXALOBULAR CHI 		8-98062-675-0 01 1 1404- ● ●

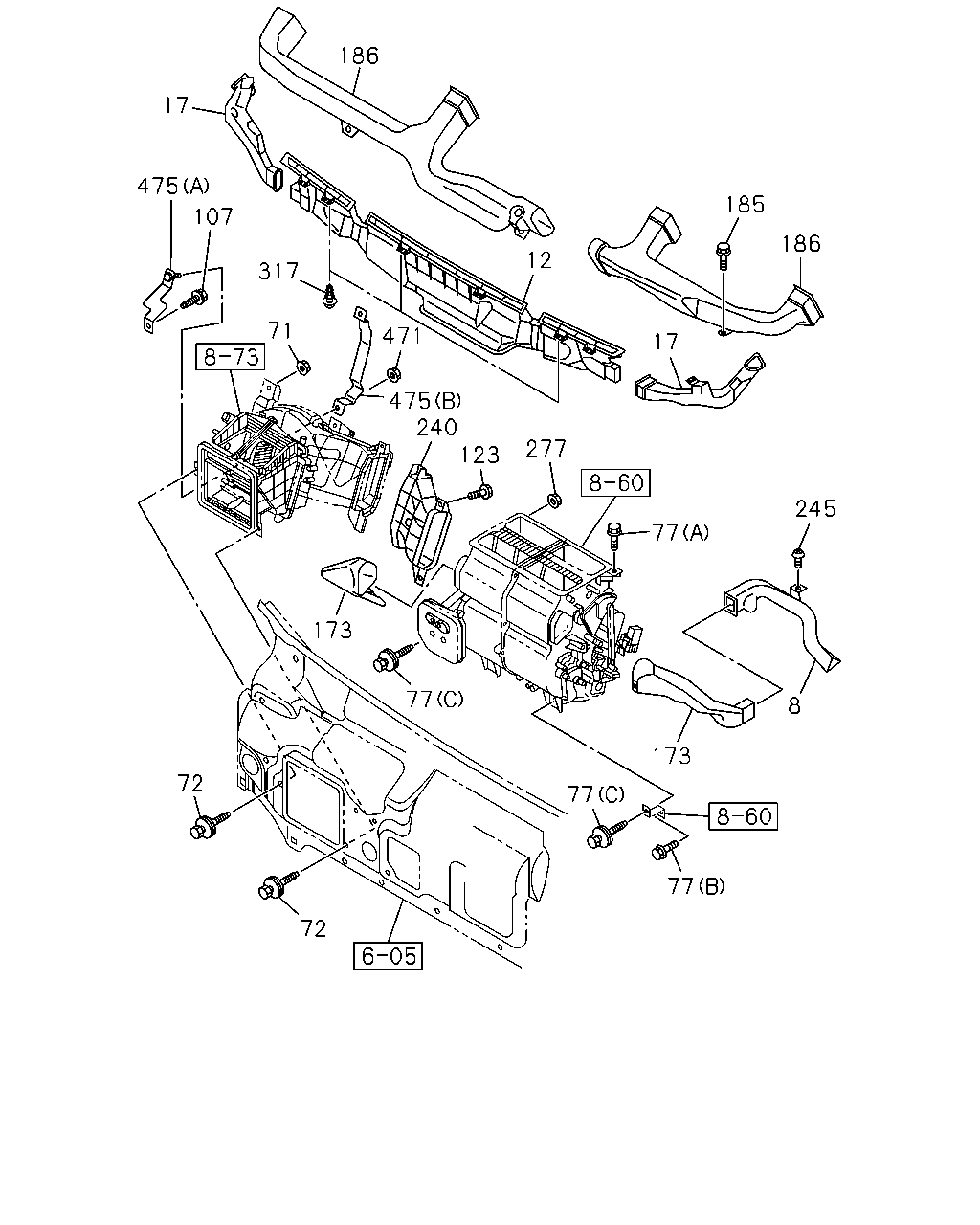

çizim 434426
186 12 185 186 17 245 77 277 123 240 475 471 317 107 475 17 71 173 77 77 173 77 72 72 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT
CHI 		8-98011-567-0 01 1 1404- ● ●
12 NOZZLE; DEFROSTER
CHI 		8-98040-010-2 01 1 1404- ● ●
17 NOZZLE; DEFROSTER,SIDE
CHI 		8-98040-014-0 01 1 1404- ● ●
17 NOZZLE; DEFROSTER,SIDE
CHI 		8-98040-019-0 01 1 1404- ● ●
71 NUT; BLOWER UNIT TO DASH 8-97431-309-0 02 1 1404- ● ●
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER CHI 		8-98081-175-0 02 1 1404- ● ●
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER CHI 		8-98081-175-0 03 1 1404- ● ●
77 BOLT; HTR UNIT
(A) 		8-97431-303-0 01 1 1404- ● ●
77 BOLT; HTR UNIT
(B) 		8-97431-304-0 02 1 1404- ● ●
107 BOLT; STAY,HTR UNIT 8-97431-305-0 01 1 1404- ● ●
123 SCREW; DUCT 8-97431-306-0 04 1 1404- ● ●
173 DUCT; FOOT,HTR
CHI 		8-97585-508-1 01 1 1404- ● ●
173 DUCT; FOOT,HTR
CHI 		8-98217-774-1 01 1 1404- ● ●
185 SCREW; VENT DUCT
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 04 1 1404- ● ●
186 DUCT; VENTILATOR
CHI 		8-98174-736-0 01 1 1404- ● ●
186 DUCT; VENTILATOR
CHI 		8-98011-556-3 01 1 1404- ● ●
240 DUCT; AIR,HTR 8-97431-265-0 01 1 1404- ● ●
245 CLIP; FOOT DUCT
CHI 		8-98056-059-0 03 1 1404- ● ●
277 NUT; HTR 8-97431-309-0 01 1 1404- ● ●
317 SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 02 1 1404- ● ●
317 SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 06 1 1404- ● ●
471 NUT; BLOWER 8-97431-309-0 01 1 1404- ● ●
475 BRACKET; BLOWER
(A) CHI 		8-98028-309-1 01 1 1404- ● ●
475 BRACKET; BLOWER
(B) 		8-98165-782-0 01 1 1404- ● ●
