◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#144572) — 68 parça

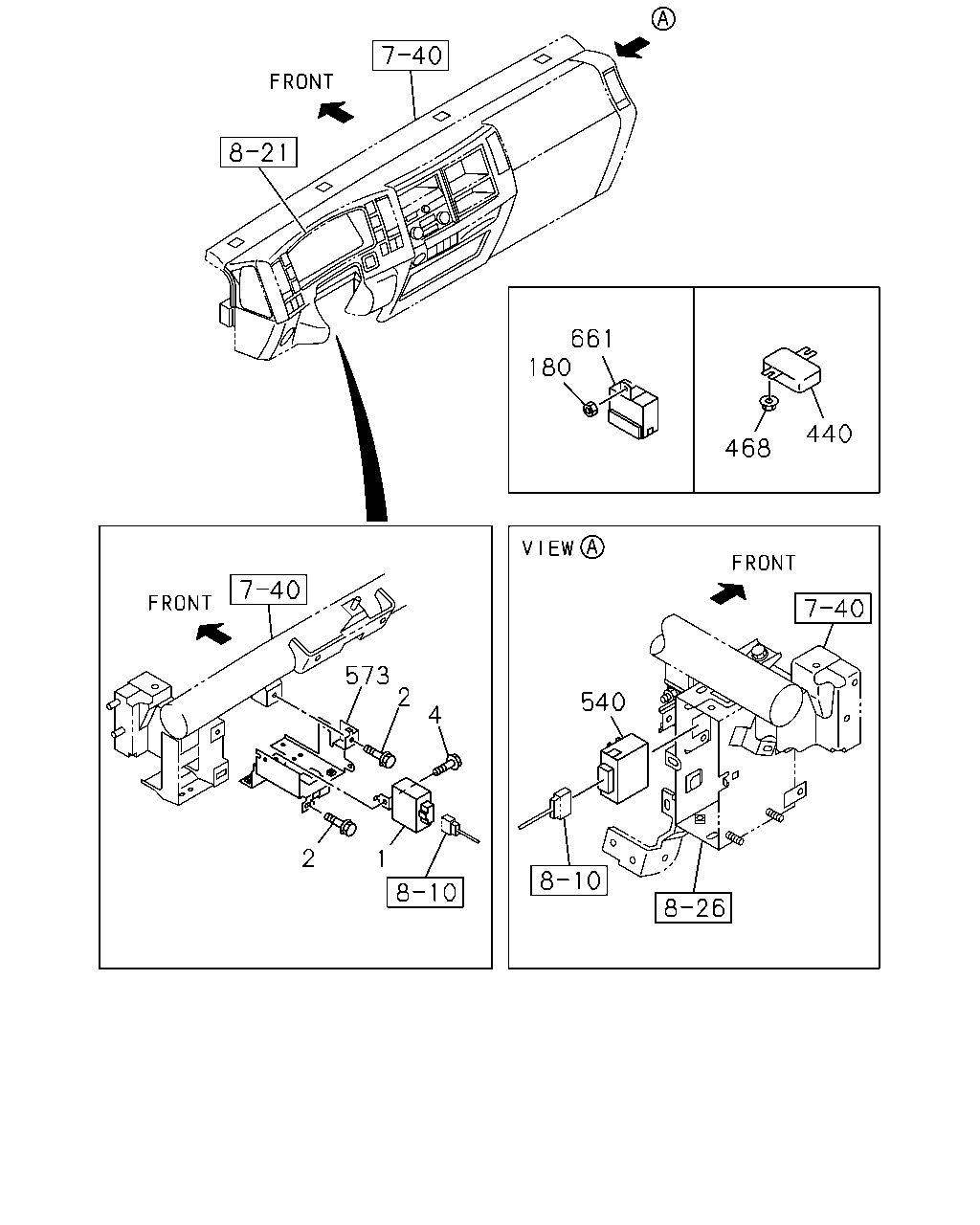

çizim 434144
661 180 468 440 573 2 2 1 4 540
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER
CHI 		8-98025-533-1 01 1 1404- ●
1 UNIT; FLASHER
CHI 		8-97613-970-1 01 1 1404- ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE CHI 		0-28650-616-0 02 1 1404- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE CHI 		0-28650-616-0 02 1 1404- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE CHI 		0-28650-616-0 04 1 1404- ●
4 SCREW; FLASHER UNIT
M6X16 FLANGE CHI 		0-28650-616-0 01 1 1404- ● ●
4 SCREW; FLASHER UNIT
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 02 1 1404- ●
180 NUT; FLASHER UNIT
D=8.6X7.7 L=7.5 CHI 		8-94279-078-0 02 1 1404- ●
440 MODULE; INFORMATION,ABS
CHI 		1-81510-701-0 01 1 1404- ●
468 NUT; MODULE
M6 FLANGE CHI 		0-91180-106-0 02 1 1404- ●
540 RELAY; WIPER INTERVAL
CHI 		8-98233-976-0 01 1 1404- ● ●
573 BRACKET; FLASHER UNIT
CHI 		8-97616-351-3 01 1 1404- ● ●
661 CONTROL UNIT; FLASHER
CHI 		1-83470-066-1 01 1 1404- ●

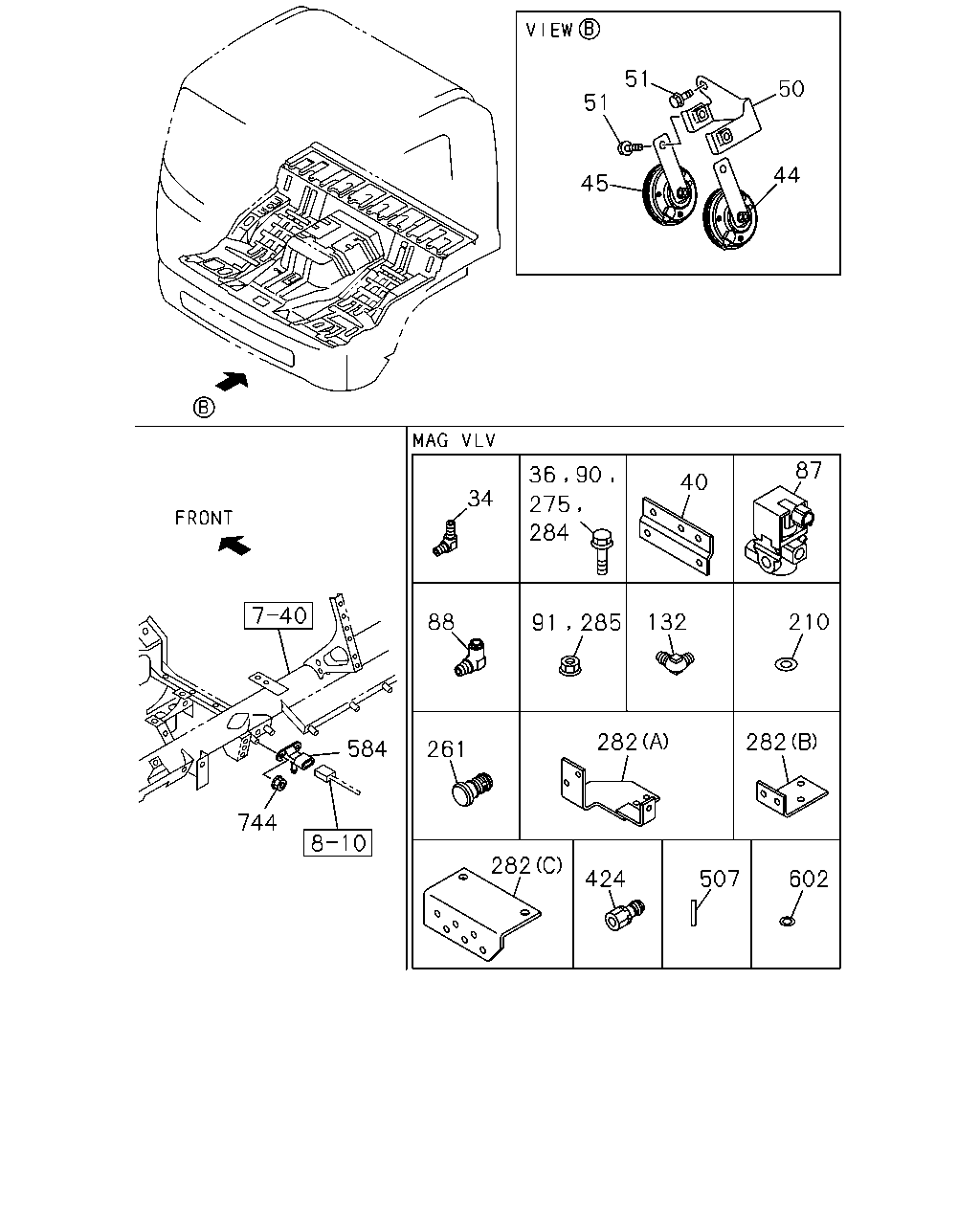

çizim 434242
51 424 507 602 282 282 261 584 744 34 88 36 284 285 91 40 90 275 87 210 132 282 45 51 44 50
BalonParca AdiParca NoAdetTipApplied Date A B
34 CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 3WAY CHI 		1-09656-586-1 01 1 1404- ● ●
36 BOLT; MAG VLV,PTO CONT
M8X20 FLANGE CHI 		0-28650-820-0 03 1 1404- ● ●
40 BRACKET; MAG VLV
CHI 		8-97431-028-0 01 1 1404- ● ●
44 HORN; HIGH NOTE 8-97431-407-0 01 1 1404- ● ●
45 HORN; LOW NOTE 8-97431-408-0 01 1 1404- ● ●
50 BRACKET; HORN
CHI 		8-97616-529-2 01 1 1404- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER CHI 		8-97086-825-0 04 1 1404- ● ●
87 VALVE; MAG,GOV CONT 8-97431-459-0 01 1 1404- ● ●
87 VALVE; MAG,GOV CONT 8-97431-459-0 01 1 1404- ● ●
87 VALVE; MAG,GOV CONT 8-97431-459-0 03 1 1404- ● ●
88 CONNECTOR; MAG VLV
DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1404- ● ●
88 CONNECTOR; MAG VLV
DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1404- ● ●
90 BOLT; MAG VLV
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
91 NUT; MAG VLV
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
132 CONNECTOR; OUTLET,MAG VLV
M12 & PT1/4 ELBOW CHI 		1-09650-430-0 03 1 1404- ● ●
210 WASHER; PL,BRKT
CHI 		1-82569-266-0 04 1 1404- ● ●
261 PLUG; MAG VLV 8-97431-461-0 01 1 1404- ● ●
261 PLUG; MAG VLV 8-97431-461-0 01 1 1404- ● ●
261 PLUG; MAG VLV 8-97431-461-0 01 1 1404- ● ●
275 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
282 BRACKET; MAG VLV
(A) 		8-97431-501-0 01 1 1404- ● ●
282 BRACKET; MAG VLV
(B) 		8-97431-502-0 01 1 1404- ● ●
282 BRACKET; MAG VLV
(C) 		8-97431-500-0 01 1 1404- ● ●
284 BOLT; MAG VLV
M6X50 FLANGE CHI 		0-28050-650-0 02 1 1404- ● ●
284 BOLT; MAG VLV
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
285 NUT; MAG VLV
M6 FLANGE CHI 		0-91180-106-0 02 1 1404- ● ●
285 NUT; MAG VLV
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
424 ADAPTER 8-97431-253-0 02 1 1404- ● ●
424 ADAPTER 8-97431-253-0 02 1 1404- ● ●
424 ADAPTER 8-97431-253-0 04 1 1404- ● ●
507 TUBE; NYLON
FULL FLOATING CAB<W16> 		1-09389-003-0 01 1 1404- ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1404- ● ●
602 GASKET; MAG VLV 8-97431-460-0 02 1 1404- ● ●
744 NUT; SENSOR
M6 FLANGE CHI 		0-91180-106-0 02 1 1404- ● ●
çizim 434316
117 115 116 65 64 66 86 85 84
BalonParca AdiParca NoAdetTipApplied Date A B
64 SOCKET; TRAILER
7P CHI 		1-82523-014-0 01 1 1404- ●
65 BOLT; SOCKET FIX
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ●
66 NUT; SOCKET FIX
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ●
84 BUZZER; POWER CAB TILT
METRO DENSO CHI 		8-98069-860-0 01 1 1404- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ● ●
86 NUT; BUZZER
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC CHI 		8-97173-035-1 02 1 1404- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO CHI 		8-98005-631-0 01 1 1404- ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
117 NUT; RELAY FIX
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●

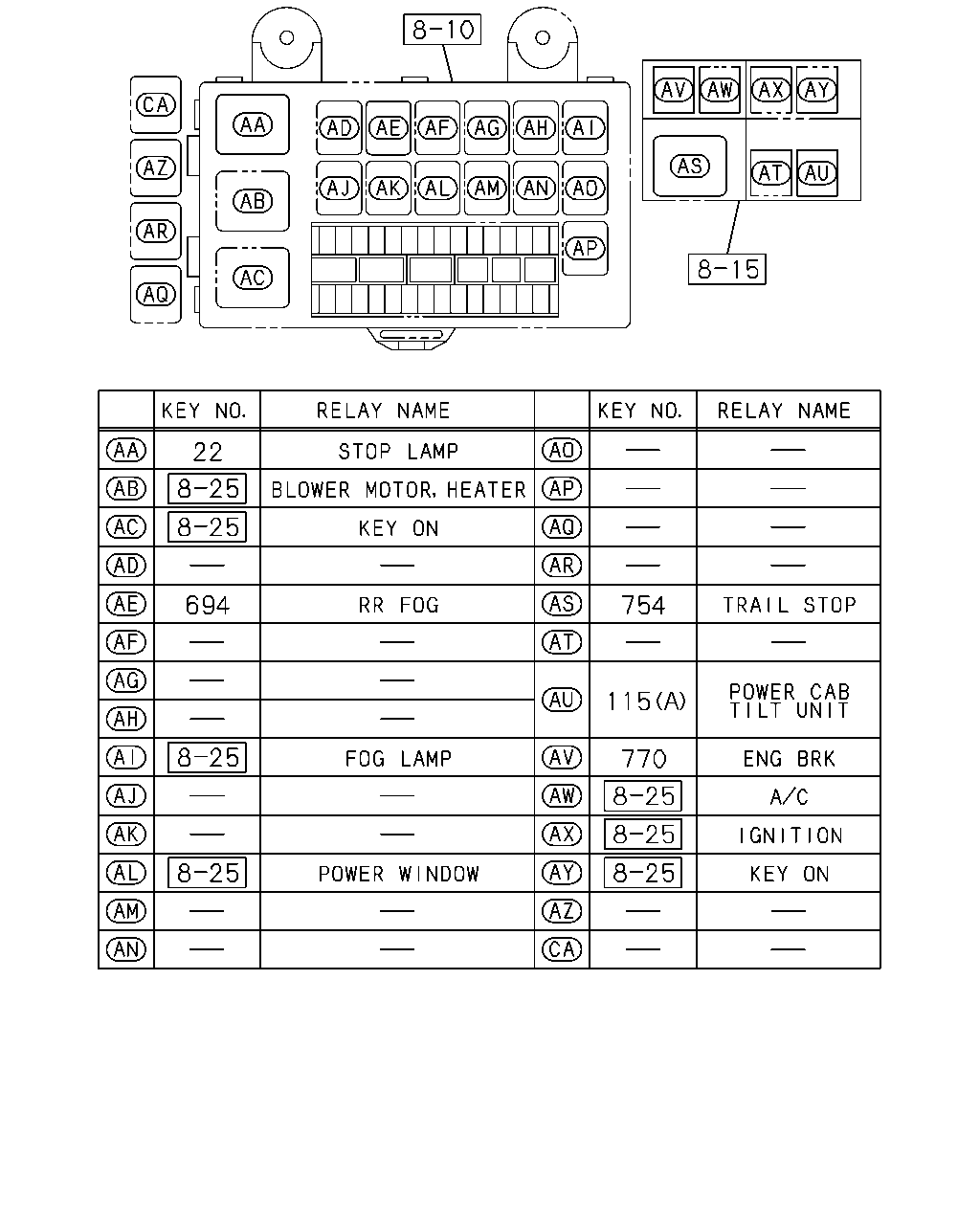

çizim 434347
22 694 770 115 754
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC CHI 		8-97262-933-0 01 1 1404- ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC CHI 		8-97173-035-1 02 1 1404- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO CHI 		8-98005-631-0 01 1 1404- ● ●
694 RELAY; RR FOG LAMP
24V 10A PANASONIC CHI 		8-97173-035-1 01 1 1404- ● ●
754 RELAY; TRAILER STOP
24V 10A MATSUSHITA CHI 		8-97173-035-1 01 1 1404- ●
770 RELAY; ENG BRK
24V 10A PANASONIC CHI 		8-97173-035-1 01 1 1404- ● ●
çizim 434375
531 115 769
BalonParca AdiParca NoAdetTipApplied Date A B
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC CHI 		8-97173-035-1 02 1 1404- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO CHI 		8-98005-631-0 01 1 1404- ● ●
531 RELAY; MAIN
24V 30A MITSUBA CHI 		8-98259-779-0 01 1 1404- ● ●
531 RELAY; MAIN
24V 30A MITUBA CHI 		8-97238-540-0 01 1 1404- ● ●
769 RELAY; TURBO CONT
24V 10A PANASONIC CHI 		8-97173-035-1 01 1 1404- ● ●
