2-53 — TRANSMISSION OIL COOLER SYSTEM (#144571) — 68 parça

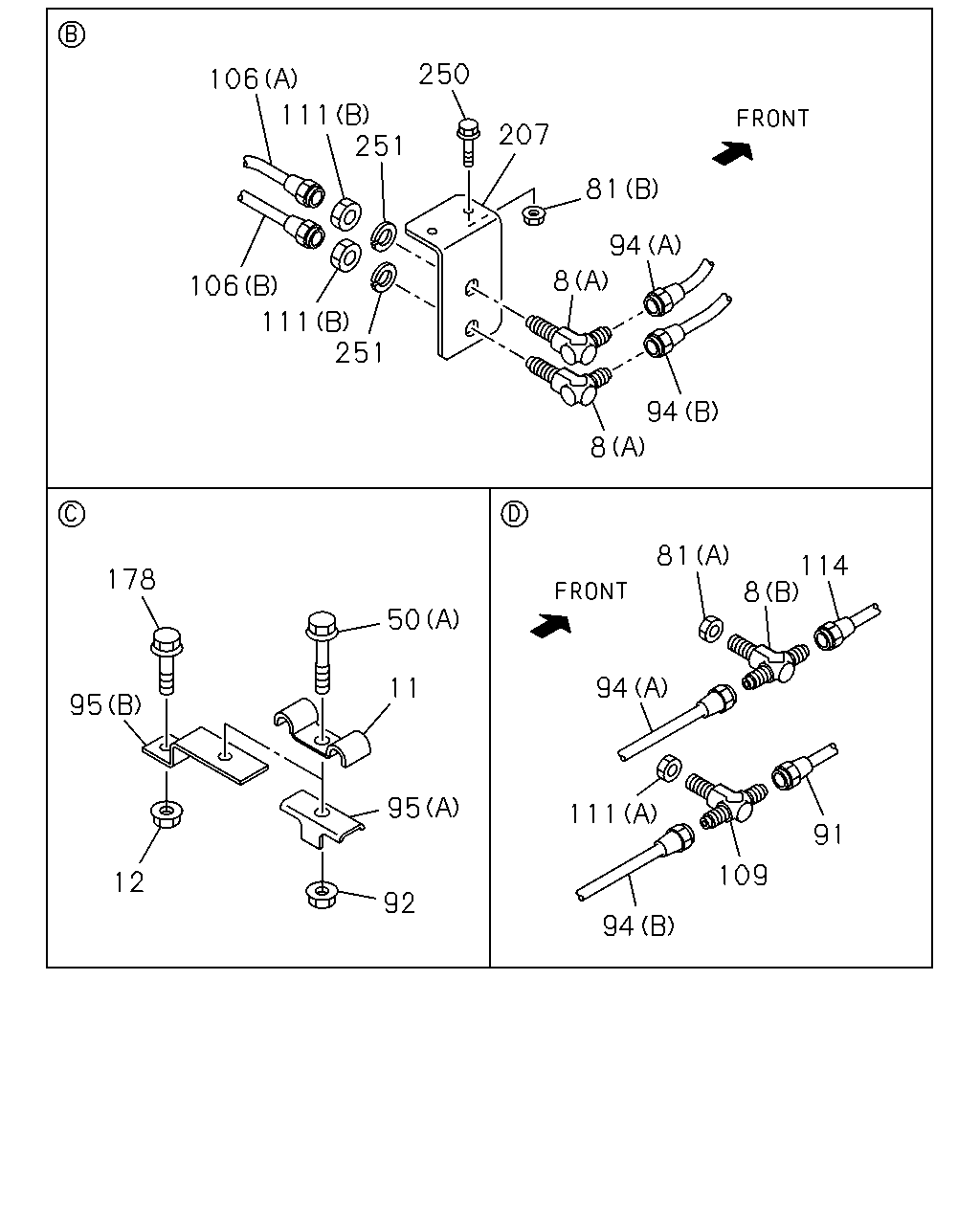

çizim 432879
106 251 111 106 251 111 250 207 81 8 94 94 8 178 95 12 11 50 95 92 94 111 109 94 81 114 8 91
BalonParca AdiParca NoAdetTipApplied Date
8 UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M16 ELBOW 		0-92135-210-0 02 1 1408-
8 UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M16X2 2WAY ELBOW 		1-09654-148-1 01 1 1408-
11 CLIP; PIPE
TRANSMISSION CONTROL-SMOOTHER<8GF> ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 06 1 1408-
12 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE 		0-91180-108-0 01 1 1408-
12 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE 		0-91180-210-0 06 1 1408-
50 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1408-
50 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X45 FLANGE 		0-28050-845-0 05 1 1408-
50 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1408-
81 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M12 		0-91111-512-0 01 1 1408-
81 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 FLANGE 		0-91180-108-0 02 1 1408-
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> L=2288 		8-98284-083-0 01 1 1408-
92 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE 		0-91180-108-0 04 1 1408-
94 PIPE; OIL,UNION TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=1446 SERVICED BY L=1550 		1-47428-879-0 01 1 1408-
94 PIPE; OIL,UNION TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=1471 SERVICED BY L=1550 		1-47428-879-0 01 1 1408-
95 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		1-47475-427-1 05 1 1408-
95 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		1-47476-401-0 01 1 1408-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-98290-368-0 01 1 1408-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98275-264-0 01 1 1408-
109 UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> M16X2 2WAY ELBOW 		1-09654-148-1 01 1 1408-
111 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M12 		0-91111-512-0 01 1 1408-
111 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M16 		0-91111-516-0 02 1 1408-
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER<8GF> L=2420 		8-98284-084-0 01 1 1408-
178 BOLT; BRKT,CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X30 FLANGE 		0-28650-830-0 01 1 1408-
207 BRACKET; UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98275-624-1 01 1 1408-
250 BOLT
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X30 FLANGE 		0-28650-830-0 02 1 1408-
251 WASHER
TRANSMISSION CONTROL-SMOOTHER<8GF> ID=16.2 		0-91510-516-0 02 1 1408-

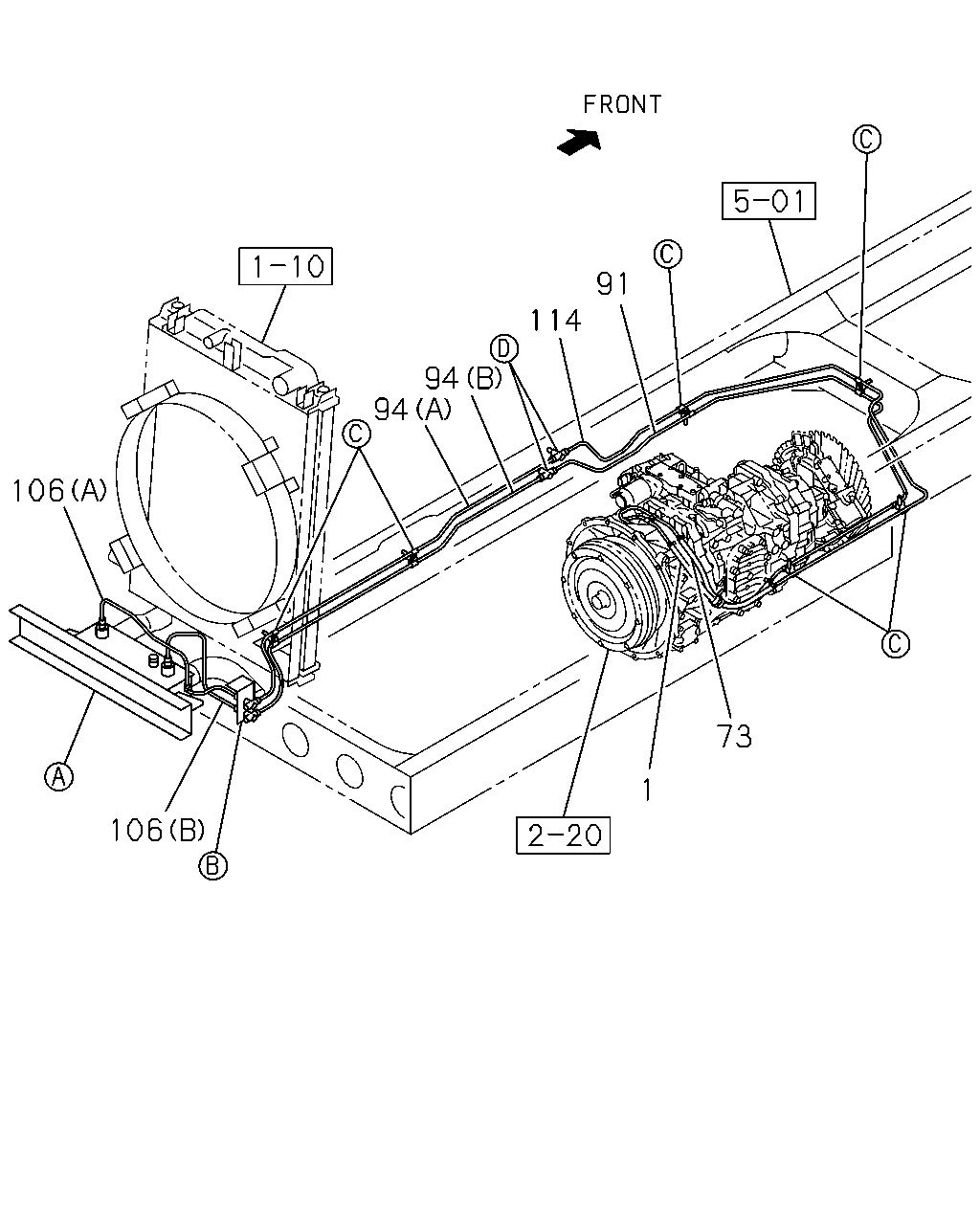

çizim 432882
106 106 1 73 91 114 94 94
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98242-313-2 01 1 1408-
73 HOSE; FLEX,TRANS
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98242-313-2 01 1 1408-
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> L=2288 		8-98284-083-0 01 1 1408-
94 PIPE; OIL,UNION TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=1446 SERVICED BY L=1550 		1-47428-879-0 01 1 1408-
94 PIPE; OIL,UNION TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) L=1471 SERVICED BY L=1550 		1-47428-879-0 01 1 1408-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-98290-368-0 01 1 1408-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98275-264-0 01 1 1408-
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER<8GF> L=2420 		8-98284-084-0 01 1 1408-

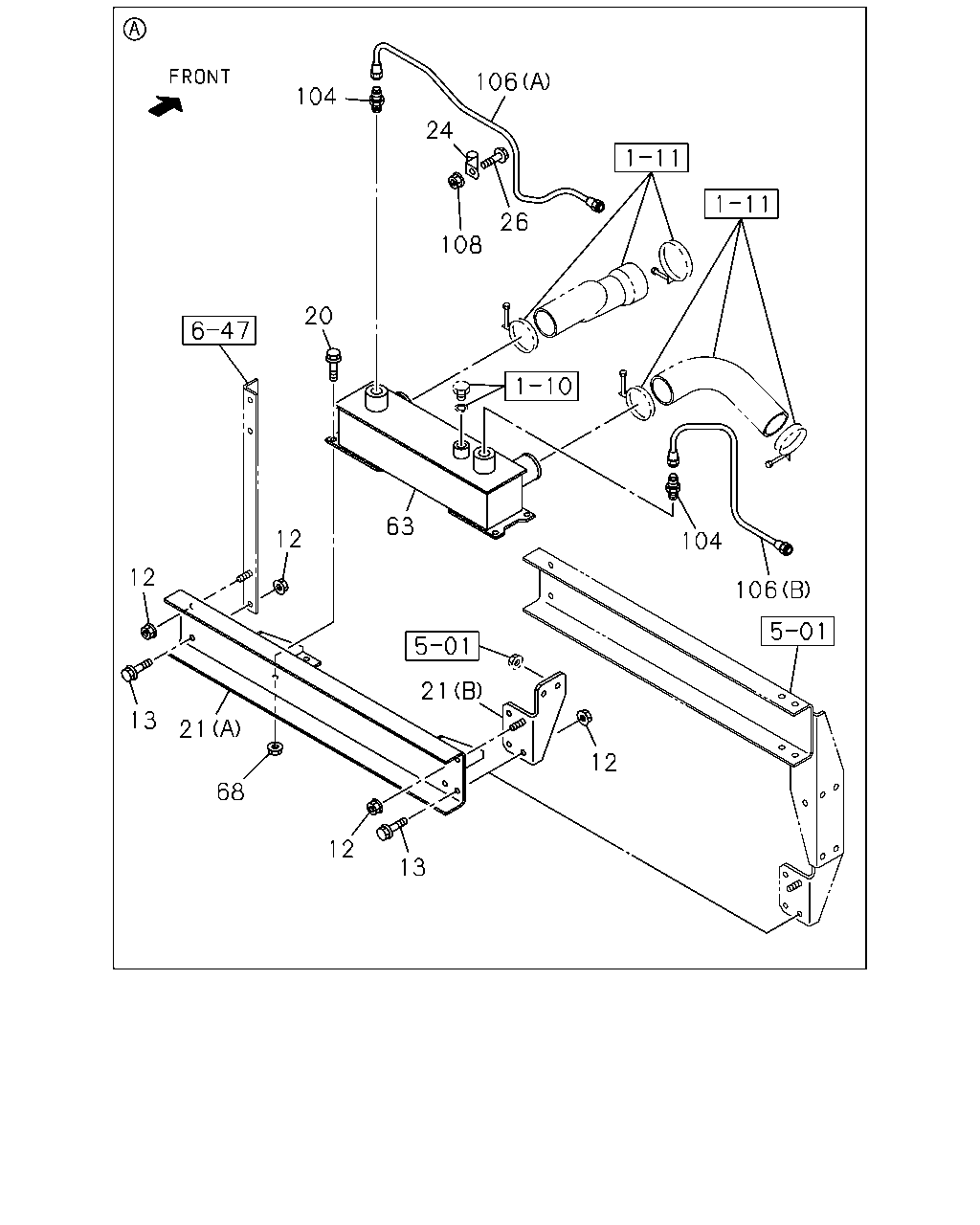

çizim 432928
104 24 106 26 108 20 63 12 12 13 21 68 12 13 12 21 104 106
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE 		0-91180-108-0 01 1 1408-
12 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE 		0-91180-210-0 06 1 1408-
13 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> M10X30 FLANGE 		0-28651-030-0 04 1 1408-
20 BOLT; COOLER TO BRKT
TRANSMISSION CONTROL-SMOOTHER<8GF> M10X30 FLANGE 		0-28651-030-0 04 1 1408-
21 BRACKET; COOLER
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98291-728-0 01 1 1408-1510
21 BRACKET; COOLER
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-98274-292-0 01 1 1408-
24 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER<8GF> ID=11 H=20 L=20 		8-98033-780-0 01 1 1408-
26 BOLT; PIPE CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> M8X30 FLANGE 		0-28650-830-0 01 1 1408-
63 COOLER; OIL
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98274-295-0 01 1 1408-
68 NUT; COOLER
TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE 		0-91180-210-0 04 1 1408-
104 CONNECTOR; COOLER
TRANSMISSION CONTROL-SMOOTHER<8GF> M16 & PT1/2 STRAIGHT 		1-09650-245-1 02 1 1408-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-98290-368-0 01 1 1408-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98275-264-0 01 1 1408-
108 NUT; PIPE CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE 		0-91180-108-0 01 1 1408-

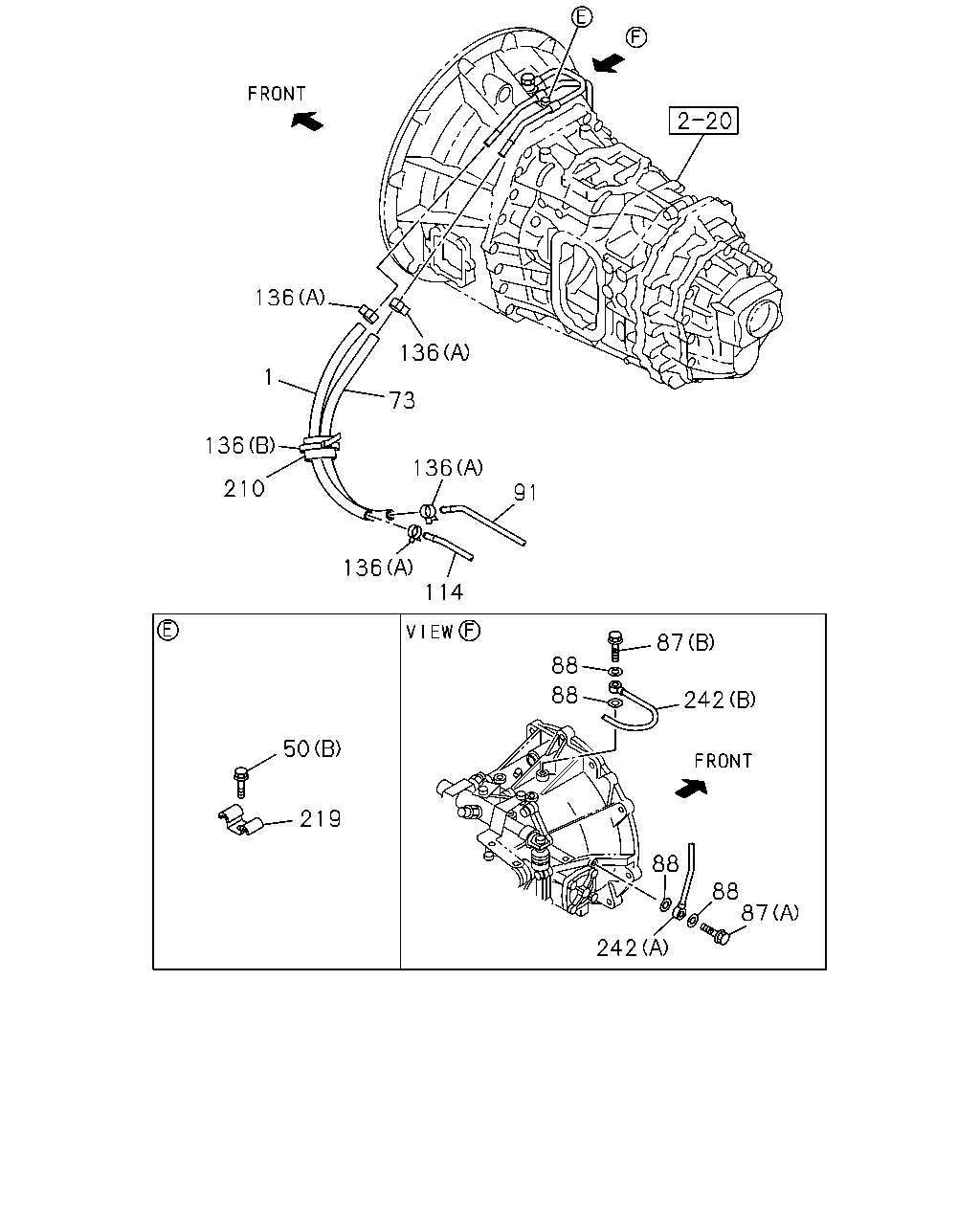

çizim 432946
136 136 73 136 91 1 136 210 136 114 88 88 87 242 88 88 87 242 219 50
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98242-313-2 01 1 1408-
50 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1408-
50 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X45 FLANGE 		0-28050-845-0 05 1 1408-
50 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1408-
73 HOSE; FLEX,TRANS
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98242-313-2 01 1 1408-
87 BOLT; EYE
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M14X30 EYE-BOLT 		8-98037-827-0 01 1 1408-
87 BOLT; EYE
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M14X35.5 FLANGE 		8-98060-612-0 01 1 1408-
88 GASKET; EYE BOLT
TRANSMISSION CONTROL-SMOOTHER<8GF> ID=14.2 OD=20.0 		9-09571-414-0 04 1 1408-
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION CONTROL-SMOOTHER<8GF> L=2288 		8-98284-083-0 01 1 1408-
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER<8GF> L=2420 		8-98284-084-0 01 1 1408-
136 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) L=350 		1-09707-183-0 01 1 1408-
136 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-98192-447-0 04 1 1408-
210 BAND; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER<8GF> L=175 		1-09707-178-0 01 1 1408-
219 CLIP; ATF PIPE
TRANSMISSION CONTROL-SMOOTHER<8GF> ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1408-
242 PIPE; COOLER
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98275-680-0 01 1 1408-1507
242 PIPE; COOLER
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98303-639-0 01 1 1508-
242 PIPE; COOLER
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-98275-682-0 01 1 1408-1507
242 PIPE; COOLER
TRANSMISSION CONTROL-SMOOTHER<8GF> (A) 		8-98303-640-0 01 1 1508-

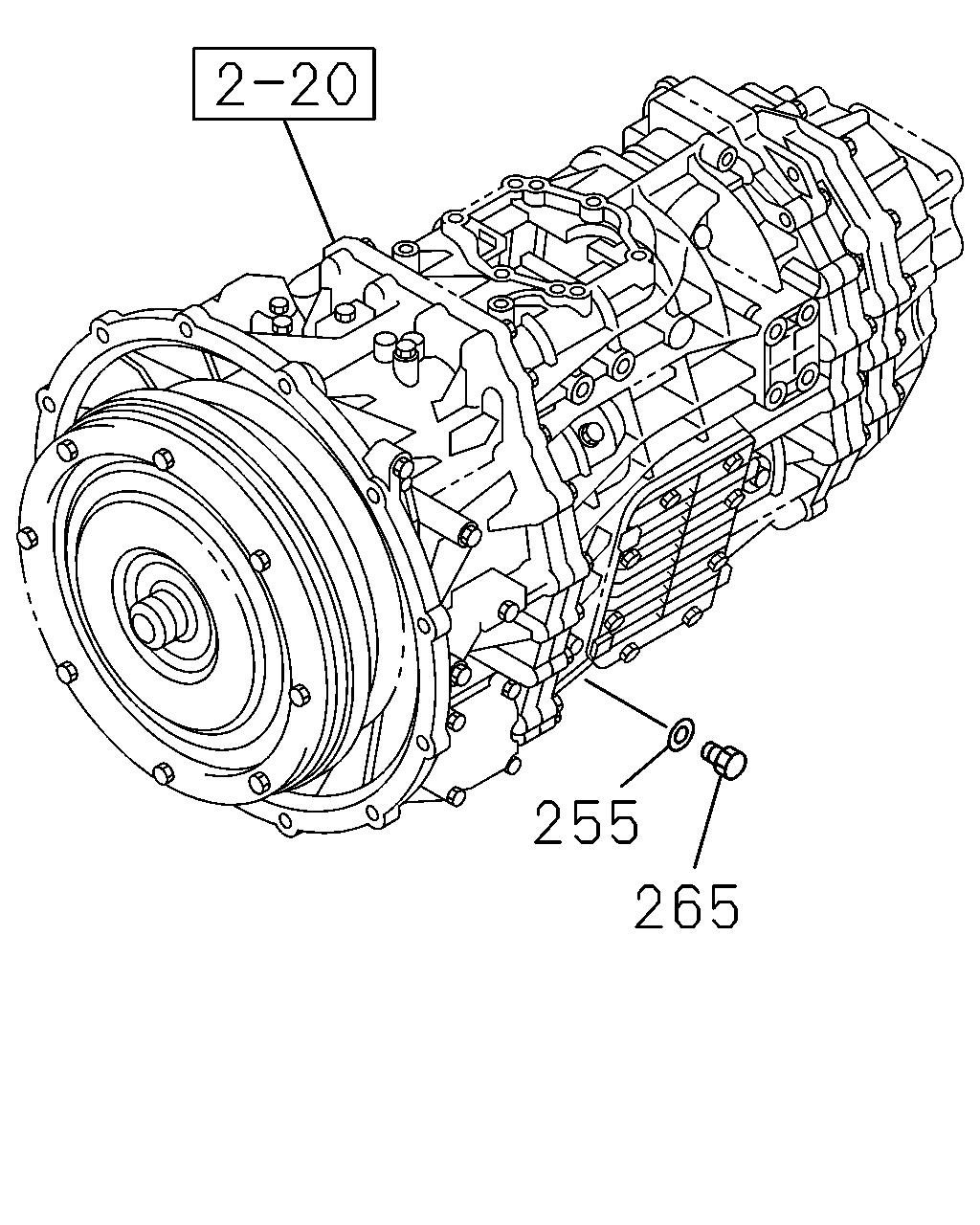

çizim 432948
255 265
BalonParca AdiParca NoAdetTipApplied Date
255 GASKET; SENSOR
ID=12.2 		9-09571-412-0 01 1 1405-
265 PLUG; HOLE
M12X9 		0-92002-412-0 01 1 1405-
