◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11589 - FVR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#144539) — 179 parça

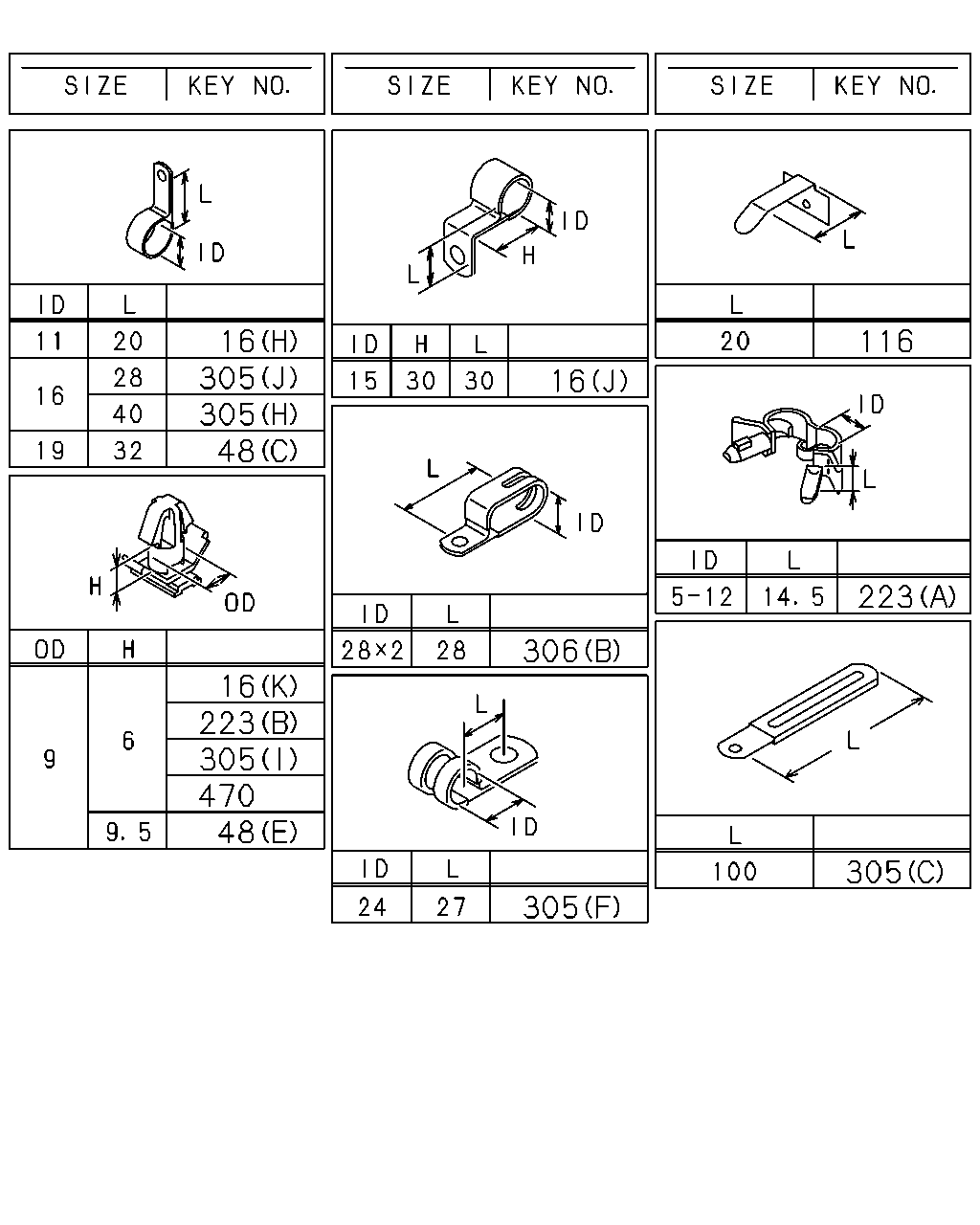

çizim 434136
16 305 305 48 16 223 305 470 48 305 306 16 116 223 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=11 L=20 		0-95235-035-0 02 1 1407-
16 CLIP; HARNESS
(J) ID=15 H=30 L=30 		1-09700-832-0 02 1 1407-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1407-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1407-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1407-
16 CLIP; HARNESS
(D) L=600 		1-09707-107-1 01 1 1407-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1407-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1407-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1407-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1407-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1407-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (K) OD=9 H=6 		1-09709-178-0 01 1 1407-
48 CLIP; FRAME HARNESS
(I) ID=35 L=50 		1-09701-214-0 01 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=15 L=65 		1-09700-466-0 06 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 09 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=15 L=65 		1-09700-466-0 07 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=70 		1-09700-485-0 10 1 1407-
48 CLIP; FRAME HARNESS
(C) ID=19 L=32 		0-95235-866-0 02 1 1407-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1407-
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 02 1 1407-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1407-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 01 1 1407-
48 CLIP; FRAME HARNESS
(G) L=180 		1-09707-162-1 01 1 1407-
48 CLIP; FRAME HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 1407-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1407-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1407-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1407-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1407-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1407-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1407-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1407-
305 CLIP; ENG HARNESS
(F) ID=24 L=27 		1-09700-809-0 03 1 1407-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1407-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1407-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1407-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1407-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1407-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1407-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1407-

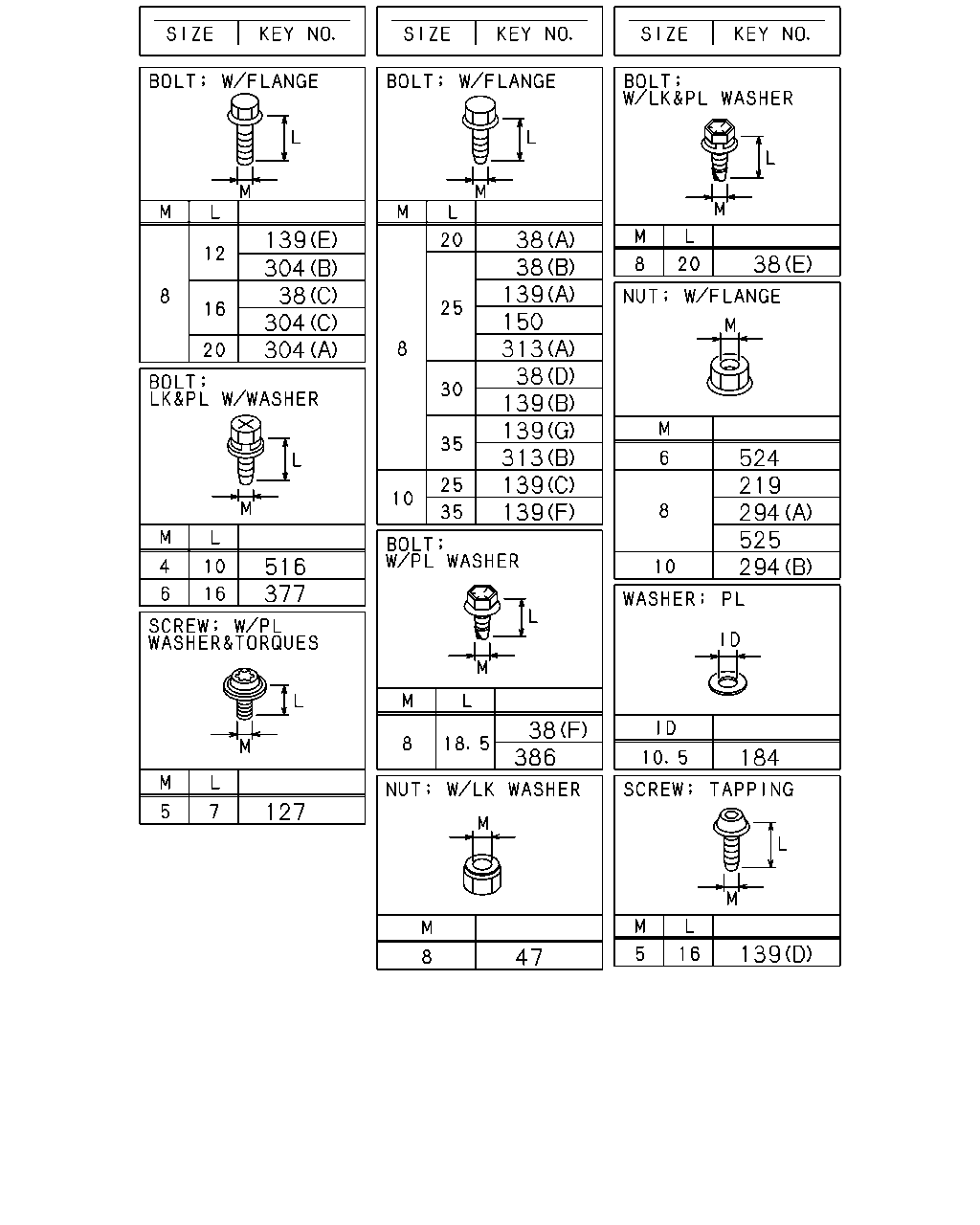

çizim 434310
139 38 304 304 304 38 139 38 313 150 38 139 139 313 139 139 38 386 184 294 294 525 219 524 139 38 47 127 377 516
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1407-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 03 1 1407-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		8-98105-048-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1407-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1407-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1407-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1407-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
139 BOLT; BRKT
(G) M8X35 FLANGE 		0-28650-835-0 01 1 1407-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1407-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1407-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1407-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1407-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1407-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1407-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1407-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1407-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1407-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1407-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1407-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1407-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 09 1 1407-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1407-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1407-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1407-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1407-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1407-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1407-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1407-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1407-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1407-
çizim 434335
48 14 16 206 217 225 491 530 503 48 14 16 538 503 1 1 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1407-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1407-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1407-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1407-
16 CLIP; HARNESS
(H) ID=11 L=20 		0-95235-035-0 02 1 1407-
16 CLIP; HARNESS
(J) ID=15 H=30 L=30 		1-09700-832-0 02 1 1407-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1407-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1407-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1407-
16 CLIP; HARNESS
(D) L=600 		1-09707-107-1 01 1 1407-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1407-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1407-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1407-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1407-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1407-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (K) OD=9 H=6 		1-09709-178-0 01 1 1407-
48 CLIP; FRAME HARNESS
(I) ID=35 L=50 		1-09701-214-0 01 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=15 L=65 		1-09700-466-0 06 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 09 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=15 L=65 		1-09700-466-0 07 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=70 		1-09700-485-0 10 1 1407-
48 CLIP; FRAME HARNESS
(C) ID=19 L=32 		0-95235-866-0 02 1 1407-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1407-
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 02 1 1407-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1407-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 01 1 1407-
48 CLIP; FRAME HARNESS
(G) L=180 		1-09707-162-1 01 1 1407-
48 CLIP; FRAME HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 1407-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1407-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1407-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 03 1 1407-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1407-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1407-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 08 1 1407-
491 CLIP; BAND,HTR HOSE & HARNESS
L=250 		5-09707-030-1 06 1 1407-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1407-
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-666-0 01 1 1407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1407-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1407-

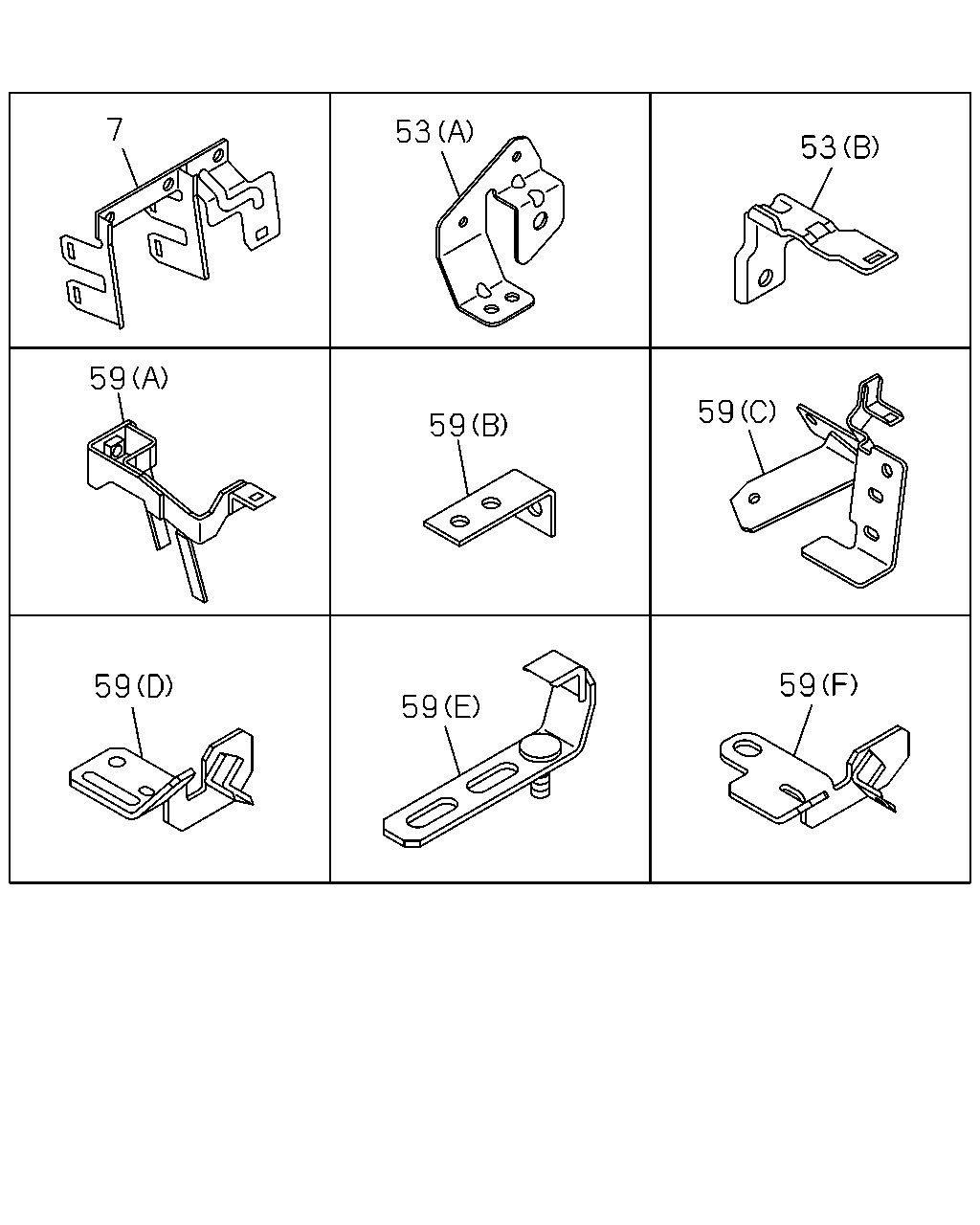

çizim 434451
7 53 53 59 59 59 59 59 59
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1407-
53 BRACKET; HARNESS
(C) 		1-82698-296-0 02 1 1407-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1407-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1407-
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 1407-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1407-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1407-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 1407-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1407-

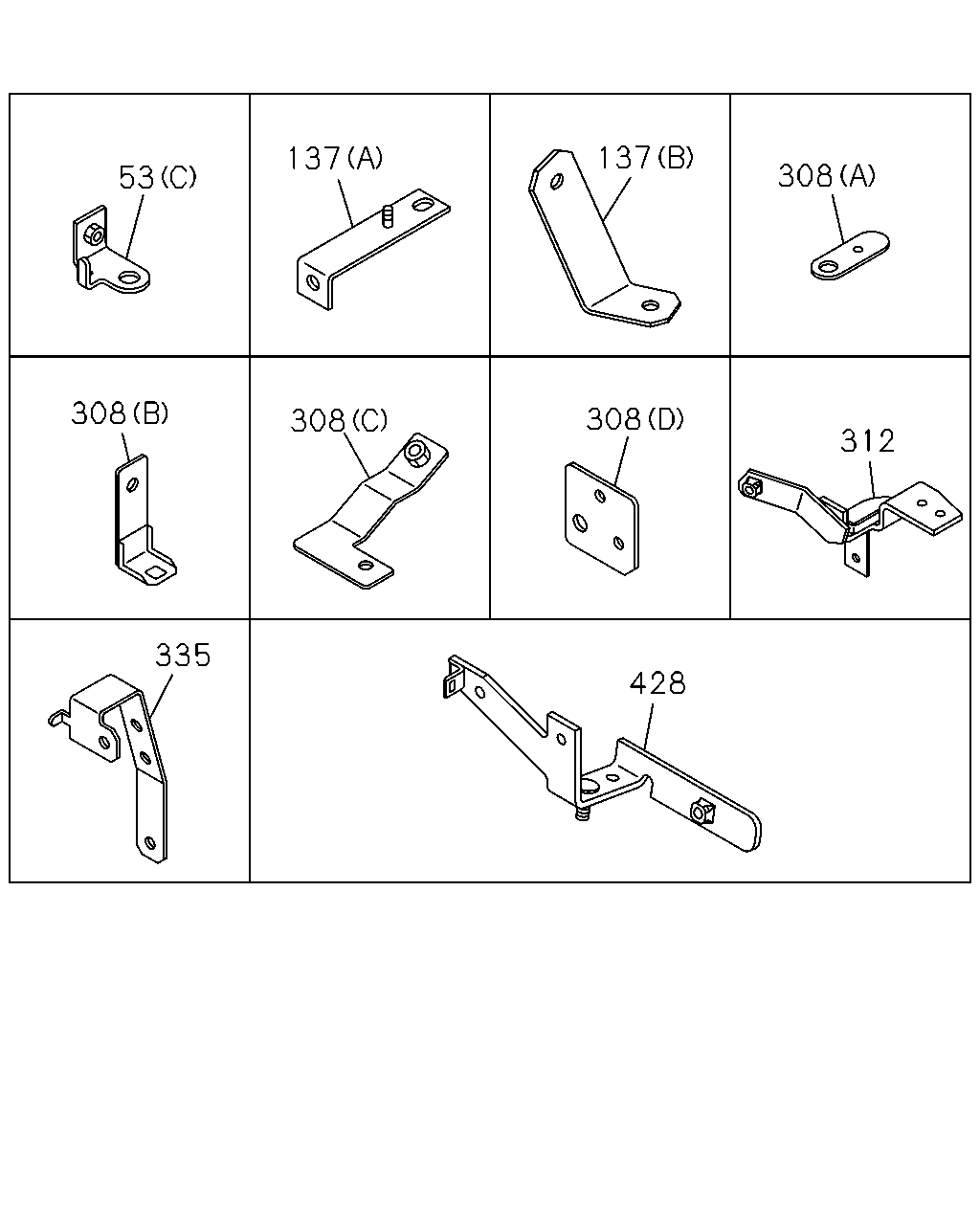

çizim 434485
53 308 335 137 308 137 308 428 308 312
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(C) 		1-82698-296-0 02 1 1407-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1407-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1407-
137 BRACKET; HARNESS CLAMP
(B) 		8-97614-728-1 01 1 1407-
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98075-824-0 01 1 1407-
312 BRACKET; CLIP HARNESS 8-98230-458-1 01 1 1407-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1407-
428 BRACKET 8-98212-082-1 01 1 1407-

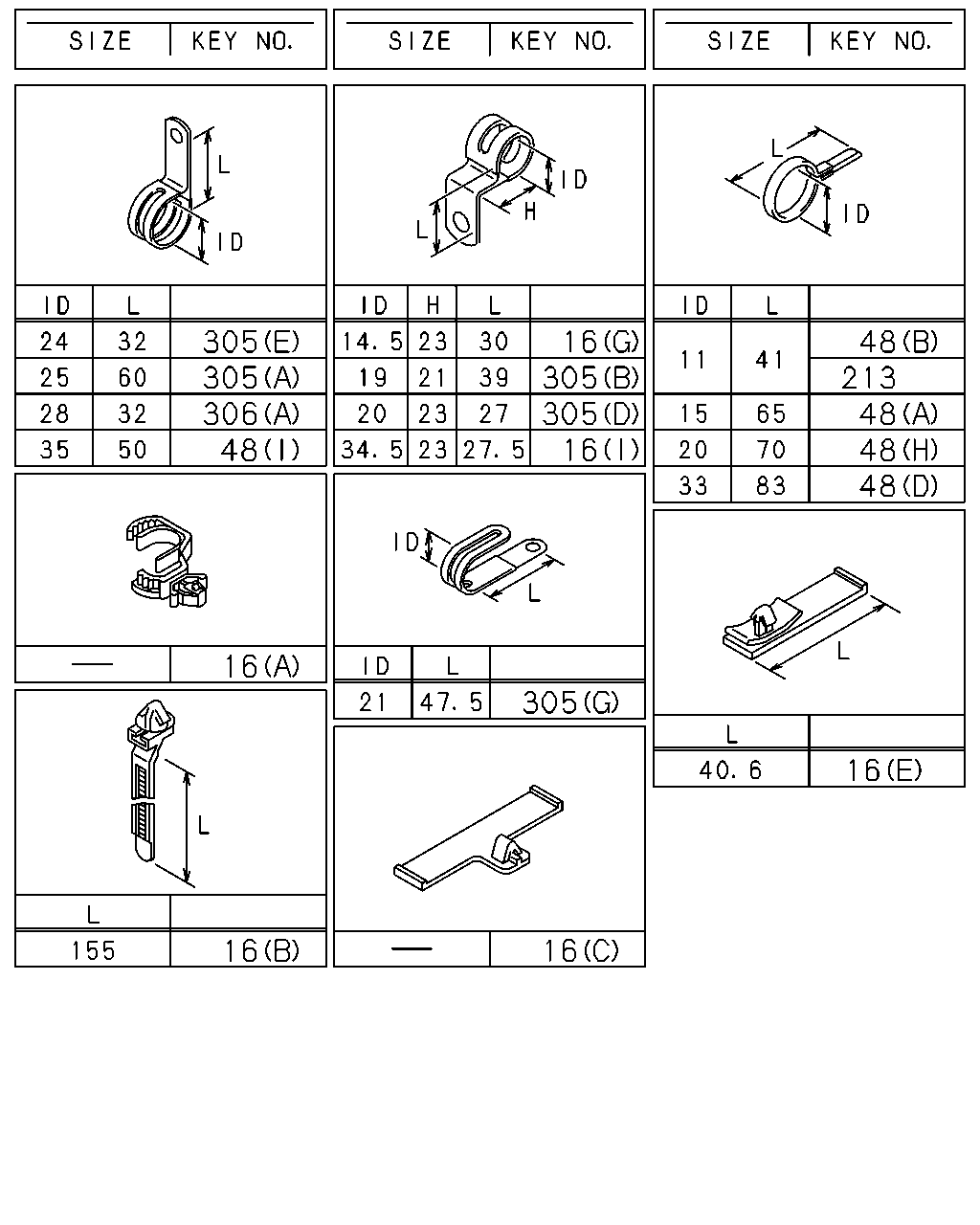

çizim 434509
305 305 306 48 16 16 16 305 305 16 305 16 48 213 48 48 48 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=11 L=20 		0-95235-035-0 02 1 1407-
16 CLIP; HARNESS
(J) ID=15 H=30 L=30 		1-09700-832-0 02 1 1407-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1407-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1407-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1407-
16 CLIP; HARNESS
(D) L=600 		1-09707-107-1 01 1 1407-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1407-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1407-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1407-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1407-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1407-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (K) OD=9 H=6 		1-09709-178-0 01 1 1407-
48 CLIP; FRAME HARNESS
(I) ID=35 L=50 		1-09701-214-0 01 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=15 L=65 		1-09700-466-0 06 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 09 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=15 L=65 		1-09700-466-0 07 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=70 		1-09700-485-0 10 1 1407-
48 CLIP; FRAME HARNESS
(C) ID=19 L=32 		0-95235-866-0 02 1 1407-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1407-
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 02 1 1407-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1407-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 01 1 1407-
48 CLIP; FRAME HARNESS
(G) L=180 		1-09707-162-1 01 1 1407-
48 CLIP; FRAME HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 1407-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1407-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1407-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1407-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1407-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1407-
305 CLIP; ENG HARNESS
(F) ID=24 L=27 		1-09700-809-0 03 1 1407-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1407-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1407-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1407-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1407-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1407-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
