Isuzu WW
▶
TRUCKS
▶
FVR
▶
11589 - FVR(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#144538) — 71 parça
◀
[810A] AIR TANK HARNESS (2 parça)
[810A] CAB HARNESS NO.2 (5 parça)
[810A] FRAME HARNESS NO.2 (3 parça)
[810A] OTHER HARNESS NO.2 (6 parça)
[810A] ENGINE AND TRANSMISSION HARNESS (5 parça)
[810A] CAB HARNESS NO.1 (20 parça)
[810A] CIGER LIGHTER SIDE (3 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] FRAME HARNESS NO.1 (16 parça)
[810A] OTHER HARNESS NO.1 (9 parça)
▶

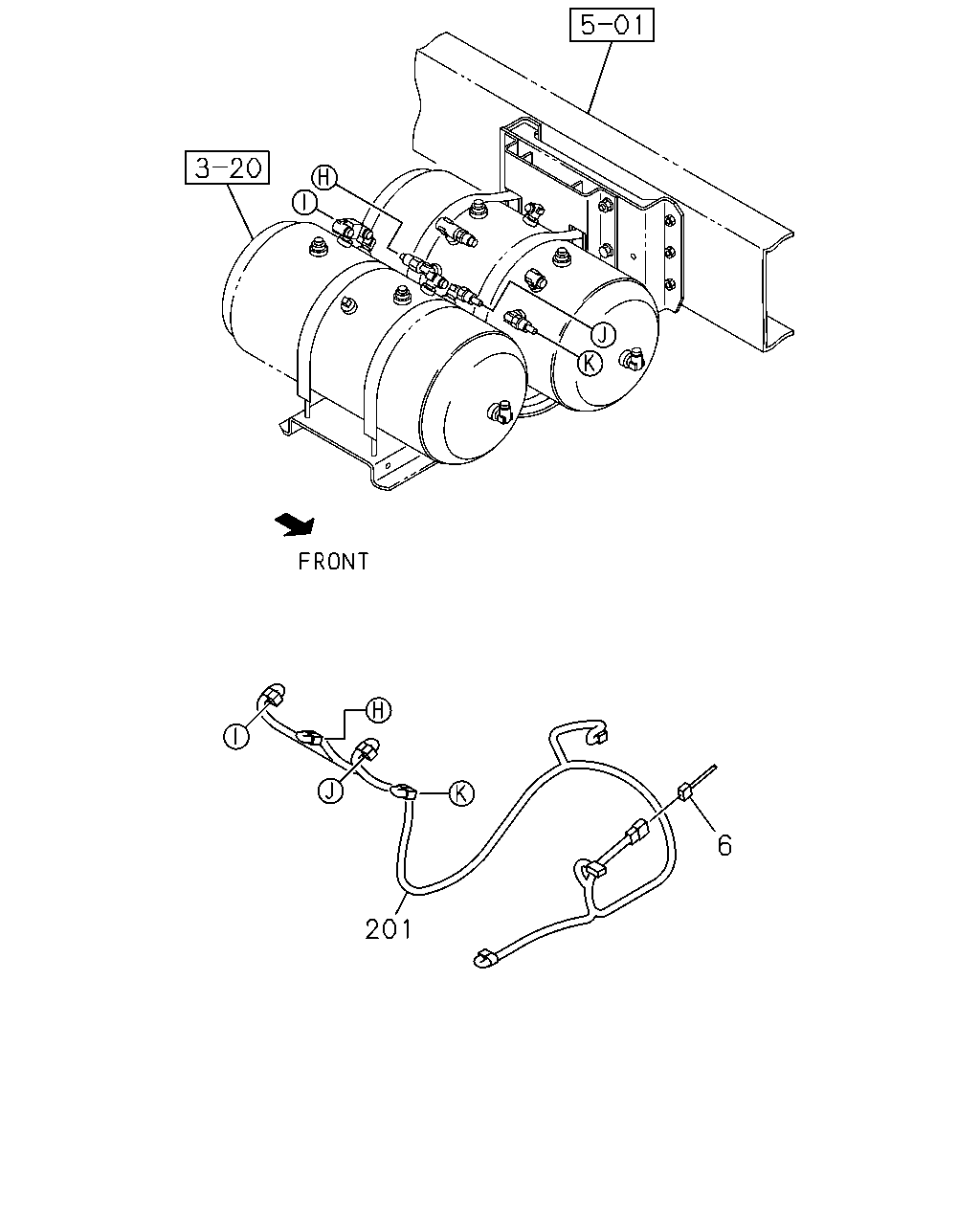

201
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98260-850-0
01
1
1407-
201
HARNESS; AIR TANK
8-98184-703-0
01
1
1407-
1
2
2
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
8-98259-594-0
01
1
1407-
2
DIODE; CABLE HARNESS
(A) BLACK 10P
1-82699-703-0
AR
1
1407-
2
DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A
8-94416-438-1
AR
1
1407-
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
AR
1
1407-
2
DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A
8-94422-640-1
AR
1
1407-
6
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98260-850-0
01
1
1407-
9
HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W)
8-98168-642-0
01
1
1407-
9
HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W)
8-98168-644-0
01
1
1407-

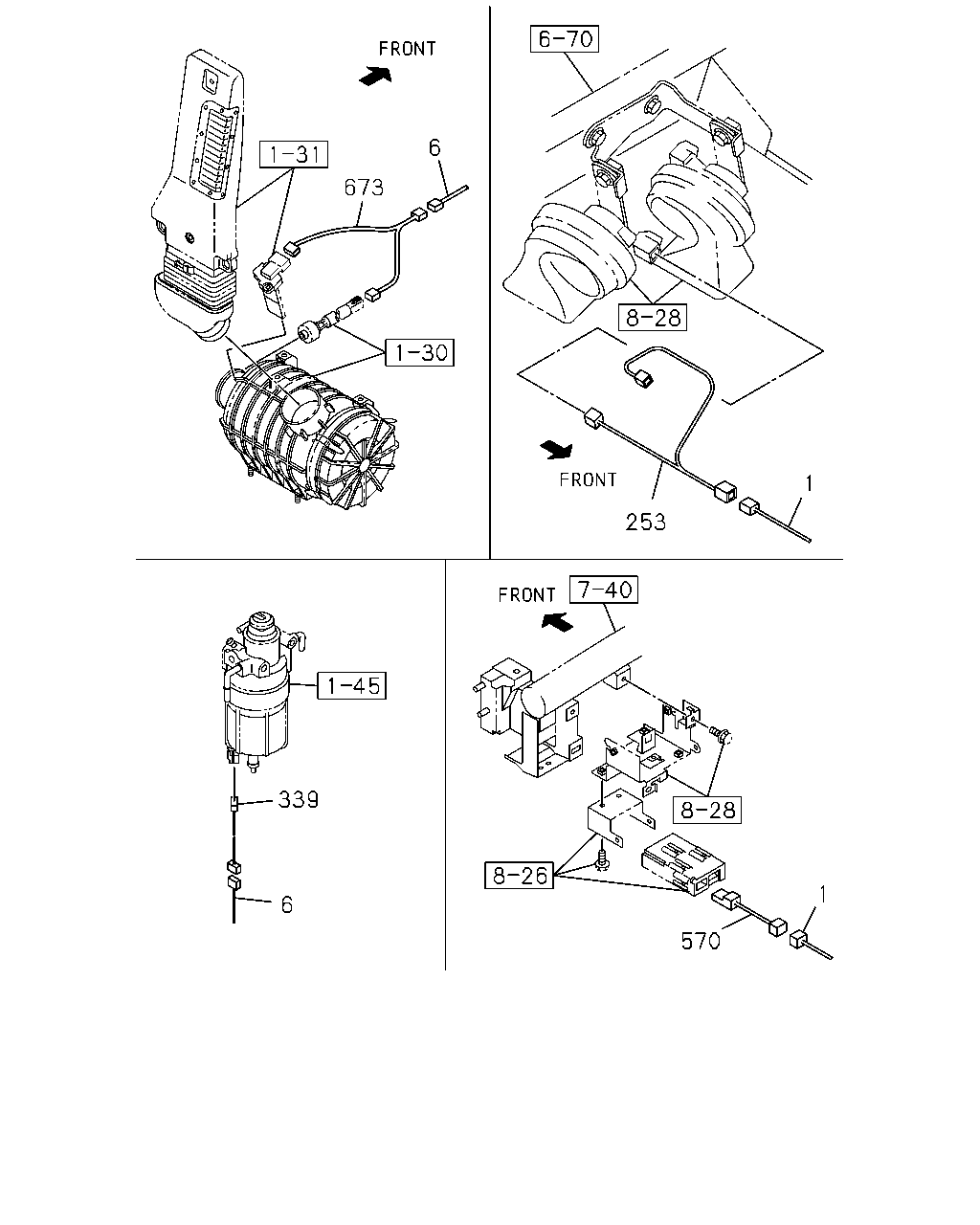

673
6
253
1
339
6
570
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
8-98259-594-0
01
1
1407-
6
HARNESS; FRAME
8-98260-850-0
01
1
1407-
253
HARNESS; EXT,HORN
8-98074-080-3
01
1
1407-
339
HARNESS; EXT,FUEL
8-98227-392-1
01
1
1407-
570
HARNESS; SPEED SENSOR
8-98091-562-0
01
1
1407-
673
HARNESS; EXT,SENSOR
8-98069-172-0
01
1
1407-

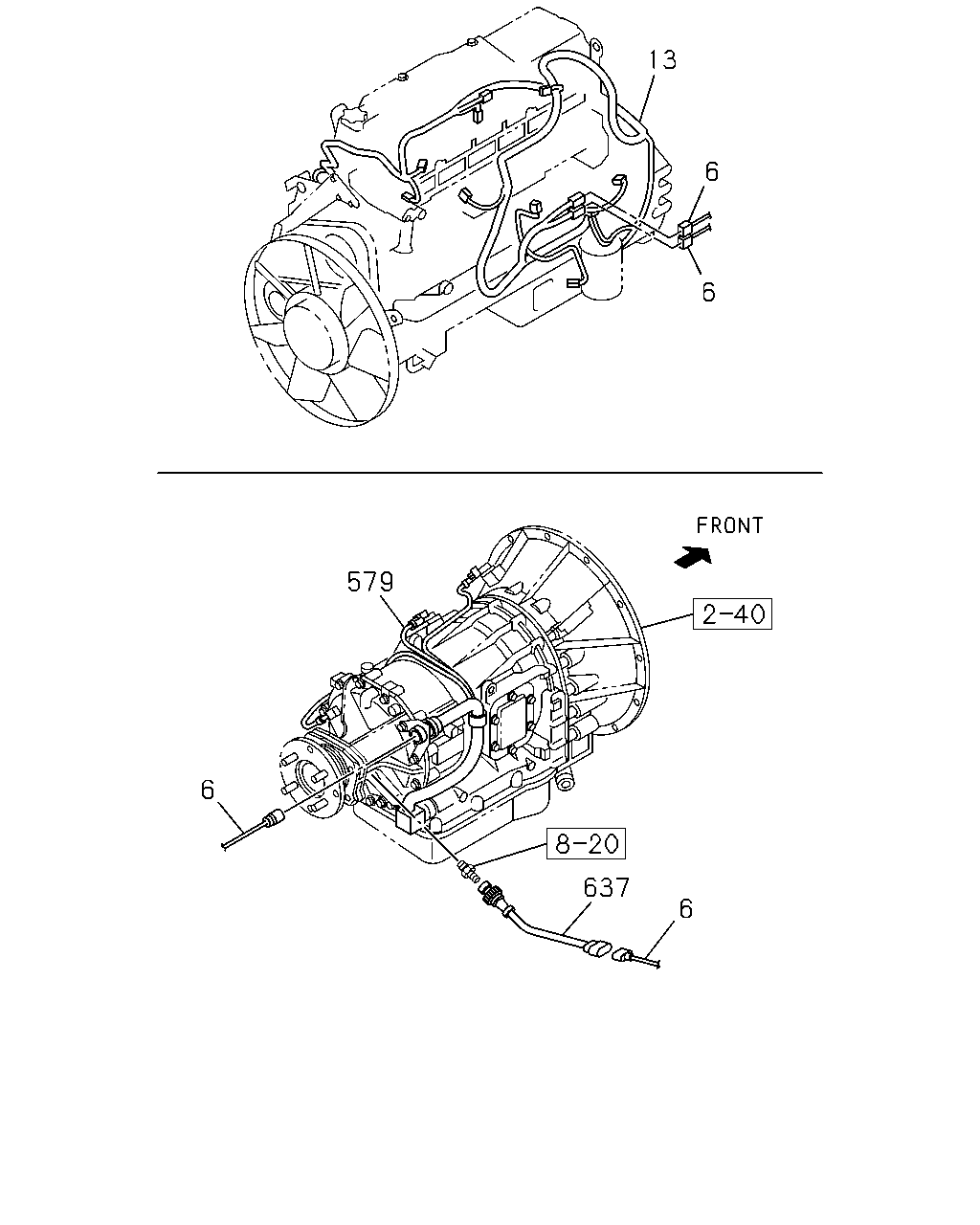

6
637
6
579
6
6
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98260-850-0
01
1
1407-
13
HARNESS; ENG
GENERATOR 24V60A(KG2)
8-98190-068-1
01
1
1407-
13
HARNESS; ENG
GENERATOR 24V50A(K89)
8-98190-067-1
01
1
1407-
579
HARNESS; A/T
8-98276-300-0
01
1
1407-
637
HARNESS; EXT,S/SENSOR
1-82671-045-1
01
1
1407-

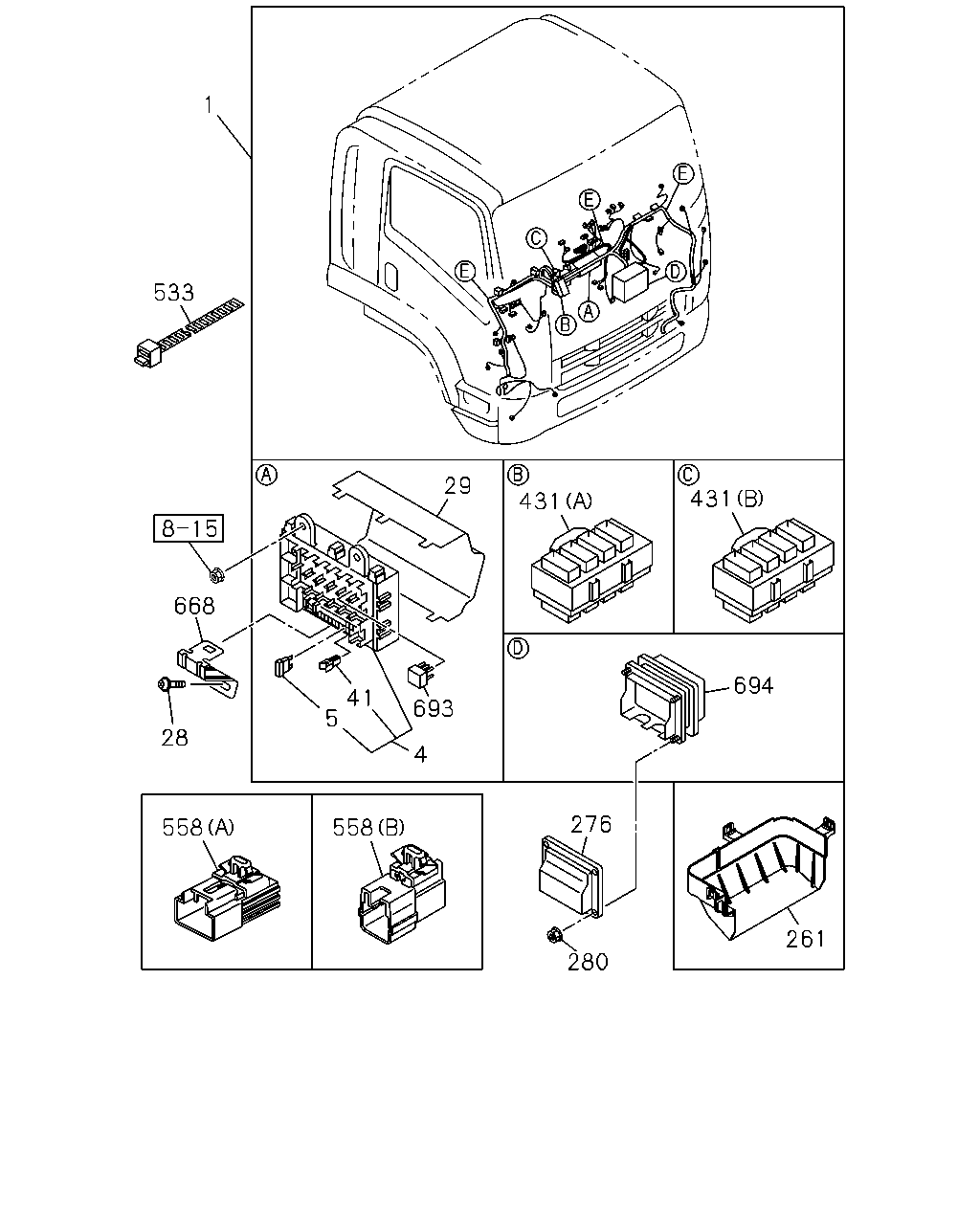

1
533
668
28
558
558
276
280
261
694
431
431
693
4
5
29
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
8-98259-594-0
01
1
1407-
4
BOX ASM; FUSE,HARNESS
8-98065-666-0
01
1
1407-
5
FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1407-
5
FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1407-
5
FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1407-
5
FUSE; FACIA HARNESS
25A WHITE
8-98062-982-0
AR
1
1407-
28
SCREW; FUSE BOX
M6X16 FLANGE
0-28650-616-0
01
1
1407-
29
COVER; FUSE BOX
8-98056-968-0
01
1
1407-
41
PULLER; FUSE
8-98054-260-0
01
1
1407-
261
COVER; CONNECTOR BOX
8-98065-986-1
01
1
1407-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1407-
280
NUT; BOX ASM FIX
M6 FLANGE
0-91180-106-0
04
1
1407-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1407-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1407-
533
CLIP
AIR CONDITIONER MANUAL CONTROL(C60) L=180
1-09707-162-1
01
1
1407-
558
CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
8-98108-678-0
01
1
1407-
558
CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
8-98108-679-0
01
1
1407-
668
BRACKET; HARNESS
8-98095-653-2
01
1
1407-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1407-
694
BOX ASM; CONNECTOR
8-98057-771-0
01
1
1407-

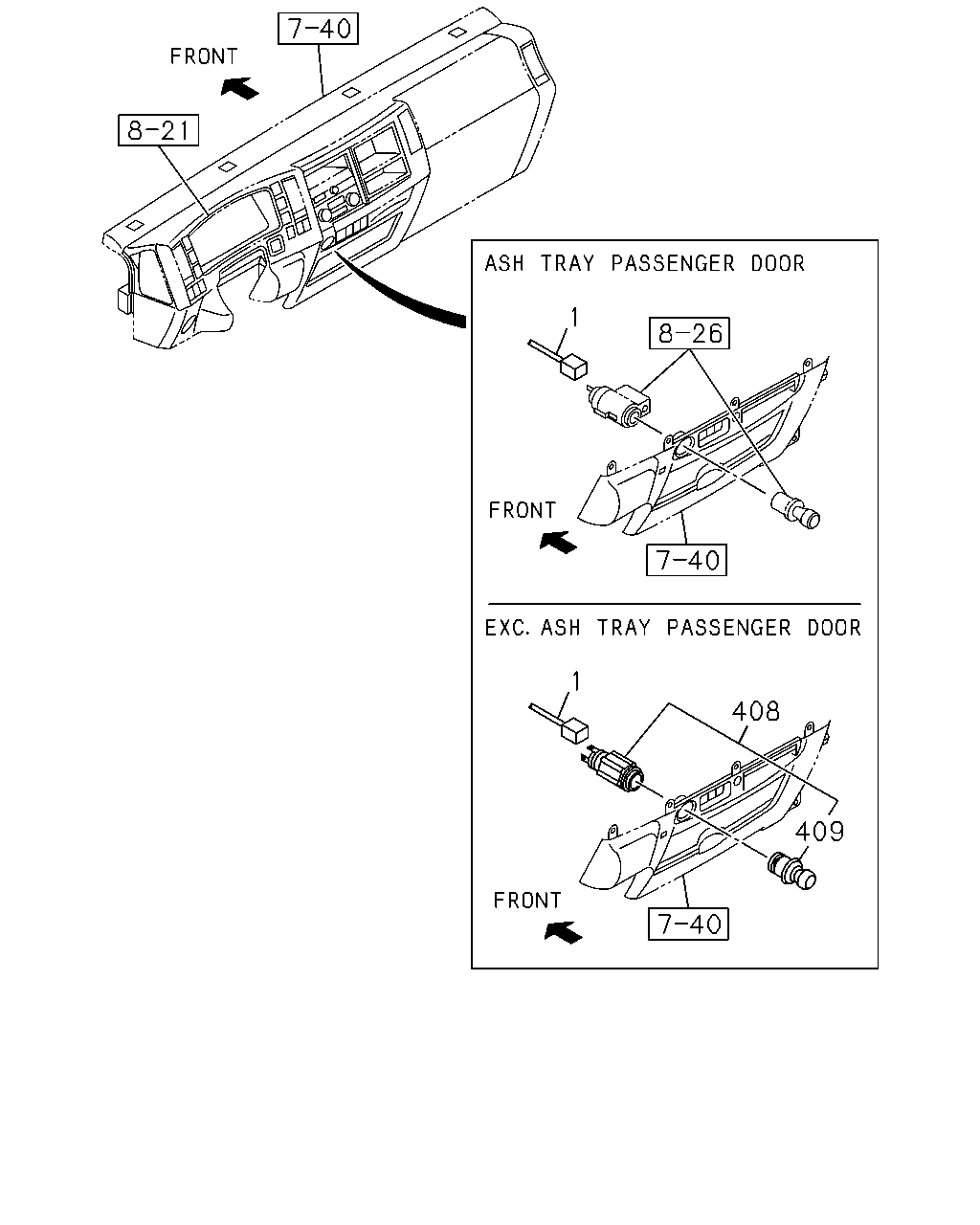

1
408
1
409
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
8-98259-594-0
01
1
1407-
408
SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX>
8-98169-757-0
01
1
1407-
409
CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX>
8-98183-771-0
01
1
1407-

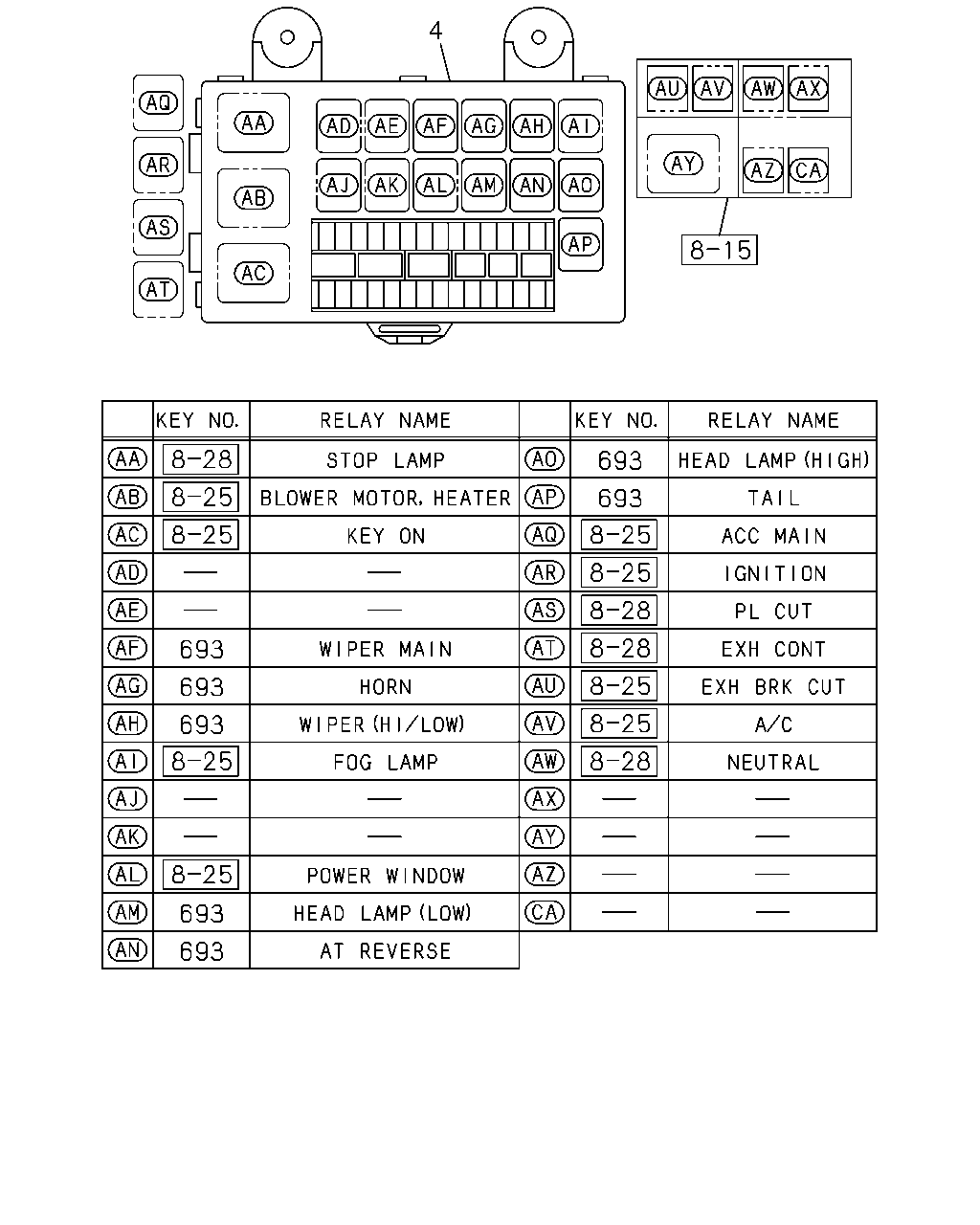

4
693
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
8-98065-666-0
01
1
1407-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1407-

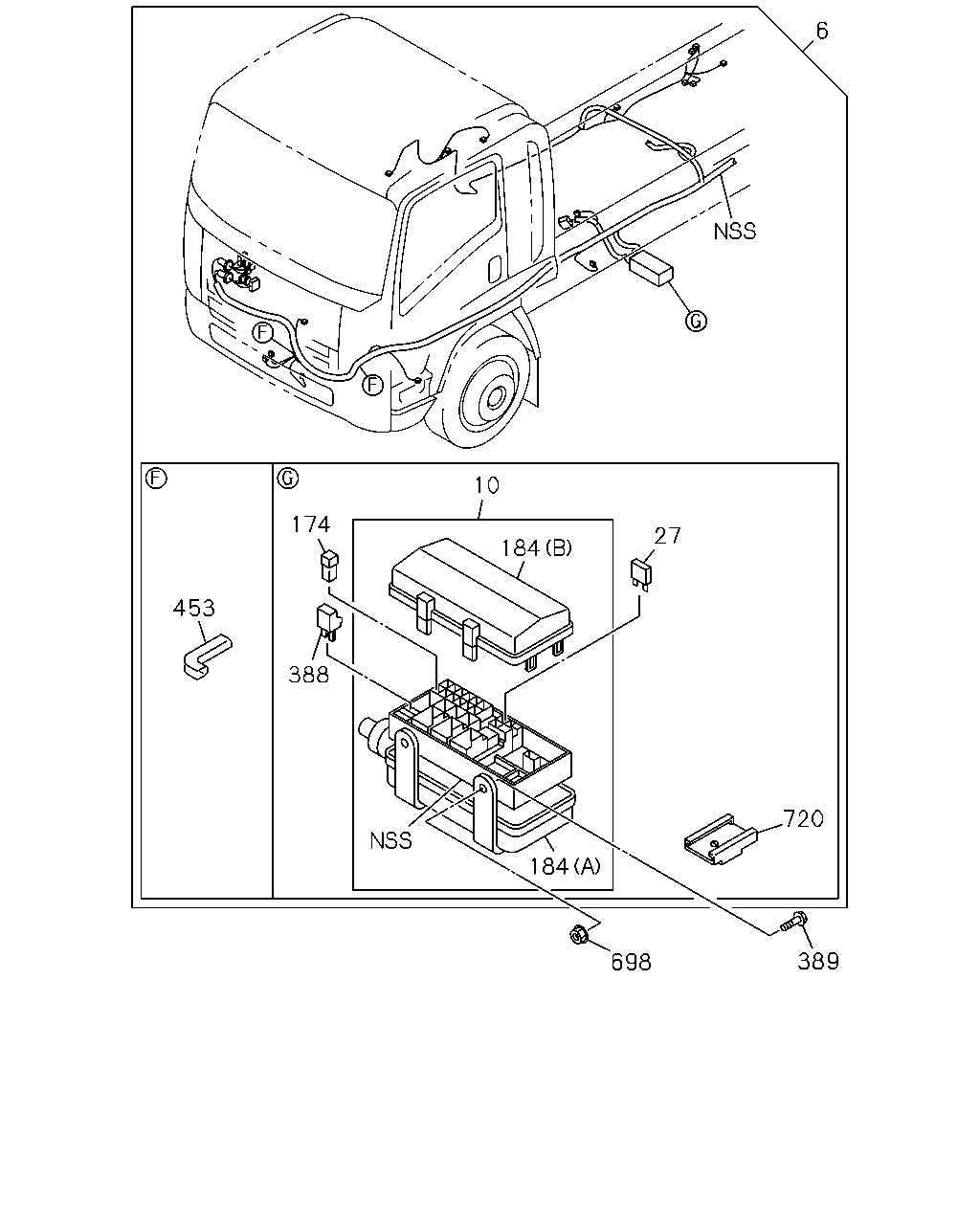

6
453
174
10
388
184
27
720
184
698
389
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98260-850-0
01
1
1407-
10
BOX; FUSE,HARNESS
8-98030-762-0
01
1
1407-
27
FUSE UNIT
10A RED
8-98054-257-0
01
1
1407-
27
FUSE UNIT
15A BLUE
8-98054-258-0
03
1
1407-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
01
1
1407-
174
FUSE; SLOW BLOW
30A PINK
8-98079-191-0
01
1
1407-
174
FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
01
1
1407-
174
FUSE; SLOW BLOW
50A RED
8-98079-193-0
03
1
1407-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
02
1
1407-
184
COVER; RELAY & FUSE BOX
(A)
8-98030-766-0
01
1
1407-
184
COVER; RELAY & FUSE BOX
(B)
8-98030-767-1
01
1
1407-
388
DIODE; RELAY BOX
BLACK 2P-1.5A
8-94422-639-1
02
1
1407-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1407-
453
PROTECTOR; HARNESS
1-82699-709-0
01
1
1407-
698
NUT; COVER,RELAY BOX
M8 FLANGE
0-91180-108-0
02
1
1407-
720
ATTACHMENT; CONNECTOR
1-82699-688-0
03
1
1407-

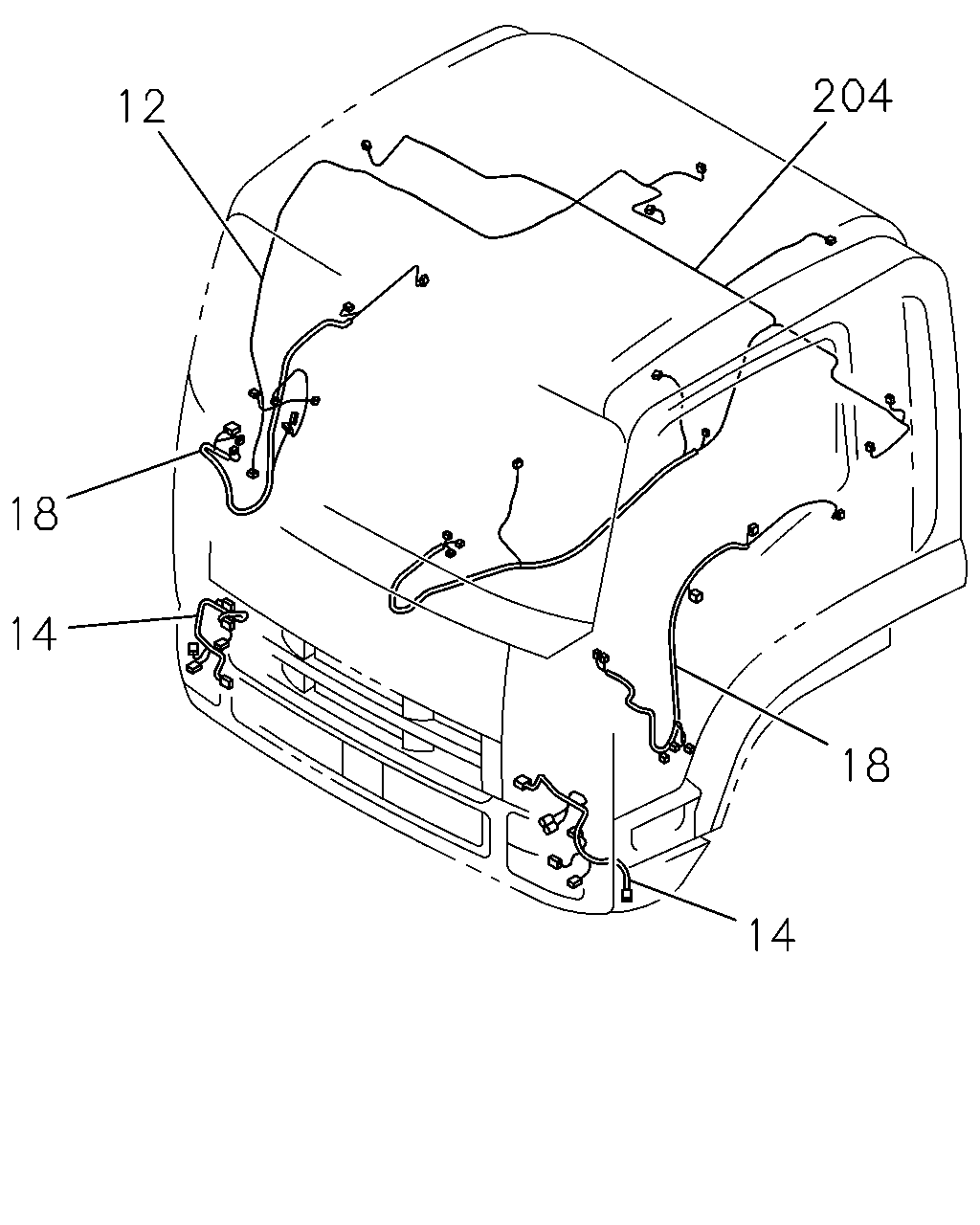

204
12
18
14
14
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
FLUORESCENT LAMP<6UC>
8-98071-442-0
01
1
1407-
12
HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98085-335-1
01
1
1407-
14
HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98069-166-1
02
1
1407-
14
HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-94270-986-0
02
1
1407-
18
HARNESS; DOOR
AUTO DOOR LOCK<AU4>
8-98178-803-0
01
1
1407-
18
HARNESS; DOOR
AUTO DOOR LOCK<AU4>
8-98178-804-0
01
1
1407-
18
HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>
8-98178-801-0
01
1
1407-
18
HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>
8-98178-802-0
01
1
1407-
204
HARNESS; CABLE,FLOOR
8-98259-787-0
01
1
1407-
