Sayfa 7-70 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11589 - FVR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶

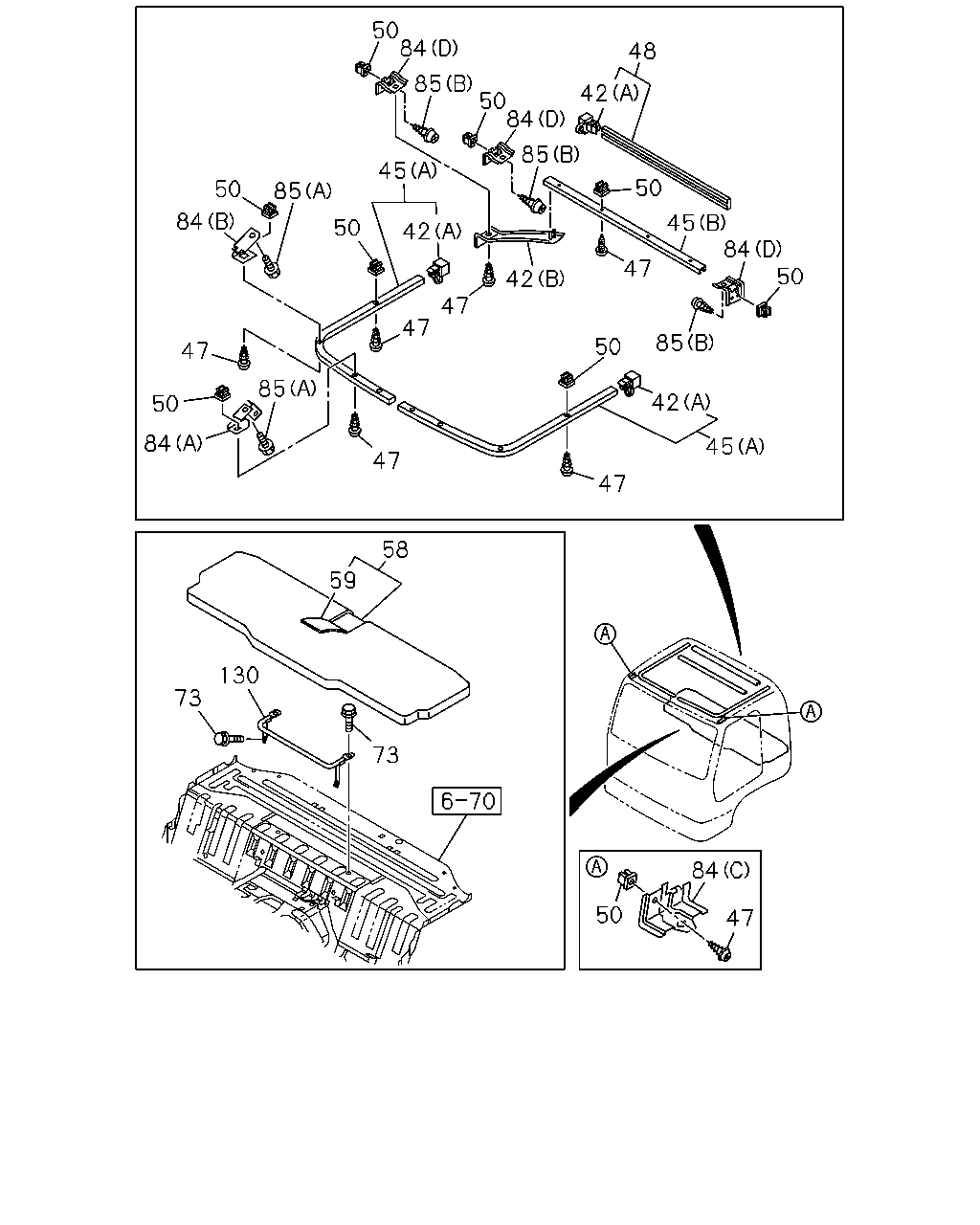

7-70 — SEPARATER AND BED (#144534) — 29 parça

84 50 47 85 47 47 45 42 50 85 84 50 45 47 50 42 47 47 84 50 85 50 42 45 50 84 85 50 84 85 42 48 73 130 59 58 73 50 84 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	1407-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	1407-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1407-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1407-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-675-0	01	1	1407-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-676-0	01	1	1407-
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	1407-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	1407-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1407-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1407-
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	1407-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1407-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1407-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1407-
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1407-
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1407-
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-384-2	01	1	1407-
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1407-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-043-1	01	1	1407-
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1407-
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1407-
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	1407-
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-289-1	01	1	1407-
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-739-0	01	1	1407-
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	06	1	1407-
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1407-
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1407-
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	04	1	1407-
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
