◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#14452) — 26 parça

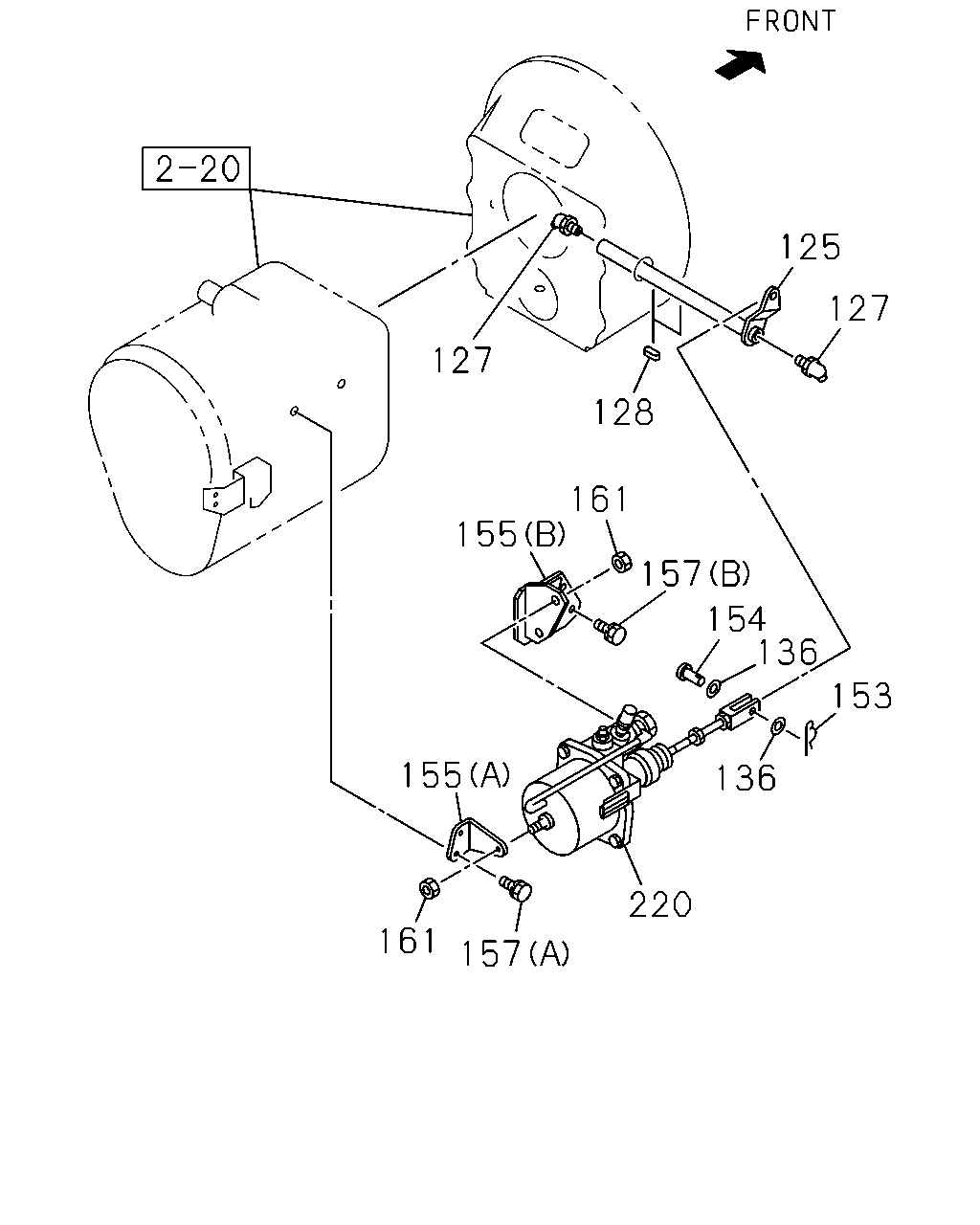

çizim 92057
125 127 127 128 161 155 157 154 136 153 155 136 220 161 157
BalonParca AdiParca NoAdetTipApplied Date
125 SHAFT; CLU 1-31342-324-0 01 1 0611-
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0611-
128 KEY; FEATHER,CLU SHAFT 1-09735-045-0 02 1 0611-
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0611-
136 WASHER; PL
ID=15 		0-91610-514-0 02 1 0611-
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 0611-
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 0611-
155 BRACKET; MINIPACK
(B) 		1-31429-456-0 01 1 0611-
155 BRACKET; MINIPACK
(A) 		1-31429-457-0 01 1 0611-
157 BOLT; BRKT
(A) M10X25 FLANGE 		0-28751-025-0 01 1 0611-
157 BOLT; BRKT
(B) M10X30 FLANGE 		0-28751-030-0 02 1 0611-
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0611-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-500-0 01 1 0611-

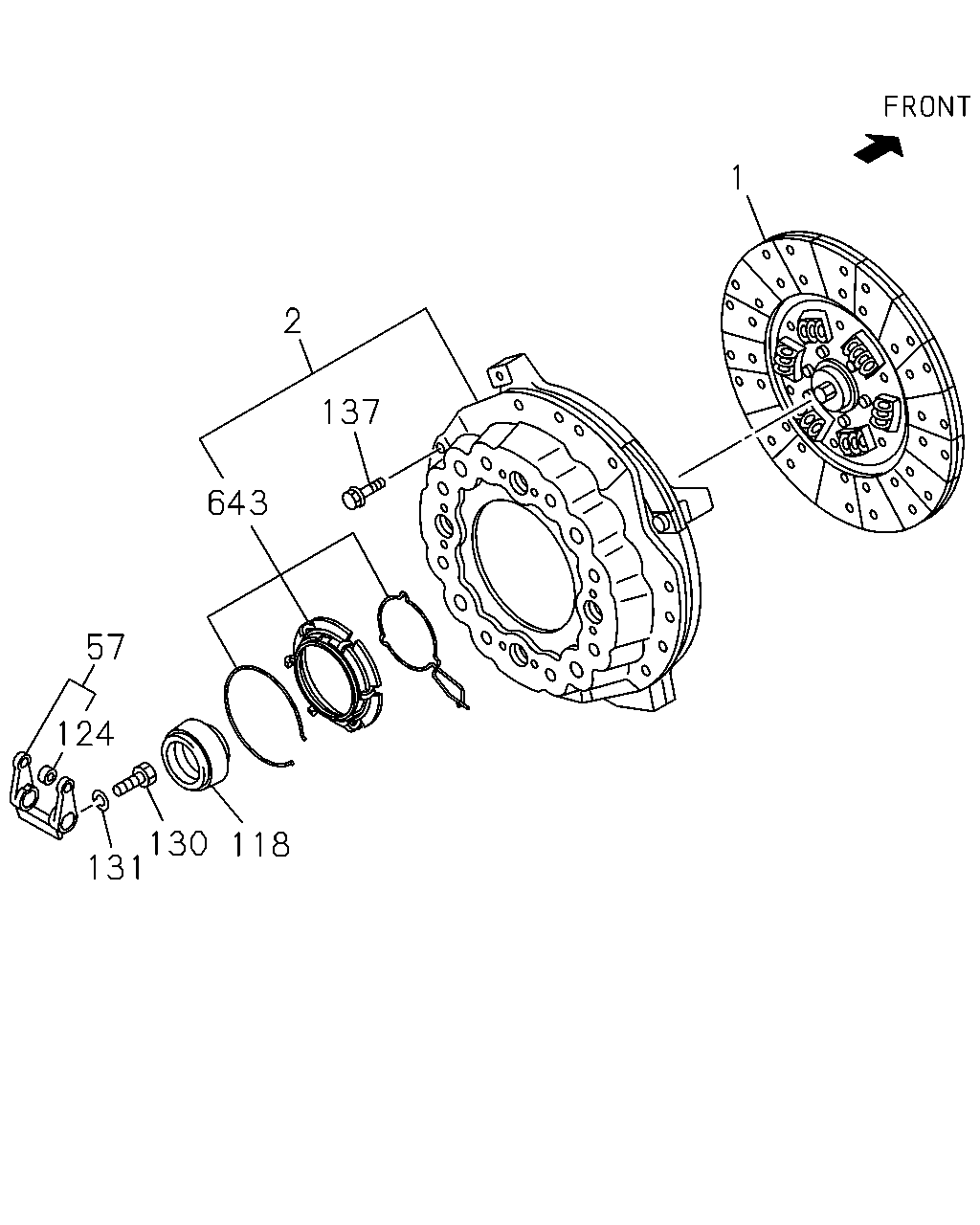

çizim 92059
2 1 137 643 57 118 130 124 31
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15.5" 		1-31240-907-0 01 1 0611-0709
1 DISC; CLUTCH
15.5" 		1-31240-976-0 01 1 0710-
2 PLATE ASM; PRESSURE,CLU 1-31220-352-0 01 1 0611-0709
2 PLATE ASM; PRESSURE,CLU 1-31220-415-0 01 1 0710-
57 FORK; SHIFT,CLU 1-31340-066-1 01 1 0611-
118 BEARING; CLU RELEASE 1-31310-006-0 01 1 0611-0803
118 BEARING; CLU RELEASE 1-31310-021-0 01 1 0804-1306
118 BEARING; CLU RELEASE 1-31310-028-0 01 1 1307-
124 BEARING; CAM,SHIFT FORK 1-31349-060-1 02 1 0611-
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0611-
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0611-
137 BOLT; CLU COVER
M10X110 FLANGE 		0-28156-011-0 12 1 0611-
643 REPAIR KIT; CLUTCH 8-98207-785-0 01 1 0710-
