Isuzu WW
▶
TRUCKS
▶
FVR
▶
11589 - FVR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#144513) — 47 parça
◀
[647A] MUD GUARD;REAR AND SIDE PANEL (27 parça)

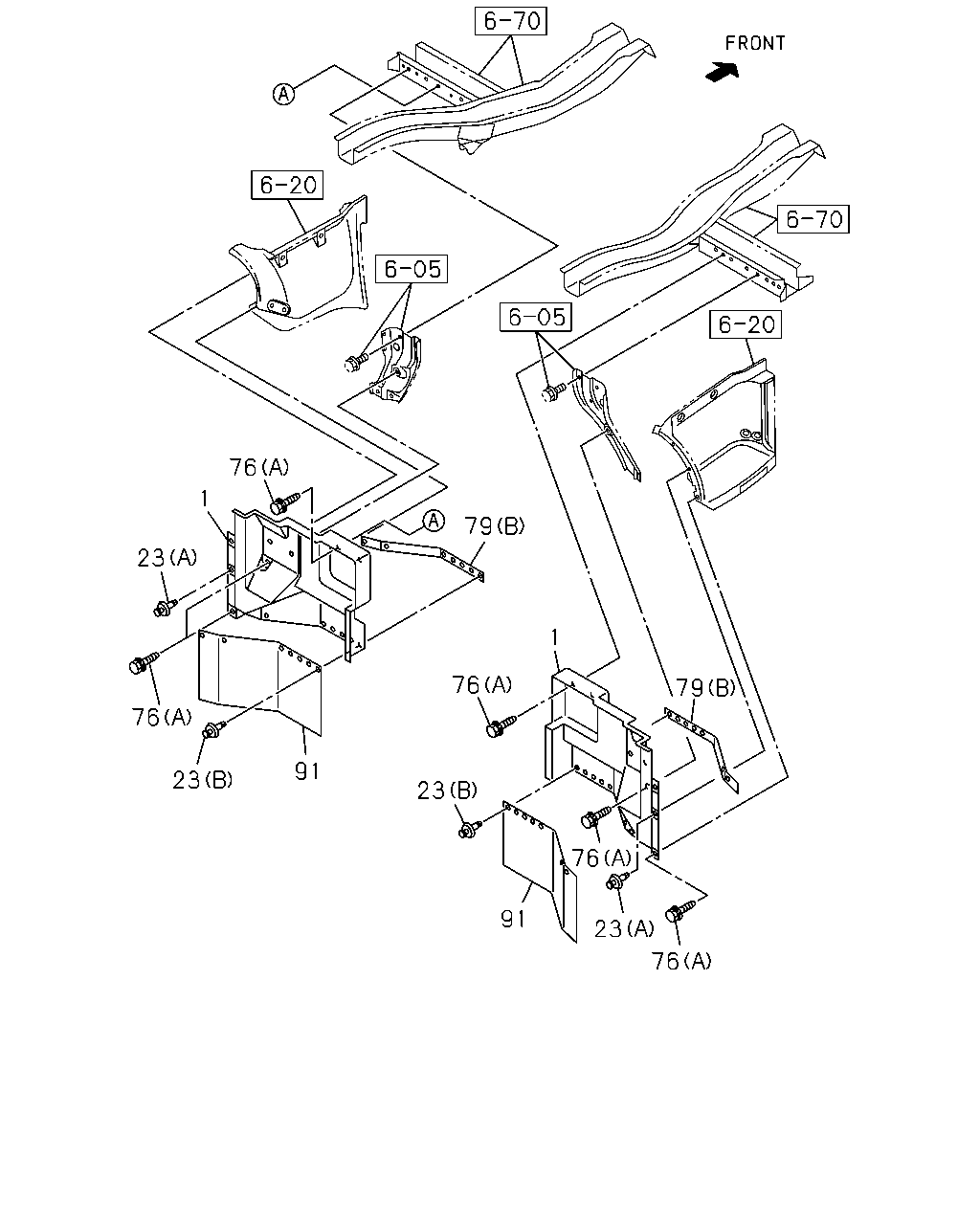

[647A] MUD GUARD;FRONT AND SPLASH GUARD (10 parça)
[647A] MUD COVER AND SEAL (10 parça)
▶
680
32
3
76
76
140
140
76
140
135
225
140
140
139
150
33
96
97
225
79
92
139
2
140
225
139
135
140
139
140
150
140
140
153
3
84
306
97
225
96
33
76
79
76
92
76
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
1-79931-512-1
02
1
1407-
3
GUARD; MUD,RR
8-98196-109-0
01
1
1407-
3
GUARD; MUD,RR
8-98219-767-0
01
1
1407-
32
NUT; MUD GUARD
M8 W/DISHED WASHER
8-97329-625-0
02
1
1407-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
12
1
1407-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1407-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1407-
79
RETAINER; MUD COVER
(B)
8-98060-066-0
02
1
1407-
79
RETAINER; MUD COVER
(A)
8-98102-105-0
01
1
1407-
79
RETAINER; MUD COVER
(A)
8-98102-106-0
01
1
1407-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1407-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
08
1
1407-
96
STAY; MUD GUARD
1-79931-519-4
01
1
1407-
96
STAY; MUD GUARD
1-79931-540-3
01
1
1407-
97
BOLT; STAY TO FRAME
M10X30 FLANGE
0-28651-030-0
08
1
1407-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1407-
139
PANEL; SIDE
(B)
1-53194-590-1
01
1
1407-
139
PANEL; SIDE
(B)
1-53194-591-0
01
1
1407-
139
PANEL; SIDE
(A)
1-53194-619-4
01
1
1407-
139
PANEL; SIDE
(A)
1-53194-620-5
01
1
1407-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
16
1
1407-
150
NUT; SIDE PANEL
M8 W/DISHED WASHER
8-97329-625-0
04
1
1407-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1407-
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1407-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1407-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1407-
680
GUARD; MUD,UPPER
8-98123-402-0
01
1
1407-
76
1
23
76
23
91
79
76
23
76
91
23
76
79
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
8-98039-850-1
01
1
1407-
1
GUARD; MUD,FRT
8-98039-851-1
01
1
1407-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
10
1
1407-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1407-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1407-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1407-
79
RETAINER; MUD COVER
(B)
8-98060-066-0
02
1
1407-
79
RETAINER; MUD COVER
(A)
8-98102-105-0
01
1
1407-
79
RETAINER; MUD COVER
(A)
8-98102-106-0
01
1
1407-
91
COVER; MUD,FRT
8-98060-067-1
02
1
1407-
9
307
307
218
181
254
192
219
254
192
181
9
218
219
307
307
307
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
GUARD; SPLASH,WHEEL HOUSE
8-98040-119-2
01
1
1407-
9
GUARD; SPLASH,WHEEL HOUSE
8-98040-120-2
01
1
1407-
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
1407-
192
SEAL; MUD COVER
8-98041-158-1
01
1
1407-
192
SEAL; MUD COVER
8-98041-159-2
01
1
1407-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
10
1
1407-
219
FLAP; MUD GUARD
8-98041-149-1
02
1
1407-
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
1407-
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
1407-
307
RETAINER
D8X13.5
1-09987-248-1
14
1
1407-
