Isuzu WW
▶
TRUCKS
▶
FVR
▶
11589 - FVR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

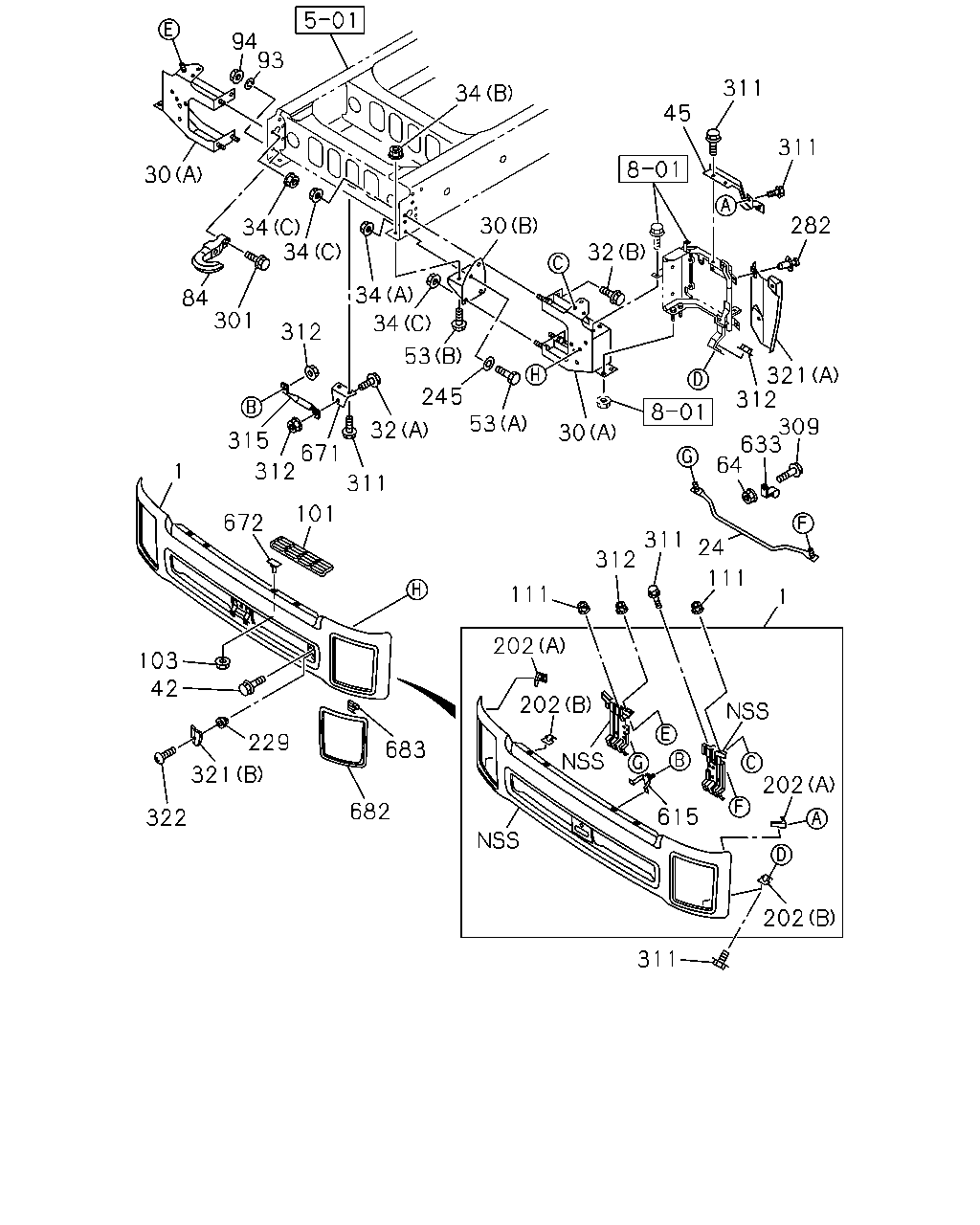

6-01 — FRONT BUMPER
(#144502) — 50 parça
311
311
282
321
312
633
309
64
24
311
111
1
312
111
202
202
202
202
615
311
682
683
229
42
103
321
322
30
53
245
53
30
32
45
34
93
94
30
34
34
34
34
312
301
84
32
671
315
101
311
312
672
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
8-97409-903-1
01
1
1407-
24
BAR; FRT BUMPER
8-97625-359-0
01
1
1407-
30
BRACKET; FRT BUMPER
(A)
8-98034-434-2
01
1
1407-
30
BRACKET; FRT BUMPER
(A)
8-98034-435-2
01
1
1407-
30
BRACKET; FRT BUMPER
(B)
8-98053-546-1
01
1
1407-
30
BRACKET; FRT BUMPER
(B)
8-98053-547-1
01
1
1407-
32
BOLT; BRKT,BUMPER
(B) M12X35 FLANGE
0-28051-235-0
02
1
1407-
32
BOLT; BRKT,BUMPER
(A) M10X30
8-94324-205-0
01
1
1407-
34
NUT; BRKT,BUMPER
(A) M16
0-91110-516-0
02
1
1407-
34
NUT; BRKT,BUMPER
(C) M12 FLANGE
0-91180-212-0
06
1
1407-
34
NUT; BRKT,BUMPER
(B) M14 FLANGE
0-91180-214-0
04
1
1407-
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1407-
45
BRACKET; BRKT TO BUMPER
8-97613-647-2
01
1
1407-
45
BRACKET; BRKT TO BUMPER
8-97613-648-2
01
1
1407-
53
BOLT; BRKT TO FRAME
(A) M16X40
0-20851-640-0
02
1
1407-
53
BOLT; BRKT TO FRAME
(B) M14X45 FLANGE
0-28851-445-0
04
1
1407-
64
NUT; CLIP
M6 FLANGE
0-91180-106-0
01
1
1407-
84
HOOK
1-57181-027-1
01
1
1407-
93
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
1407-
94
NUT; HOOK
M16
0-91110-516-0
02
1
1407-
101
STEP; BUMPER
8-97611-542-0
01
1
1407-
101
STEP; BUMPER
8-97611-543-0
01
1
1407-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1407-
111
NUT; STAY
M8 FLANGE
0-91180-108-0
02
1
1407-
202
BRACKET; BUMPER SIDE
(A)
8-97613-636-0
01
1
1407-
202
BRACKET; BUMPER SIDE
(A)
8-97613-637-0
01
1
1407-
202
BRACKET; BUMPER SIDE
(B)
8-97613-640-1
01
1
1407-
202
BRACKET; BUMPER SIDE
(B)
8-97613-641-1
01
1
1407-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1407-
245
WASHER; PL,BRKT TO FRAME
ID=17 OD=30
0-91610-516-0
02
1
1407-
282
FASTENER; BUMPER FILLER
D8X13.5
1-09987-248-1
08
1
1407-
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
02
1
1407-
309
BOLT; CLIP
M6X16 FLANGE
0-28650-616-0
01
1
1407-
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
06
1
1407-
311
BOLT; BRKT
M10X30
8-94324-205-0
07
1
1407-
312
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1407-
312
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1407-
315
STAY; BUMPER
8-97613-645-1
01
1
1407-
321
COVER; BUMPER FRT SIDE
(B)
8-97616-296-1
01
1
1407-
321
COVER; BUMPER FRT SIDE
(B)
8-97616-297-1
01
1
1407-
321
COVER; BUMPER FRT SIDE
(A)
8-97619-119-0
01
1
1407-
321
COVER; BUMPER FRT SIDE
(A)
8-97619-120-0
01
1
1407-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1407-
615
BRACKET; BUMPER CENTER
8-97613-643-1
01
1
1407-
633
CLIP; BUMPER
ID=16 H=24 L=20
0-95207-315-0
01
1
1407-
671
BRACKET; STAY
8-97620-889-0
01
1
1407-
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1407-
682
BEZEL; BUMPER
8-97611-530-2
01
1
1407-
682
BEZEL; BUMPER
8-97611-531-2
01
1
1407-
683
CLIP; BEZEL,BUMPER
8-98084-293-0
08
1
1407-
