3-70 — BRAKE PIPING; AIR,AIR MASTER (#1445) — 81 parça

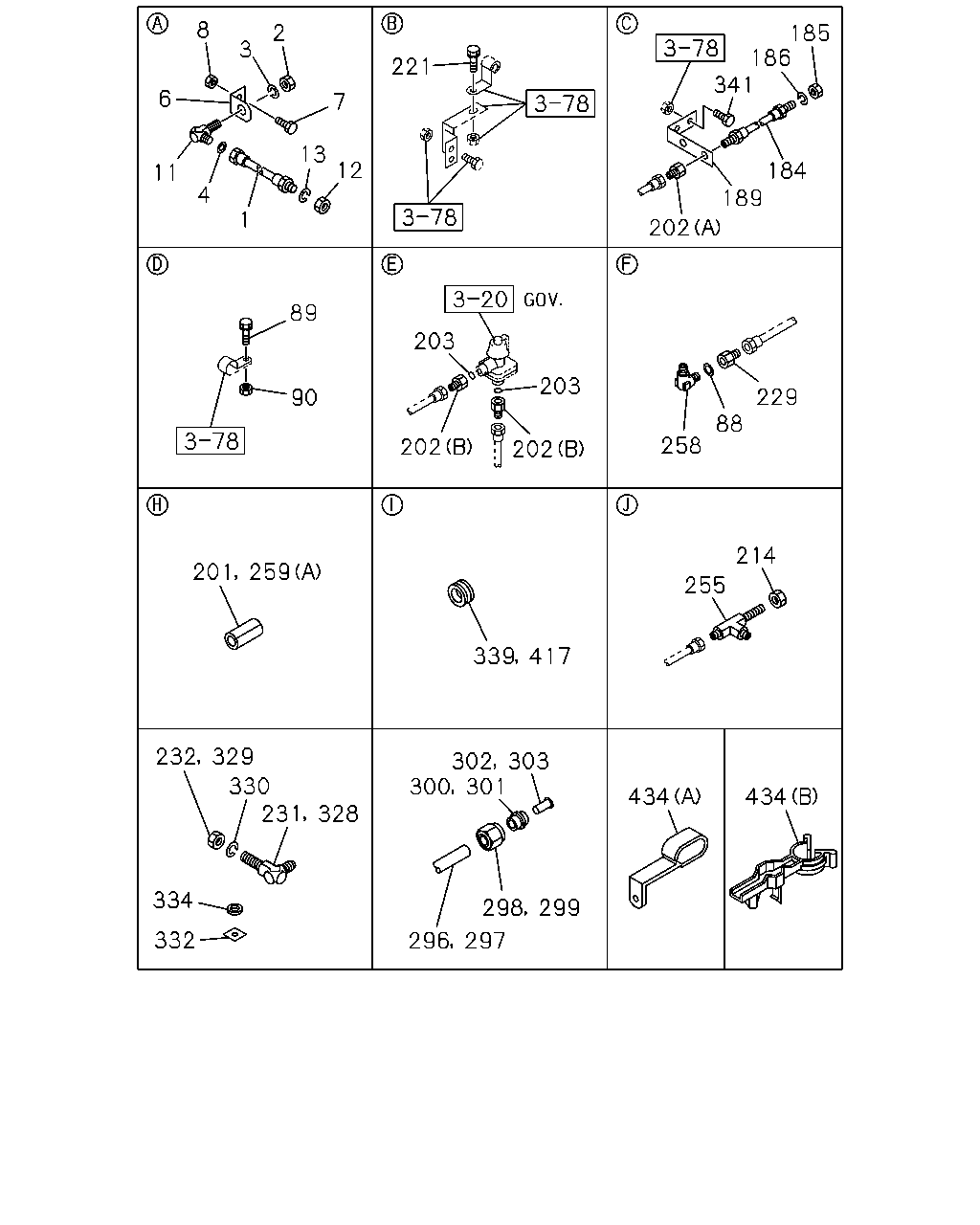

çizim 29862
8 2 185 186 341 3 221 6 7 13 12 184 189 11 4 1 202 89 203 203 229 90 88 202 258 202 214 201 259 255 339 417 232 329 302 300 330 231 434 434 328 334 298 299 332 296 297 303 301
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1030 		0-17806-103-1 01 1 9203-
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 9203-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 9203-
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9203-
6 BRACKET; FLEX HOSE,AIR TANK 1-47476-057-1 01 1 9203-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28010-825-0 02 1 9203-9204
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9205-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9203-
11 UNION; AIR PIPE 1-09654-202-1 01 1 9203-
12 NUT; UNION
M22 		9-09111-422-0 01 1 9203-
13 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 9203-9312
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9203-
89 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28010-825-0 02 1 9203-9204
89 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 9205-
90 NUT; TUBE CLIP
M8 		9-09110-408-0 02 1 9203-
184 HOSE; FLEX,AIR GOV
L=410 		0-07030-410-0 01 1 9203-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9203-9305
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 02 1 9306-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9203-9305
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 02 1 9306-9312
189 BRACKET; FLEX HOSE 1-47465-193-0 01 1 9203-
201 SLEEVE; RUBBER,NYLON TUBE
AIR DRYER<PS7> ID=29 OD=39 L=40 		1-09337-013-0 01 1 9203-
202 ADAPTER
(A) 		1-09650-373-0 01 1 9203-
202 ADAPTER
(B) 		1-09660-550-0 02 1 9203-
203 GASKET; ADAPTER,GOV
ID=11 OD=18 		9-09572-510-0 02 1 9203-
214 NUT; UNION,AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) UNS 17/32-24 B=17 		1-09487-023-0 01 1 9203-
221 BOLT; BRKT
M8X25 FLANGE 		0-28010-825-0 01 1 9203-9204
221 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9205-
229 ADAPTER; NYLON TUBE
M14 & PT1/4 		9-48319-149-0 01 1 9203-
231 UNION; AIR PIPE 1-09654-180-3 01 1 9203-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 9203-
255 UNION; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-09664-094-0 01 1 9203-
258 CONNECTOR; NYLON TUBE
17/32" PT1/4 ELBOW 		1-09660-551-0 01 1 9203-
259 SLEEVE; RUBBER,NYLON TUBE
(A) ID=29 OD=39 L=40 		1-09337-013-0 01 1 9203-9204
259 SLEEVE; RUBBER,NYLON TUBE
(A) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9205-9205
259 SLEEVE; RUBBER,NYLON TUBE
(A) ID=29 OD=39 L=40 		1-09337-013-0 04 1 9206-
259 SLEEVE; RUBBER,NYLON TUBE
(B) ID=10 OD=14 L=30 		9-09956-682-0 01 1 9203-
296 TUBE; NYLON
BLACK OD=3/8" L=30000 		1-09368-250-0 AR 1 9203-
297 TUBE; NYLON
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) BLACK OD=3/8" L=30000 		1-09368-254-0 01 1 9203-
297 TUBE; NYLON
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) BLACK OD=1/2" L=30000 		1-09368-250-0 01 1 9203-
298 NUT; SLEEVE
OD=3/8" 		1-09660-557-0 AR 1 9203-
298 NUT; SLEEVE
OD=1/2" 		1-09660-558-0 AR 1 9203-
299 NUT; SLEEVE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=1/2" 		1-09660-558-0 02 1 9203-
300 SLEEVE; TUBE
ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 AR 1 9203-
300 SLEEVE; TUBE
ID=12.93 OD=15.85 L=10.92 		1-09666-061-0 AR 1 9203-
301 SLEEVE; TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=12.93 OD=15.85 L=10.92 		1-09666-061-0 02 1 9203-
302 RING; INSERT
OD=1/2" 		1-09669-107-0 AR 1 9203-
302 RING; INSERT
OD=3/8" 		1-09669-108-0 AR 1 9203-
303 RING; INSERT
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=1/2" 		1-09669-107-0 02 1 9203-
328 UNION; AIR PIPE
M10 ELBOW 		1-09654-186-2 01 1 9203-
329 NUT; UNION,AIR PIPE
M10 		9-09110-410-0 01 1 9203-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9203-
332 SEAL; PIPE UNION
25X25 		8-94272-533-0 01 1 9203-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9203-
339 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9203-
341 BOLT; BRKT
M8X25 FLANGE 		0-28010-825-0 02 1 9203-9204
341 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9205-
417 GROMMET; NYLON TUBE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 9203-
434 CLIP
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9203-
434 CLIP
(B) ID=17 		1-09987-105-1 01 1 9203-9402

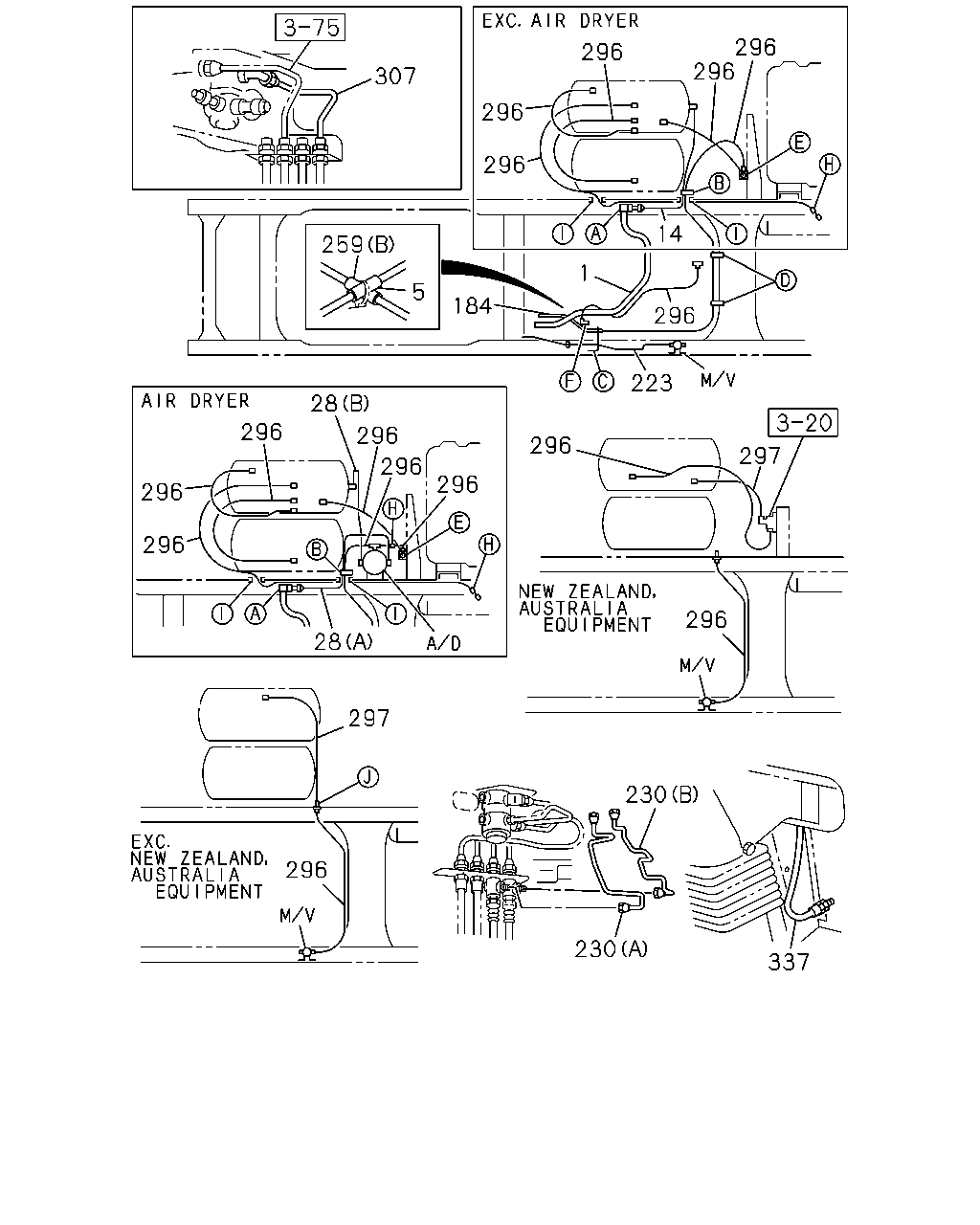

çizim 95504
296 296 296 307 296 296 14 259 1 5 184 296 223 28 296 296 296 297 296 296 296 296 296 28 297 230 296 230 337
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1030 		0-17806-103-1 01 1 9203-
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 9203-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> L=1077 		1-47491-980-0 01 1 9203-
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> (A) L=1076 		1-47491-966-0 01 1 9203-9206
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> (A) L=1052 		1-47494-318-0 01 1 9207-
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> (B) L=835 		1-47491-973-0 01 1 9203-9206
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> (B) L=669 		1-47494-319-0 01 1 9207-
184 HOSE; FLEX,AIR GOV
L=410 		0-07030-410-0 01 1 9203-
223 PIPE; AIR,MAG VLV TO CONT CYL
L=1021 SERVICED BY L=1100 		1-47434-387-0 01 1 9203-
230 PIPE; AIR,UNION TO UNION
(A) L=669 SERVICED BY L=780 		9-47416-730-0 01 1 9203-
230 PIPE; AIR,UNION TO UNION
(B) L=938 SERVICED BY L=1055 		9-47416-731-0 01 1 9203-
259 SLEEVE; RUBBER,NYLON TUBE
(A) ID=29 OD=39 L=40 		1-09337-013-0 01 1 9203-9204
259 SLEEVE; RUBBER,NYLON TUBE
(A) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9205-9205
259 SLEEVE; RUBBER,NYLON TUBE
(A) ID=29 OD=39 L=40 		1-09337-013-0 04 1 9206-
259 SLEEVE; RUBBER,NYLON TUBE
(B) ID=10 OD=14 L=30 		9-09956-682-0 01 1 9203-
296 TUBE; NYLON
BLACK OD=3/8" L=30000 		1-09368-250-0 AR 1 9203-
297 TUBE; NYLON
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) BLACK OD=3/8" L=30000 		1-09368-254-0 01 1 9203-
297 TUBE; NYLON
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) BLACK OD=1/2" L=30000 		1-09368-250-0 01 1 9203-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47446-700-0 01 1 9203-9212
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9301-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9203-
