Isuzu WW
▶
TRUCKS
▶
FVR
▶
11589 - FVR(MIDDLE EAST)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#144497) — 57 parça
Tümü
A - WHEEL BASE 5000MM
B - WHEEL BASE 5500MM
◀
[501A] BRACKET AND OTHER PARTS (33 parça)

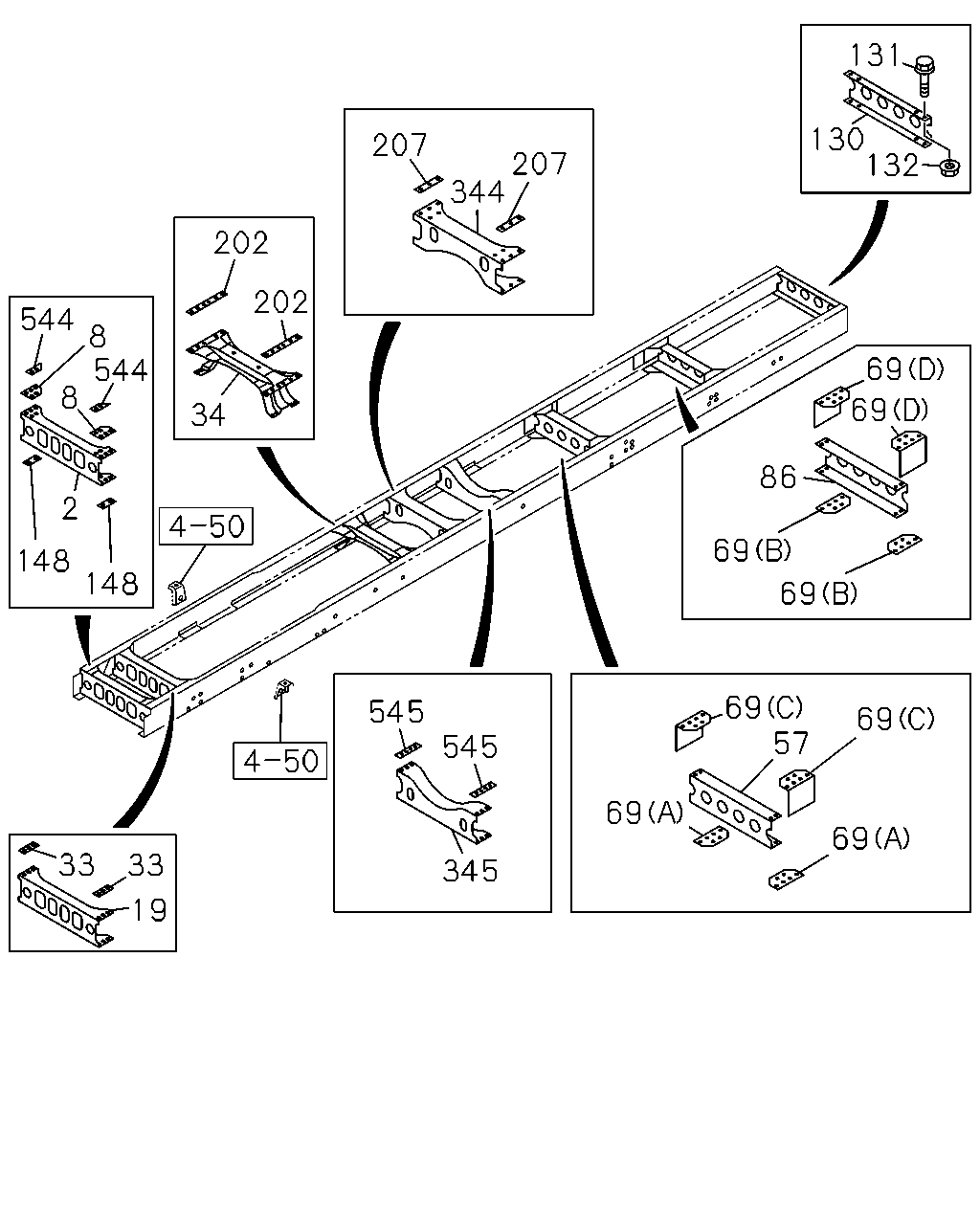

[501A] CROSS MEMBER (24 parça)
▶
18
13
11
82
138
106
101
118
98
103
117
23
25
25
26
23
25
25
26
24
46
25
25
26
46
25
25
26
39
82
111
89
281
106
96
129
128
129
105
110
281
138
112
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BRACKET; ENG MTG
8-97619-549-0
02
1
1407-
●
●
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1407-
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1407-
●
●
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1407-
●
●
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1407-
●
●
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1407-
●
●
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1407-
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1407-
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1407-
●
●
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1407-
●
●
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1407-
●
●
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1407-
●
●
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1407-
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1407-
●
●
82
NUT; BRKT
M14
0-91110-514-0
24
1
1407-
●
●
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
1407-
●
●
96
PAD; RR SPR
1-53359-047-0
02
1
1407-
●
●
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
1407-
●
●
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1407-
●
●
101
BRACKET; RR SPR,FRT
1-53353-078-1
02
1
1407-
●
●
103
STOPPER; SUB SPR
1-53356-057-0
04
1
1407-
●
●
105
BRACKET; RR SPR,RR
1-53354-064-1
02
1
1407-
●
●
106
BOLT; BRKT
M14X50
0-20951-450-0
24
1
1407-
●
●
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
1407-
●
●
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
1407-
●
●
112
BOLT; PAD
M14X35
0-20851-435-0
04
1
1407-
●
●
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1407-
●
●
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1407-
●
●
128
COLLAR; RUBBER
1-53359-004-0
02
1
1407-
●
●
129
SHIM; SIDE
T=4.5
1-53359-061-1
02
1
1407-
●
●
129
SHIM; SIDE
T=3.2
1-53359-062-1
02
1
1407-
●
●
138
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
24
1
1407-
●
●
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
1407-
●
●
131
130
132
69
69
86
69
69
69
57
69
69
69
545
345
545
207
207
344
33
19
202
202
34
148
544
8
2
8
148
544
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1407-
●
●
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1407-
●
●
19
MEMBER; CROSS,2ND
8-97623-239-3
01
1
1407-
●
●
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1407-
●
●
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1407-
●
●
57
MEMBER; CROSS,RR SUSP FRT
8-97610-858-5
01
1
1407-
●
●
69
GUSSET; RR SUSP,UPR
(A)
8-97610-865-0
02
1
1407-
●
●
69
GUSSET; RR SUSP,UPR
(B)
8-97610-866-0
02
1
1407-
●
●
69
GUSSET; RR SUSP,UPR
(C)
8-97619-800-0
01
1
1407-
●
●
69
GUSSET; RR SUSP,UPR
(C)
8-97619-801-0
01
1
1407-
●
●
69
GUSSET; RR SUSP,UPR
(D)
8-97619-802-0
01
1
1407-
●
●
69
GUSSET; RR SUSP,UPR
(D)
8-97619-803-0
01
1
1407-
●
●
86
MEMBER; CROSS,RR SUSP RR
8-97610-858-5
01
1
1407-
●
●
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1407-
●
●
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
1407-
●
●
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1407-
●
●
148
SPACER; C/MBR
8-97611-039-0
02
1
1407-
●
●
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
1407-
●
●
207
SPACER; 4TH C/MBR
0.24KG
8-97611-245-0
02
1
1407-
●
207
SPACER; 4TH C/MBR
0.25KG
8-97611-244-0
02
1
1407-
●
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1407-
●
●
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1407-
●
●
544
PLATE; CAB FRT MTG
8-97611-030-0
02
1
1407-
●
●
545
SPACER; 5TH C/MBR
0.24KG
8-97611-245-0
02
1
1407-
●
●
