Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#14449) — 404 parça

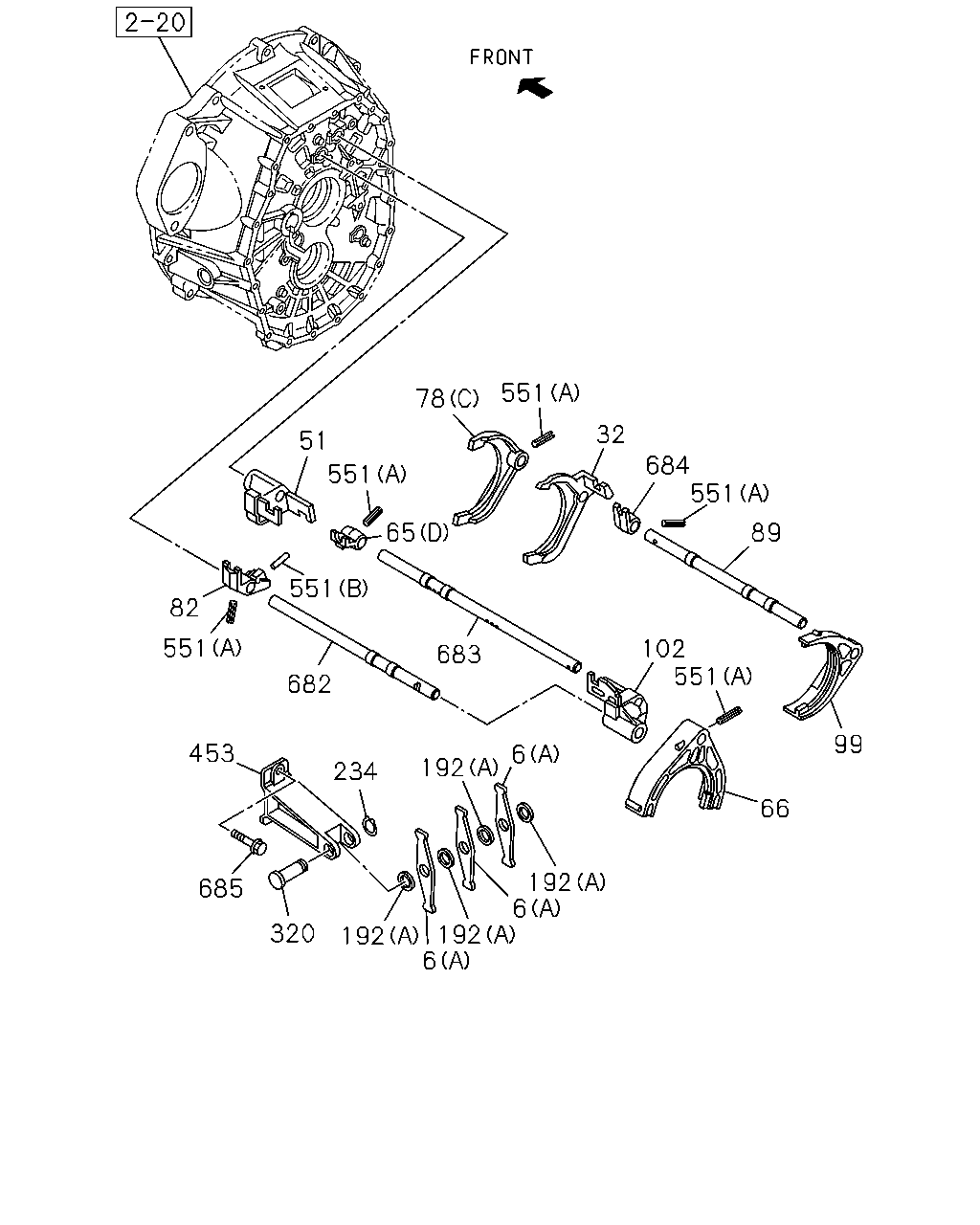

551 78 32 51 684 551 551 65 89 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1001-	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1001-1102	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1103-	●	●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1001-1307	●
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-	●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1001-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0808-1102			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0808-1102			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0808-1102			●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	1001-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0808-1102			●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1001-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0808-1102			●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0808-1102			●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	1001-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0808-1102			●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1001-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0808-1102			●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1001-	●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1001-1506	●
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-	●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1001-	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1001-	●
192	WASHER; PL (B)	8-97305-661-0	02	1	1001-1102	●
192	WASHER; PL (B)	8-97305-661-0	02	1	1103-	●	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1001-1102	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1103-	●	●
320	SHAFT; LEVER	1-33619-474-0	01	1	0808-1102			●
320	SHAFT; LEVER	8-97377-928-0	01	1	1001-	●
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1001-	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1001-1102	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1001-1102	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1001-1102	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1103-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1103-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1103-	●	●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1001-	●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1001-	●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1001-	●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1001-	●

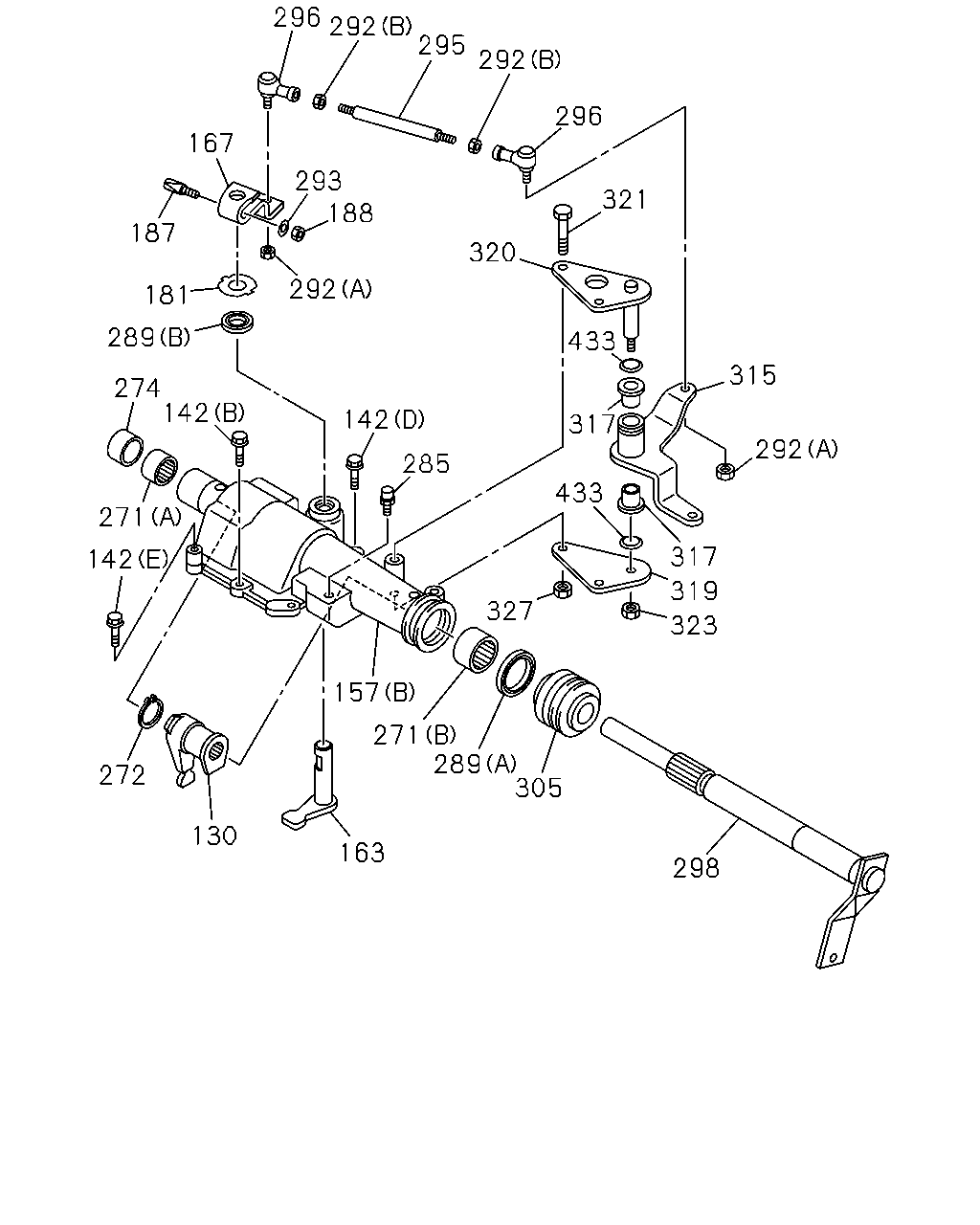

296 292 295 292 296 67 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 142 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0808-1102			●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0808-1102			●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0808-1102			●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1001-1102	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1103-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0808-1102			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0808-0912			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1103-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	1001-1102			●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0808-1102			●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0808-1102			●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0808-1102			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1001-1102	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0808-1102			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0808-1102			●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0808-1102			●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1001-1102	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1103-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0808-1102			●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1001-1102	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1103-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0808-1102			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0808-1102			●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0808-1102			●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0808-1102			●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0808-1102			●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0808-1102			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1404	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0808-1102			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0808-1102			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0808-1102			●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0808-1102			●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0808-1102			●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0808-1102			●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0808-1102			●
296	ROD END L=45.5	1-09760-118-1	02	1	0808-1102			●
298	SHAFT; SHIFT LEVER	8-98119-275-0	01	1	0808-1102			●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	0808-1102			●
315	LEVER; SELECT	8-98122-789-0	01	1	0808-1102			●
317	BUSHING; LEVER	1-09330-119-0	02	1	0808-0912			●
317	BUSHING; LEVER	1-09330-119-0	02	1	1001-1102	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	1103-	●	●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	0808-1102			●
320	SHAFT; LEVER	1-33619-474-0	01	1	0808-1102			●
320	SHAFT; LEVER	8-97377-928-0	01	1	1001-	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10856-080-0	02	1	0808-1102			●
323	NUT; LK,SELECT LEVER M10 FLANGE THA	0-91180-110-0	01	1	0808-1102			●
327	NUT; BRKT,RELAY LEVER M10 FLANGE THA	0-91180-210-0	02	1	0808-1102			●
433	GASKET; BUSHING	1-09623-594-0	02	1	0808-1102			●

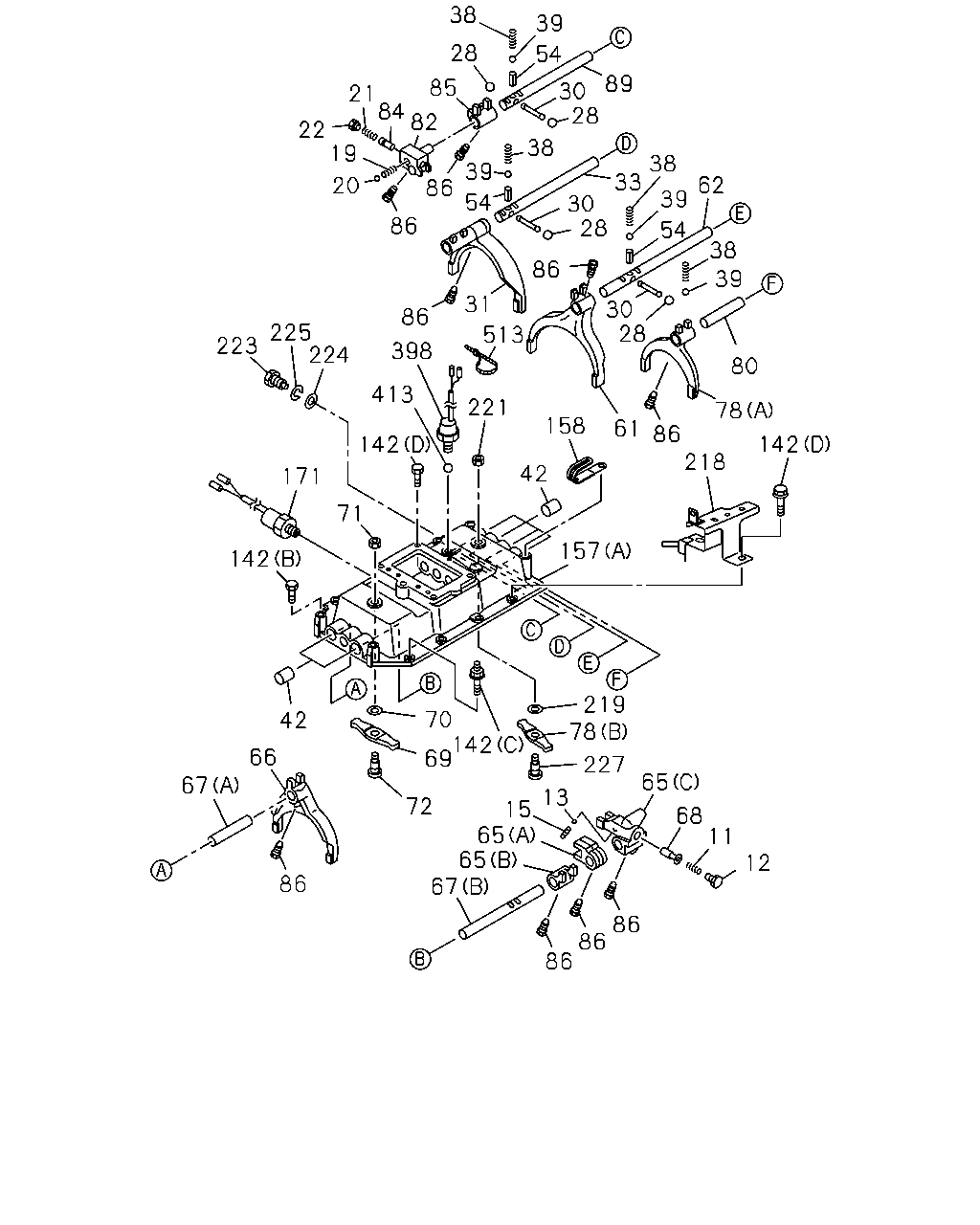

38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 86 39 54 30 28 86 54 38 86 39 31 30 28 86 225 224 513 223 398 80 413 221 78 158 61 86 218 142 142 42 171 71 157 142 219 78 70 142 69 42 66 227 65 67 13 72 15 65 65 67 68 11 12 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0808-1102			●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0808-1102			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0808-1102			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0808-1102			●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0808-1102			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0808-1102			●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0808-1102			●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0808-1102			●
28	BALL; INTER LK	9-00097-501-0	04	1	0808-1102			●
30	PIN; INTER LK	9-33534-003-0	03	1	0808-1102			●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0808-1102			●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0808-1102			●
38	SPRING; DETENT	1-09580-419-0	04	1	0808-1102			●
39	BALL; DETENT	1-09843-012-0	04	1	0808-1102			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0808-1102			●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0808-1102			●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0808-1102			●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0808-1102			●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0808-1102			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0808-1102			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0808-1102			●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	1001-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0808-1102			●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1001-	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0808-1102			●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0808-1102			●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0808-1102			●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0808-1102			●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0808-1102			●
71	NUT; SHIFT LEVER M12 FLANGE THA	0-91180-212-0	01	1	0808-1102			●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0808-1102			●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0808-1102			●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0808-1102			●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	1001-	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0808-1102			●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0808-1102			●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1001-	●
84	SLEEVE; REV	1-33516-025-0	01	1	0808-1102			●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0808-1102			●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0808-1102			●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0808-1102			●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1001-	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0808-1102			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0808-0912			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1103-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	1001-1102			●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0808-1102			●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0808-1102			●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0808-1102			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1001-1102	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0808-1102			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0808-1102			●
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0808-1102			●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1001-	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0808-1102			●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1001-1102	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1103-1312	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX	8-98114-116-0	01	1	0808-1102			●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0808-1102			●
221	NUT; SPINDLE M12 FLANGE THA	0-91180-212-0	01	1	0808-1102			●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0808-1102			●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0808-1102			●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0808-1102			●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0808-1102			●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0808-1102			●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1001-1102	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1103-1312	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0808-1102			●
513	CLIP; BAND L=140 THA	5-09707-031-1	01	1	0808-1102			●

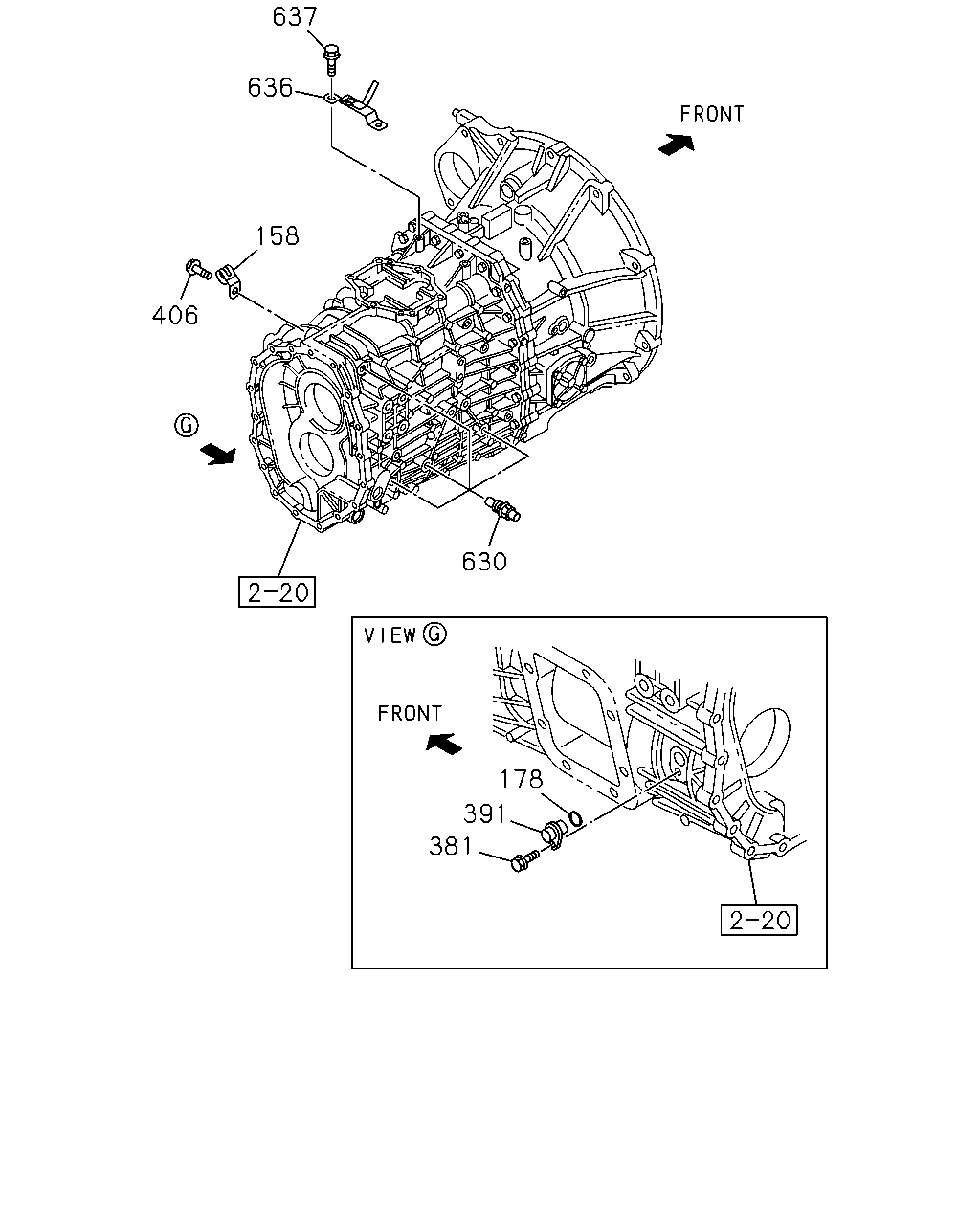

637 636 158 406 630 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0808-1102			●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1001-	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1001-1102	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1103-	●	●
381	BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	1001-1102	●
381	BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	1103-	●	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	1001-1102	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	1103-	●	●
406	BOLT; HARNESS CLIP M8X16 FLANGE THA	0-28050-816-0	02	1	1001-	●
630	DETENT ASM	8-98019-536-0	04	1	1001-1102	●
630	DETENT ASM	8-98019-536-0	04	1	1103-	●	●
636	BRACKET; CLIP	8-97610-092-1	01	1	1001-1502	●
637	BOLT; BRACKET M8X16 FLANGE THA	0-28050-816-0	02	1	1001-1502	●

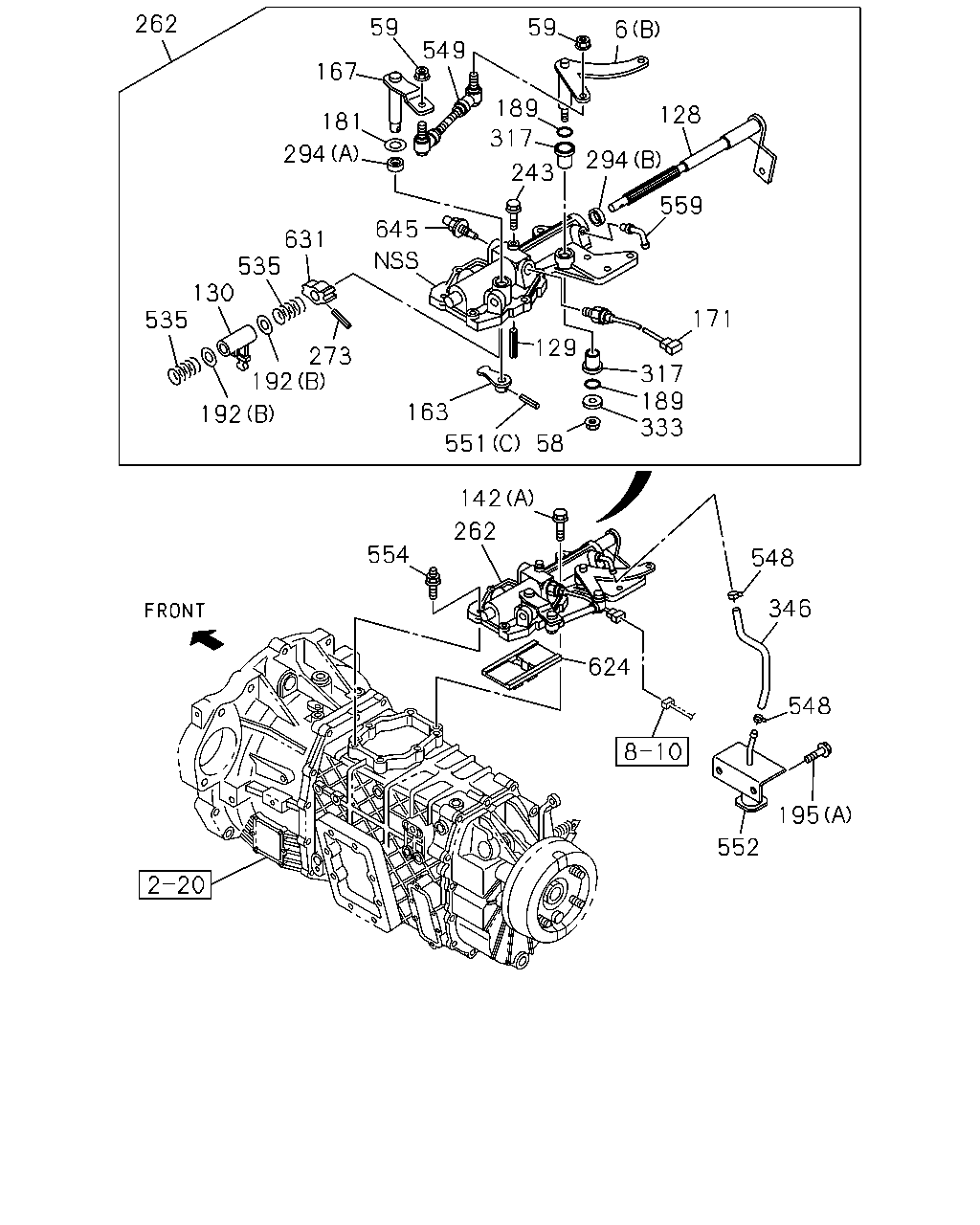

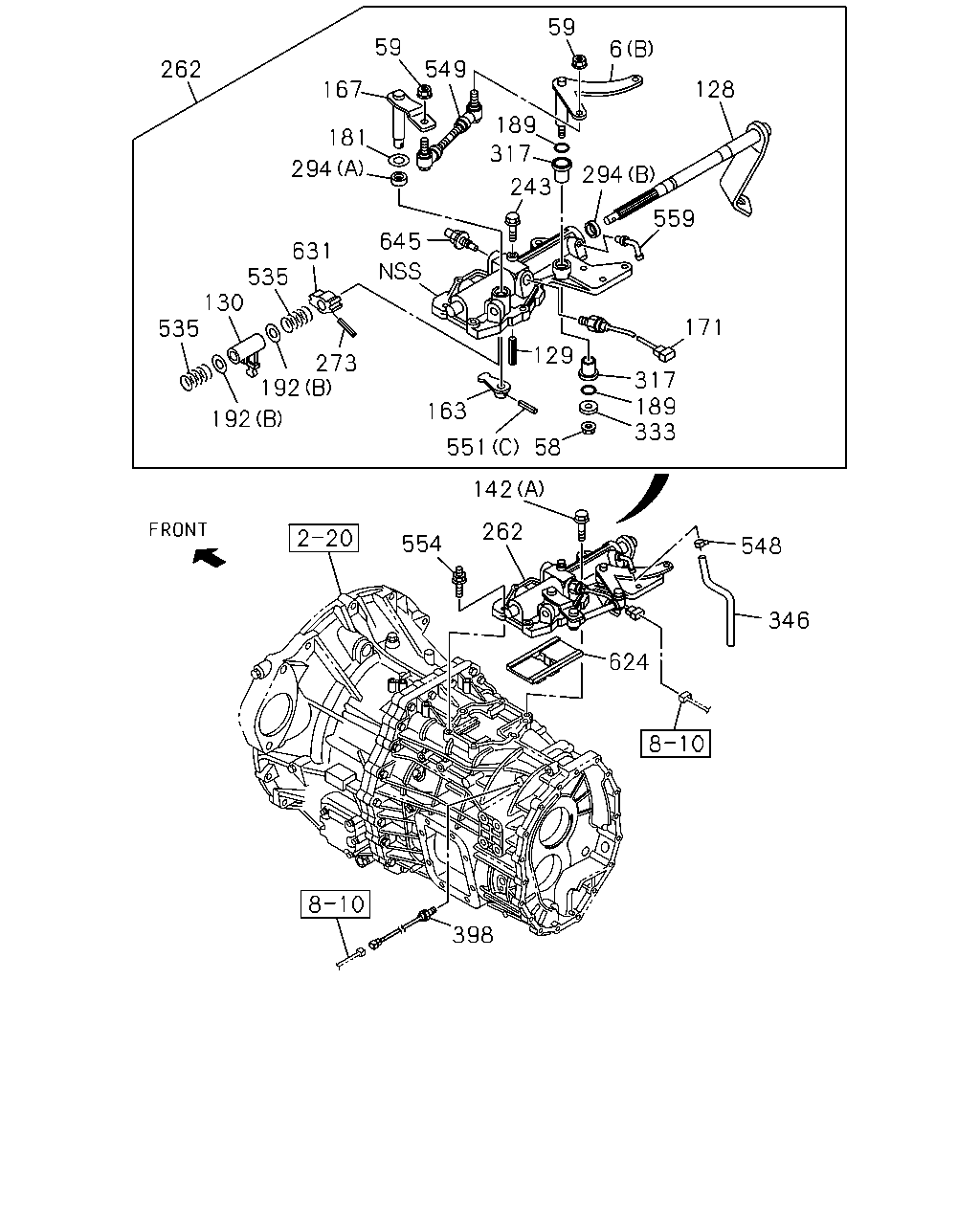

59 59 6 262 549 128 167 189 181 317 294 294 243 559 645 631 535 130 535 171 129 273 192 317 189 333 163 192 551 58 142 262 554 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1001-	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1001-1102	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1103-	●	●
58	NUT M10 FLANGE THA	0-91180-110-0	01	1	1001-1102	●
58	NUT M10 FLANGE THA	0-91180-110-0	01	1	1103-	●	●
59	NUT M8 FLANGE THA	0-91180-108-0	02	1	1001-1102	●
59	NUT M8 FLANGE THA	0-91180-108-0	02	1	1103-	●	●
128	LEVER; SHIFT,EXTERNAL	8-98170-720-0	01	1	1103-1506		●
128	LEVER; SHIFT,EXTERNAL	8-98315-829-0	01	1	1507-		●
128	LEVER; SHIFT,EXTERNAL	8-98096-925-0	01	1	1001-1208	●
128	LEVER; SHIFT,EXTERNAL	8-98212-106-0	01	1	1209-1507	●
128	LEVER; SHIFT,EXTERNAL	8-98305-345-0	01	1	1508-	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1001-1102	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1103-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0808-1102			●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1001-1102	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1103-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0808-1102			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0808-0912			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1103-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	1001-1102			●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0808-1102			●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0808-1102			●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0808-1102			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1001-1102	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0808-1102			●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1001-1102	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1103-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	0808-1102			●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1001-1102	●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1103-	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0808-1102			●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1001-1102	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1103-1312	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0808-1102			●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1001-1102	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1103-	●	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1001-1102	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1103-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1001-	●
192	WASHER; PL (B)	8-97305-661-0	02	1	1001-1102	●
192	WASHER; PL (B)	8-97305-661-0	02	1	1103-	●	●
243	BOLT; COVER M6X12 FLANGE THA	0-28050-612-0	01	1	1001-1001	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1001-1102	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1103-	●	●
262	BOX ASM; SHIFT CONT	8-98170-719-1	01	1	1103-1312		●
262	BOX ASM; SHIFT CONT	8-98240-990-1	01	1	1401-1506		●
262	BOX ASM; SHIFT CONT	8-98315-825-0	01	1	1507-		●
262	BOX ASM; SHIFT CONT	8-98004-474-3	01	1	1001-1204	●
262	BOX ASM; SHIFT CONT	8-98207-564-0	01	1	1205-1208	●
262	BOX ASM; SHIFT CONT	8-98211-654-0	01	1	1209-1306	●
262	BOX ASM; SHIFT CONT	8-98249-037-0	01	1	1307-1312	●
262	BOX ASM; SHIFT CONT	8-98240-991-0	01	1	1401-1404	●
262	BOX ASM; SHIFT CONT	8-98276-157-1	01	1	1405-1507	●
262	BOX ASM; SHIFT CONT	8-98305-332-0	01	1	1508-	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1001-1102	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1103-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1001-1102	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1001-1102	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1103-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1103-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0808-0912			●
317	BUSHING; LEVER	1-09330-119-0	02	1	1001-1102	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	1103-	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1001-1102	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1103-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-	●
346	HOSE; AIR	8-98132-721-0	01	1	1103-		●
346	HOSE; AIR	8-97309-855-0	01	1	1001-1204	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0808-1102			●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1001-1102	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1103-1312	●	●
535	SPRING; LEVER	8-97385-713-0	02	1	1001-1102	●
535	SPRING; LEVER	8-97385-713-0	02	1	1103-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-	●
548	CLIP; HOSE ID=8	8-94107-762-0	02	1	1103-		●
548	CLIP; HOSE	8-97031-674-0	01	1	1001-1204	●
549	ROD; LINK	8-98023-095-0	01	1	1001-1102	●
549	ROD; LINK	8-98023-095-0	01	1	1103-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1001-1102	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1001-1102	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1001-1102	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1103-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1103-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1103-	●	●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1001-1102	●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1103-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1001-1102	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1103-1204	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1205-1404		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1001-1102	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1103-	●	●
631	STOPPER; SPRING	8-98014-158-0	01	1	1001-1102	●
631	STOPPER; SPRING	8-98014-158-0	01	1	1103-	●	●
645	DETENT ASM	8-98019-536-0	01	1	1001-1102	●
645	DETENT ASM	8-98019-536-0	01	1	1103-	●	●

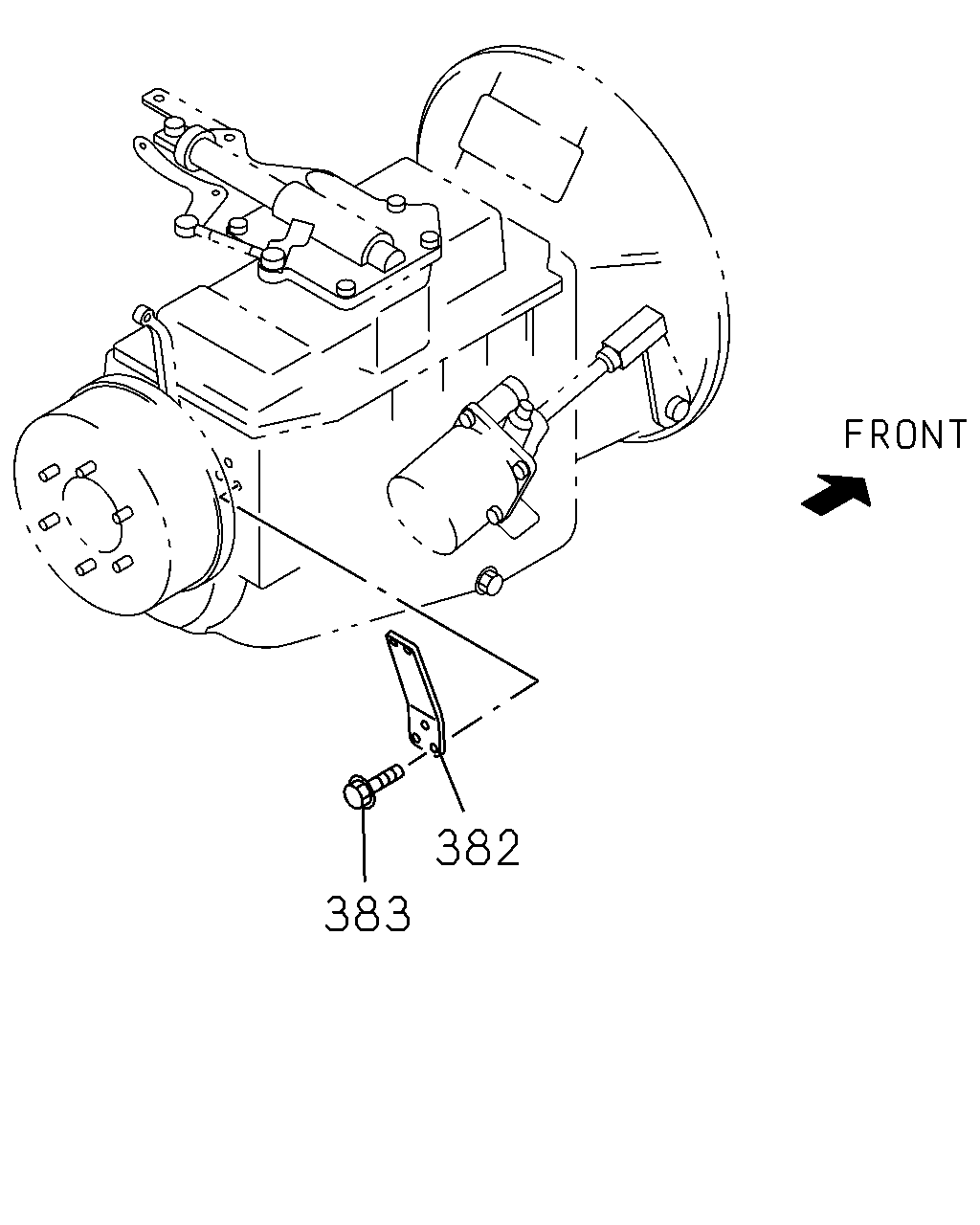

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	382	BRACKET; PARKING BRK CONT CABLE	1-46147-223-0	01	1	0808-1102			●
	383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	0808-1102			●

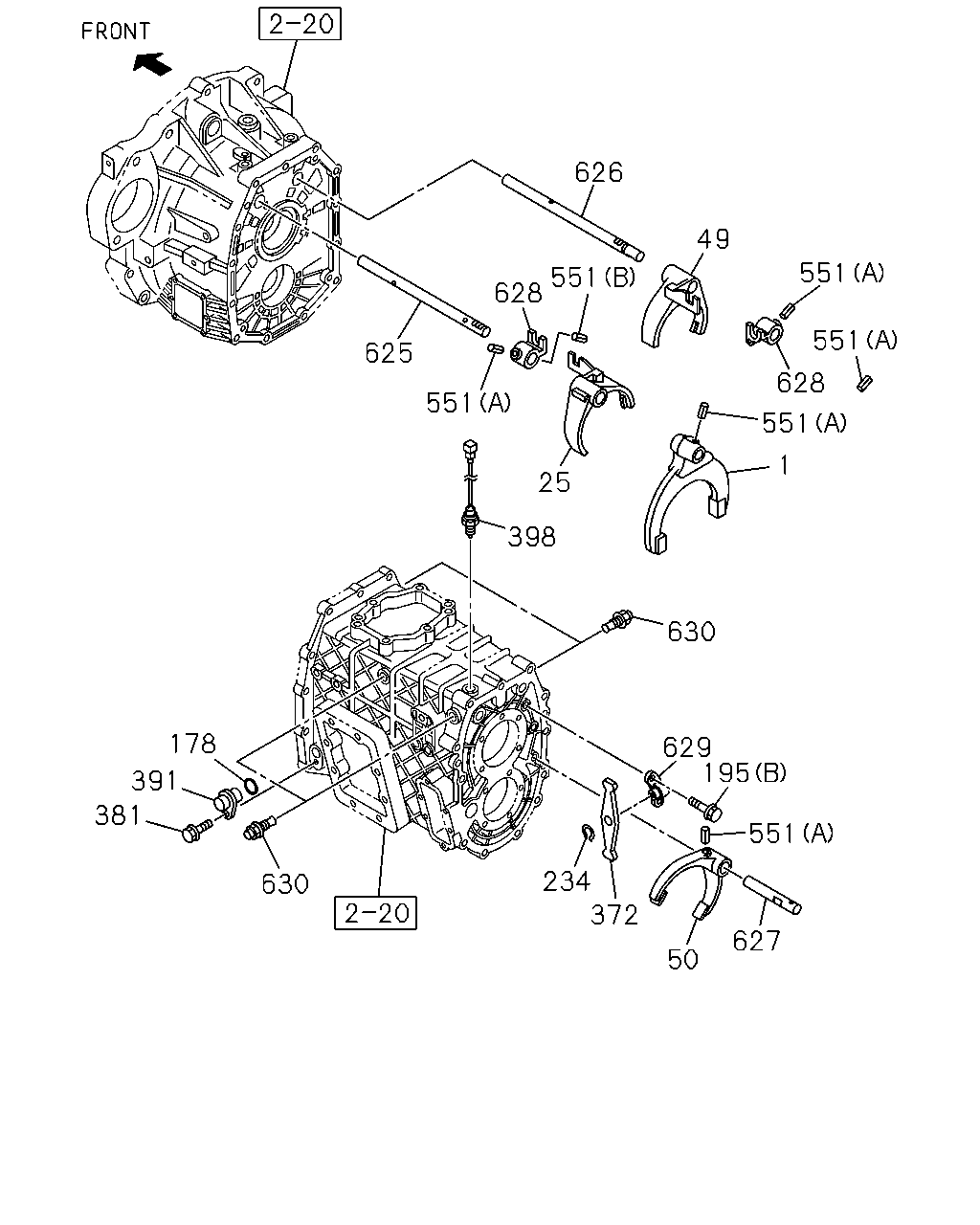

626 49 551 551 628 551 625 628 551 551 1 25 398 630 178 629 195 391 381 551 234 630 372 627 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV	8-97255-351-1	01	1	1103-		●
25	ARM; SHIFT,2ND & 3RD	8-97362-737-1	01	1	1103-		●
49	ARM; SHIFT,4TH & 5TH	8-97362-738-1	01	1	1103-		●
50	ARM; SHIFT,6TH	8-97241-324-1	01	1	1103-		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1001-1102	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1103-	●	●
195	BOLT (A) M10X20 FLANGE THA	0-28751-020-0	02	1	1103-		●
195	BOLT (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1103-		●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1001-1102	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1103-	●	●
372	LEVER; RELAY,6TH	8-97241-342-0	01	1	1103-		●
381	BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	1001-1102	●
381	BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	1103-	●	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	1001-1102	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	1103-	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0808-1102			●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1001-1102	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1103-1312	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1001-1102	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1001-1102	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1001-1102	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1103-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1103-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1103-	●	●
625	ROD; GEAR SHIFT,LOW,REV,2ND & 3RD	8-97362-735-0	01	1	1103-		●
626	ROD; GEAR SHIFT,4TH,5TH & 6TH	8-98107-548-0	01	1	1103-		●
627	ROD; GEAR SHIFT,6TH SUB	8-98119-293-0	01	1	1103-		●
628	BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	1103-		●
629	BRIDGE; LEVER	8-97241-345-1	01	1	1103-		●
630	DETENT ASM	8-98019-536-0	04	1	1001-1102	●
630	DETENT ASM	8-98019-536-0	04	1	1103-	●	●

262 59 59 6 549 167 189 128 181 317 294 294 243 559 645 631 535 130 535 171 129 273 192 317 189 333 163 192 551 58 142 262 554 548 346 624 548 195 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1001-	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1001-1102	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1103-	●	●
58	NUT M10 FLANGE THA	0-91180-110-0	01	1	1001-1102	●
58	NUT M10 FLANGE THA	0-91180-110-0	01	1	1103-	●	●
59	NUT M8 FLANGE THA	0-91180-108-0	02	1	1001-1102	●
59	NUT M8 FLANGE THA	0-91180-108-0	02	1	1103-	●	●
128	LEVER; SHIFT,EXTERNAL	8-98170-720-0	01	1	1103-1506		●
128	LEVER; SHIFT,EXTERNAL	8-98315-829-0	01	1	1507-		●
128	LEVER; SHIFT,EXTERNAL	8-98096-925-0	01	1	1001-1208	●
128	LEVER; SHIFT,EXTERNAL	8-98212-106-0	01	1	1209-1507	●
128	LEVER; SHIFT,EXTERNAL	8-98305-345-0	01	1	1508-	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1001-1102	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1103-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0808-1102			●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1001-1102	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1103-	●	●
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0808-1102			●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0808-0912			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1103-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	1001-1102			●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0808-1102			●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0808-1102			●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0808-1102			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1001-1102	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0808-1102			●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1001-1102	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1103-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	0808-1102			●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1001-1102	●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1103-	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0808-1102			●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1001-1102	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1103-1312	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0808-1102			●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1001-1102	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1103-	●	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1001-1102	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1103-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1001-	●
192	WASHER; PL (B)	8-97305-661-0	02	1	1001-1102	●
192	WASHER; PL (B)	8-97305-661-0	02	1	1103-	●	●
195	BOLT (A) M10X20 FLANGE THA	0-28751-020-0	02	1	1103-		●
195	BOLT (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1103-		●
243	BOLT; COVER M6X12 FLANGE THA	0-28050-612-0	01	1	1001-1001	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1001-1102	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1103-	●	●
262	BOX ASM; SHIFT CONT	8-98170-719-1	01	1	1103-1312		●
262	BOX ASM; SHIFT CONT	8-98240-990-1	01	1	1401-1506		●
262	BOX ASM; SHIFT CONT	8-98315-825-0	01	1	1507-		●
262	BOX ASM; SHIFT CONT	8-98004-474-3	01	1	1001-1204	●
262	BOX ASM; SHIFT CONT	8-98207-564-0	01	1	1205-1208	●
262	BOX ASM; SHIFT CONT	8-98211-654-0	01	1	1209-1306	●
262	BOX ASM; SHIFT CONT	8-98249-037-0	01	1	1307-1312	●
262	BOX ASM; SHIFT CONT	8-98240-991-0	01	1	1401-1404	●
262	BOX ASM; SHIFT CONT	8-98276-157-1	01	1	1405-1507	●
262	BOX ASM; SHIFT CONT	8-98305-332-0	01	1	1508-	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1001-1102	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1103-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1001-1102	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1001-1102	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1103-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1103-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0808-0912			●
317	BUSHING; LEVER	1-09330-119-0	02	1	1001-1102	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	1103-	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1001-1102	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1103-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-	●
346	HOSE; AIR	8-98132-721-0	01	1	1103-		●
346	HOSE; AIR	8-97309-855-0	01	1	1001-1204	●
535	SPRING; LEVER	8-97385-713-0	02	1	1001-1102	●
535	SPRING; LEVER	8-97385-713-0	02	1	1103-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-	●
548	CLIP; HOSE ID=8	8-94107-762-0	02	1	1103-		●
548	CLIP; HOSE	8-97031-674-0	01	1	1001-1204	●
549	ROD; LINK	8-98023-095-0	01	1	1001-1102	●
549	ROD; LINK	8-98023-095-0	01	1	1103-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1001-1102	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1001-1102	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1001-1102	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1103-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1103-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1103-	●	●
552	BRACKET	8-98132-718-0	01	1	1103-		●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1001-1102	●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1103-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1001-1102	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1103-1204	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1205-1404		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1001-1102	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1103-	●	●
631	STOPPER; SPRING	8-98014-158-0	01	1	1001-1102	●
631	STOPPER; SPRING	8-98014-158-0	01	1	1103-	●	●
645	DETENT ASM	8-98019-536-0	01	1	1001-1102	●
645	DETENT ASM	8-98019-536-0	01	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
