4-10 — FRONT AXLE (#144481) — 79 parça

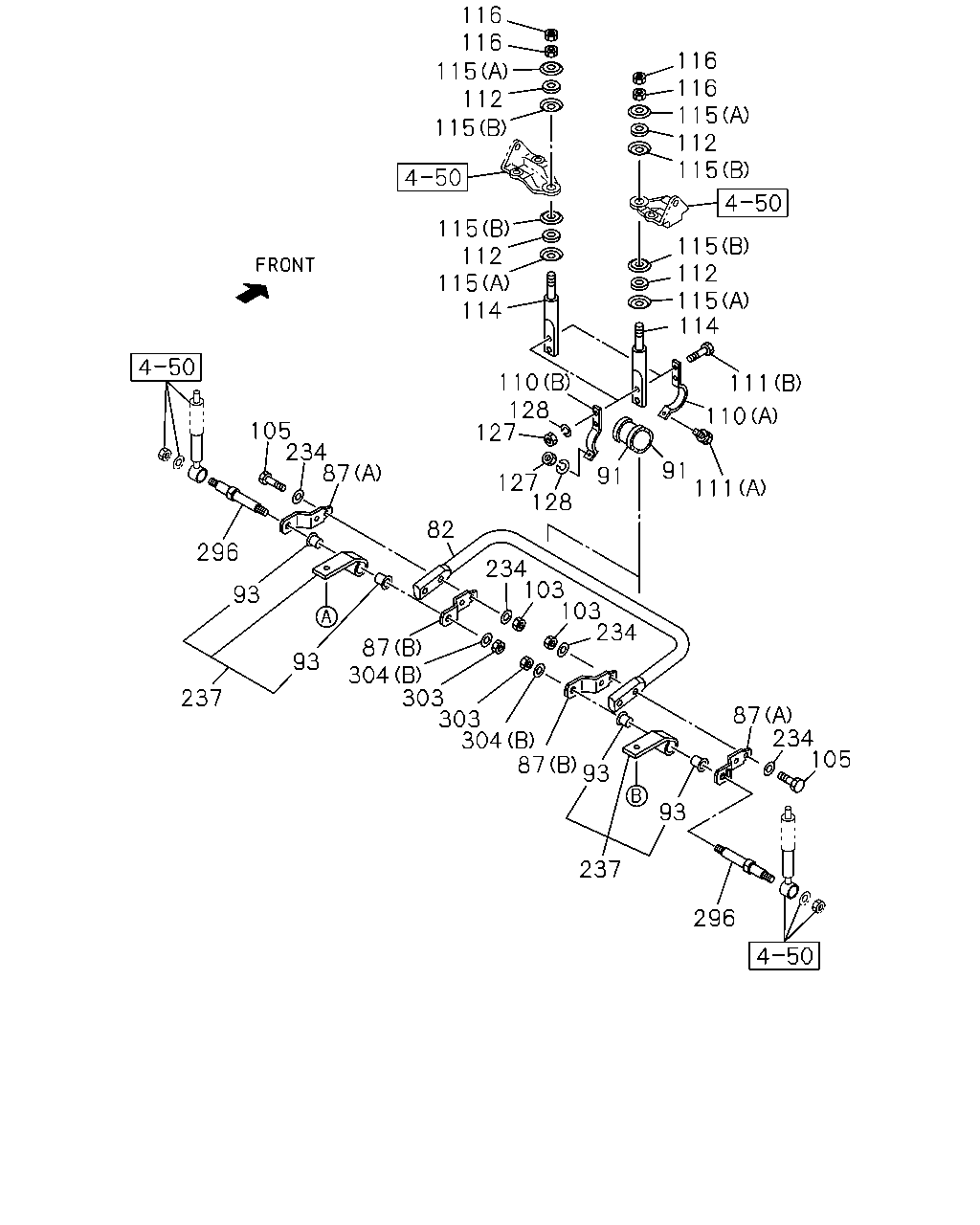

116 116 115 112 115 115 112 115 114 110 128 127 127 128 91 91 111 110 111 114 115 112 115 115 112 115 116 116 105 234 87 296 93 237 93 87 82 304 303 303 304 87 93 237 93 296 105 234 87 234 103 103 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	1407-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1407-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1407-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1407-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1407-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1407-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1407-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1407-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1407-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1407-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1407-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1407-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	1407-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1407-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1407-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1407-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1407-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1407-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1407-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1407-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1407-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1407-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1407-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1407-

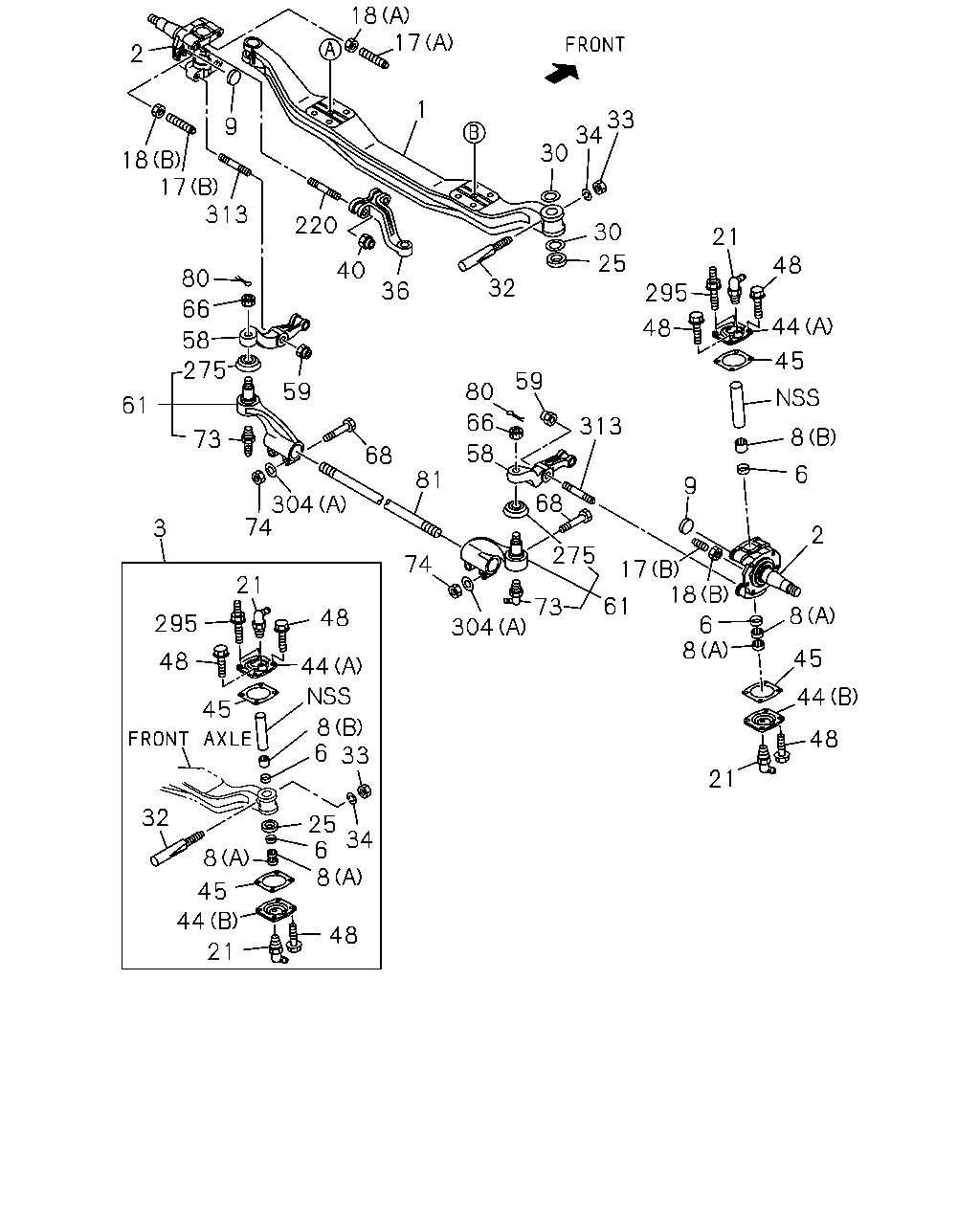

3 21 295 48 45 48 44 6 8 33 25 6 8 48 34 44 21 45 32 8 304 74 74 304 68 59 275 73 61 58 66 80 313 17 18 2 9 18 17 1 30 30 32 36 40 220 25 21 295 48 44 45 8 6 2 9 313 59 80 58 81 66 68 275 17 61 6 8 18 8 45 44 48 21 48 34 33 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	8-98170-180-2	01	1	1407-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1407-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1407-
3	KING PIN SET	1-87831-410-2	02	1	1407-
6	SEAL; KING PIN	9-09926-024-0	04	1	1407-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1407-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1407-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1407-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1407-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1407-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1407-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1407-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1407-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1407-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1407-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1407-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1407-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1407-
36	ARM; KNUCKLE	1-43133-073-3	01	1	1407-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1407-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1407-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1407-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1407-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1407-
58	ARM; TIE ROD	1-43134-049-4	01	1	1407-
58	ARM; TIE ROD	1-43135-049-4	01	1	1407-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1407-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1407-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1407-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1407-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1407-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1407-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1407-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1407-
81	ROD; TIE	8-98171-947-0	01	1	1407-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1407-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1407-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1407-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1407-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1407-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1407-
