◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11589 - FVR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#144480) — 226 parça

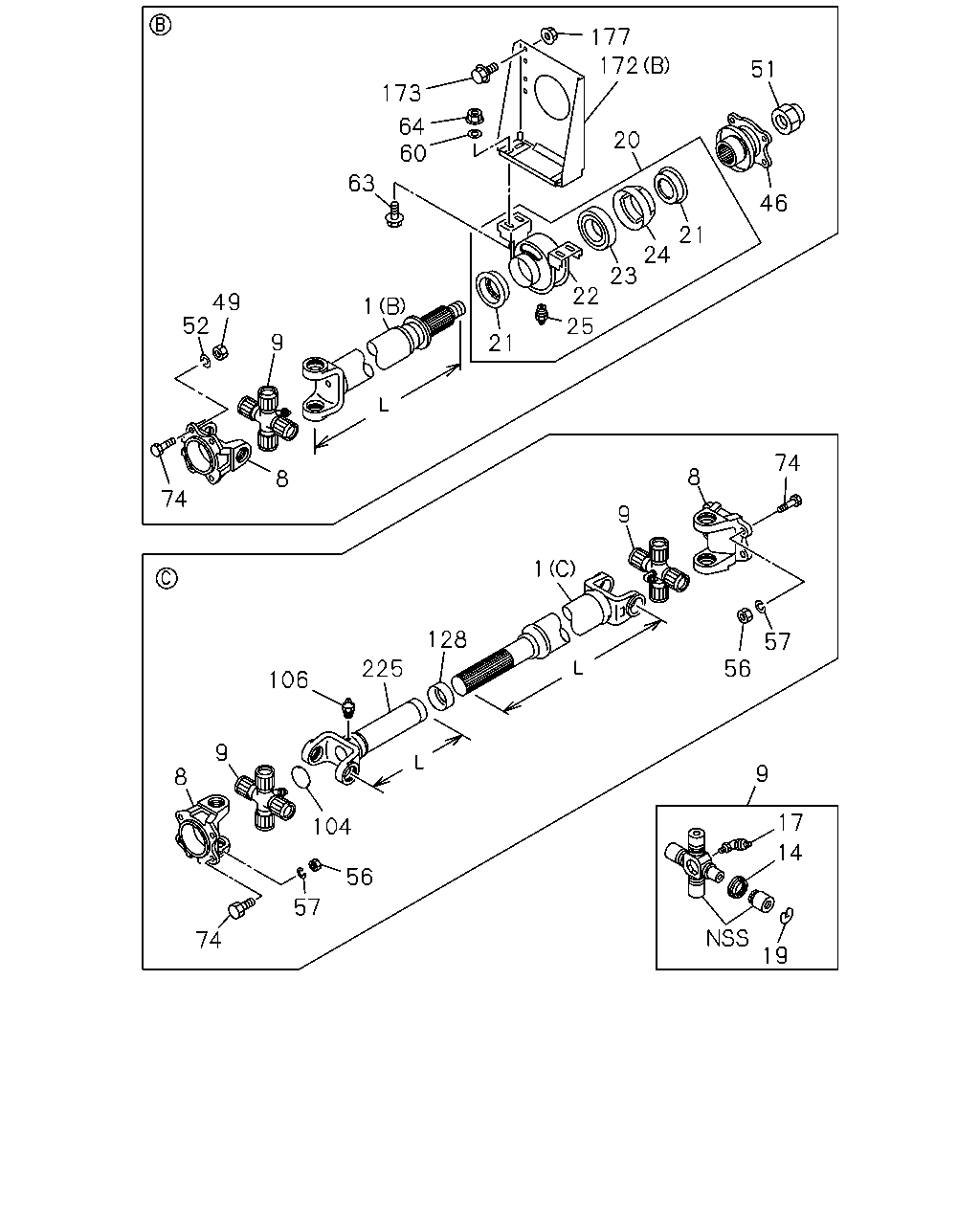

çizim 432492
51 177 21 20 172 173 60 64 63 46 24 23 22 25 21 1 9 49 52 8 74 74 8 9 1 128 225 106 104 56 57 74 9 8 9 57 56 19 14 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) 1ST L=894 		8-98273-154-0 01 1 1407- ●
1 SHAFT; PROP
(C) END L=1336 		8-98090-991-0 01 1 1407- ●
1 SHAFT; PROP
(B) 2ND L=589 		8-98119-467-0 01 1 1407- ●
1 SHAFT; PROP
(B) 2ND L=1234 		8-98069-590-0 01 1 1407- ●
1 SHAFT; PROP
(C) END L=1321 		8-98090-990-0 01 1 1407- ●
1 SHAFT; PROP
(A) 1ST L=764 		8-98105-701-0 01 1 1407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1407-1409 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1407- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1407- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1407-1409 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1407- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1407- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1407-1409 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1407- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1407- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1407-1409 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1407- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1407-1409 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1407-1409 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1407-1409 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1407- ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 02 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1407- ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1407- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1407- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1407- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1407- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1407- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1407- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1407- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 02 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1407- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1407- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 02 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1407- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1407- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 02 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1407- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1407- ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1407- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1407- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1407- ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1407- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1407- ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1407- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1407- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1407- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1407- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1407- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1407- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1407- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1407- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1407- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1407- ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1407- ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-071-2 01 1 1407- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 1407- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1407- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 1407- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1407- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1407- ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1407- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1407- ● ●

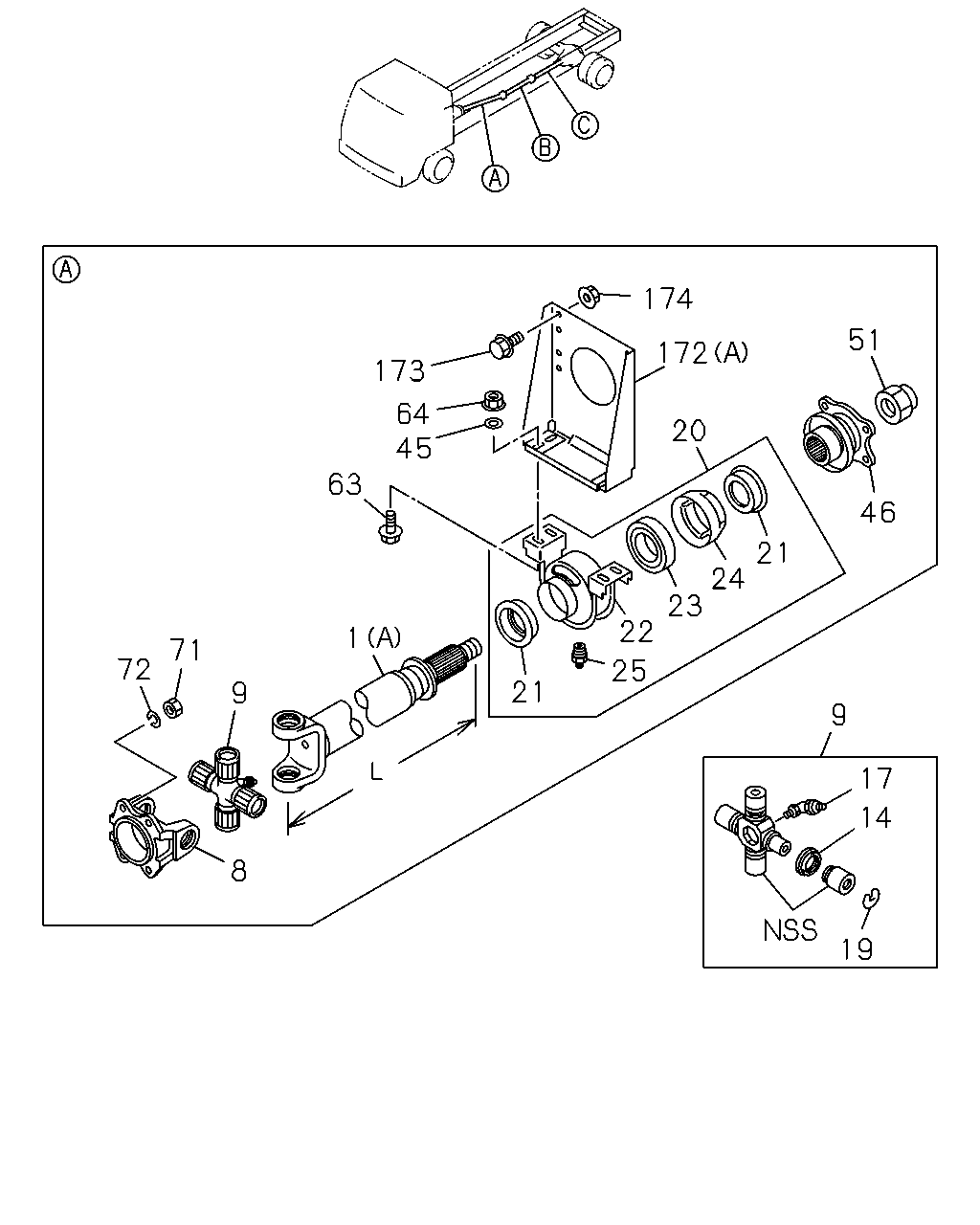

çizim 433341
19 14 17 9 9 8 71 72 1 46 51 20 172 174 173 45 64 63 22 25 21 21 24 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) 1ST L=894 		8-98273-154-0 01 1 1407- ●
1 SHAFT; PROP
(C) END L=1336 		8-98090-991-0 01 1 1407- ●
1 SHAFT; PROP
(B) 2ND L=589 		8-98119-467-0 01 1 1407- ●
1 SHAFT; PROP
(B) 2ND L=1234 		8-98069-590-0 01 1 1407- ●
1 SHAFT; PROP
(C) END L=1321 		8-98090-990-0 01 1 1407- ●
1 SHAFT; PROP
(A) 1ST L=764 		8-98105-701-0 01 1 1407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1407-1409 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1407- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1407- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1407-1409 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1407- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1407- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1407-1409 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1407- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1407- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1407-1409 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1407- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1407-1409 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1407-1409 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1407-1409 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1407- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1407- ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 02 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1407- ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1407- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1407- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1407- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1407- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1407- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1407- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1407- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 02 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1407- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1407- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 02 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1407- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1407- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1407- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 02 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1407- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1407- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1407- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1407- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1407- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1407- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1407- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1407- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1407- ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1407- ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-071-2 01 1 1407- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 1407- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1407- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 1407- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1407- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1407- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
