4-25 — REAR FINAL DRIVE (#14448) — 70 parça

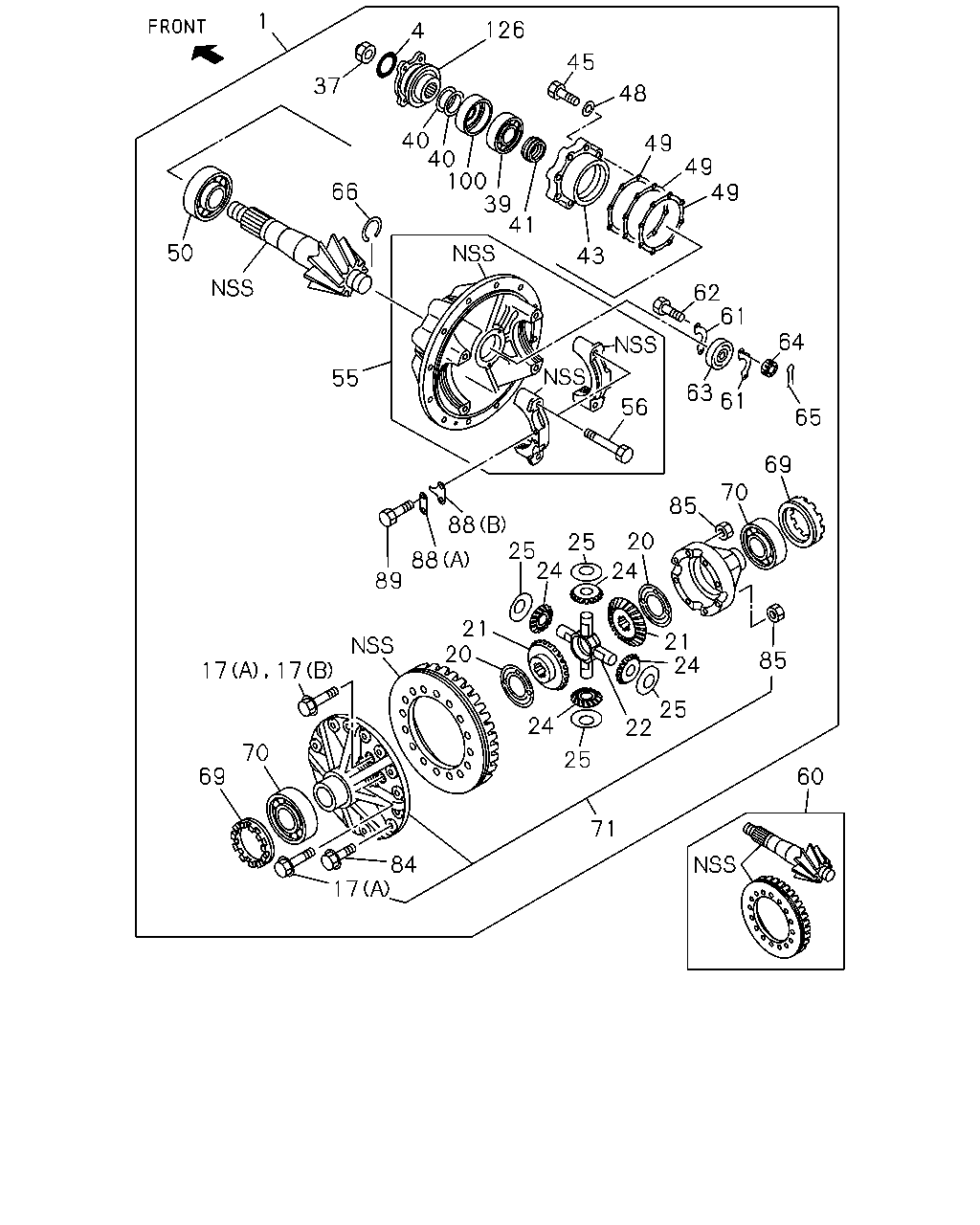

çizim 143459
1 126 4 45 37 48 40 40 100 39 41 49 49 49 66 50 43 62 61 64 55 63 61 56 65 69 70 85 88 25 24 20 25 88 89 24 21 20 21 24 85 17 17 25 22 24 70 25 69 60 71 84 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-031-0 01 1 0711- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41000-923-0 01 1 0711- ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0711- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0711- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 0711- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-169-0 AR 1 0711- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-170-0 AR 1 0711- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-171-0 AR 1 0711- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-172-0 AR 1 0711- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-173-0 AR 1 0711- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-174-0 AR 1 0711- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-175-0 AR 1 0711- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-123-0 02 1 0711-0911 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-162-0 02 1 0912- ● ●
22 SPIDER; DIFF PINION
OD=32 		1-41521-002-1 01 1 0711- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-040-0 04 1 0711-0911 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-052-0 04 1 0912- ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-001-0 04 1 0711- ● ●
37 NUT; DRIVING PINION
M39 FLANGE 		1-09449-056-2 01 1 0711- ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-086-0 01 1 0711- ● ●
39 BEARING; FINAL PINION
NTN 		9-00093-072-1 01 1 0711- ● ●
39 BEARING; FINAL PINION
KOYO 		9-00093-206-2 01 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-106-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-107-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-108-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-109-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-110-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-111-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-112-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-113-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-114-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-115-0 AR 1 0711- ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-116-0 AR 1 0711- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.600 		1-41229-101-0 AR 1 0711- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.800 		1-41229-102-0 AR 1 0711- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.000 		1-41229-103-0 AR 1 0711- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.200 		1-41229-104-0 AR 1 0711- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.400 		1-41229-105-0 AR 1 0711- ● ●
43 CAGE; FINAL PINION
T=75 		1-41151-005-0 01 1 0711- ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 0711- ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 0711- ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-009-0 AR 1 0711- ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-010-0 AR 1 0711- ● ●
49 SHIM; FINAL PINION CAGE
T=0.300 		1-41154-104-0 AR 1 0711- ● ●
49 SHIM; FINAL PINION CAGE
T=0.400 		1-41154-105-0 AR 1 0711- ● ●
50 BEARING; FINAL PINION
NTN 		1-09812-013-0 01 1 0711- ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-070-1 01 1 0711- ● ●
55 CARRIER; DIFF 1-41110-120-1 01 1 0711- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0711- ● ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-517-0 01 1 0711- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-549-0 01 1 0711- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-015-0 02 1 0711- ● ●
62 BOLT; RET
M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0711- ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-229-2 01 1 0711- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 0711- ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0711- ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0711-0805 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0806- ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 0711- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0711- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0711- ● ●
70 BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=40 		1-09812-225-0 02 1 0711- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-270-0 01 1 0711- ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 0711- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 0711- ● ●
88 PLATE; LK,ADJ NUT
(B) T=3.2 		1-41124-006-0 02 1 0711- ● ●
88 PLATE; LK,ADJ NUT
(A) T=1.0 		9-41124-005-0 02 1 0711- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0711- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 0711- ● ●
126 COUPLING; DRIVING PINION 1-37245-387-0 01 1 0711- ● ●
