Isuzu WW
▶
TRUCKS
▶
FVR
▶
11589 - FVR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶
3-70 — BRAKE PIPING; AIR,AIR MASTER
(#144476) — 35 parça
◀

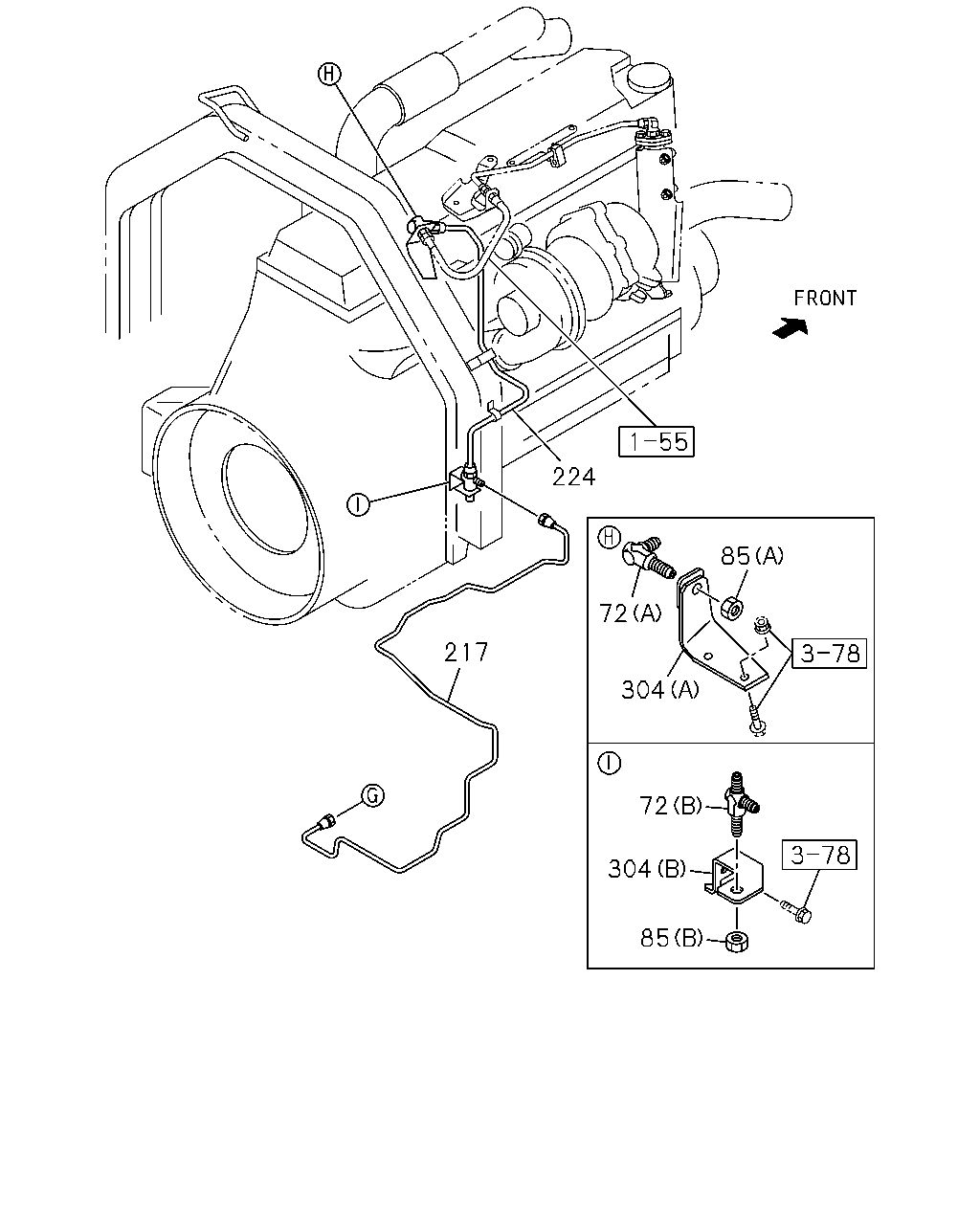

[370A] CAB MOUNTING SIDE (8 parça)

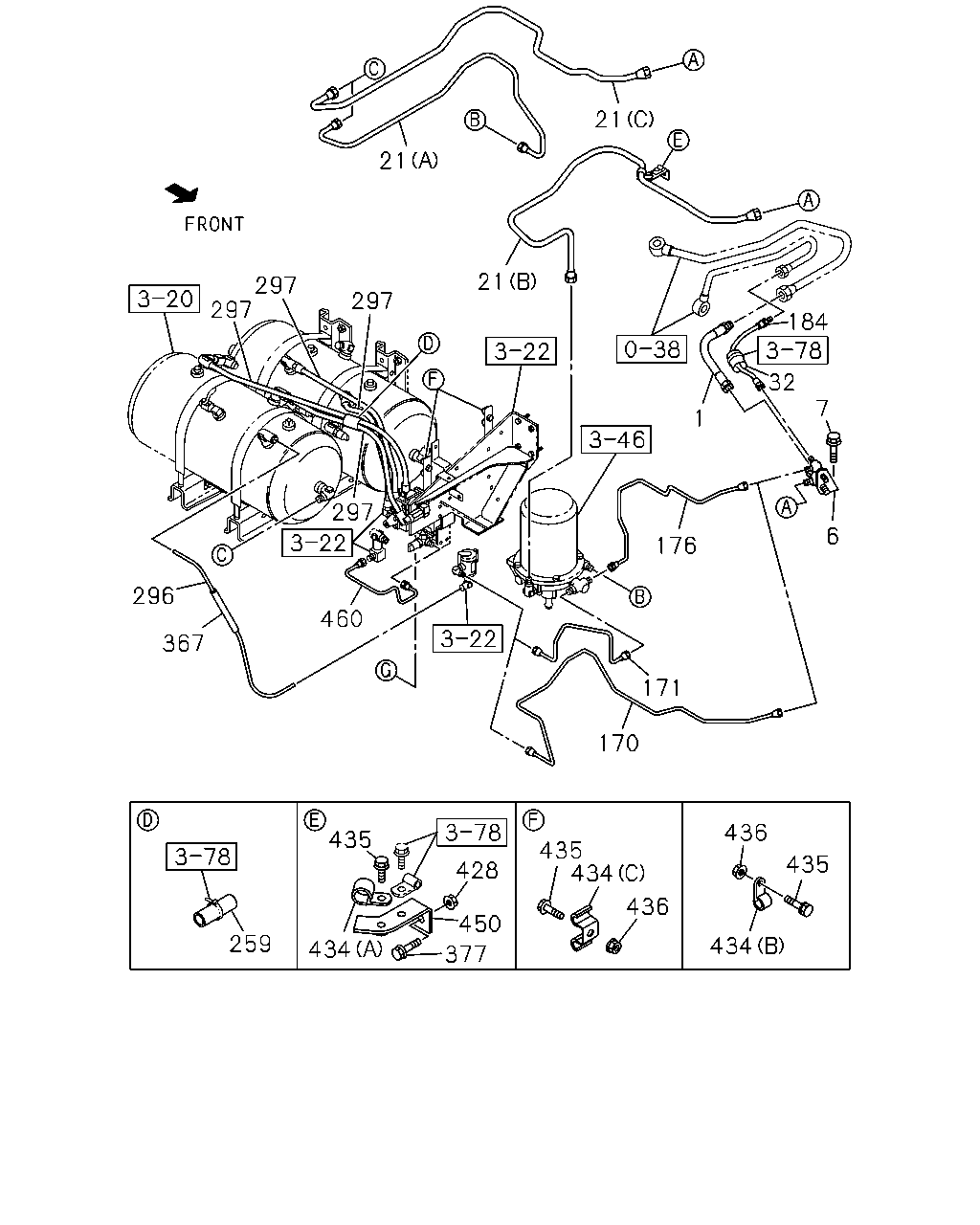

[370A] AIR TANK SIDE (27 parça)
▶
224
217
72
85
304
72
304
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
UNION; AIR PIPE
(A) M12 ELBOW
0-92125-006-0
01
1
1407-
72
UNION; AIR PIPE
(B) M12 2WAY
1-09654-059-2
01
1
1407-
85
NUT; UNION
(B) M12
0-91111-512-0
01
1
1407-
85
NUT; UNION
(A) M12
9-09840-280-0
01
1
1407-
217
PIPE; VAC,UNION TO MAG VLV
L=1897 SERVICED BY L=2000
1-47428-823-0
01
1
1407-
224
PIPE; AIR,UNION TO FLEX HOSE
L=667 SERVICED BY L=700
1-47428-811-0
01
1
1407-
304
BRACKET; UNION
(B)
8-98211-164-1
01
1
1407-
304
BRACKET; UNION
(A)
8-98229-691-0
01
1
1407-
21
21
21
297
297
297
296
367
460
297
176
171
170
6
7
32
1
184
435
434
259
377
428
450
435
434
436
434
436
435
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
L=310
8-97607-730-0
01
1
1407-
6
BRACKET; FLEX HOSE,AIR TANK
8-98117-117-0
01
1
1407-
7
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE
0-28650-830-0
02
1
1407-
21
PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (A)
8-98184-503-0
01
1
1407-
21
PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (B) L=1545
8-98211-175-0
01
1
1407-
21
PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (C) L=1546
8-98211-191-0
01
1
1407-
32
SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50
1-09337-023-0
01
1
1407-
170
PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7>
8-98211-190-0
01
1
1407-
171
PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=507 SERVICED BY L=550
1-47428-808-0
01
1
1407-
176
PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=864 SERVICED BY L=900
1-47428-813-0
01
1
1407-
184
HOSE; FLEX,AIR GOV
L=350
1-09363-624-0
01
1
1407-
259
SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40
1-09337-013-0
01
1
1407-
296
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1407-
297
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
1407-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
01
1
1407-
377
BOLT; BRKT FIX
M8X30 FLANGE
0-28650-830-0
01
1
1407-
428
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1407-
434
CLIP
AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5
1-09700-668-0
02
1
1407-
434
CLIP
(A) ID=16 L=20
0-95235-536-0
01
1
1407-
434
CLIP
EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17
1-09700-675-0
02
1
1407-
434
CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20
0-95234-635-0
01
1
1407-
435
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
1407-
435
BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE
0-28650-820-0
01
1
1407-
436
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1407-
436
NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE
0-91180-108-0
01
1
1407-
450
BRACKET; CLIP
8-98232-692-0
01
1
1407-
460
PIPE; AIR,PROTECTION VALVE
8-98184-394-0
01
1
1407-
