3-41 — REAR BRAKE POWER CHAMBER
(#144472) — 16 parça
◀

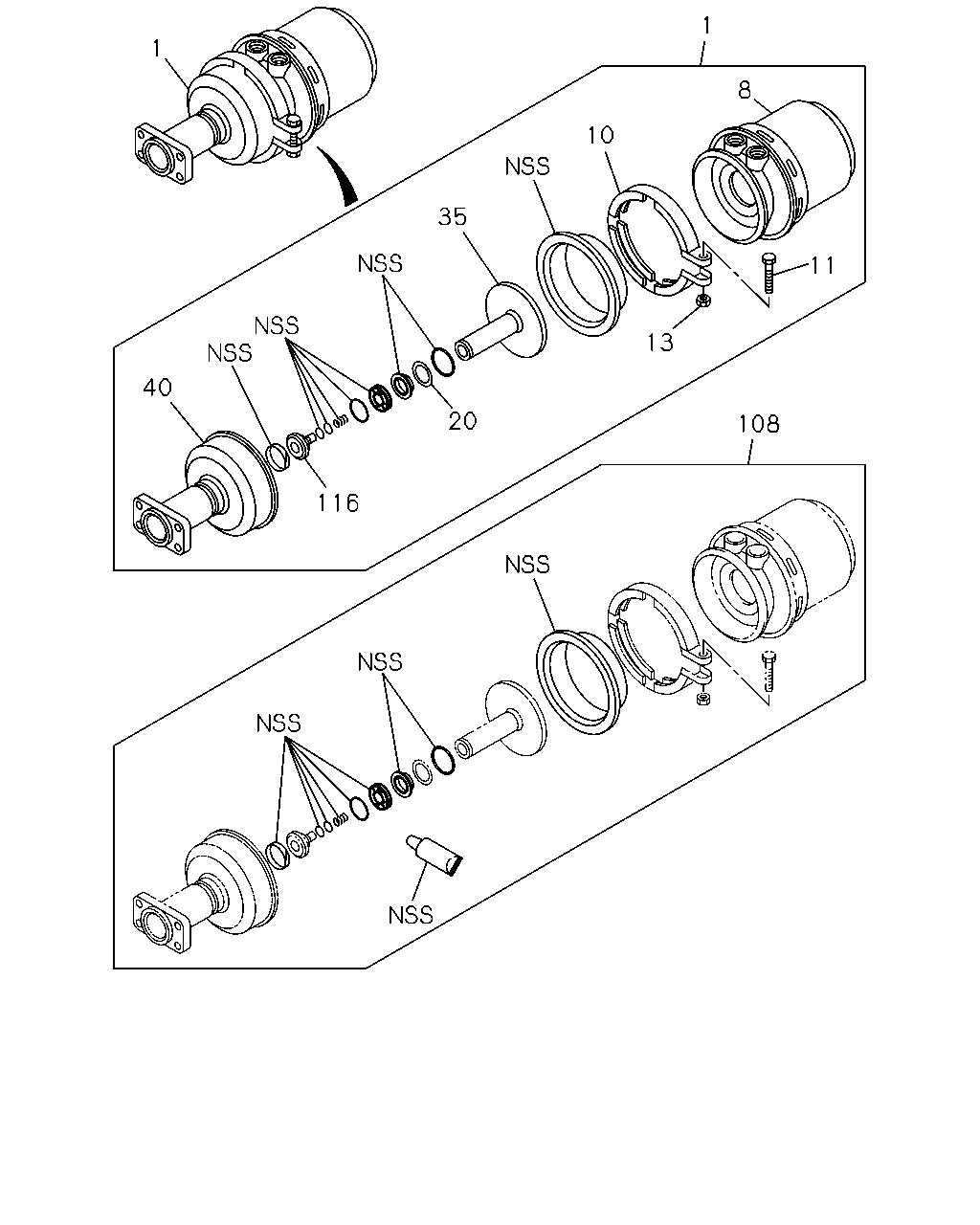

[341A] COMPONENT AND REPAIR KIT (13 parça)

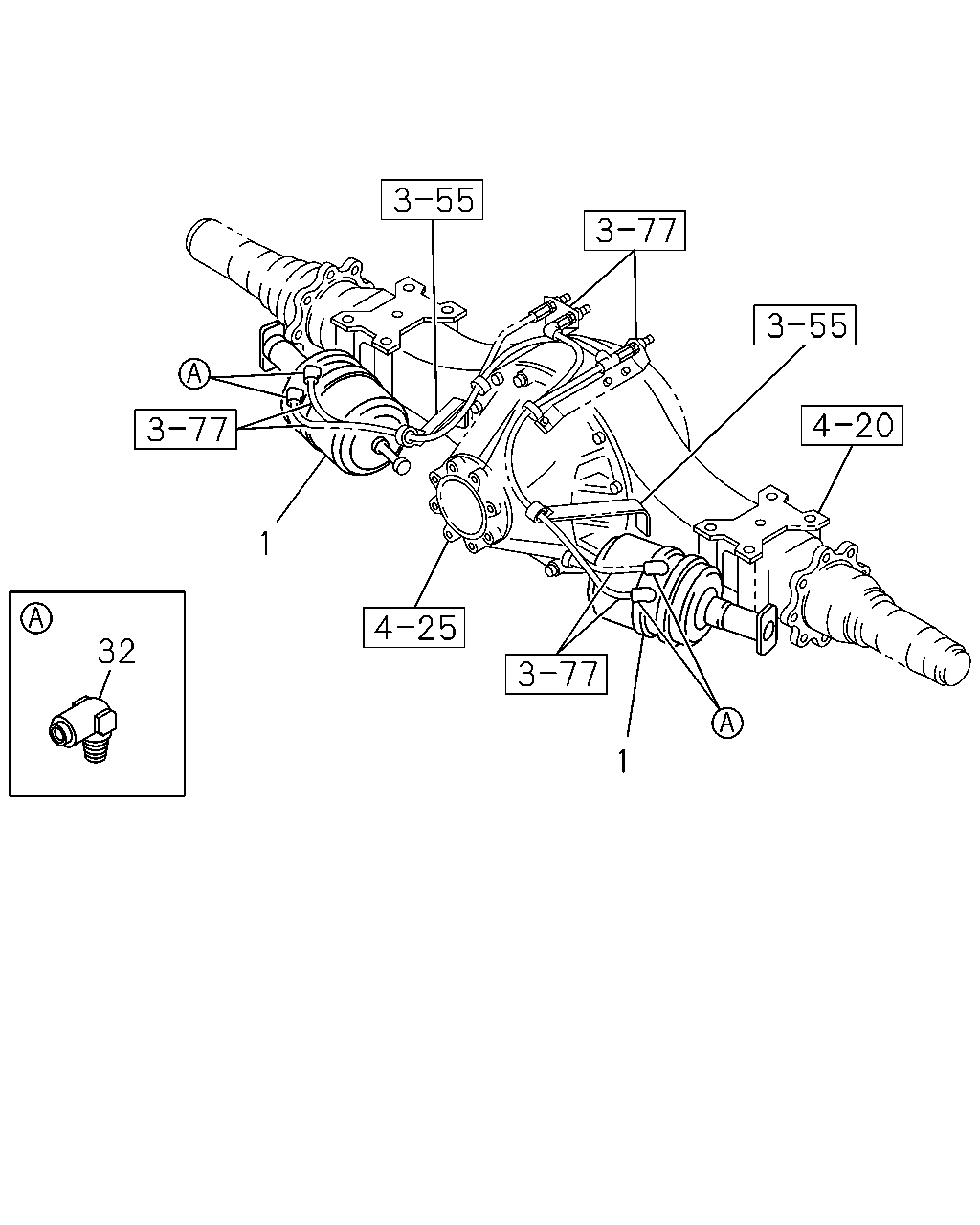

[341A] CONNECTOR (3 parça)
▶
1
1
8
10
35
116
40
20
13
11
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
8-98236-220-0
01
1
1407-
1
CHAMBER ASM; SPRING
8-98236-221-0
01
1
1407-
8
SHELL; CYL,SPR CHAMBER
1-48251-173-1
01
1
1407-
8
SHELL; CYL,SPR CHAMBER
1-48251-174-1
01
1
1407-
10
RING; CLAMP,SPR CHAMBER
1-48269-231-0
02
1
1407-
11
BOLT; CLAMP RING
1-48269-232-0
02
1
1407-
13
NUT; CLAMP RING
1-48269-233-0
02
1
1407-
20
RING; RET
1-48269-236-0
02
1
1407-
35
PLATE; ROD END,SPR CHAMBER
1-48269-253-0
02
1
1407-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-179-0
01
1
1407-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-180-0
01
1
1407-
108
REPAIR KIT; SPR CHAMBER
1-85576-407-1
02
1
1407-
116
GUIDE; SPR CHAMBER
1-48269-237-0
02
1
1407-
1
1
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
8-98236-220-0
01
1
1407-
1
CHAMBER ASM; SPRING
8-98236-221-0
01
1
1407-
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1407-
