Isuzu WW
▶
TRUCKS
▶
FVR
▶
11589 - FVR(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶

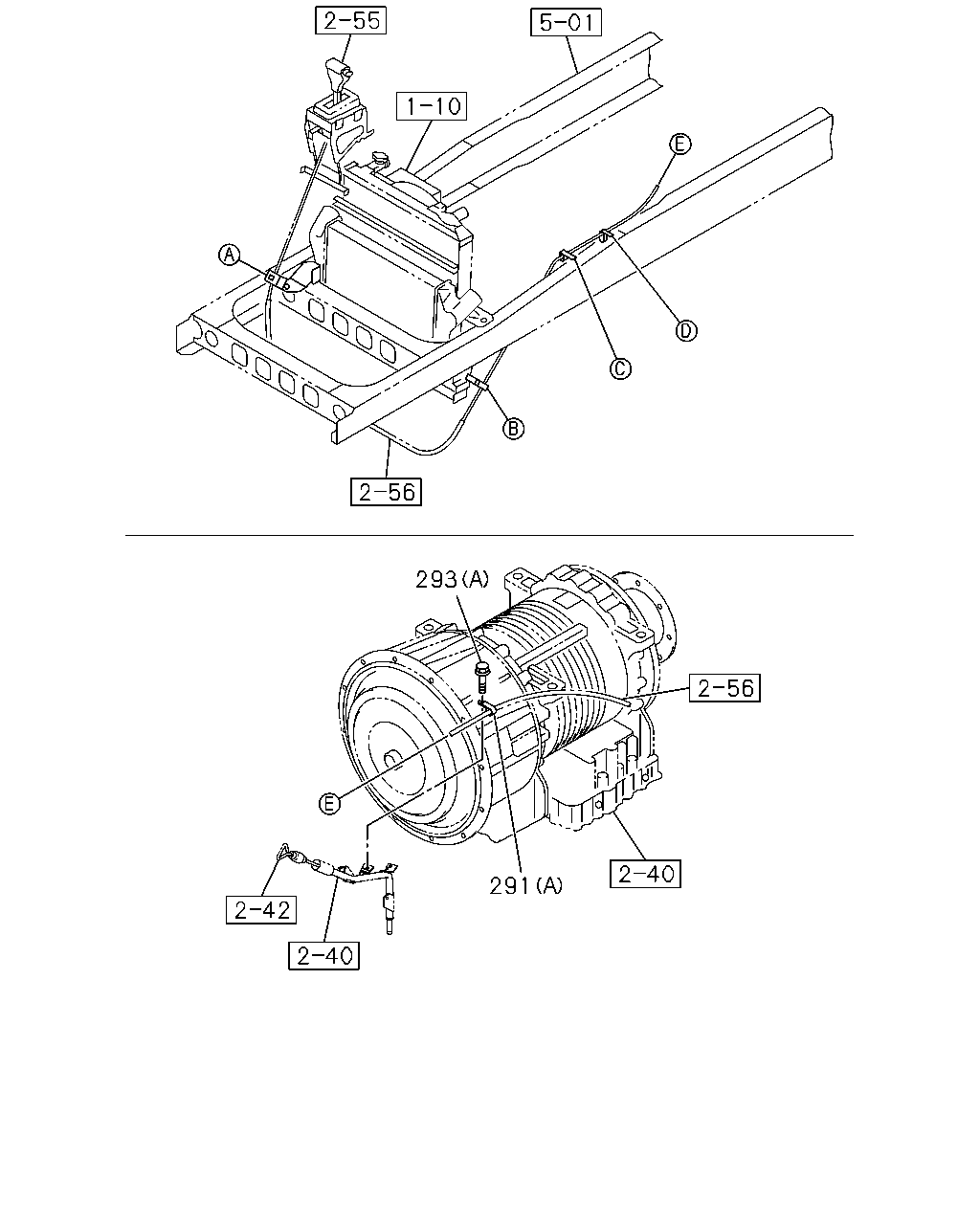

2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#144454) — 20 parça
◀
[236A] NO.1 (6 parça)
[236A] NO.2 (14 parça)
▶
291
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11 L=24
0-95235-045-0
03
1
1407-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1407-
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE
0-28050-816-0
01
1
1407-
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE
0-28050-816-0
02
1
1407-
293
BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE
0-28050-820-0
02
1
1407-
293
BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE
0-28650-820-0
01
1
1407-
293
291
293
282
487
474
275
6
293
291
488
293
282
291
297
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
CLIP; CABLE
ID=13 L=20
0-95235-236-0
01
1
1407-
275
BOLT; CONT CABLE CLIP
M8X25 W/WASHER
0-51640-825-0
01
1
1407-
282
BRACKET; TRANS SIDE
(B)
1-82699-199-0
01
1
1407-
282
BRACKET; TRANS SIDE
(A)
8-98010-418-0
01
1
1407-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11 L=24
0-95235-045-0
03
1
1407-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1407-
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE
0-28050-816-0
01
1
1407-
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE
0-28050-816-0
02
1
1407-
293
BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE
0-28050-820-0
02
1
1407-
293
BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE
0-28650-820-0
01
1
1407-
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1407-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
02
1
1407-
487
BRACKET; CONT CABLE
8-98137-772-0
01
1
1407-
488
NUT; CABLE
5-09400-048-0
02
1
1407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
