8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#144434) — 41 parça
çizim 431934
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
(A) 24V 10A PANASONIC CHI 		8-97173-035-1 01 1 1404- ● ●
164 RELAY; A/C COMPRESSOR
(B) 24V 12.5A PANASONIC CHI 		8-97262-933-0 01 1 1404- ● ●

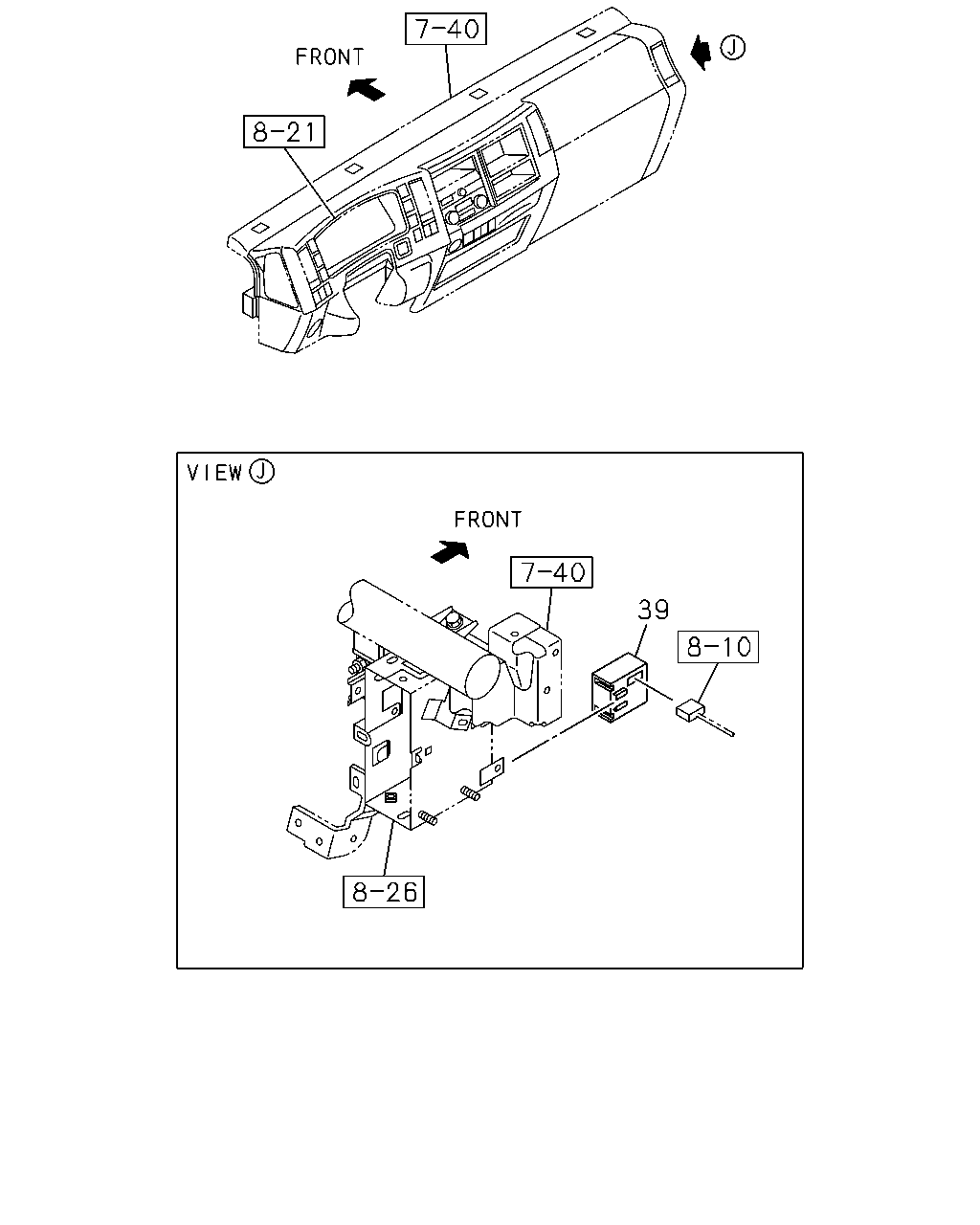

çizim 432293
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 RELAY; DOOR LK
CHI 		8-98060-789-0 01 1 1404- ● ●

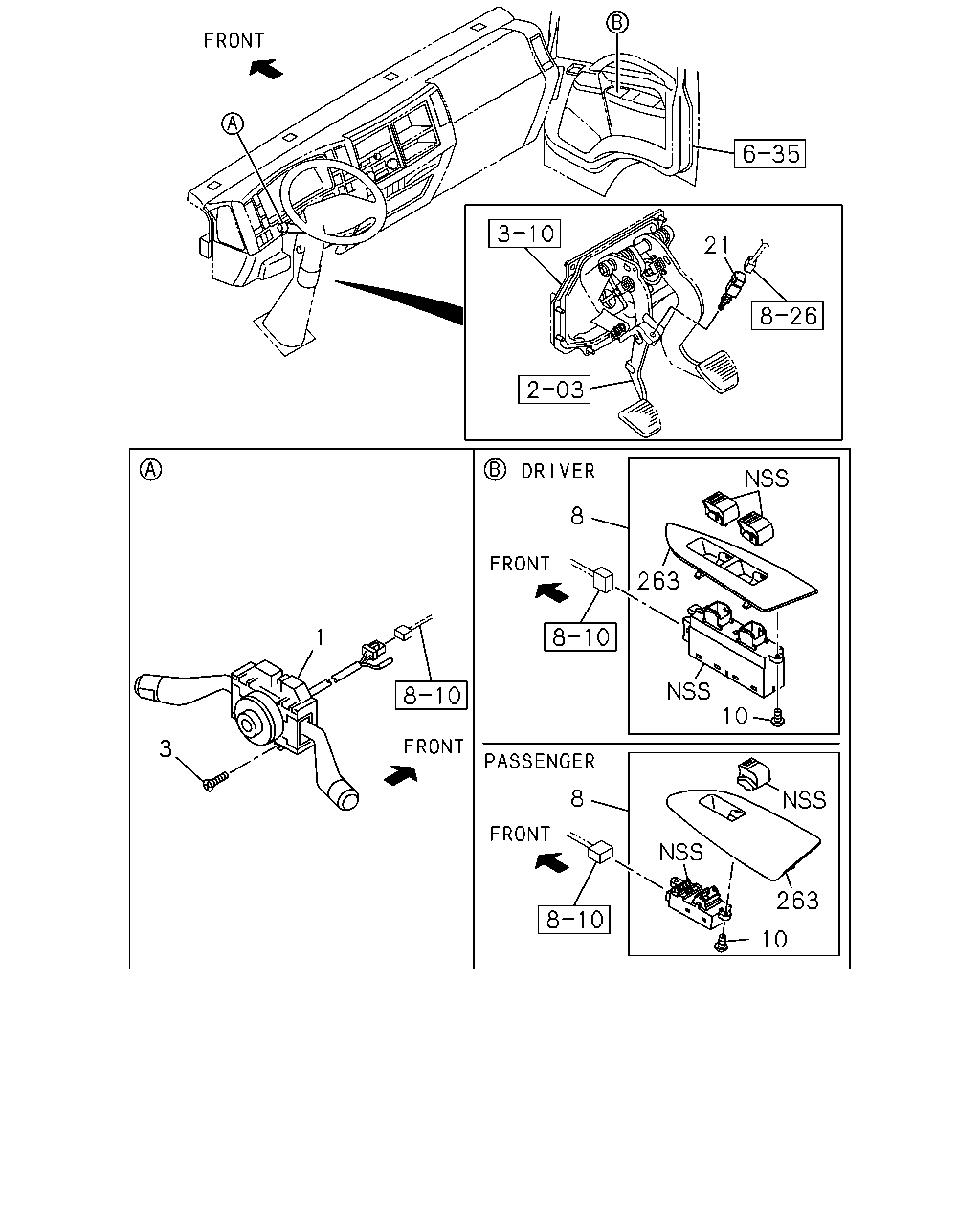

çizim 434140
21 8 263 10 10 263 3 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
CHI 		8-98240-592-0 01 1 1404- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES CHI 		8-98061-743-0 02 1 1404- ● ●
8 SWITCH; POWER WINDOW
PASSENGER CHI 		8-98001-737-2 01 1 1404- ● ●
8 SWITCH; POWER WINDOW
DRIVER CHI 		8-98159-544-0 01 1 1404- ● ●
10 SCREW; POWER WINDOW SW
CHI 		8-98153-865-0 03 1 1404- ● ●
21 SWITCH; CLU
CHI 		8-97358-248-0 01 1 1404- ● ●
263 COVER; SW
DRIVER CHI 		8-98153-838-0 01 1 1404- ● ●
263 COVER; SW
PASSENGER CHI 		8-98153-843-0 01 1 1404- ● ●

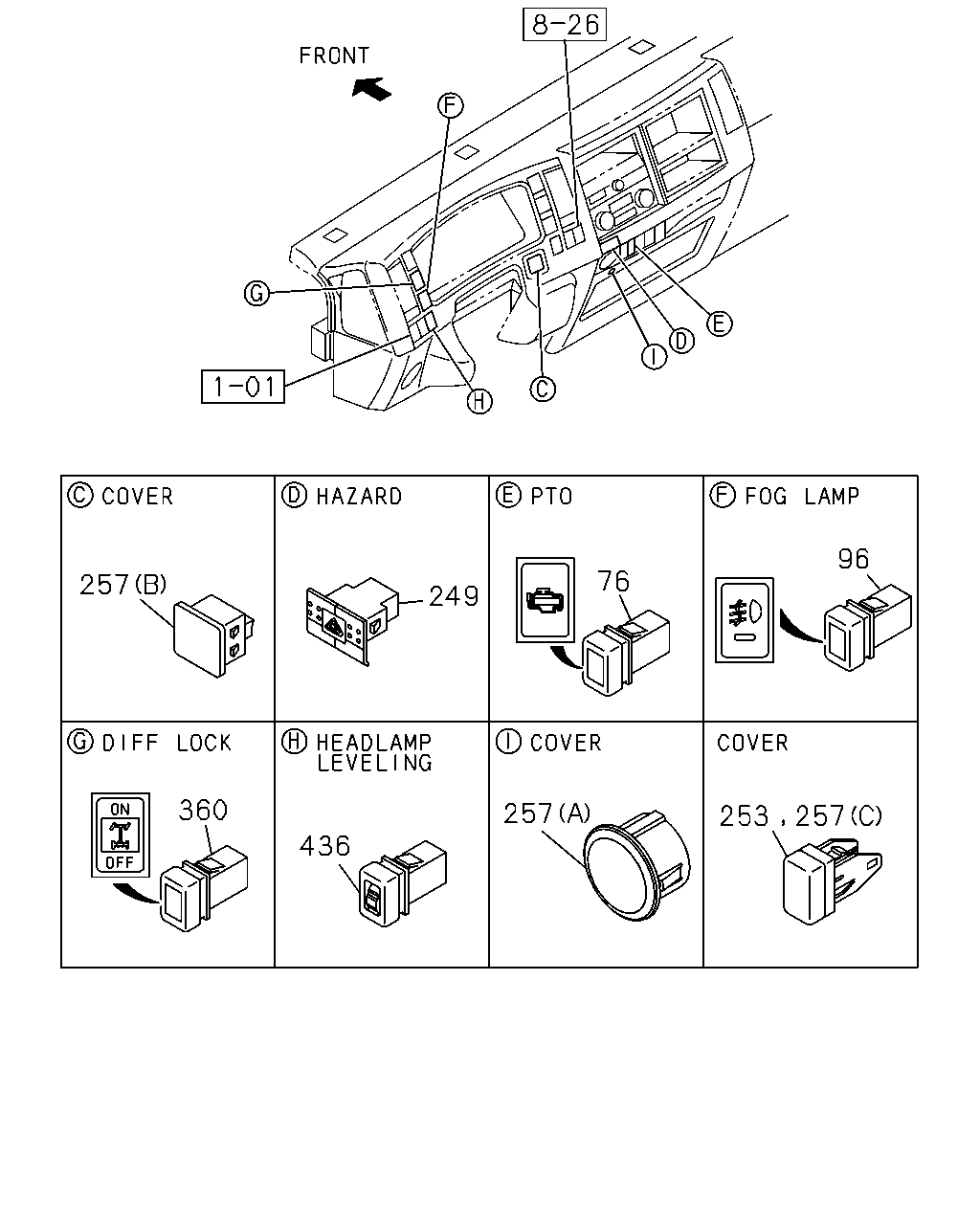

çizim 434236
257 249 76 96 253 257 257 436 360
BalonParca AdiParca NoAdetTipApplied Date A B
76 SWITCH ASM; PTO
MIXER CHASSIS(6NR) CHI 		8-98114-764-0 01 1 1404- ●
96 SWITCH; FOG LAMP
CHI 		8-97387-031-3 01 1 1404- ● ●
249 SWITCH; HAZARD
CHI 		8-97386-922-1 01 1 1404- ● ●
253 COVER; SW HOLE
EXC. MIXER CHASSIS(6NR) CHI 		8-98025-954-1 01 1 1404- ●
253 COVER; SW HOLE
CHI 		8-98025-954-1 01 1 1404- ●
253 COVER; SW HOLE
CHI 		8-98025-954-1 02 1 1404- ● ●
257 COVER; HOLE,SW
(C) CHI 		8-98025-954-1 08 1 1404- ● ●
257 COVER; HOLE,SW
(B) CHI 		8-98029-914-1 01 1 1404- ● ●
257 COVER; HOLE,SW
(D) CHI 		8-98029-917-0 01 1 1404- ● ●
257 COVER; HOLE,SW
(A) CHI 		8-98070-401-2 01 1 1404- ● ●
360 SWITCH ASM; DIFF LK
CHI 		8-97613-964-0 01 1 1404- ● ●
436 SWITCH; HEADLAMP LEVELING
CHI 		8-97386-981-2 01 1 1404- ● ●

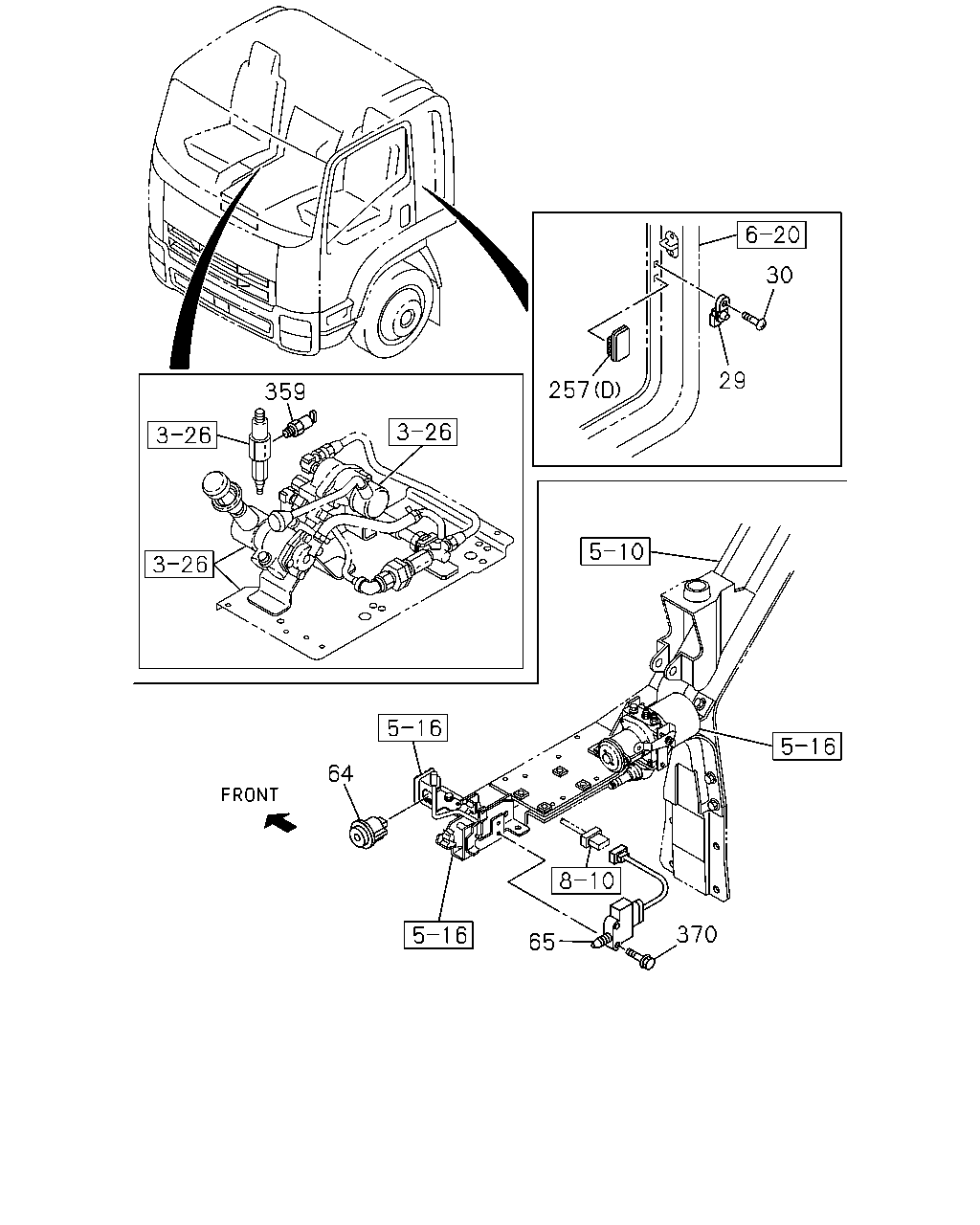

çizim 434279
359 257 29 30 370 65 64
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK CHI 		8-98022-211-0 01 1 1404- ● ●
30 SCREW; DOOR SW
M5X18 CHI 		8-98047-201-0 01 1 1404- ● ●
64 SWITCH; CAB TILT MAIN
CHI 		1-82380-173-2 01 1 1404- ● ●
65 SWITCH; CAB TILT LK
STAMP NO CHI 		1-82380-172-1 01 1 1404- ● ●
257 COVER; HOLE,SW
(C) CHI 		8-98025-954-1 08 1 1404- ● ●
257 COVER; HOLE,SW
(B) CHI 		8-98029-914-1 01 1 1404- ● ●
257 COVER; HOLE,SW
(D) CHI 		8-98029-917-0 01 1 1404- ● ●
257 COVER; HOLE,SW
(A) CHI 		8-98070-401-2 01 1 1404- ● ●
359 SWITCH; TRAILER BRAKE
STAMP 0.3 CHI 		8-98010-857-0 01 1 1404- ●
370 BOLT; SW
M6X30 FLANGE CHI 		0-28650-630-0 02 1 1404- ● ●

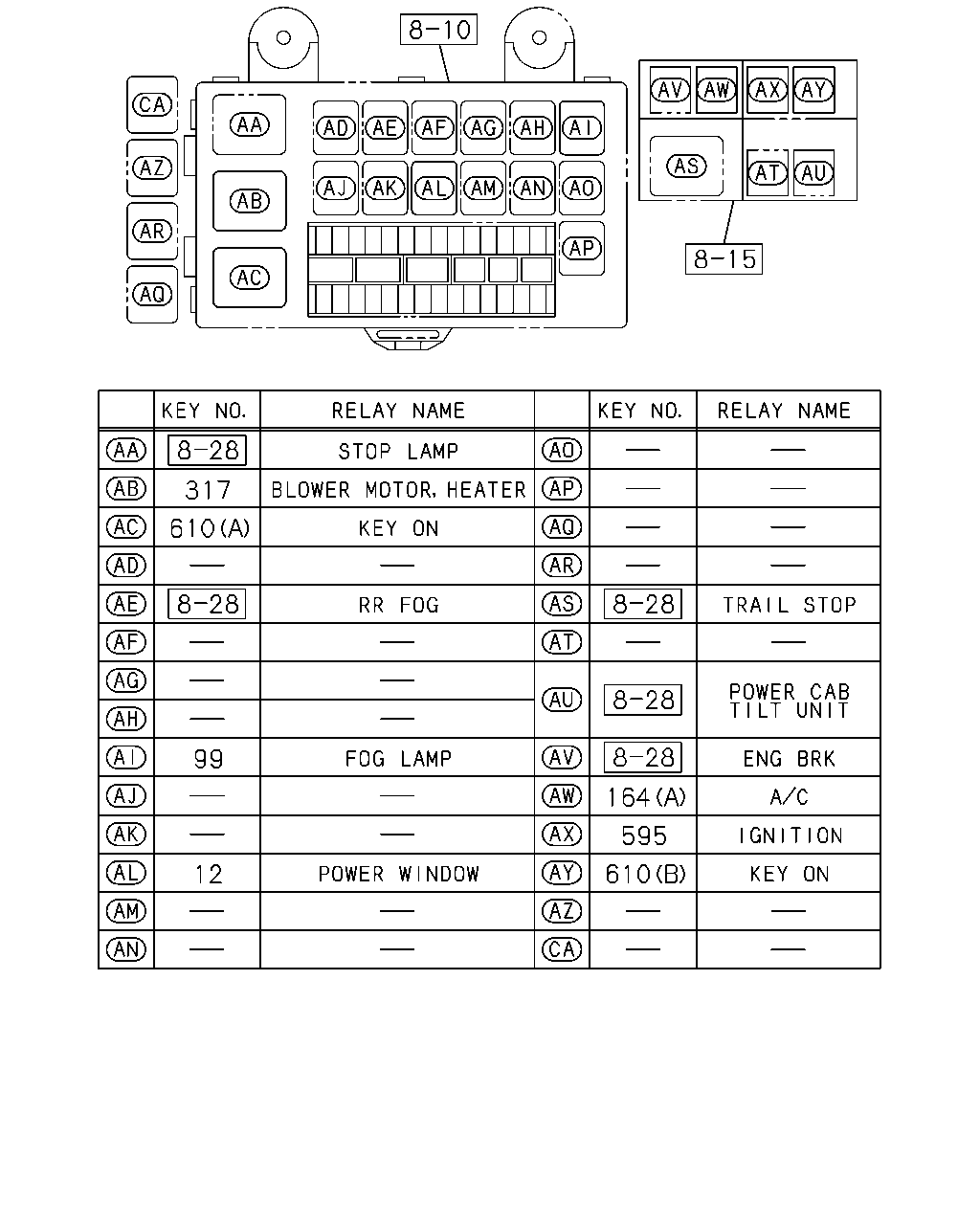

çizim 434342
317 610 99 12 164 595 610
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A PANASONIC CHI 		8-97173-035-1 01 1 1404- ● ●
99 RELAY; FOG LAMP
24V 10A PANASONIC CHI 		8-97173-035-1 01 1 1404- ● ●
164 RELAY; A/C COMPRESSOR
(A) 24V 10A PANASONIC CHI 		8-97173-035-1 01 1 1404- ● ●
164 RELAY; A/C COMPRESSOR
(B) 24V 12.5A PANASONIC CHI 		8-97262-933-0 01 1 1404- ● ●
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC CHI 		8-97262-933-0 01 1 1404- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC CHI 		8-97173-035-1 01 1 1404- ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC CHI 		8-97173-035-1 01 1 1404- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC CHI 		8-97262-933-0 01 1 1404- ● ●
