Sayfa 8-10 - Isuzu EPC

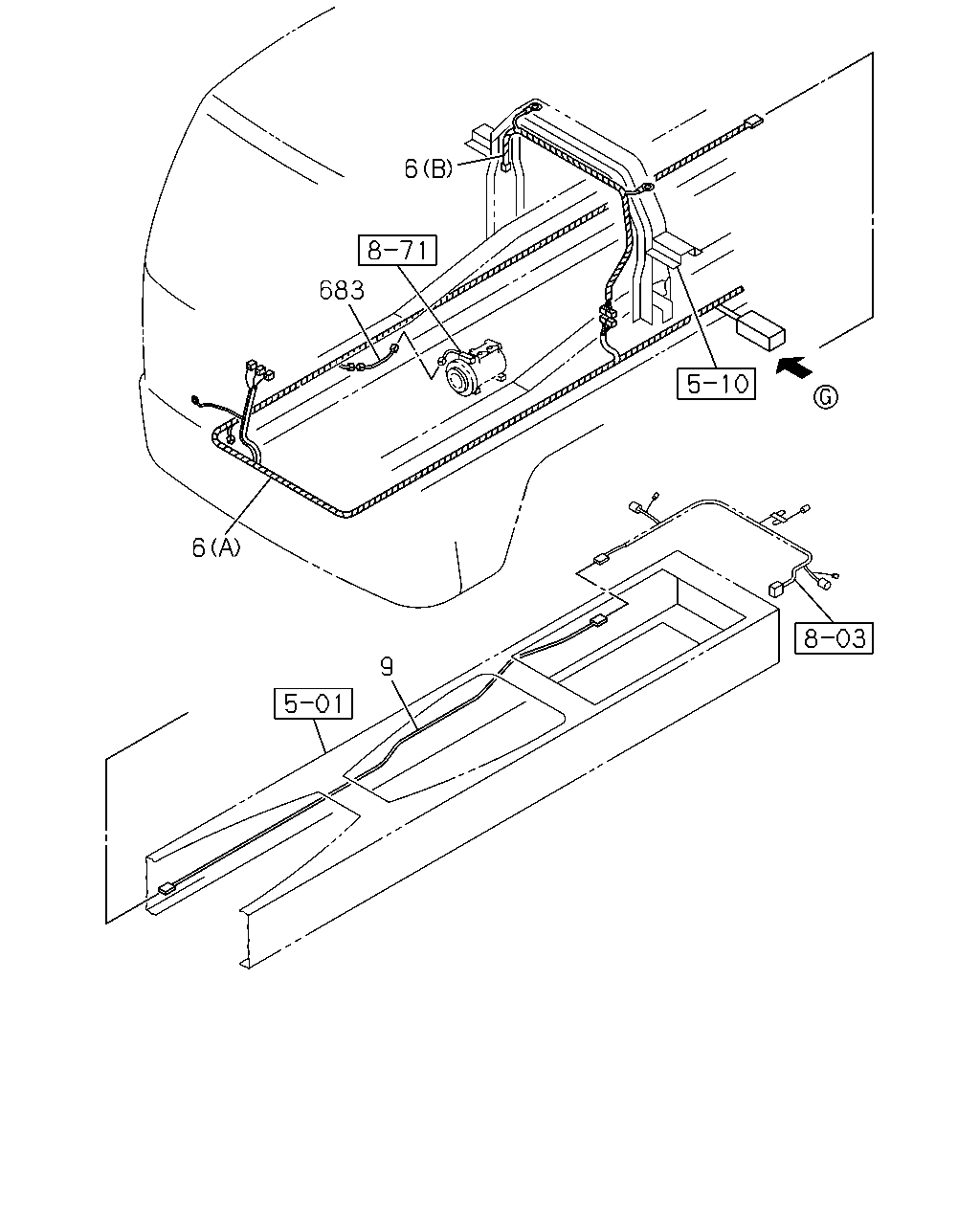

6 683 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B) CHI	8-97430-867-0	01	1	1404-	●
6	HARNESS; FRAME (B) CHI	8-97430-866-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-366-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-367-0	01	1	1404-	●
9	HARNESS; FRAME,RR	8-97431-369-0	01	1	1404-		●
9	HARNESS; FRAME,RR WHEEL BASE 5900MM(59W)	8-97431-371-0	01	1	1404-	●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W)	8-97431-372-0	01	1	1404-	●
683	HARNESS; EXT,COOLER CHI	8-97609-020-1	01	1	1404-	●	●

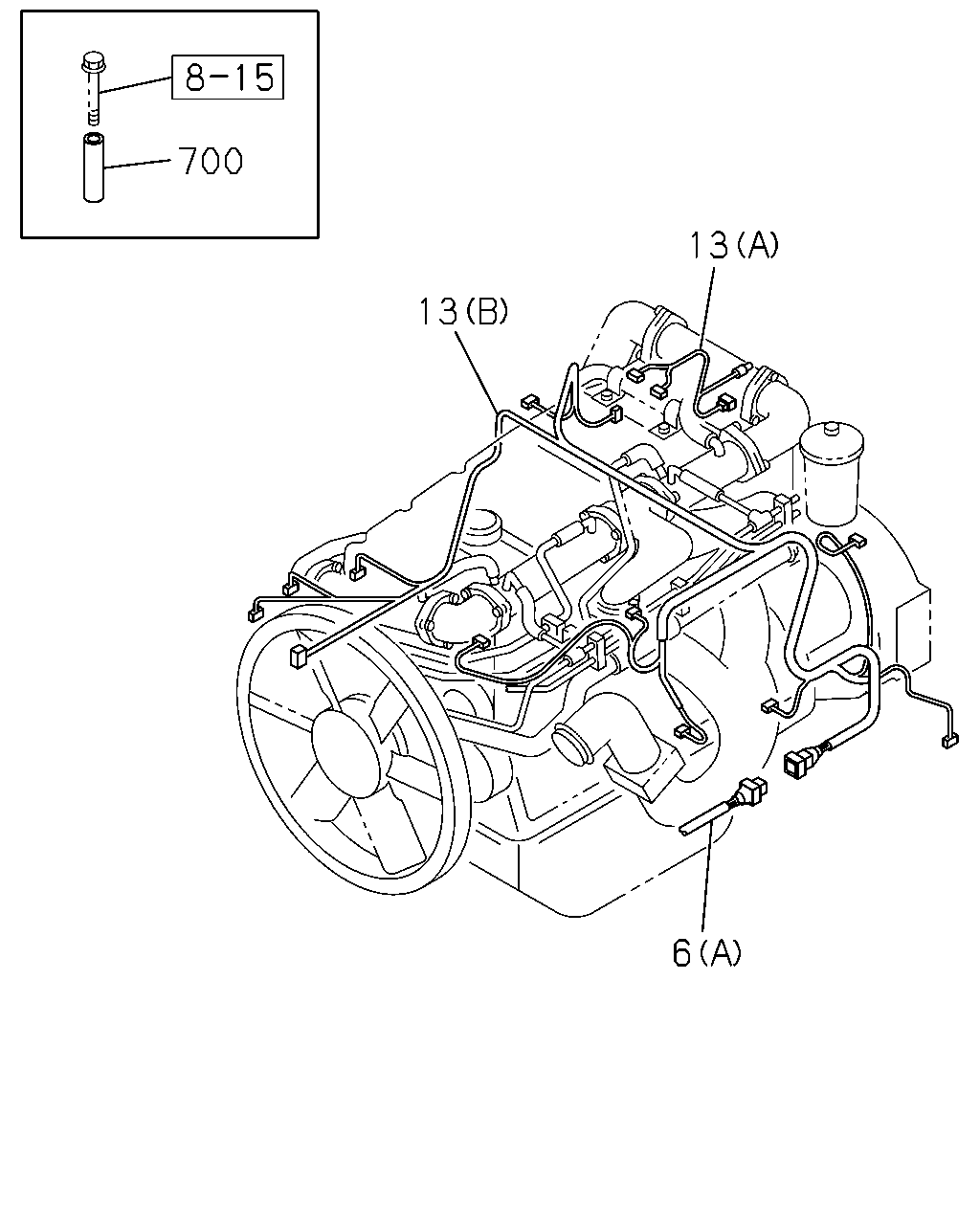

13 13 6 700

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B) CHI	8-97430-867-0	01	1	1404-	●
6	HARNESS; FRAME (B) CHI	8-97430-866-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-366-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-367-0	01	1	1404-	●
13	HARNESS; ENG (A)	8-97609-177-1	01	1	1404-1404	●	●
13	HARNESS; ENG (A)	8-97430-691-0	01	1	1404-	●	●
13	HARNESS; ENG (B)	8-98174-766-0	01	1	1404-1404	●	●
13	HARNESS; ENG (B)	8-97430-646-2	01	1	1404-	●	●
700	TUBE; DISTANCE L=51	1-11369-157-0	01	1	1404-	●	●

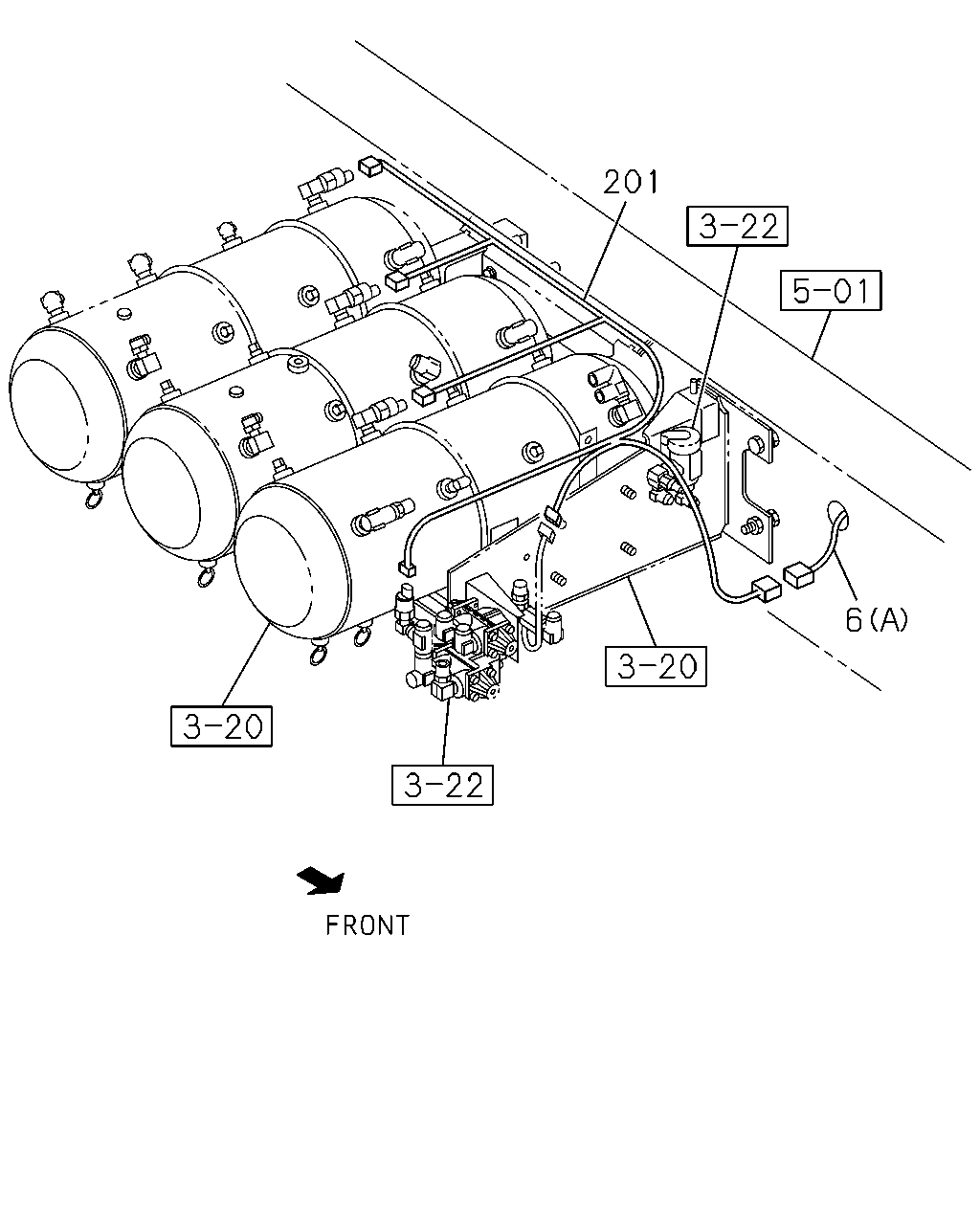

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B) CHI	8-97430-867-0	01	1	1404-	●
6	HARNESS; FRAME (B) CHI	8-97430-866-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-366-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-367-0	01	1	1404-	●
201	HARNESS; AIR TANK	8-97431-376-0	01	1	1404-	●	●

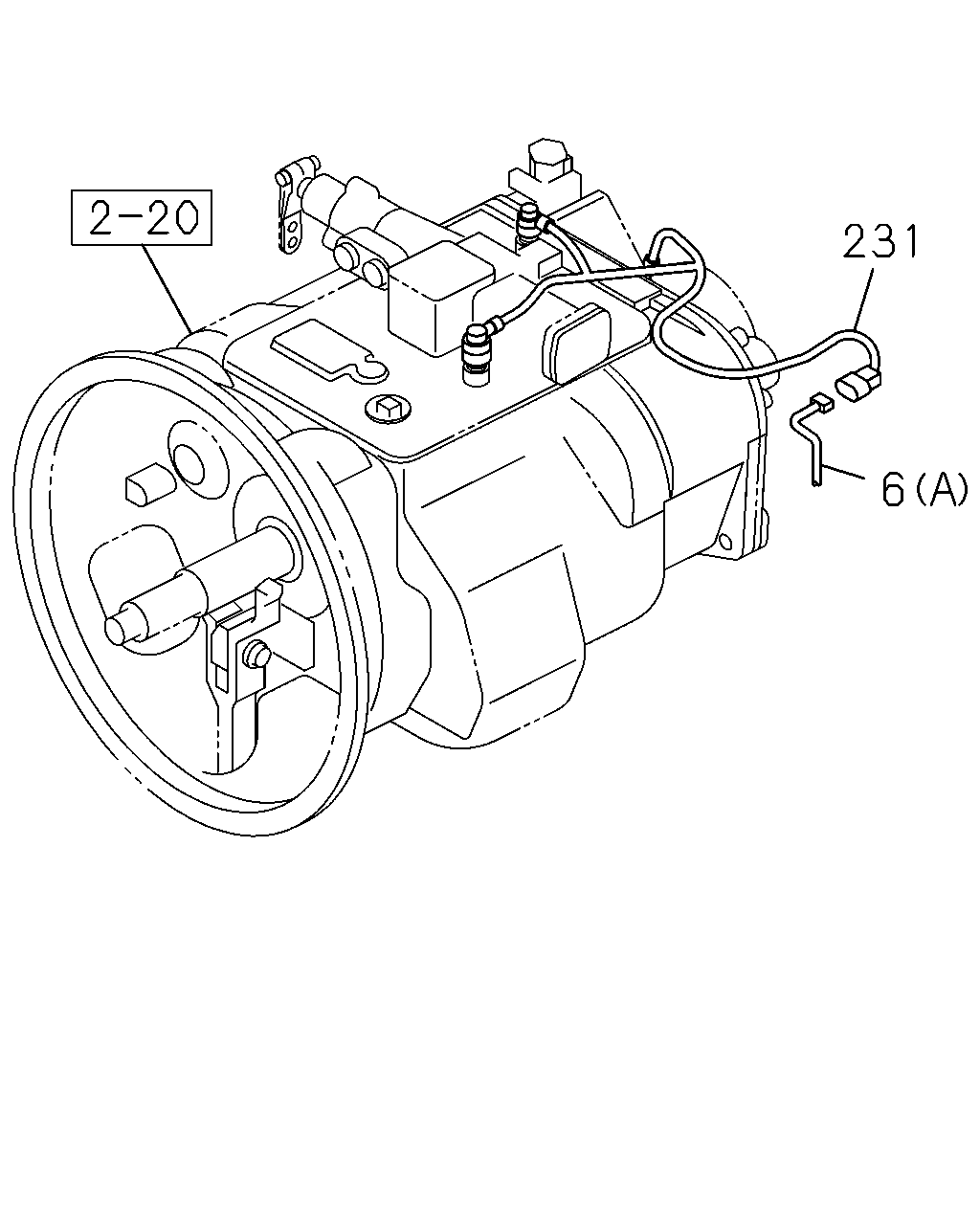

231 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B) CHI	8-97430-867-0	01	1	1404-	●
6	HARNESS; FRAME (B) CHI	8-97430-866-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-366-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-367-0	01	1	1404-	●
231	HARNESS; TRANS	8-97431-375-0	01	1	1404-	●
231	HARNESS; TRANS	8-97431-663-0	01	1	1404-		●

1 2 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB WHEEL BASE 5300MM(53W)	8-97431-356-0	01	1	1404-	●
1	HARNESS; CAB WHEEL BASE 5900MM(59W)	8-97431-357-0	01	1	1404-	●
1	HARNESS; CAB	8-97431-357-0	01	1	1404-		●
2	DIODE; CABLE HARNESS WHEEL BASE 5300MM(53W) (B) CHI BLACK 2P-1.5A CHI	8-94422-639-1	AR	1	1404-	●
2	DIODE; CABLE HARNESS WHEEL BASE 5300MM(53W) (D) BLACK 3P-1.5A CHI	8-94422-640-1	AR	1	1404-	●
2	DIODE; CABLE HARNESS WHEEL BASE 5300MM(53W) (C) BLACK 3P-1.5A CHI	8-94416-438-1	AR	1	1404-	●
2	DIODE; CABLE HARNESS WHEEL BASE 5300MM(53W) (A) BLACK 10P CHI	1-82699-703-0	AR	1	1404-	●
2	DIODE; CABLE HARNESS WHEEL BASE 5900MM(59W) (B) CHI BLACK 2P-1.5A CHI	8-94422-639-1	AR	1	1404-	●
2	DIODE; CABLE HARNESS (B) CHI BLACK 2P-1.5A CHI	8-94422-639-1	AR	1	1404-		●
2	DIODE; CABLE HARNESS WHEEL BASE 5900MM(59W) (D) BLACK 3P-1.5A CHI	8-94422-640-1	AR	1	1404-	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A CHI	8-94422-640-1	AR	1	1404-		●
2	DIODE; CABLE HARNESS WHEEL BASE 5900MM(59W) (C) BLACK 3P-1.5A CHI	8-94416-438-1	AR	1	1404-	●
2	DIODE; CABLE HARNESS (C) BLACK 3P-1.5A CHI	8-94416-438-1	AR	1	1404-		●
2	DIODE; CABLE HARNESS WHEEL BASE 5900MM(59W) (A) BLACK 10P CHI	1-82699-703-0	AR	1	1404-	●
2	DIODE; CABLE HARNESS (A) BLACK 10P CHI	1-82699-703-0	AR	1	1404-		●

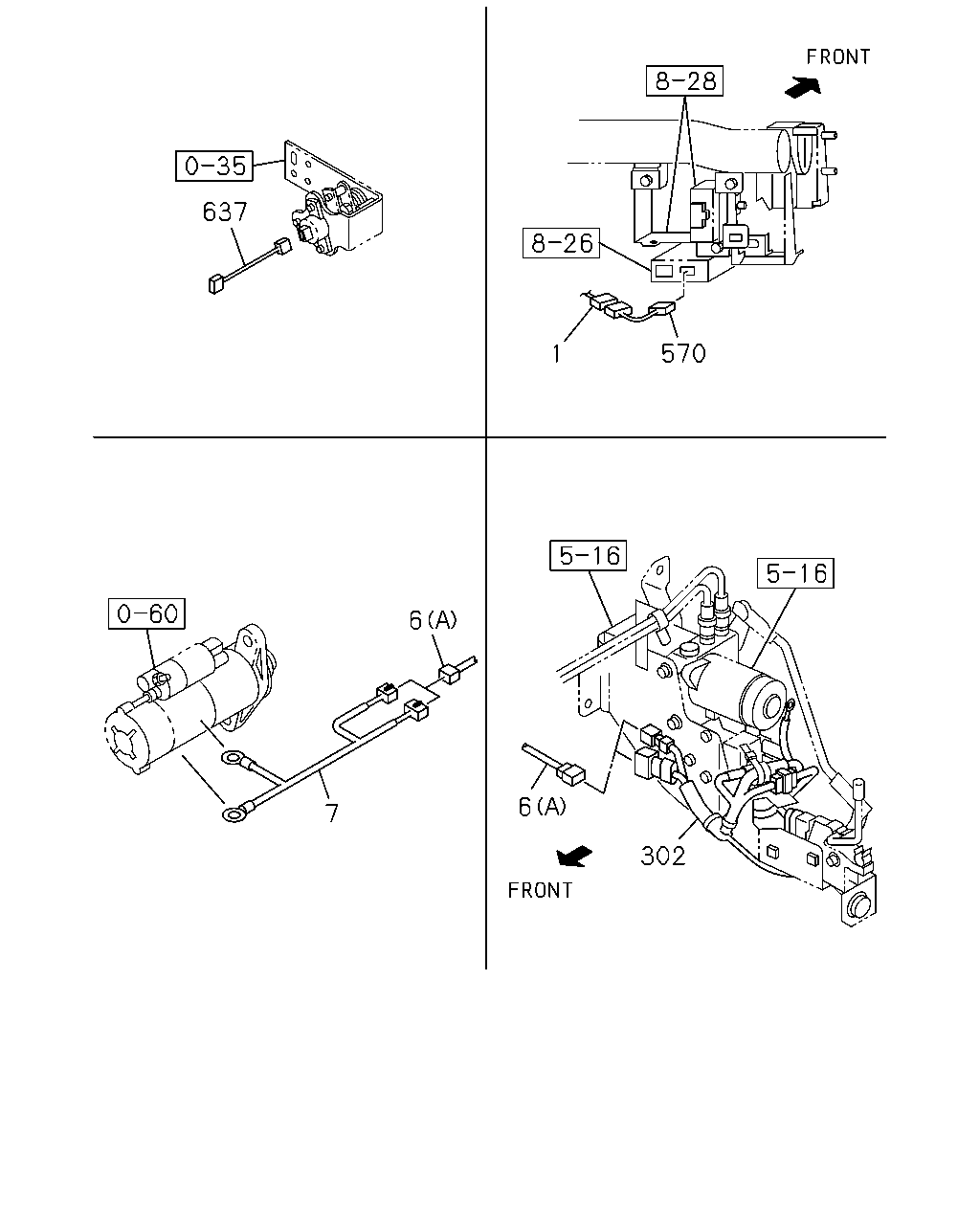

637 570 1 6 302 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB WHEEL BASE 5300MM(53W)	8-97431-356-0	01	1	1404-	●
1	HARNESS; CAB WHEEL BASE 5900MM(59W)	8-97431-357-0	01	1	1404-	●
1	HARNESS; CAB	8-97431-357-0	01	1	1404-		●
6	HARNESS; FRAME (B) CHI	8-97430-867-0	01	1	1404-	●
6	HARNESS; FRAME (B) CHI	8-97430-866-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-366-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-367-0	01	1	1404-	●
7	LINK ASM; FUSIBLE WHEEL BASE 5300MM(53W) CHI	8-98106-137-0	01	1	1404-	●
7	LINK ASM; FUSIBLE WHEEL BASE 5900MM(59W) CHI	8-98088-132-0	01	1	1404-	●
7	LINK ASM; FUSIBLE CHI	8-98088-132-0	01	1	1404-		●
302	HARNESS; POWER CAB TILT CHI	8-97430-870-0	01	1	1404-	●	●
570	HARNESS; SPEED SENSOR	8-98148-602-0	01	1	1404-	●	●
637	HARNESS; EXT,S/SENSOR PTO CONTROL OPERATION CAB BACK<TBZ> CHI	1-82675-934-0	01	1	1404-	●

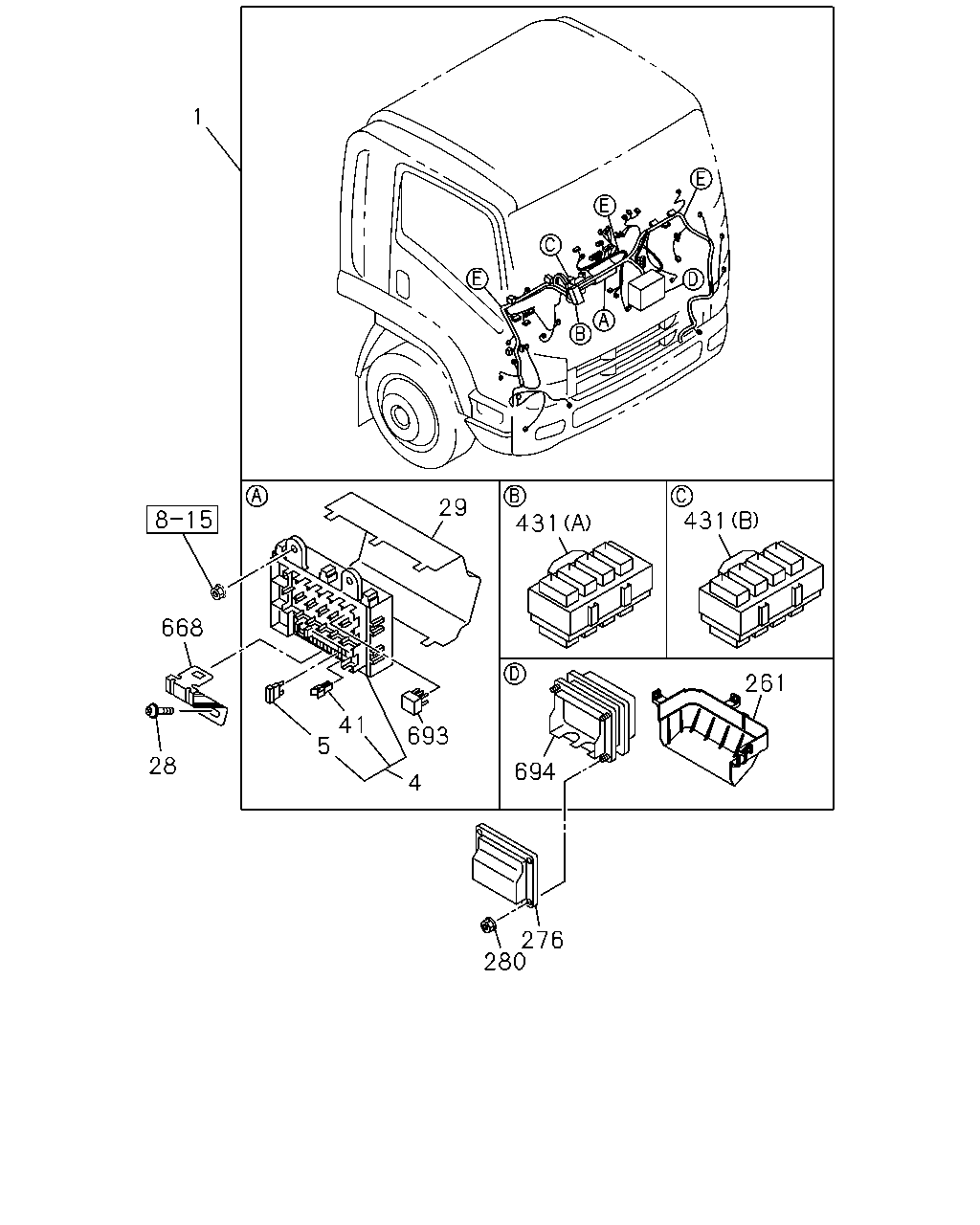

1 431 431 29 668 41 5 28 693 4 694 276 280 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB WHEEL BASE 5300MM(53W)	8-97431-356-0	01	1	1404-	●
1	HARNESS; CAB WHEEL BASE 5900MM(59W)	8-97431-357-0	01	1	1404-	●
1	HARNESS; CAB	8-97431-357-0	01	1	1404-		●
4	BOX ASM; FUSE,HARNESS WHEEL BASE 5300MM(53W) CHI	8-98065-666-0	01	1	1404-	●
4	BOX ASM; FUSE,HARNESS WHEEL BASE 5900MM(59W) CHI	8-98065-666-0	01	1	1404-	●
4	BOX ASM; FUSE,HARNESS CHI	8-98065-666-0	01	1	1404-		●
5	FUSE; FACIA HARNESS WHEEL BASE 5300MM(53W) 10A RED CHI	8-98054-257-0	AR	1	1404-	●
5	FUSE; FACIA HARNESS WHEEL BASE 5300MM(53W) 15A BLUE CHI	8-98054-258-0	AR	1	1404-	●
5	FUSE; FACIA HARNESS WHEEL BASE 5300MM(53W) 20A YELLOW CHI	8-98054-259-0	AR	1	1404-	●
5	FUSE; FACIA HARNESS WHEEL BASE 5300MM(53W) 25A WHITE	8-98062-982-0	AR	1	1404-	●
5	FUSE; FACIA HARNESS WHEEL BASE 5900MM(59W) 10A RED CHI	8-98054-257-0	AR	1	1404-	●
5	FUSE; FACIA HARNESS 10A RED CHI	8-98054-257-0	AR	1	1404-		●
5	FUSE; FACIA HARNESS WHEEL BASE 5900MM(59W) 15A BLUE CHI	8-98054-258-0	AR	1	1404-	●
5	FUSE; FACIA HARNESS 15A BLUE CHI	8-98054-258-0	AR	1	1404-		●
5	FUSE; FACIA HARNESS WHEEL BASE 5900MM(59W) 20A YELLOW CHI	8-98054-259-0	AR	1	1404-	●
5	FUSE; FACIA HARNESS 20A YELLOW CHI	8-98054-259-0	AR	1	1404-		●
5	FUSE; FACIA HARNESS WHEEL BASE 5900MM(59W) 25A WHITE	8-98062-982-0	AR	1	1404-	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1404-		●
28	SCREW; FUSE BOX M6X16 FLANGE CHI	0-28650-616-0	01	1	1404-	●	●
29	COVER; FUSE BOX WHEEL BASE 5300MM(53W) CHI	8-98056-968-0	01	1	1404-	●
29	COVER; FUSE BOX WHEEL BASE 5900MM(59W) CHI	8-98056-968-0	01	1	1404-	●
29	COVER; FUSE BOX CHI	8-98056-968-0	01	1	1404-		●
41	PULLER; FUSE WHEEL BASE 5300MM(53W) CHI	8-98054-260-0	01	1	1404-	●
41	PULLER; FUSE WHEEL BASE 5900MM(59W) CHI	8-98054-260-0	01	1	1404-	●
41	PULLER; FUSE CHI	8-98054-260-0	01	1	1404-		●
261	COVER; CONNECTOR BOX WHEEL BASE 5300MM(53W) CHI	8-98065-986-1	01	1	1404-	●
261	COVER; CONNECTOR BOX WHEEL BASE 5900MM(59W) CHI	8-98065-986-1	01	1	1404-	●
261	COVER; CONNECTOR BOX CHI	8-98065-986-1	01	1	1404-		●
276	COVER; BOX,FRAME HARNESS CHI	8-98034-039-1	01	1	1404-	●	●
280	NUT; BOX ASM FIX M6 FLANGE CHI	0-91180-106-0	04	1	1404-	●	●
431	CONNECTOR; JOINT WHEEL BASE 5300MM(53W) (A) CHI WHITE	8-98056-374-0	01	1	1404-	●
431	CONNECTOR; JOINT WHEEL BASE 5300MM(53W) (B) CHI WHITE	8-98056-375-0	01	1	1404-	●
431	CONNECTOR; JOINT WHEEL BASE 5900MM(59W) (A) CHI WHITE	8-98056-374-0	01	1	1404-	●
431	CONNECTOR; JOINT (A) CHI WHITE	8-98056-374-0	01	1	1404-		●
431	CONNECTOR; JOINT WHEEL BASE 5900MM(59W) (B) CHI WHITE	8-98056-375-0	01	1	1404-	●
431	CONNECTOR; JOINT (B) CHI WHITE	8-98056-375-0	01	1	1404-		●
668	BRACKET; HARNESS CHI	8-98095-653-2	01	1	1404-	●	●
693	RELAY; FUSE BOX WHEEL BASE 5300MM(53W) 24V 10A PANASONIC CHI	8-97173-035-1	AR	1	1404-	●
693	RELAY; FUSE BOX WHEEL BASE 5900MM(59W) 24V 10A PANASONIC CHI	8-97173-035-1	AR	1	1404-	●
693	RELAY; FUSE BOX 24V 10A PANASONIC CHI	8-97173-035-1	AR	1	1404-		●
694	BOX ASM; CONNECTOR WHEEL BASE 5300MM(53W) CHI	8-98057-771-0	01	1	1404-	●
694	BOX ASM; CONNECTOR WHEEL BASE 5900MM(59W) CHI	8-98057-771-0	01	1	1404-	●
694	BOX ASM; CONNECTOR CHI	8-98057-771-0	01	1	1404-		●

639 638 641 638 641

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
638	BRACKET; SPD SENSOR PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=90 B=25 CHI	1-47475-530-0	01	1	1404-	●
638	BRACKET; SPD SENSOR PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=130 CHI	1-47478-959-0	01	1	1404-	●
639	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-	●
641	CLIP; SPD SENSOR PTO CONTROL OPERATION CAB BACK<TBZ> (A) OD=9 H=6 CHI	1-09709-178-0	01	1	1404-	●
641	CLIP; SPD SENSOR PTO CONTROL OPERATION CAB BACK<TBZ> (B) ID=5-12 L=14.5 CHI	1-09987-221-0	01	1	1404-	●

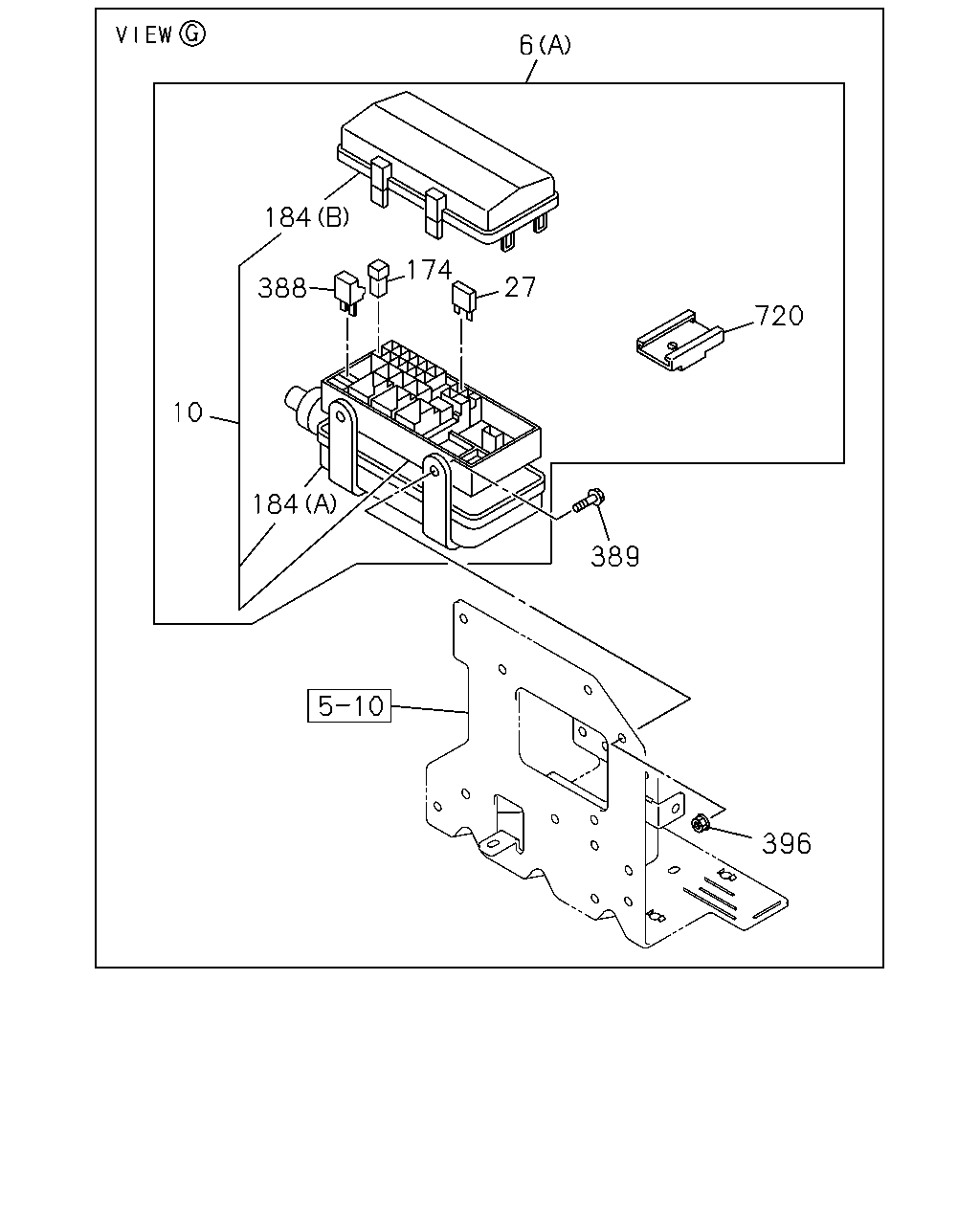

6 174 184 388 10 184 389 720 396 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B) CHI	8-97430-867-0	01	1	1404-	●
6	HARNESS; FRAME (B) CHI	8-97430-866-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-366-0	01	1	1404-		●
6	HARNESS; FRAME (A)	8-97431-367-0	01	1	1404-	●
10	BOX; FUSE,HARNESS CHI	8-98030-762-0	01	1	1404-		●
10	BOX; FUSE,HARNESS CHI	8-98030-762-0	01	1	1404-	●
27	FUSE UNIT 10A RED CHI	8-98054-257-0	03	1	1404-		●
27	FUSE UNIT 15A BLUE CHI	8-98054-258-0	01	1	1404-		●
27	FUSE UNIT 10A RED CHI	8-98054-257-0	03	1	1404-	●
27	FUSE UNIT 15A BLUE CHI	8-98054-258-0	01	1	1404-	●
174	FUSE; SLOW BLOW 30A PINK CHI	8-98079-191-0	01	1	1404-		●
174	FUSE; SLOW BLOW 40A GREEN CHI	8-98079-192-0	01	1	1404-		●
174	FUSE; SLOW BLOW 50A RED CHI	8-98079-193-0	03	1	1404-		●
174	FUSE; SLOW BLOW 60A YELLOW CHI	8-98079-194-0	02	1	1404-		●
174	FUSE; SLOW BLOW 60A YELLOW CHI	8-97219-407-0	01	1	1404-		●
174	FUSE; SLOW BLOW 30A PINK CHI	8-98079-191-0	01	1	1404-	●
174	FUSE; SLOW BLOW 40A GREEN CHI	8-98079-192-0	01	1	1404-	●
174	FUSE; SLOW BLOW 50A RED CHI	8-98079-193-0	03	1	1404-	●
174	FUSE; SLOW BLOW 60A YELLOW CHI	8-98079-194-0	02	1	1404-	●
174	FUSE; SLOW BLOW 60A YELLOW CHI	8-97219-407-0	01	1	1404-	●
184	COVER; RELAY & FUSE BOX (A) CHI	8-98030-766-0	01	1	1404-		●
184	COVER; RELAY & FUSE BOX (B) CHI	8-98030-767-1	01	1	1404-		●
184	COVER; RELAY & FUSE BOX (A) CHI	8-98030-766-0	01	1	1404-	●
184	COVER; RELAY & FUSE BOX (B) CHI	8-98030-767-1	01	1	1404-	●
388	DIODE; RELAY BOX BLACK 4P-1.5A CHI	8-94381-730-0	01	1	1404-		●
388	DIODE; RELAY BOX BLACK 4P-1.5A CHI	8-94381-730-0	01	1	1404-	●
389	BOLT; COVER,RELAY BOX M8X30 W/LK&PL WASHER CHI	1-09030-095-0	03	1	1404-	●	●
396	NUT; COVER,RELAY BOX M8 FLANGE CHI	0-91180-108-0	02	1	1404-	●	●
720	ATTACHMENT; CONNECTOR CHI	1-82699-688-0	01	1	1404-		●
720	ATTACHMENT; CONNECTOR CHI	1-82699-688-0	01	1	1404-	●

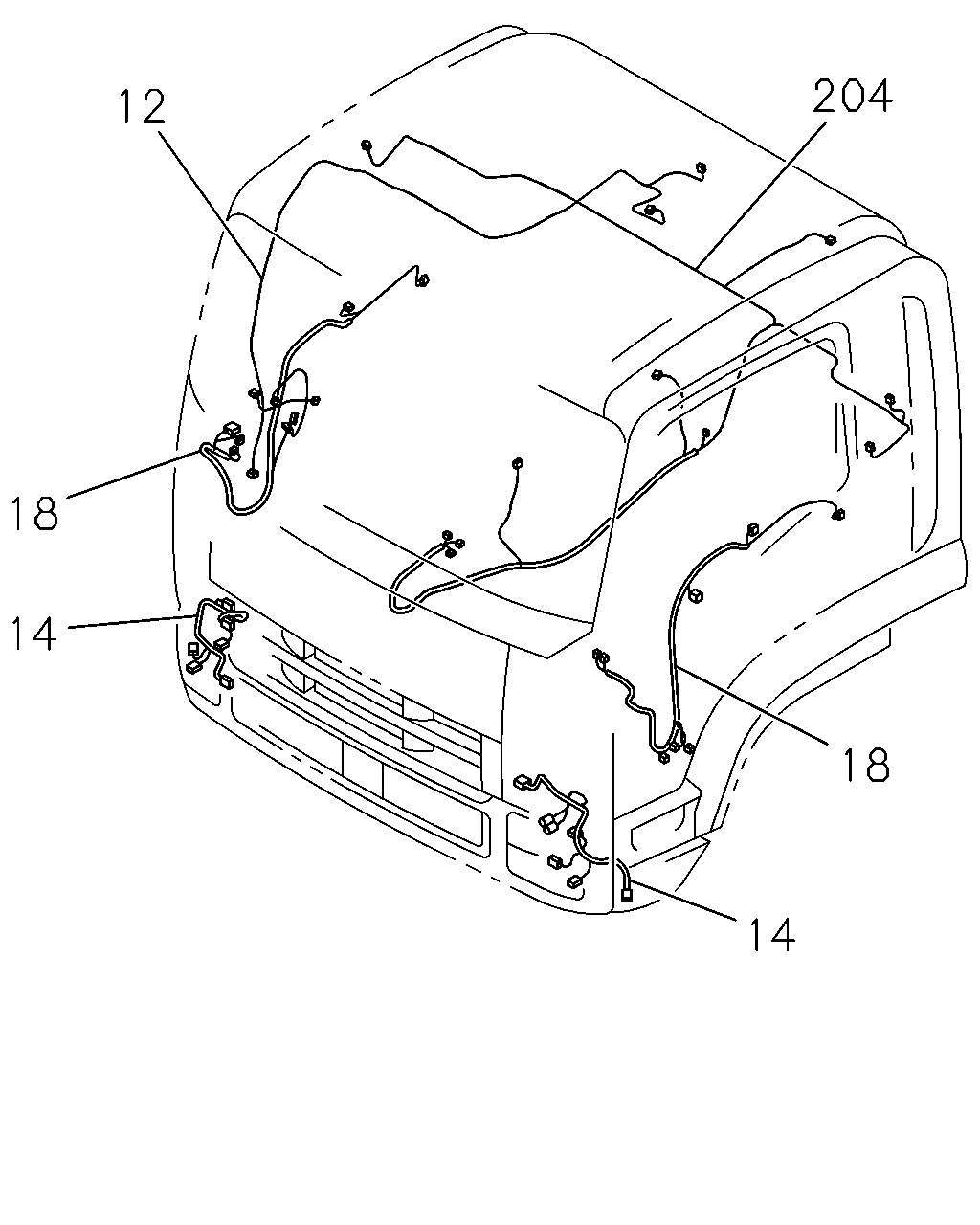

204 12 18 14 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF CHI	8-98085-336-1	01	1	1404-	●	●
14	HARNESS; HEADLAMP CHI	8-98069-166-1	02	1	1404-	●	●
18	HARNESS; DOOR CHI	8-98178-804-0	01	1	1404-	●	●
18	HARNESS; DOOR CHI	8-98178-803-0	01	1	1404-	●	●
204	HARNESS; CABLE,FLOOR	8-97431-619-0	01	1	1404-	●	●
