◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#144429) — 46 parça

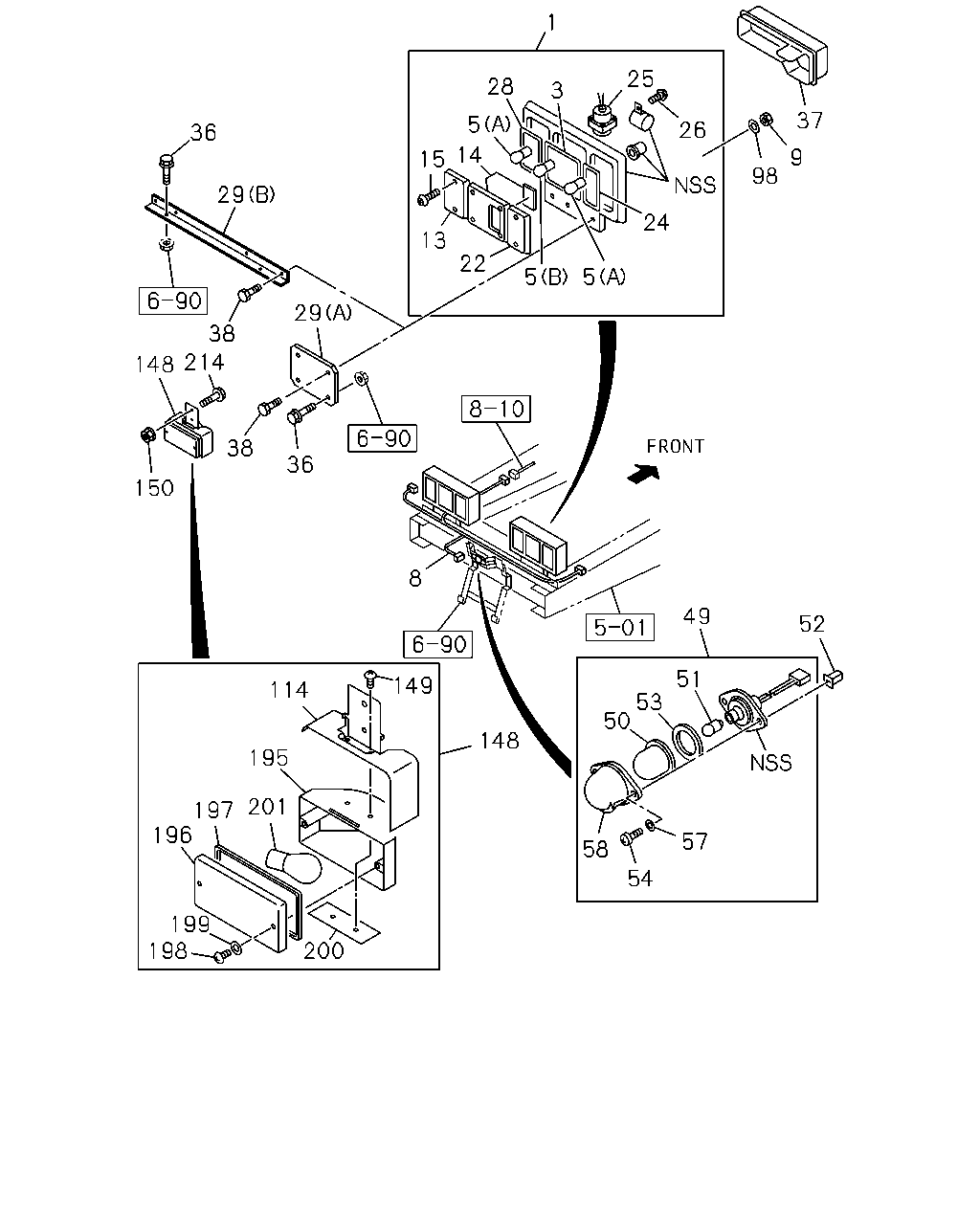

çizim 432156
1 28 3 25 26 37 9 98 24 5 5 22 13 15 14 5 36 29 38 29 148 214 38 36 150 8 149 114 195 201 197 196 199 198 200 148 50 53 51 52 49 57 54 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
CHI 		1-82230-209-0 01 1 1404- ● ●
1 LAMP ASM; RR COMB
CHI 		1-82230-208-0 01 1 1404- ● ●
3 GASKET; RR COMB LAMP
CHI 		8-94257-505-0 02 1 1404- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W CHI 		1-82194-036-0 04 1 1404- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W CHI 		1-82194-038-0 02 1 1404- ● ●
8 HARNESS; RR COMB LAMP 8-97431-380-0 01 1 1404- ●
9 NUT; LAMP,RR COMB
M6 CHI 		0-91110-506-0 04 1 1404- ● ●
13 LENS; TURN SIGNAL
CHI 		8-94174-638-0 01 1 1404- ● ●
13 LENS; TURN SIGNAL
CHI 		8-94174-639-0 01 1 1404- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
CHI 		8-94178-624-0 01 1 1404- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
CHI 		8-94178-625-0 01 1 1404- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1404- ● ●
22 LENS; BACKUP,RR COMB LAMP
CHI 		8-94257-512-1 02 1 1404- ● ●
24 GASKET; BACK,LAMP
CHI 		8-94257-506-0 02 1 1404- ● ●
25 HORN ASM; BACK
CHI 		8-94257-518-0 01 1 1404- ● ●
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 1404- ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1404- ● ●
28 GASKET; TURN,LAMP
CHI 		8-94257-507-0 02 1 1404- ● ●
29 BRACKET; LAMP,RR COMB
(A) CHI 		1-82237-050-1 02 1 1404- ●
29 BRACKET; LAMP,RR COMB
(B) CHI 		1-53178-016-1 01 1 1404- ●
36 BOLT; BRKT,RR COMB
CHI 		0-50741-025-0 04 1 1404- ●
36 BOLT; BRKT,RR COMB
M10X40 FLANGE CHI 		0-28651-040-0 02 1 1404- ●
37 COVER; RR COMB LAMP
CHI 		1-82239-008-0 01 1 1404- ● ●
37 COVER; RR COMB LAMP
CHI 		1-82239-007-0 01 1 1404- ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER CHI 		0-50640-630-0 04 1 1404- ● ●
49 LAMP; LICENSE PLATE
24V 10W CHI 		1-82120-024-1 01 1 1404- ● ●
50 LENS; LICENSE PLATE LAMP
CHI 		1-82235-006-0 01 1 1404- ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W CHI 		1-82194-037-0 01 1 1404- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK CHI 		8-94275-946-0 02 1 1404- ● ●
53 GASKET; LICENSE LAMP
CHI 		1-82126-005-0 01 1 1404- ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 CHI 		1-82129-007-0 02 1 1404- ● ●
57 WASHER; PL,LICENSE PLATE LAMP
CHI 		1-82129-008-0 02 1 1404- ● ●
58 COVER; LICENSE PLATE LAMP
CHI 		1-82129-005-0 01 1 1404- ● ●
98 WASHER
ID=6.4 OD=18 CHI 		0-91610-706-0 04 1 1404- ● ●
114 BRACKET; RR FOG LAMP
CHI 		8-97108-583-0 01 1 1404- ● ●
148 LAMP ASM; RR FOG
CHI 		1-82110-477-0 01 1 1404- ● ●
149 SCREW; BRKT TO LAMP BODY
CHI 		8-94336-372-0 02 1 1404- ● ●
150 NUT; RR FOG LAMP
M6 FLANGE 		5-09440-004-0 01 1 1404- ● ●
195 LAMP UNIT; RR FOG
CHI 		8-94336-322-0 01 1 1404- ● ●
196 LENS; RR FOG LAMP
CHI 		8-94336-325-0 01 1 1404- ● ●
197 GASKET; RR FOG LAMP
CHI 		8-94336-324-0 01 1 1404- ● ●
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 1404- ● ●
199 WASHER; LENS,RR FOG LAMP
CHI 		8-94336-326-0 02 1 1404- ● ●
200 PLATE; SET,RR FOG LAMP
CHI 		8-94336-323-0 01 1 1404- ● ●
201 BULB; RR FOG LAMP
24V 21W CHI 		1-82194-036-0 01 1 1404- ● ●
214 BOLT; RR FOG LAMP
M6X20 FLANGE CHI 		0-28650-620-0 01 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
