8-01 — LAMP; FRONT AND FRONT SIDE (#144428) — 56 parça

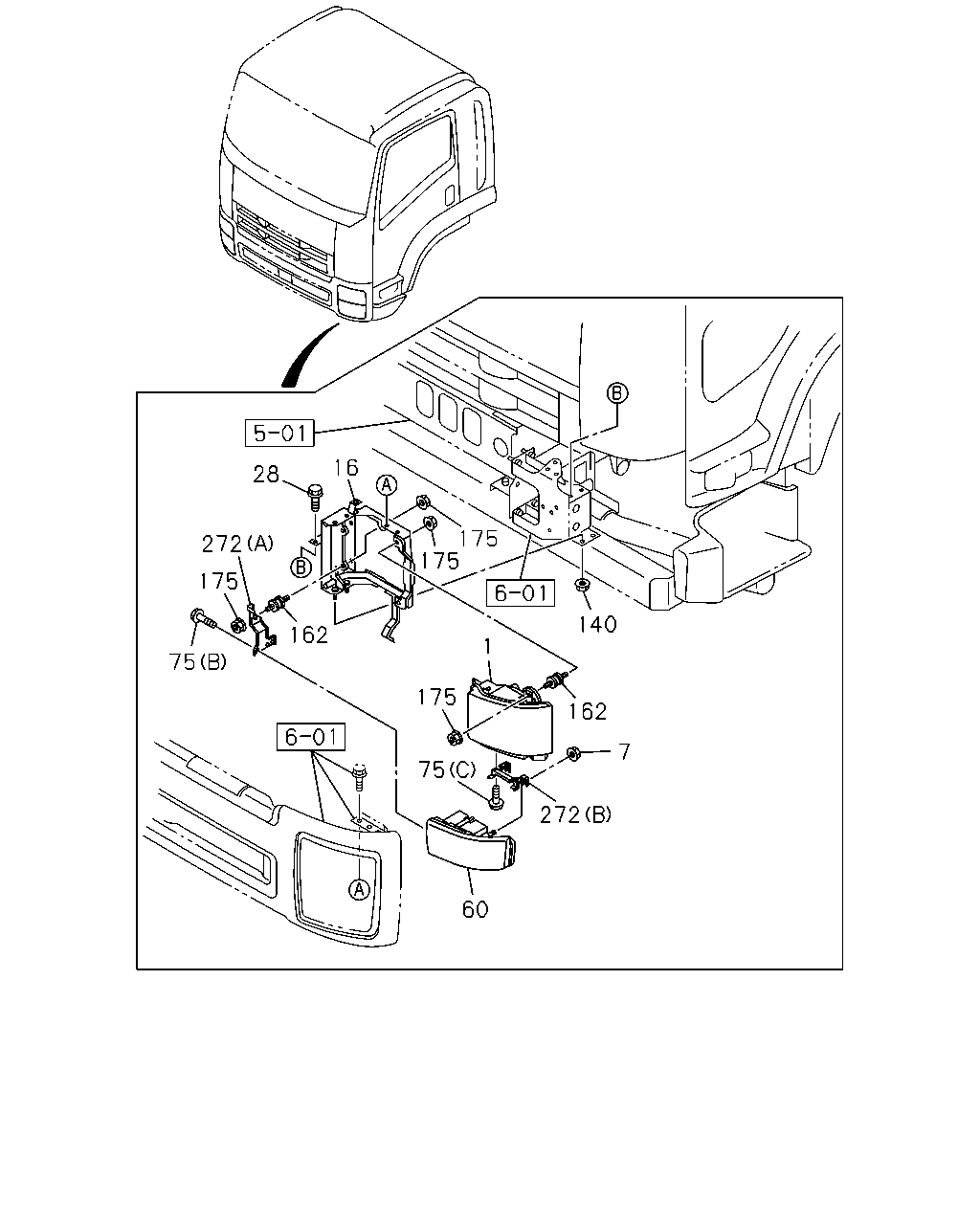

272 75 28 175 162 175 75 60 272 7 162 140 1 175 16 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD	8-98241-315-0	01	1	1404-	●	●
1	LAMP ASM; HEAD	8-98241-314-0	01	1	1404-	●	●
7	NUT; FRT COMB LAMP M6 FLANGE CHI	0-91180-106-0	04	1	1404-	●	●
16	BRACKET; HEADLAMP CHI	8-97430-089-0	01	1	1404-	●	●
16	BRACKET; HEADLAMP CHI	8-98013-015-2	01	1	1404-	●	●
28	BOLT; HEADLAMP M10X25 FLANGE CHI	0-28651-025-0	04	1	1404-	●	●
60	LAMP ASM; FRT COMB	8-98238-626-0	01	1	1404-	●	●
60	LAMP ASM; FRT COMB	8-98238-625-0	01	1	1404-	●	●
75	SCREW; FRT COMB LAMP (B) M6X16 FLANGE CHI	0-28650-616-0	04	1	1404-	●	●
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER CHI	0-74360-516-0	06	1	1404-	●	●
75	SCREW; FRT COMB LAMP (A)	8-98074-439-0	02	1	1404-	●	●
140	NUT M10 FLANGE CHI	0-91180-210-0	04	1	1404-	●	●
162	RUBBER; CUSHION UPR CHI	1-82117-086-0	08	1	1404-	●	●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE CHI	0-91180-108-0	16	1	1404-	●	●
272	BRACKET; FRT COMB LAMP (A) CHI	8-98051-935-0	01	1	1404-	●	●
272	BRACKET; FRT COMB LAMP (B) CHI	8-98051-938-0	01	1	1404-	●	●
272	BRACKET; FRT COMB LAMP (A) CHI	8-98051-934-0	01	1	1404-	●	●
272	BRACKET; FRT COMB LAMP (B) CHI	8-98051-937-0	01	1	1404-	●	●

5 5 20 420 408 338 339 4 1 23 457 382

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD	8-98241-315-0	01	1	1404-	●	●
1	LAMP ASM; HEAD	8-98241-314-0	01	1	1404-	●	●
4	HEADLAMP UNIT	8-98199-569-0	01	1	1404-	●	●
4	HEADLAMP UNIT	8-98199-568-0	01	1	1404-	●	●
5	BULB; HEADLAMP (B) 24V 5W CHI	1-82194-042-0	02	1	1404-	●	●
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1404-	●	●
20	SCREW; HEADLAMP CHI	8-97378-871-0	06	1	1404-	●	●
23	COVER; BULB,HEADLAMP CHI	8-97232-491-0	02	1	1404-	●	●
338	LEVELING; HEADLAMP	8-98010-256-0	02	1	1404-	●	●
339	GASKET; LEVELING	1-86830-158-0	02	1	1404-	●	●
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1404-	●	●
408	CAP; BREATHER,HEADLAMP CHI	8-97378-874-0	02	1	1404-	●	●
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1404-	●	●
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1404-	●	●

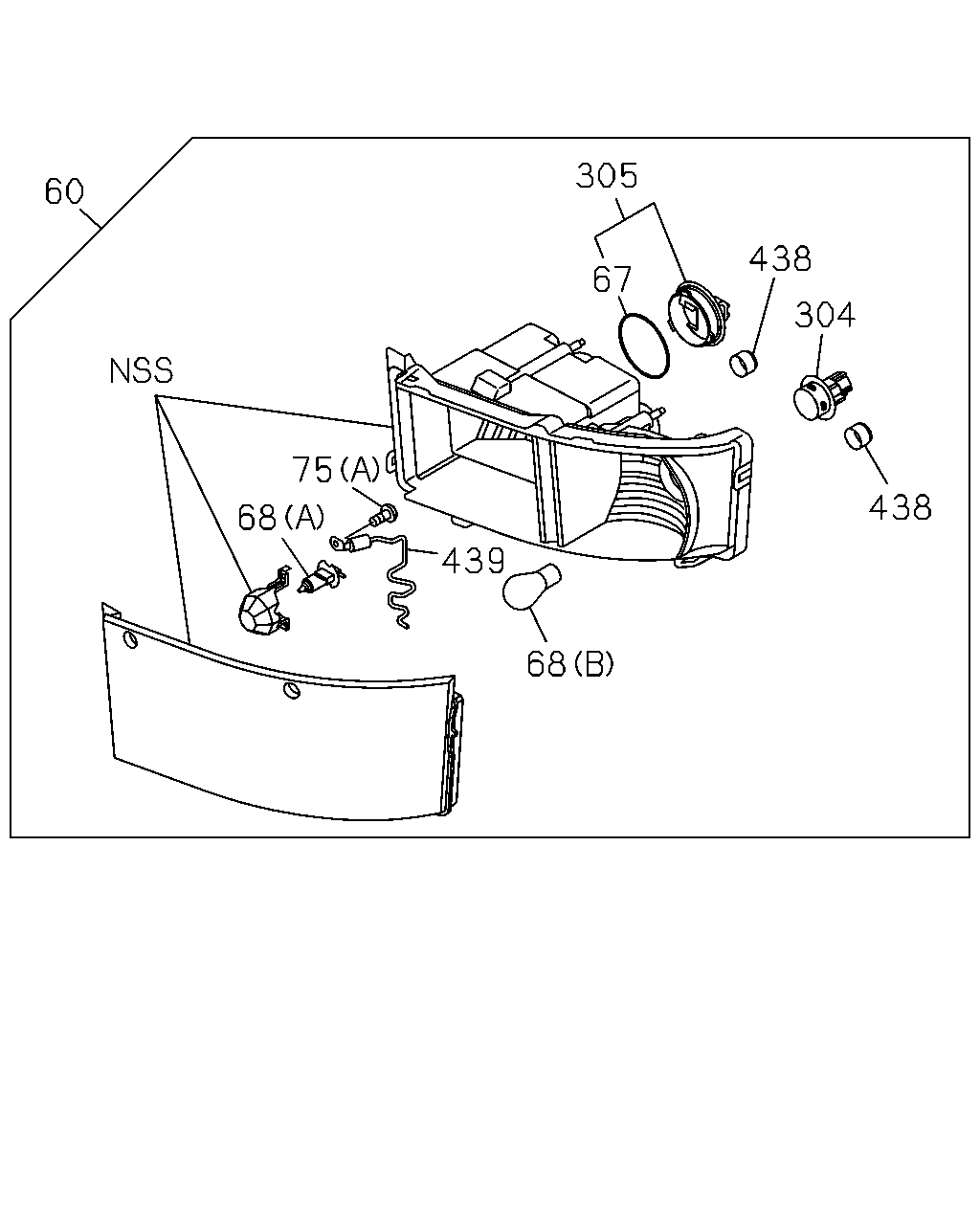

60 68 75 439 68 438 304 438 305 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
60	LAMP ASM; FRT COMB	8-98238-626-0	01	1	1404-	●	●
60	LAMP ASM; FRT COMB	8-98238-625-0	01	1	1404-	●	●
67	GASKET; FRT COMB LAMP	8-98238-656-0	02	1	1404-	●	●
68	BULB; FRT COMB LAMP (A) 24V 70W CHI	1-82194-106-0	02	1	1404-	●	●
68	BULB; FRT COMB LAMP (B) 24V 21W	8-98051-495-0	02	1	1404-	●	●
75	SCREW; FRT COMB LAMP (B) M6X16 FLANGE CHI	0-28650-616-0	04	1	1404-	●	●
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER CHI	0-74360-516-0	06	1	1404-	●	●
75	SCREW; FRT COMB LAMP (A)	8-98074-439-0	02	1	1404-	●	●
304	PLUG; SOCKET,FRT COMB LAMP	8-98051-390-0	02	1	1404-	●	●
305	COVER; FRT COMB LAMP	8-98240-559-0	02	1	1404-	●	●
438	CAP; BREATHER,FRT COMB LAMP CHI	8-97378-874-0	02	1	1404-	●	●
439	SPRING SET; COMB LAMP	8-98075-644-0	02	1	1404-	●	●

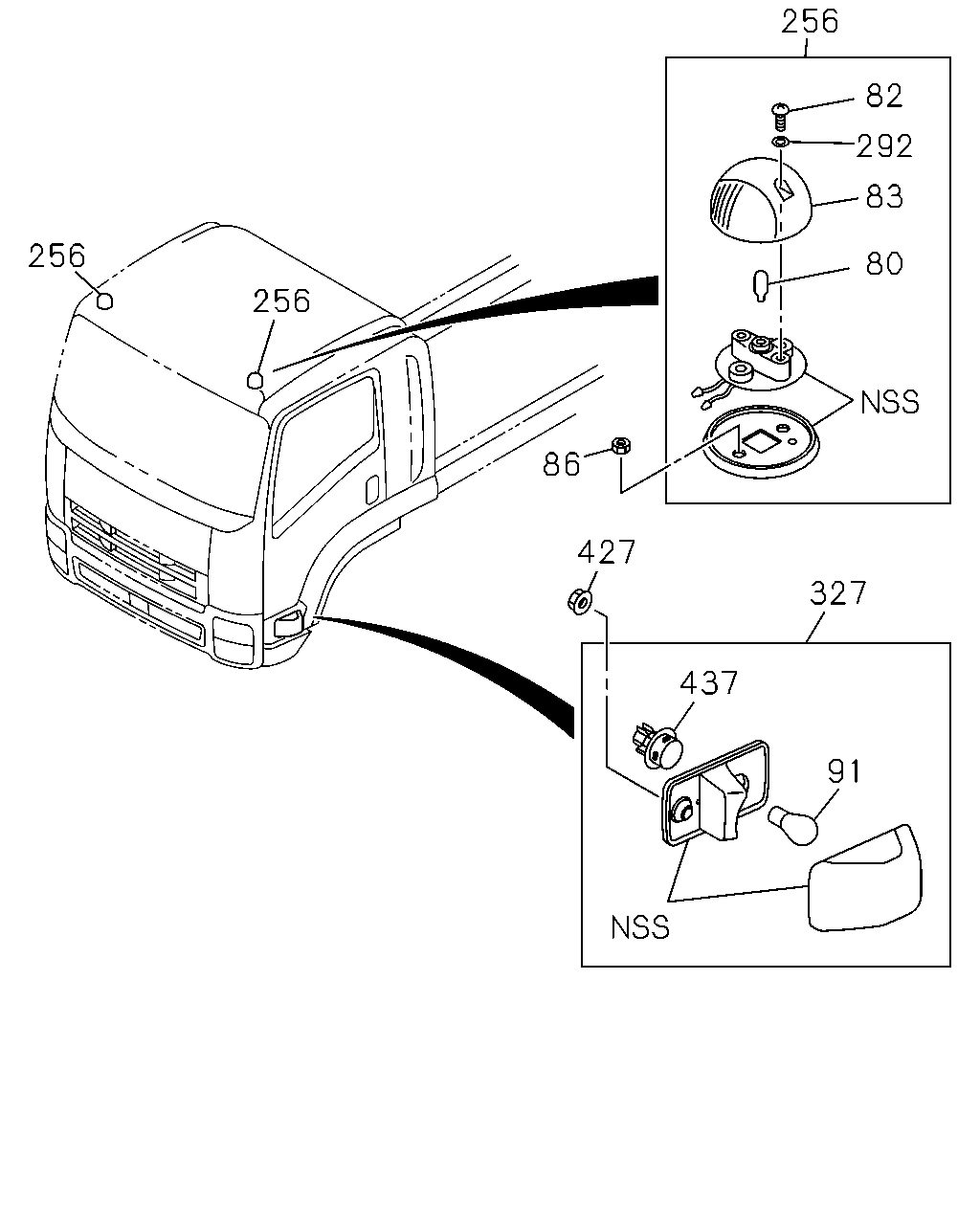

256 82 292 83 80 86 427 327 437 91 256 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	BULB; MARKER LAMP 24V 5W CHI	8-94135-397-0	02	1	1404-	●	●
82	SCREW; MARKER LAMP CHI	1-82219-011-0	04	1	1404-	●	●
83	LENS; MARKER LAMP CHI	8-98057-958-0	02	1	1404-	●	●
86	NUT; MARKER LAMP M6 FLANGE CHI	0-91180-106-0	04	1	1404-	●	●
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1404-	●	●
256	LAMP; MARKER CHI	8-98097-467-2	01	1	1404-	●	●
256	LAMP; MARKER CHI	8-98097-466-2	01	1	1404-	●	●
292	WASHER; MARKER LAMP CHI	1-82219-012-0	04	1	1404-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1404-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1404-	●	●
427	NUT; TURN SIGNAL LAMP M6 FLANGE CHI	0-91180-106-0	02	1	1404-	●	●
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1404-	●	●
