Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

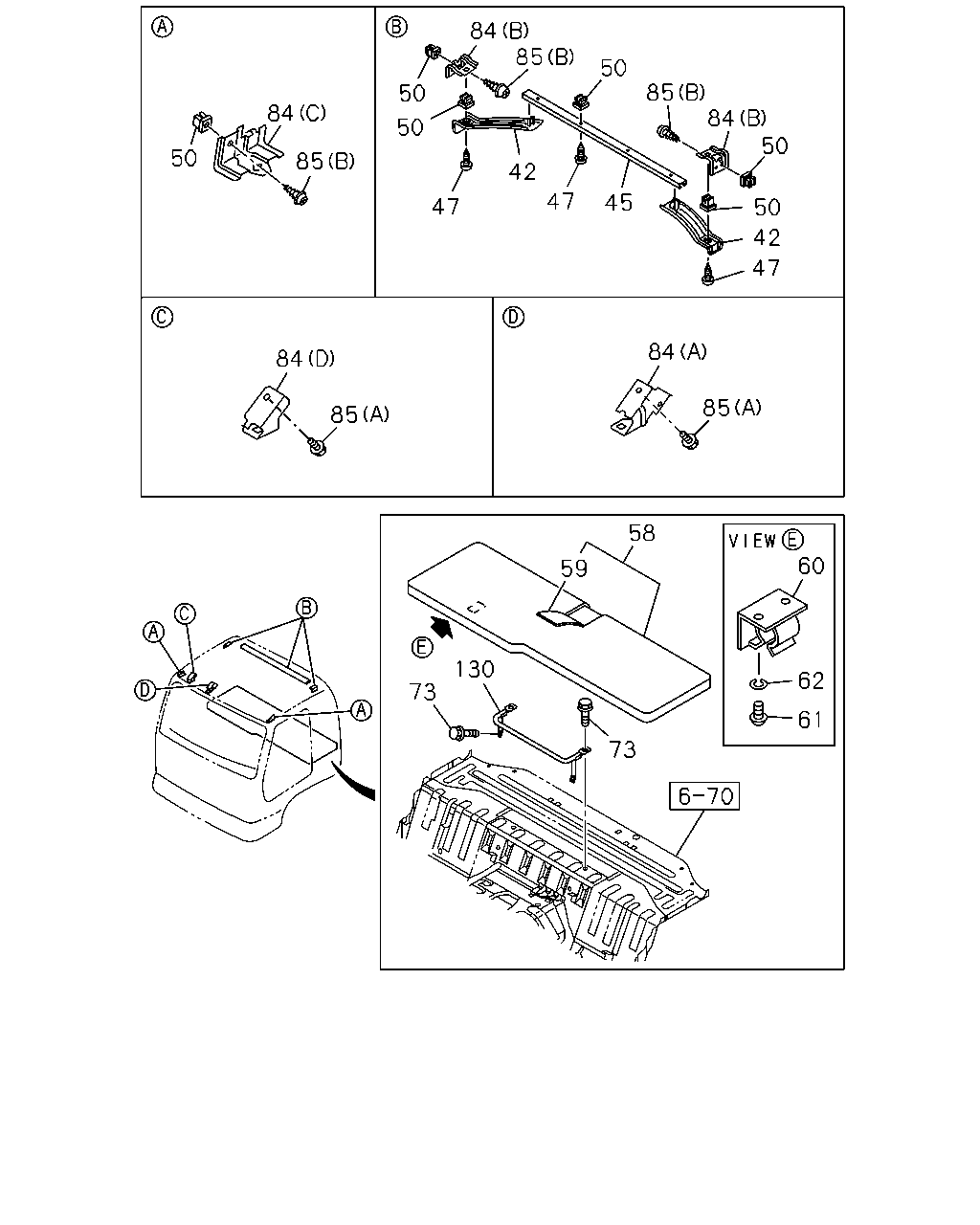

7-70 — SEPARATER AND BED
(#144427) — 18 parça
Tümü
A - FGZ6MX
B - GGZ6MX
84
85
130
73
59
85
84
73
58
61
60
62
50
84
85
47
50
50
84
42
85
47
45
50
84
85
50
50
47
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
STOPPER; CURTAIN RAIL
DARK GRAY CHI
8-97407-972-2
01
1
1404-
●
●
42
STOPPER; CURTAIN RAIL
DARK GRAY CHI
8-97407-499-2
01
1
1404-
●
●
45
RAIL; CURTAIN,FRT
DARK GRAY CHI
8-97407-486-0
01
1
1404-
●
●
47
SCREW; CURTAIN RAIL
M5X20 CHI
5-09981-059-0
06
1
1404-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 CHI
8-94279-078-0
12
1
1404-
●
●
58
BED; MAT
CHI
8-97430-953-0
01
1
1404-
●
●
59
COVER ASM; TRIM,BED MAT
CHI
1-75118-997-0
01
1
1404-
●
●
60
HOLDER
CHI
1-75147-582-0
04
1
1404-
●
●
61
SCREW; ROD HOLDER FIX
CHI M6X16
9-03490-616-0
14
1
1404-
●
●
62
WASHER; LK,ROD HOLDER
CHI ID=8.2
9-09150-508-0
14
1
1404-
●
●
73
BOLT; GUARD PIPE
M8X20 FLANGE CHI
0-28450-820-0
04
1
1404-
●
●
84
BRACKET; CURTAIN RAIL
(C) CHI
8-98028-326-1
02
1
1404-
●
●
84
BRACKET; CURTAIN RAIL
(B) CHI
8-98042-152-0
04
1
1404-
●
●
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) CHI
8-98049-289-1
01
1
1404-
●
●
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) CHI
8-98074-739-0
01
1
1404-
●
●
85
SCREW; BRKT
(B) M5X20 CHI
5-09981-059-0
06
1
1404-
●
●
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE CHI
8-97108-669-0
02
1
1404-
●
●
130
PIPE; GUARD,BED
8-97431-405-0
01
1
1404-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
