◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#144425) — 120 parça

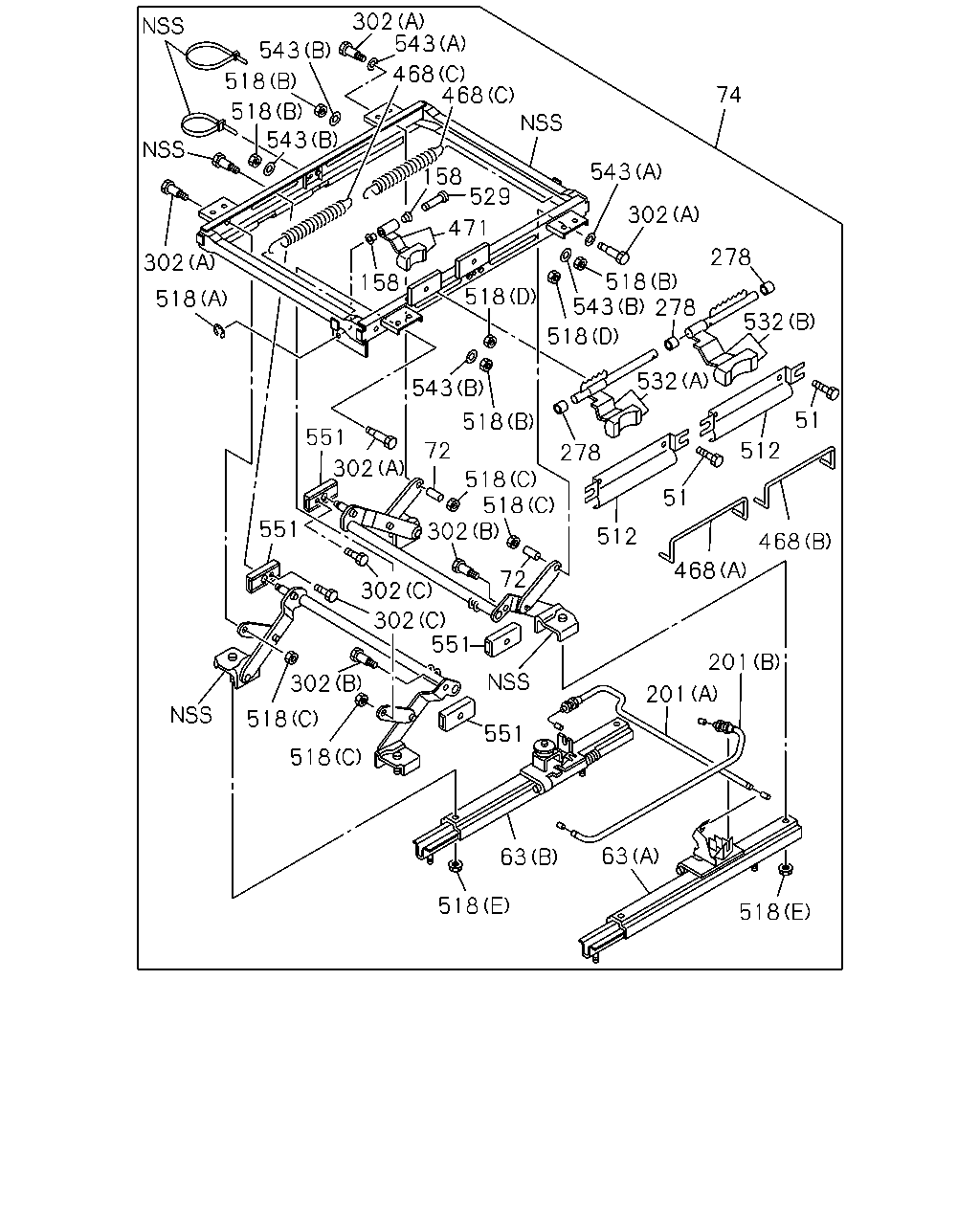

çizim 431954
518 63 63 518 201 201 551 518 518 302 551 302 302 468 468 512 51 512 51 532 532 278 518 518 302 72 72 518 543 551 302 551 518 302 518 518 543 278 518 278 302 543 529 471 158 158 74 543 518 518 543 302 543 468 468
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
CHI 		1-75518-325-1 04 1 1404- ● ●
63 ADJUSTER; SEAT SLIDE
(B) CHI 		1-75518-227-1 01 1 1404- ● ●
63 ADJUSTER; SEAT SLIDE
(A) CHI 		1-75518-324-0 01 1 1404- ● ●
72 SPACER; SEAT ADJ
CHI 		1-75518-334-1 02 1 1404- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
CHI 		8-98093-429-0 01 1 1404- ● ●
158 BUSHING; LINK ARM
CHI 		1-75518-209-0 02 1 1404- ● ●
201 CABLE; ADJ
(A) L=667 CHI 		1-75518-288-0 01 1 1404- ● ●
201 CABLE; ADJ
(B) L=605 CHI 		1-75518-289-1 01 1 1404- ● ●
278 COLLAR; FRT SEAT
CHI 		1-75518-244-0 03 1 1404- ● ●
302 BOLT; ADJ,HEIGHT CONT
(B) CHI 		1-75518-266-2 02 1 1404- ● ●
302 BOLT; ADJ,HEIGHT CONT
(A) CHI 		1-75518-270-1 04 1 1404- ● ●
302 BOLT; ADJ,HEIGHT CONT
(C) CHI 		1-75518-336-1 02 1 1404- ● ●
468 SPRING; RETURN
(C) CHI 		1-75518-208-0 02 1 1404- ● ●
468 SPRING; RETURN
(A) CHI 		1-75518-206-0 01 1 1404- ● ●
468 SPRING; RETURN
(B) CHI 		1-75518-207-0 01 1 1404- ● ●
468 SPRING; RETURN
(D) CHI 		1-75538-132-0 01 1 1404- ● ●
471 LEVER; SEAT ADJ
CHI 		8-98107-870-0 01 1 1404- ● ●
512 COVER; LEVER
CHI 		1-75518-245-1 02 1 1404- ● ●
518 NUT; TILT ADJ
(E) M8 FLANGE CHI 		1-75538-207-0 04 1 1404- ● ●
518 NUT; TILT ADJ
(A) CHI 		1-75518-263-0 01 1 1404- ● ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT CHI 		5-09984-020-0 02 1 1404- ● ●
518 NUT; TILT ADJ
(C) M8 FLANGE CHI 		8-94152-886-0 04 1 1404- ● ●
518 NUT; TILT ADJ
(B) CHI 		1-75518-264-0 04 1 1404- ● ●
529 PIN; LINK
CHI 		1-75518-262-0 01 1 1404- ● ●
532 LEVER ASM; TILT
(A) CHI 		1-75518-221-0 01 1 1404- ● ●
532 LEVER ASM; TILT
(B) CHI 		1-75518-222-1 01 1 1404- ● ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 1404- ● ●
543 WASHER; HEIGHT ADJUSTER
(A) CHI 		1-75518-335-0 02 1 1404- ● ●
551 SLIDER; HEIGHT ADJ
CHI 		1-75518-265-0 04 1 1404- ● ●
çizim 432531
595 339 632
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) FULL FLOATING CAB<W16> (B) 		8-98222-114-0 01 1 1404- ●
339 UNION; DRIVER SEAT
(A) CHI 		1-75538-131-3 01 1 1404- ● ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT(A56) CHI 		8-97430-788-0 01 1 1404- ● ●
632 GROMMET
RIGID SEAT WO/ARM REST(TAZ) OD=24 CHI 		8-94119-796-0 01 1 1404- ●
632 GROMMET
RIGID SEAT WO/ARM REST(TAZ) EXC. FULL FLOATING CAB<W16> OD=24 CHI 		8-94119-796-0 01 1 1404- ●

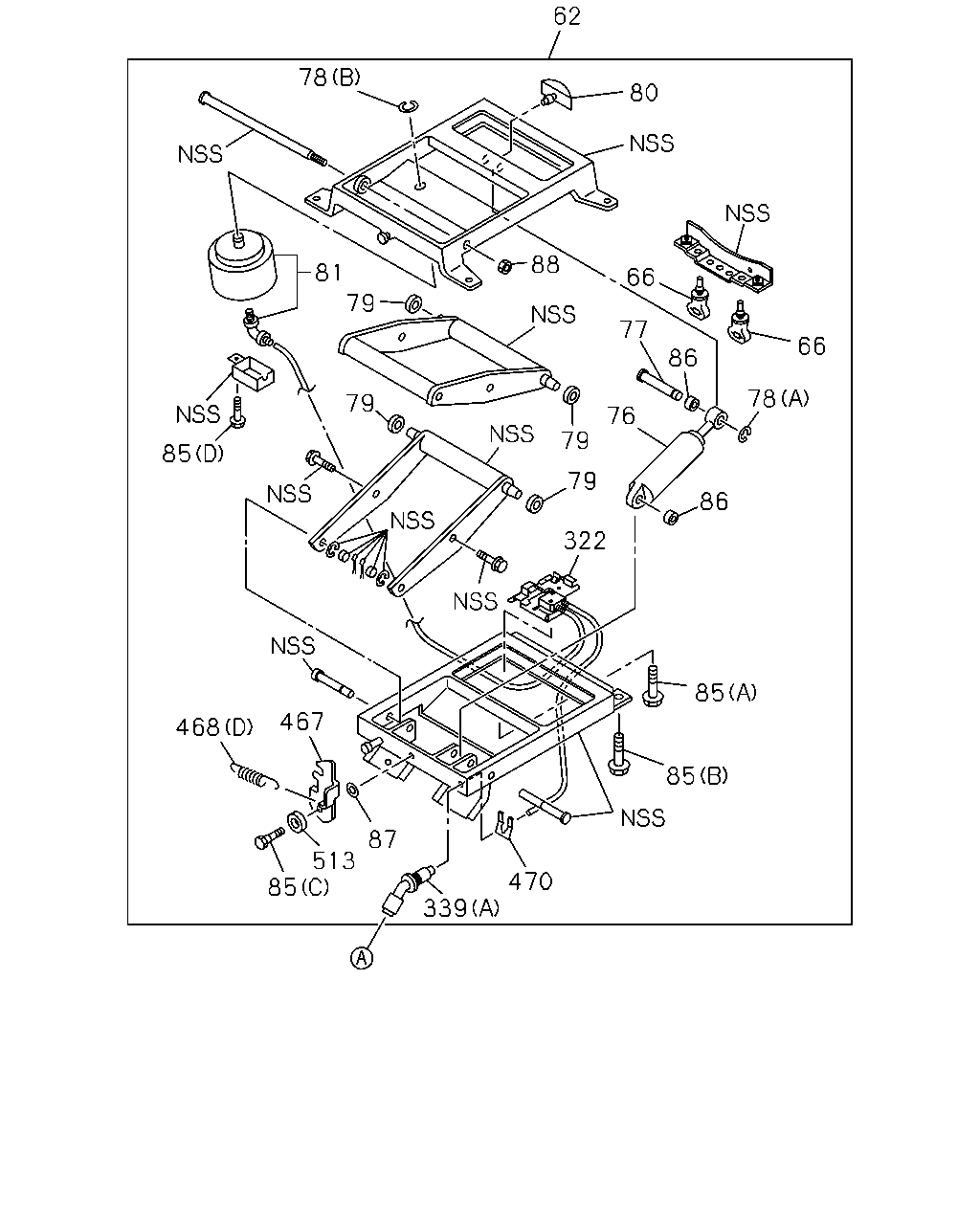

çizim 433452
339 470 87 513 85 468 467 85 85 322 86 85 79 79 81 78 62 80 66 88 77 86 76 79 79 78 66
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
CHI 		1-75538-185-9 01 1 1404- ● ●
66 RUBBER; LWR STOPPER
CHI 		1-75538-145-0 02 1 1404- ● ●
76 DAMPER; AIR SUSP
CHI 		1-75538-139-0 01 1 1404- ● ●
77 PIN; DAMPER
CHI 		1-75538-138-2 01 1 1404- ● ●
78 RING; SNAP
(B) CHI ID=15 		9-09185-415-0 01 1 1404- ● ●
78 RING; SNAP
(A) CHI ID=8 		9-09185-408-0 01 1 1404- ● ●
79 ROLLER ASM; AIR SUSP
CHI 		1-75538-159-0 04 1 1404- ● ●
80 RUBBER; STOPPER
CHI 		1-09987-123-0 01 1 1404- ● ●
81 SPRING; AIR
CHI 		8-98242-816-0 01 1 1404- ● ●
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER CHI 		1-75538-209-0 02 1 1404- ● ●
85 BOLT; AIR SUSP
(C) CHI 		1-09980-577-1 01 1 1404- ● ●
85 BOLT; AIR SUSP
(A) CHI 		1-75538-208-1 02 1 1404- ● ●
85 BOLT; AIR SUSP
(D) M8X25 W/LK&PL WASHER CHI 		8-98243-394-0 01 1 1404- ● ●
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY CHI 		1-09983-173-1 02 1 1404- ● ●
87 WASHER; AIR SUSP
ID=8.2 CHI 		0-91510-508-0 01 1 1404- ● ●
88 NUT; AIR SUSP
CHI 		1-75537-273-1 01 1 1404- ● ●
322 VALVE; AIR SPRING
CHI 		1-75538-187-3 01 1 1404- ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) FULL FLOATING CAB<W16> (B) 		8-98222-114-0 01 1 1404- ●
339 UNION; DRIVER SEAT
(A) CHI 		1-75538-131-3 01 1 1404- ● ●
467 LEVER; LOCK
CHI 		1-75538-134-0 01 1 1404- ● ●
468 SPRING; RETURN
(C) CHI 		1-75518-208-0 02 1 1404- ● ●
468 SPRING; RETURN
(A) CHI 		1-75518-206-0 01 1 1404- ● ●
468 SPRING; RETURN
(B) CHI 		1-75518-207-0 01 1 1404- ● ●
468 SPRING; RETURN
(D) CHI 		1-75538-132-0 01 1 1404- ● ●
470 CLIP; HOSE
CHI 		1-75538-137-0 01 1 1404- ● ●
513 SPACER; LEVER
CHI 		1-75538-133-0 01 1 1404- ● ●

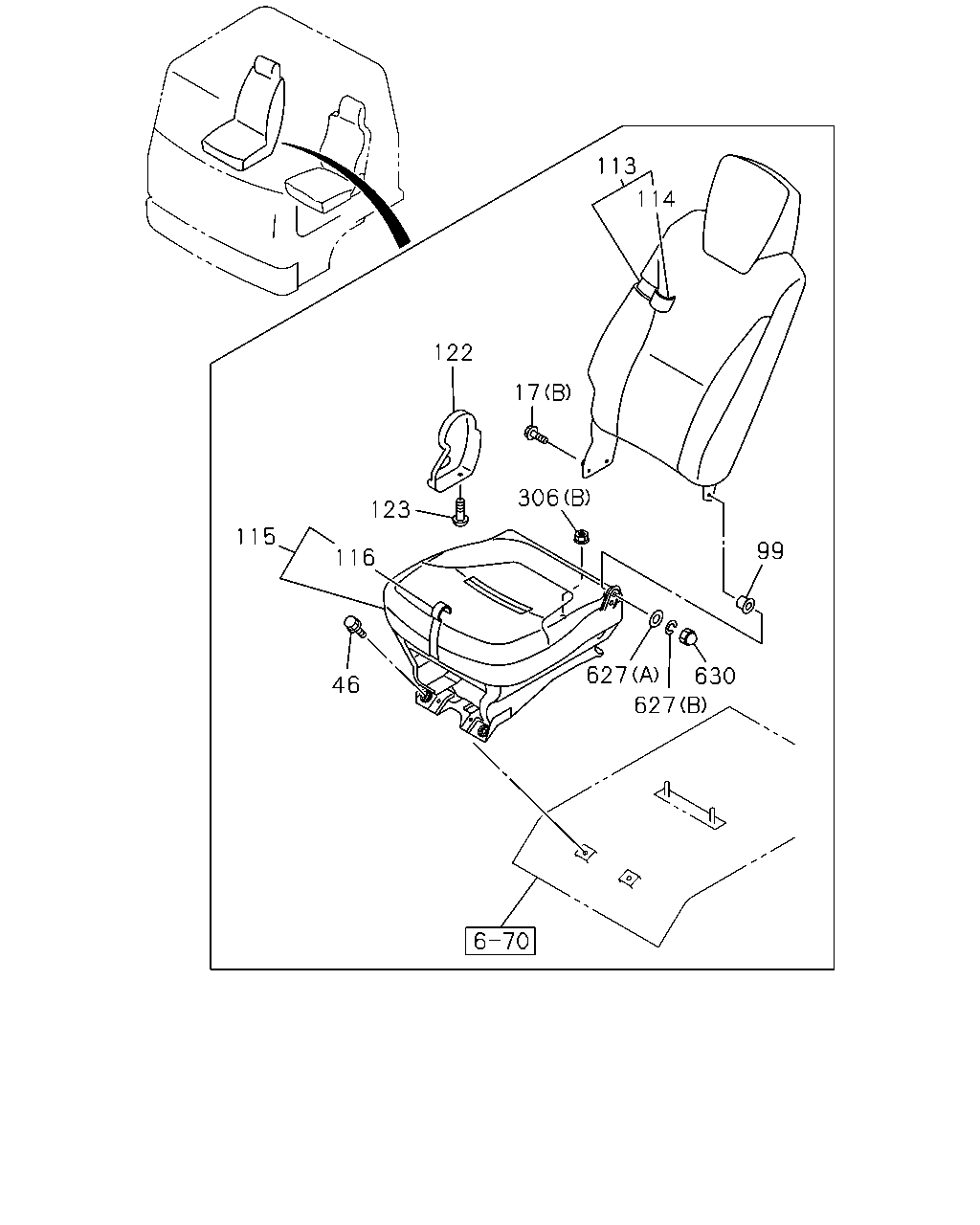

çizim 433671
627 630 627 99 306 17 122 123 116 115 46 114 113
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) M10X20 CHI 		8-98062-661-0 02 1 1404- ● ●
17 BOLT; RECLINING
(B) CHI 		8-98092-334-0 02 1 1404- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE CHI 		0-28451-020-0 02 1 1404- ● ●
99 BUSHING; SEAT BACK
CHI 		8-98112-751-0 01 1 1404- ● ●
113 BACK ASM; SEAT
CHI DARK GRAY 		8-97421-423-0 01 1 1404- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CHI DARK GRAY 		8-97421-425-0 01 1 1404- ● ●
115 CUSHION ASM; PASSENGER SEAT
CHI DARK GRAY 		8-97421-419-0 01 1 1404- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
CHI DARK GRAY 		8-97421-421-0 01 1 1404- ● ●
122 COVER; ADJ,RECLINING
CHI GRAY 		8-97414-043-0 01 1 1404- ● ●
123 SCREW; COVER,RECLINING
CHI 		8-98070-026-0 01 1 1404- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE CHI 		0-91180-110-0 02 1 1404- ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE CHI 		1-75538-207-0 06 1 1404- ● ●
627 WASHER; FRT SEAT
(A) CHI 		8-98063-223-0 01 1 1404- ● ●
627 WASHER; FRT SEAT
(B) CHI 		8-98063-224-0 01 1 1404- ● ●
630 NUT; CAP
M8 CHI 		8-98063-225-0 01 1 1404- ● ●
çizim 433771
359 126 403 182 179 403 188 16 188 176 175 360 506
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
CHI 		1-75418-062-1 01 1 1404- ● ●
126 BUSHING; HINGE,RECLINING
(A) CHI 		8-98063-218-0 01 1 1404- ● ●
126 BUSHING; HINGE,RECLINING
(B) CHI 		8-97854-900-0 01 1 1404- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CHI DARK GRAY 		8-97421-434-1 01 1 1404- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CHI DARK GRAY 		8-97421-435-1 01 1 1404- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CHI DARK GRAY 		8-97421-433-0 01 1 1404- ● ●
182 CUSHION ASM; CENTER SEAT
CHI DARK GRAY 		8-97421-431-2 01 1 1404- ● ●
188 BOLT; BACK TO CUSHION
CHI M10X16 FLANGE CHI 		1-75198-053-0 04 1 1404- ● ●
359 BOX; PARCEL
CHI GRAY 		8-97417-261-0 01 1 1404- ● ●
360 SCREW; PARCEL
(B) M4X16 CHI 		0-70040-416-0 06 1 1404- ● ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD CHI 		0-70040-514-0 02 1 1404- ● ●
360 SCREW; PARCEL
(C) M5 CHI 		8-98062-663-0 04 1 1404- ● ●
403 NUT; CENTER SEAT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404- ● ●
506 CAP; PARCEL BOX
CHI GRAY 		8-97409-980-1 02 1 1404- ● ●

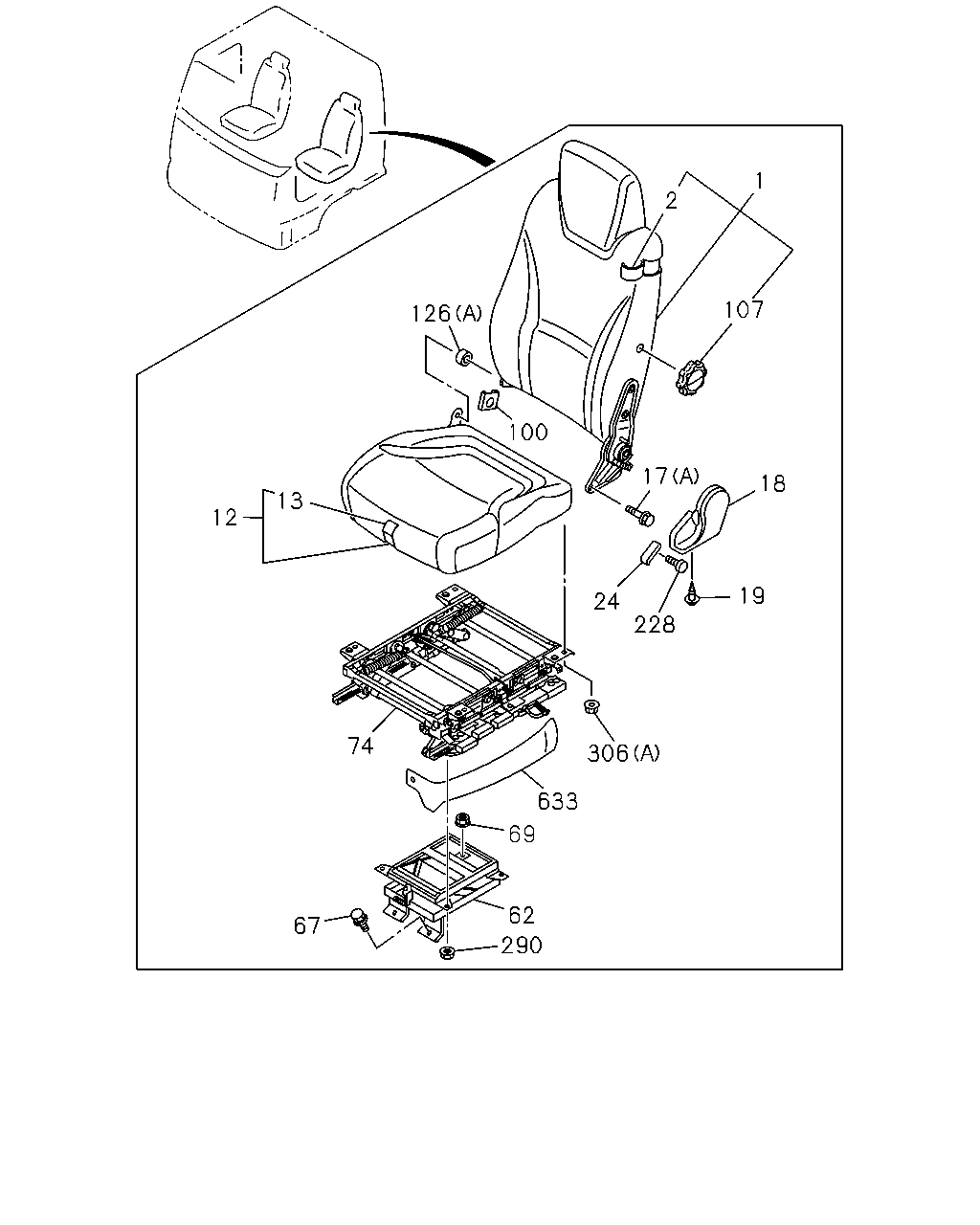

çizim 433845
290 62 69 633 67 306 228 19 24 18 17 107 1 2 126 13 12 100 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DARK GRAY CHI 		8-97421-408-1 01 1 1404- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY CHI 		8-97421-413-0 01 1 1404- ● ●
12 CUSHION; SEAT,FRT
DARK GRAY CHI 		8-97421-400-0 01 1 1404- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY CHI 		8-97421-404-0 01 1 1404- ● ●
17 BOLT; RECLINING
(A) M10X20 CHI 		8-98062-661-0 02 1 1404- ● ●
17 BOLT; RECLINING
(B) CHI 		8-98092-334-0 02 1 1404- ● ●
18 COVER; RECLINING
GRAY CHI 		8-97409-361-0 01 1 1404- ● ●
19 SCREW; COVER
M5 CHI 		8-98062-663-0 01 1 1404- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY CHI 		8-97409-362-0 01 1 1404- ● ●
62 DAMPER ASM; SEAT SUSP
CHI 		1-75538-185-9 01 1 1404- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE CHI 		0-28451-020-0 02 1 1404- ● ●
69 NUT; FRT SEAT
M10 FLANGE CHI 		0-91180-110-0 02 1 1404- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
CHI 		8-98093-429-0 01 1 1404- ● ●
100 COVER; HINGE
CHI 		8-98203-070-0 01 1 1404- ● ●
107 DIAL; SEAT RECLINING
CHI 		8-98063-174-0 01 1 1404- ● ●
126 BUSHING; HINGE,RECLINING
(A) CHI 		8-98063-218-0 01 1 1404- ● ●
126 BUSHING; HINGE,RECLINING
(B) CHI 		8-97854-900-0 01 1 1404- ● ●
228 SCREW; KNOB
M4 CHI 		8-98062-662-0 01 1 1404- ● ●
290 NUT; ADJ TO SUSP
M8 FLANGE CHI 		1-75538-207-0 04 1 1404- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE CHI 		0-91180-110-0 02 1 1404- ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE CHI 		1-75538-207-0 06 1 1404- ● ●
633 COVER; ADJ,TILT
GRAY CHI 		8-97414-118-0 01 1 1404- ● ●

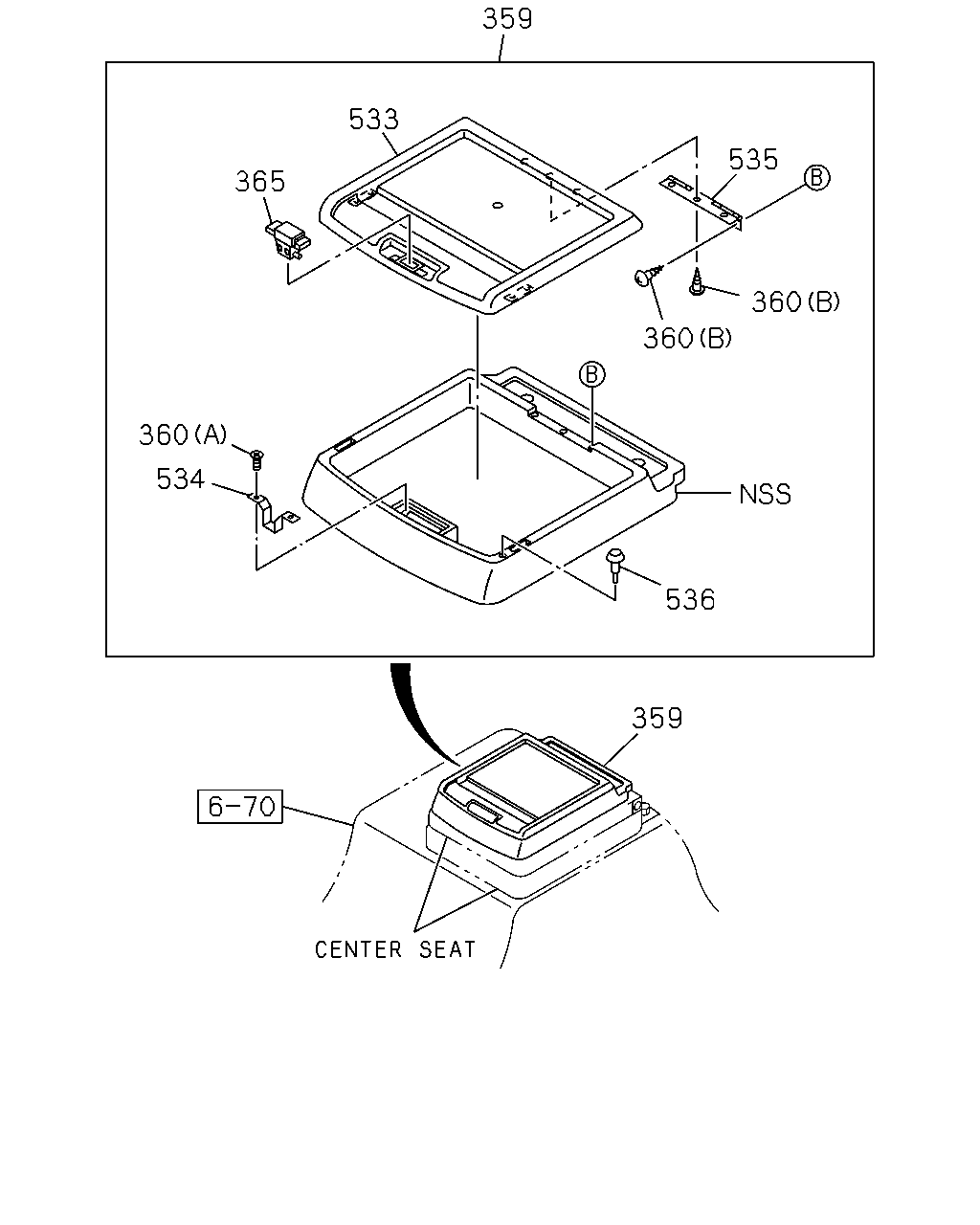

çizim 433849
359 533 365 360 534 359 536 360 360 535
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
CHI GRAY 		8-97417-261-0 01 1 1404- ● ●
360 SCREW; PARCEL
(B) M4X16 CHI 		0-70040-416-0 06 1 1404- ● ●
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD CHI 		0-70040-514-0 02 1 1404- ● ●
360 SCREW; PARCEL
(C) M5 CHI 		8-98062-663-0 04 1 1404- ● ●
365 LOCK ASM; SEAT
CHI 		1-72538-312-0 01 1 1404- ● ●
533 LID; PARCEL BOX
CHI GRAY 		8-97417-263-0 01 1 1404- ● ●
534 STRIKER; PARCEL BOX
CHI 		1-72538-190-0 01 1 1404- ● ●
535 HINGE; PARCEL BOX
CHI 		1-72447-391-1 01 1 1404- ● ●
536 RUBBER; CUSHION
CHI 		1-72538-187-0 02 1 1404- ● ●
