◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#144423) — 66 parça

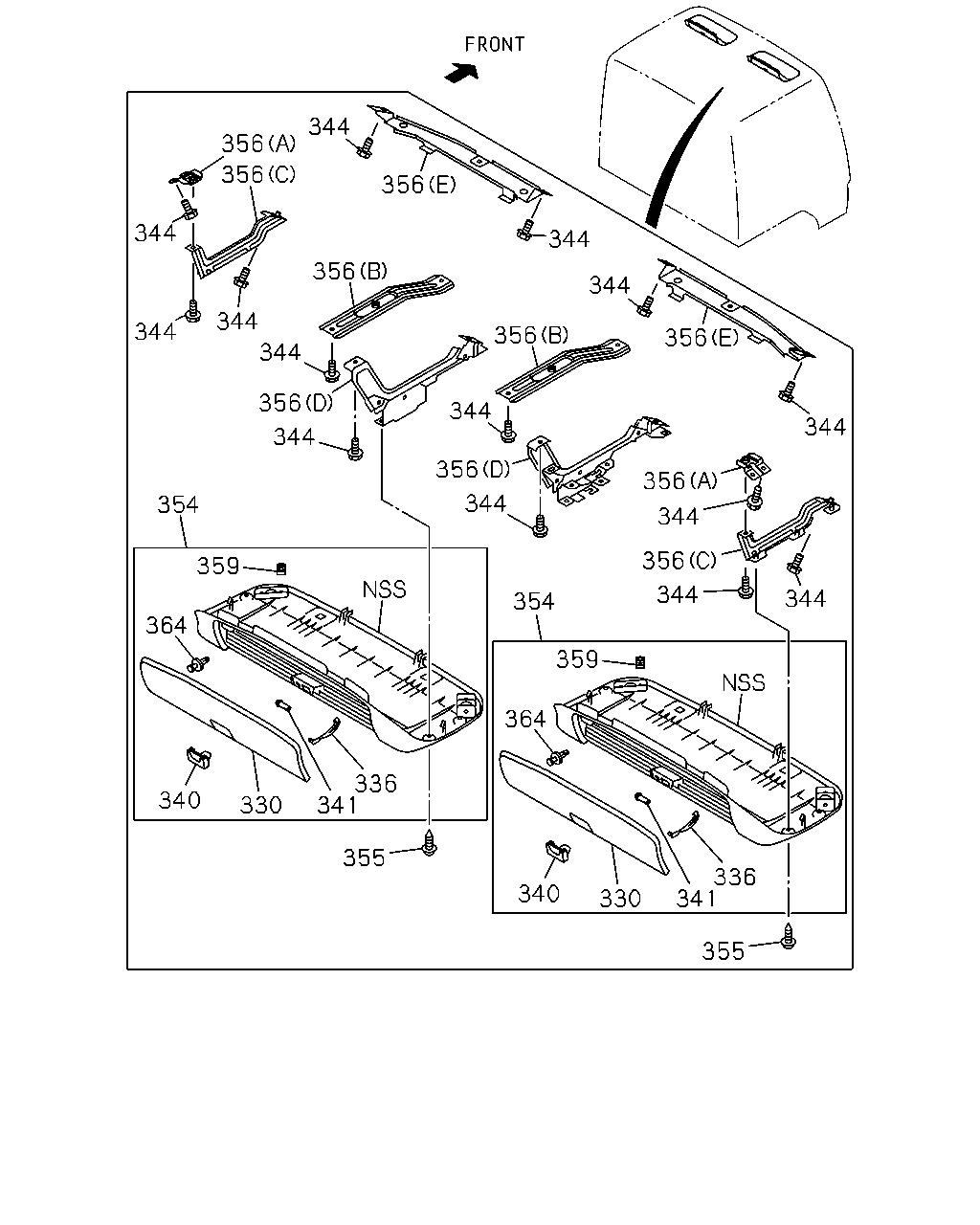

çizim 431895
344 356 356 356 356 344 344 344 344 344 356 344 344 356 344 356 356 356 344 344 344 344 356 344 354 359 364 340 330 341 336 355 355 336 341 330 340 364 359 354
BalonParca AdiParca NoAdetTipApplied Date A B
330 LID; HEADER SHELF
DARK GRAY CHI 		8-97407-834-1 02 1 1404- ● ●
330 LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY CHI 		8-97407-834-1 02 1 1404- ● ●
336 STAY; LID
CHI 		1-72448-379-3 02 1 1404- ● ●
336 STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI 		1-72448-379-3 02 1 1404- ● ●
340 LOCK; HEADER SHELF
CHI 		1-72448-376-0 01 1 1404- ● ●
340 LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI 		1-72448-376-0 01 1 1404- ● ●
341 HINGE; LID,HEADER SHELF
CHI 		8-98025-428-2 02 1 1404- ● ●
341 HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI 		8-98025-428-2 02 1 1404- ● ●
344 BOLT; BRKT,FRT
M6X12 FLANGE CHI 		8-97108-669-0 12 1 1404- ● ●
344 BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE CHI 		8-97108-669-0 08 1 1404- ● ●
354 TRAY; HEADER ROOF
DARK GRAY CHI 		8-97407-386-5 01 1 1404- ● ●
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY CHI 		8-97407-386-5 01 1 1404- ● ●
355 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72380-516-0 04 1 1404- ● ●
355 SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72380-516-0 04 1 1404- ● ●
356 BRACKET; ROOF OUTER
(A) CHI 		8-97386-874-1 01 1 1404- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) CHI 		8-97386-874-1 01 1 1404- ● ●
356 BRACKET; ROOF OUTER
(B) CHI 		8-98010-059-0 01 1 1404- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) CHI 		8-98010-059-0 01 1 1404- ● ●
356 BRACKET; ROOF OUTER
(C) CHI 		8-98016-871-3 01 1 1404- ● ●
356 BRACKET; ROOF OUTER
(D) CHI 		8-98042-009-2 01 1 1404- ● ●
356 BRACKET; ROOF OUTER
(E) CHI 		8-98042-016-3 01 1 1404- ● ●
356 BRACKET; ROOF OUTER
(E) CHI 		8-98042-015-3 01 1 1404- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) CHI 		8-98014-088-3 01 1 1404- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) CHI 		8-98023-257-2 01 1 1404- ● ●
359 HOLDER; HEADER TRAY
CHI 		8-98041-754-0 04 1 1404- ● ●
359 HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI 		8-98041-754-0 04 1 1404- ● ●
364 STOPPER; LID
CHI 		8-98010-867-1 03 1 1404- ● ●
364 STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI 		8-98010-867-1 03 1 1404- ● ●

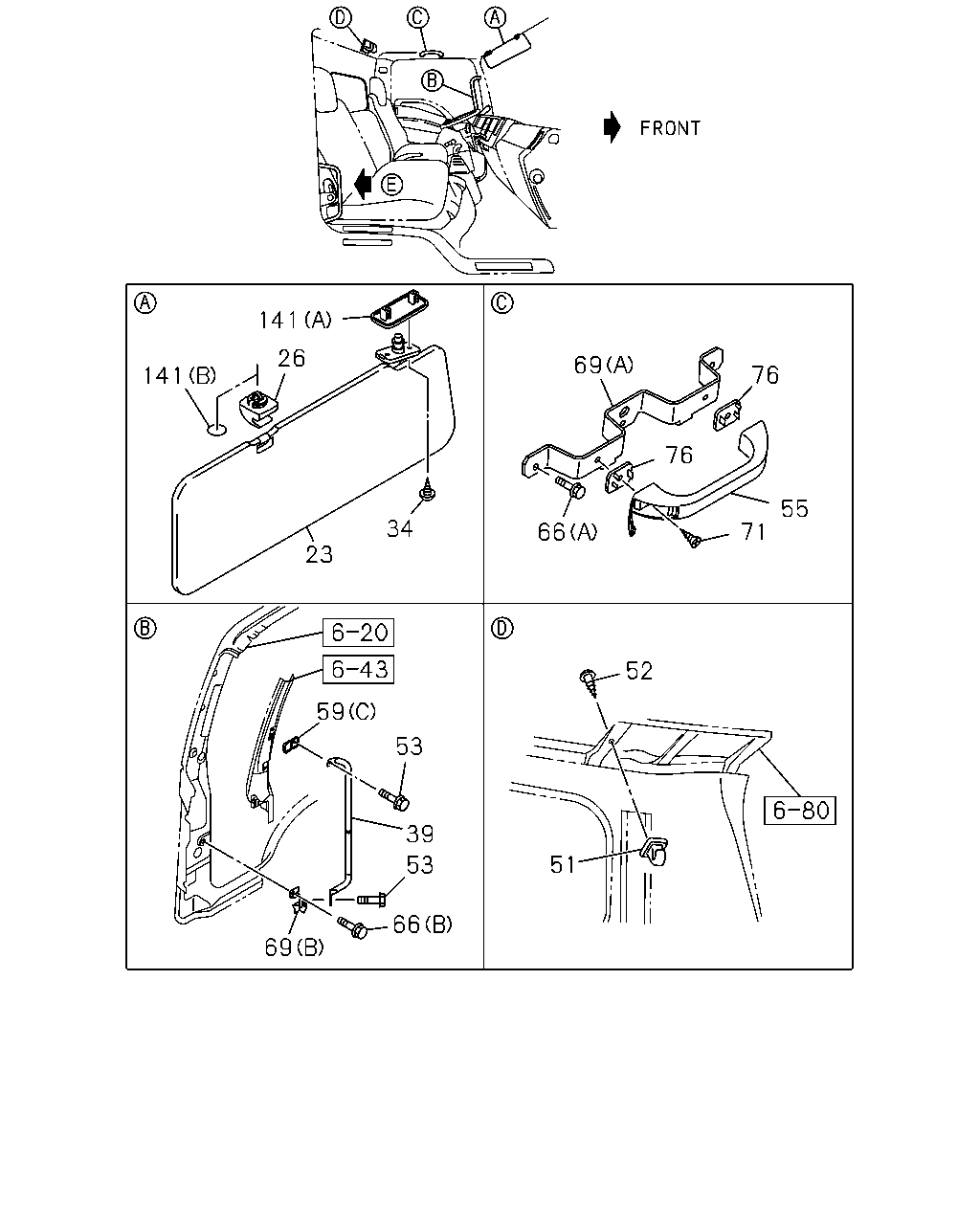

çizim 433733
141 141 23 34 26 69 76 66 71 55 76 59 53 39 53 66 69 51 52
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
DARK GRAY CHI 		8-97405-170-3 01 1 1404- ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY CHI 		8-97407-373-2 01 1 1404- ● ●
26 HOLDER; SUN VISOR
DARK GRAY CHI 		8-97405-171-0 01 1 1404- ● ●
26 HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY CHI 		8-97405-171-0 01 1 1404- ● ●
34 SCREW; SUN VISOR
M6X26 CHI 		8-98033-674-0 04 1 1404- ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X26 CHI 		8-98033-674-0 02 1 1404- ● ●
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 CHI 		8-98033-674-0 02 1 1404- ● ●
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26 CHI 		8-98033-674-0 02 1 1404- ● ●
39 HANDLE; ASSIST,A-POST
CHI 		8-97431-084-0 01 1 1404- ● ●
39 HANDLE; ASSIST,A-POST
CHI 		8-97431-083-0 01 1 1404- ● ●
51 HOOK; COAT HANGER
DARK GRAY CHI 		8-97409-845-0 02 1 1404- ● ●
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD CHI 		0-70540-420-0 02 1 1404- ● ●
53 SCREW; ASSIST HANDLE
M8X16 FLANGE CHI 		0-28050-816-0 02 1 1404- ● ●
53 SCREW; ASSIST HANDLE
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY CHI 		8-97405-285-2 01 1 1404- ● ●
59 COVER; ASSIST GRIP
(B) CHI 		1-71998-789-2 02 1 1404- ● ●
59 COVER; ASSIST GRIP
(A) CHI 		1-71998-790-2 02 1 1404- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY CHI 		8-97407-417-1 02 1 1404- ● ●
66 BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE CHI 		0-28050-816-0 03 1 1404- ● ●
66 BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE CHI 		8-97108-669-0 06 1 1404- ● ●
69 BRACKET; ASSIST GRIP
(A) CHI 		8-98014-094-0 02 1 1404- ● ●
69 BRACKET; ASSIST GRIP
(B) CHI 		8-98057-973-3 01 1 1404- ● ●
71 SCREW
M6X28 CHI 		8-98004-344-0 02 1 1404- ● ●
76 SPACER; ASSIST GRIP
DARK GRAY CHI 		8-97405-286-0 02 1 1404- ● ●
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY CHI 		8-97408-029-0 01 1 1404- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY CHI 		8-97408-029-0 01 1 1404- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY CHI 		8-97408-029-0 01 1 1404- ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY CHI 		8-97408-030-0 01 1 1404- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY CHI 		8-97408-030-0 01 1 1404- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY CHI 		8-97408-030-0 01 1 1404- ● ●

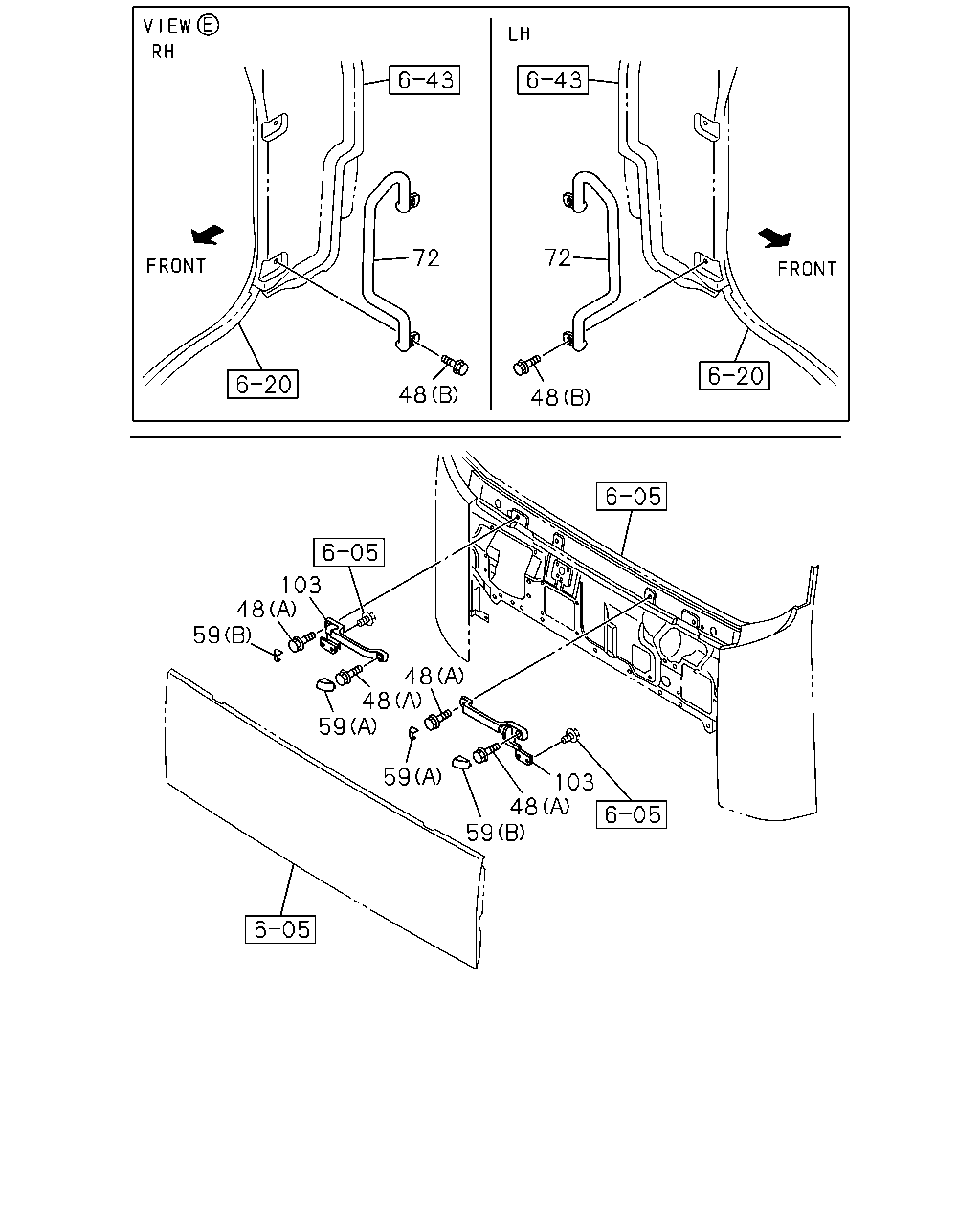

çizim 433884
72 72 48 48 103 48 59 59 48 48 59 59 48 103
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE CHI 		0-28060-816-0 04 1 1404- ● ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE CHI 		0-28660-830-0 04 1 1404- ● ●
59 COVER; ASSIST GRIP
(B) CHI 		1-71998-789-2 02 1 1404- ● ●
59 COVER; ASSIST GRIP
(A) CHI 		1-71998-790-2 02 1 1404- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY CHI 		8-97407-417-1 02 1 1404- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
CHI 		8-97386-939-0 02 1 1404- ● ●
103 GRIP; ASSIST,FRT PNL
CHI 		8-98036-565-1 01 1 1404- ● ●
103 GRIP; ASSIST,FRT PNL
CHI 		8-98036-566-1 01 1 1404- ● ●
