7-40 — INSTRUMENT PANEL AND BOX (#144421) — 101 parça

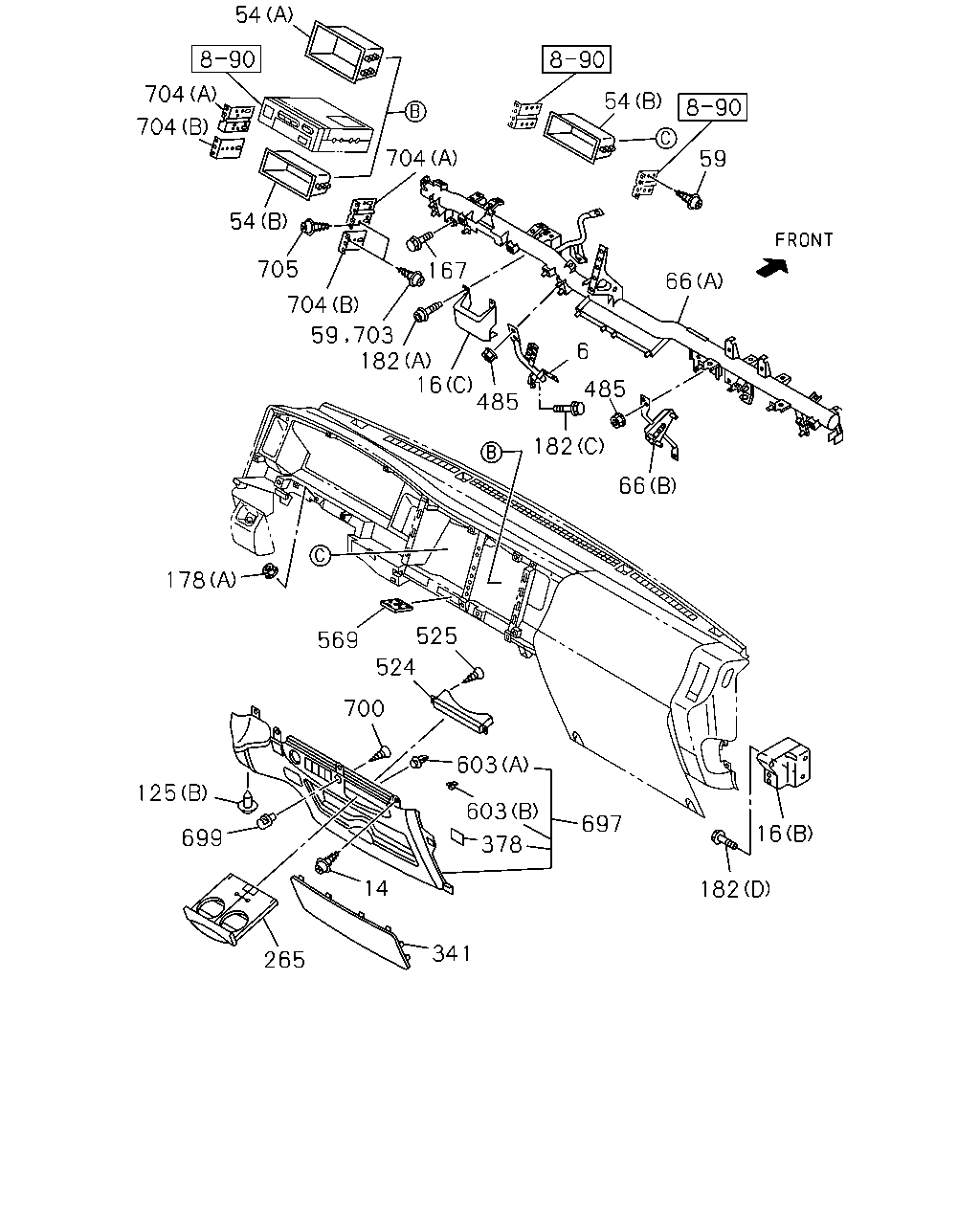

çizim 432540
182 66 66 59 54 704 54 705 704 59 703 182 16 485 485 6 167 704 704 54 569 525 524 700 603 603 378 697 182 16 14 125 699 178 341 265
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
CHI 		8-98064-936-1 01 1 1404- ● ●
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 04 1 1404- ● ●
16 BRACKET; INST PNL
(A) CHI 		8-97585-612-2 01 1 1404- ● ●
16 BRACKET; INST PNL
(C) CHI 		8-98063-326-0 01 1 1404- ● ●
16 BRACKET; INST PNL
(B) CHI 		8-98017-204-1 01 1 1404- ● ●
16 BRACKET; INST PNL
(B) CHI 		8-98017-202-1 01 1 1404- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK CHI 		8-97407-129-2 01 1 1404- ● ●
54 POCKET; CENTER CLUSTER
(B) H=69.8 BLACK CHI 		8-97408-865-2 01 1 1404- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR CHI 		8-98058-632-0 02 1 1404- ● ●
66 REINFORCEMENT; INST PANEL
(B) CHI 		8-97430-064-0 01 1 1404- ● ●
66 REINFORCEMENT; INST PANEL
(A) CHI 		8-98069-419-7 01 1 1404- ● ●
125 CLIP; INST PANEL
(B) GRAY CHI 		8-97408-817-0 04 1 1404- ● ●
125 CLIP; INST PANEL
(A) CHI 		8-98021-271-0 02 1 1404- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE CHI 		8-97264-766-0 04 1 1404- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE CHI 		0-91180-106-0 01 1 1404- ● ●
178 NUT; INST PANEL
(B) CHI 		8-98037-629-0 15 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE CHI 		0-28050-816-0 04 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER CHI 		0-52000-612-0 02 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 01 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER CHI 		8-98018-439-0 01 1 1404- ● ●
265 HOLDER; CUP
GRAY CHI 		8-97418-528-0 01 1 1404- ● ●
341 LID; FUSE BOX
GRAY CHI 		8-97422-209-0 01 1 1404- ● ●
378 SEAL; INST PANEL
5X30 CHI 		8-98176-199-0 01 1 1404- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE CHI 		0-91180-106-0 04 1 1404- ● ●
524 STAND ASM; CUP,INST
CHI 		8-98054-414-0 01 1 1404- ● ●
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 03 1 1404- ● ●
569 HOLDER; CARD
CHI 		8-97410-276-0 01 1 1404- ● ●
603 CLIP; COVER
(A) CHI 		8-98004-025-0 01 1 1404- ● ●
603 CLIP; COVER
(B) CHI 		8-98021-271-0 05 1 1404- ● ●
603 CLIP; COVER
(C) CHI 		8-98152-030-0 03 1 1404- ● ●
603 CLIP; COVER
(E) CHI 		8-98152-031-0 03 1 1404- ● ●
603 CLIP; COVER
(D) CHI 		8-98167-222-0 02 1 1404- ● ●
697 PANEL; INST CENTER
GRAY CHI 		8-97422-208-1 01 1 1404- ● ●
699 HOOK; INST PANEL
GRAY CHI 		8-97408-927-0 01 1 1404- ● ●
700 BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 01 1 1404- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR CHI 		8-98058-632-0 04 1 1404- ● ●
704 BRACKET; CENTER POCKET
(B) CHI 		8-97585-616-2 02 1 1404- ● ●
704 BRACKET; CENTER POCKET
(A) CHI 		8-97585-618-2 02 1 1404- ● ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR CHI 		0-72180-520-0 08 1 1404- ● ●

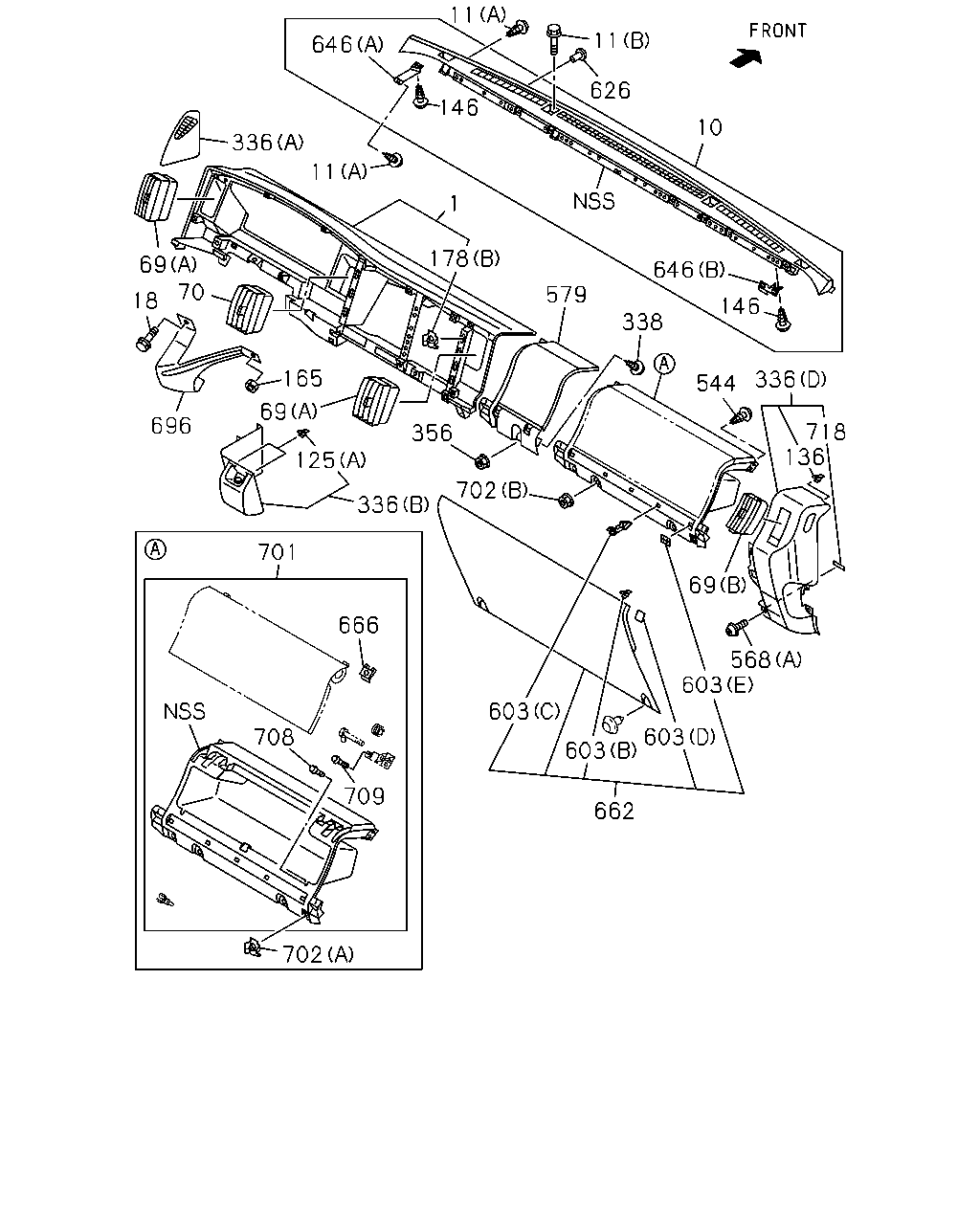

çizim 432607
11 626 10 178 1 579 338 544 336 718 136 69 568 603 603 603 662 603 702 356 336 701 666 708 709 696 165 69 125 70 69 18 336 11 646 146 11 646 146 702
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY CHI 		8-97409-777-3 01 1 1404- ● ●
10 PANEL ASM; GARNISH
GRAY CHI 		8-97422-098-0 01 1 1404- ● ●
11 BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 08 1 1404- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER CHI 		8-98018-440-0 04 1 1404- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER CHI 		0-52000-612-0 01 1 1404- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) CHI 		8-98028-562-2 01 1 1404- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) CHI 		8-98028-563-2 02 1 1404- ● ●
70 GRILLE; CENTER,AIR OUTLET
CHI 		8-98028-561-2 01 1 1404- ● ●
125 CLIP; INST PANEL
(B) GRAY CHI 		8-97408-817-0 04 1 1404- ● ●
125 CLIP; INST PANEL
(A) CHI 		8-98021-271-0 02 1 1404- ● ●
136 CLIP; INST COVER
CHI 		8-98076-254-0 02 1 1404- ● ●
146 SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 03 1 1404- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE CHI 		0-91180-106-0 01 1 1404- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE CHI 		0-91180-106-0 01 1 1404- ● ●
178 NUT; INST PANEL
(B) CHI 		8-98037-629-0 15 1 1404- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY CHI 		8-97409-779-0 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY CHI 		8-97409-780-3 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY CHI 		8-97411-635-2 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY CHI 		8-97424-712-0 01 1 1404- ● ●
338 SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 04 1 1404- ● ●
356 NUT; COVER
M6 FLANGE CHI 		0-91180-106-0 01 1 1404- ● ●
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 03 1 1404- ● ●
568 BOLT; COVER
(B) M6X16 W/LK&PL WASHER CHI 		0-52010-616-0 02 1 1404- ● ●
568 BOLT; COVER
(A) T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 01 1 1404- ● ●
579 COVER; INST PNL
GRAY CHI 		8-97411-560-2 01 1 1404- ● ●
603 CLIP; COVER
(A) CHI 		8-98004-025-0 01 1 1404- ● ●
603 CLIP; COVER
(B) CHI 		8-98021-271-0 05 1 1404- ● ●
603 CLIP; COVER
(C) CHI 		8-98152-030-0 03 1 1404- ● ●
603 CLIP; COVER
(E) CHI 		8-98152-031-0 03 1 1404- ● ●
603 CLIP; COVER
(D) CHI 		8-98167-222-0 02 1 1404- ● ●
626 RETAINER
OD=15 BLACK CHI 		8-94279-804-0 02 1 1404- ● ●
646 BRACKET; GARNISH PANEL
(A) CHI 		8-98066-952-1 01 1 1404- ● ●
646 BRACKET; GARNISH PANEL
(B) CHI 		8-98066-953-1 01 1 1404- ● ●
662 COVER; LWR,INST PANEL
CHI 		8-97422-093-2 01 1 1404- ● ●
666 INSERT; INST PANEL
CHI 		8-98037-629-0 02 1 1404- ● ●
696 BRACKET; KNEE
CHI 		8-98098-126-1 01 1 1404- ● ●
701 TRAY; INST
CHI 		8-97431-081-0 01 1 1404- ● ●
702 NUT; TRAY
(B) M6 FLANGE CHI 		0-91180-106-0 02 1 1404- ● ●
702 NUT; TRAY
(A) CHI 		8-98037-629-0 01 1 1404- ● ●
708 STOPPER; TRAY INST LID
CHI 		8-97431-096-0 01 1 1404- ● ●
709 SCREW; TRAY INST
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 03 1 1404- ● ●
718 SEAL; COVER
CHI 		8-98185-153-0 01 1 1404- ● ●

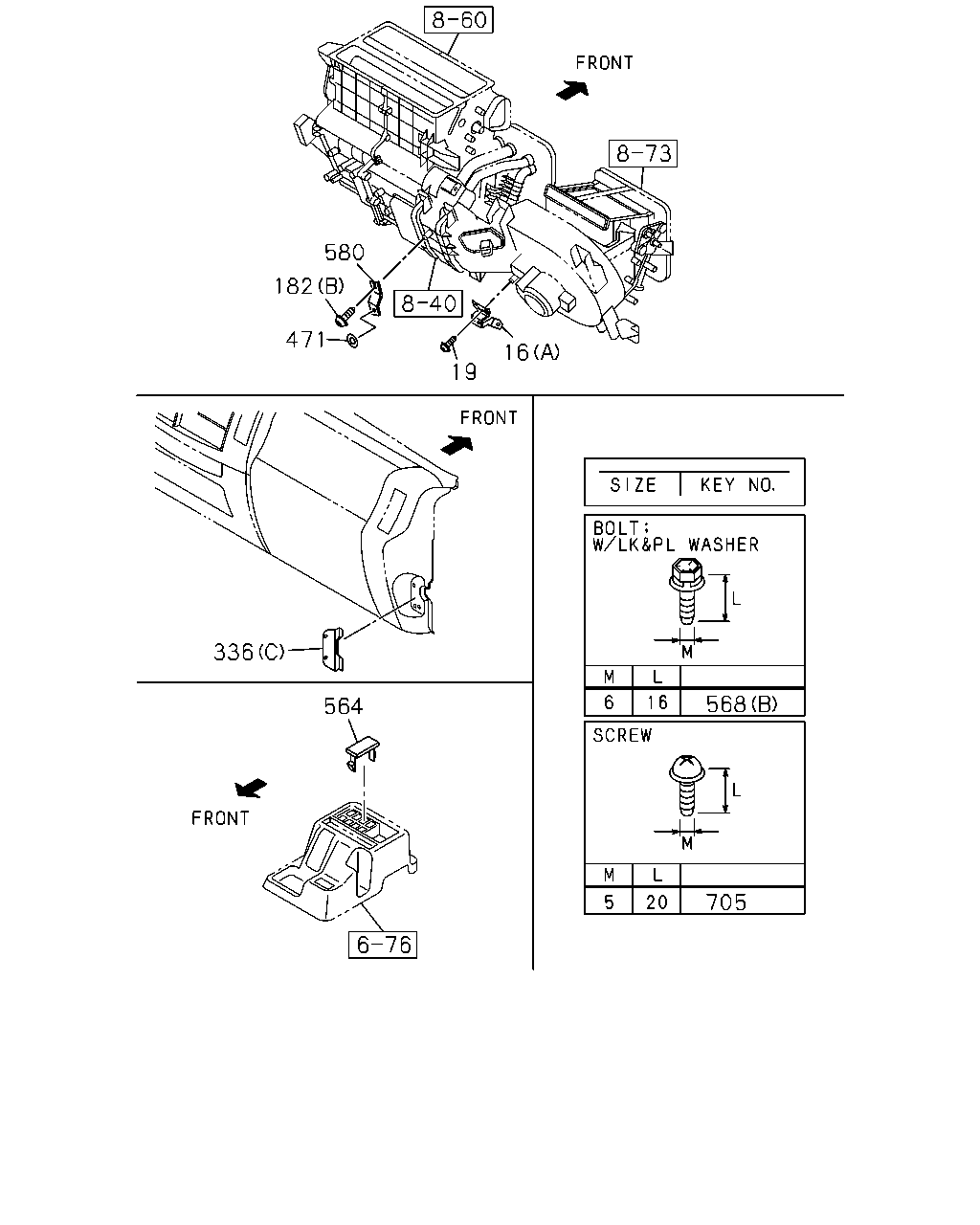

çizim 433485
580 182 471 19 16 336 564 568 705
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(A) CHI 		8-97585-612-2 01 1 1404- ● ●
16 BRACKET; INST PNL
(C) CHI 		8-98063-326-0 01 1 1404- ● ●
16 BRACKET; INST PNL
(B) CHI 		8-98017-204-1 01 1 1404- ● ●
16 BRACKET; INST PNL
(B) CHI 		8-98017-202-1 01 1 1404- ● ●
19 SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 01 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE CHI 		0-28050-816-0 04 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER CHI 		0-52000-612-0 02 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 01 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER CHI 		8-98018-439-0 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY CHI 		8-97409-779-0 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY CHI 		8-97409-780-3 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY CHI 		8-97411-635-2 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY CHI 		8-97424-712-0 01 1 1404- ● ●
471 WASHER; PL
CHI 		8-98179-641-0 02 1 1404- ● ●
564 COVER; SW
CHI 		8-97043-732-1 06 1 1404- ●
564 COVER; SW
CHI 		8-97043-732-1 04 1 1404- ●
568 BOLT; COVER
(B) M6X16 W/LK&PL WASHER CHI 		0-52010-616-0 02 1 1404- ● ●
568 BOLT; COVER
(A) T25 M5X16 TAPPING HEXALOBULAR CHI 		0-72180-516-0 01 1 1404- ● ●
580 BRACKET; COVER
CHI 		8-98180-279-1 01 1 1404- ● ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR CHI 		0-72180-520-0 08 1 1404- ● ●
