◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#144418) — 17 parça

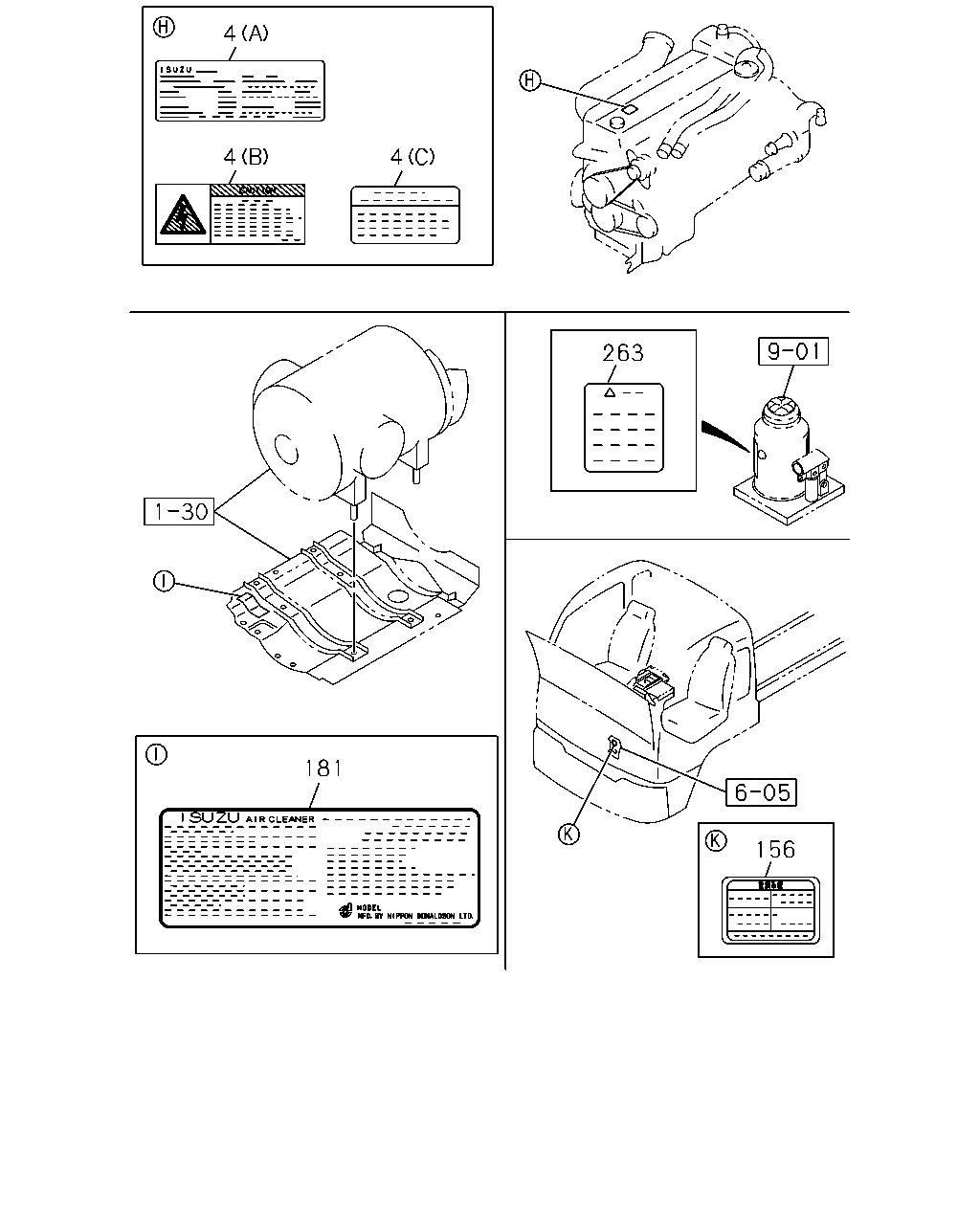

çizim 432172
4 4 4 263 156 181
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
(B) 		1-85875-456-0 01 1 1404- ● ●
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1404- ● ●
4 LABEL; ENG MAINTENANCE
(C) 		8-97431-646-0 01 1 1405- ● ●
156 PLATE; CAUTION,A/C 8-97431-426-0 01 1 1404- ● ●
181 PLATE; CAUTION,AIR CLEANER
CHI 		1-85886-796-1 01 1 1404- ● ●
263 PLATE; CAUTION,JACK
CHI 		1-85881-878-0 01 1 1404- ● ●
çizim 433450
49 160 60 60
BalonParca AdiParca NoAdetTipApplied Date A B
49 PLATE; CAUTION,FUSE BOX 8-97431-406-0 01 1 1404- ● ●
60 PLATE; CAUTION,CAB TILT
(A) CHI 		8-98191-063-0 01 1 1404- ● ●
60 PLATE; CAUTION,CAB TILT
(B) 		8-98171-036-0 01 1 1404- ● ●
160 PLATE; CAUTION,TOWING
CHI 		8-98155-058-0 01 1 1404- ● ●

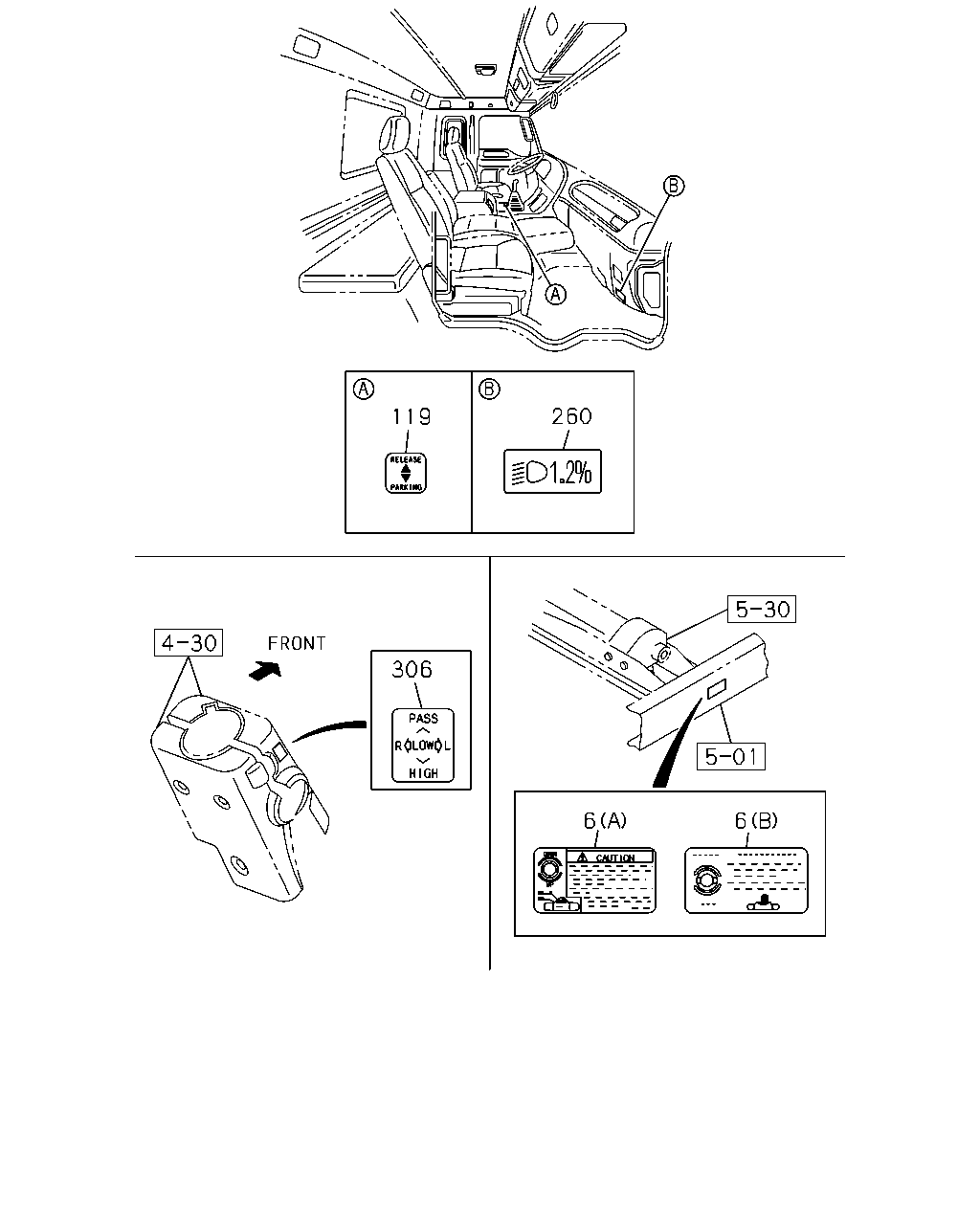

çizim 433920
119 260 306 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> (A) CHI 		8-98082-437-0 01 1 1404- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> (B) CHI 		8-98082-438-0 01 1 1404- ●
119 PLATE; CAUTION,HAND BRK LEVER
CHI 		1-85881-874-0 01 1 1404- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
CHI 		1-85878-416-1 01 1 1404- ● ●
306 LABEL; BEAM & PASS
CHI 		8-98070-239-0 01 1 1404- ● ●
çizim 433995
289 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 LABEL; TIRE AIR PRESSURE 1-85881-887-0 01 1 1404- ● ●
289 PLATE; CAUTION,DRIVING 1-85880-777-0 01 1 1404- ● ●
