◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#144413) — 11 parça

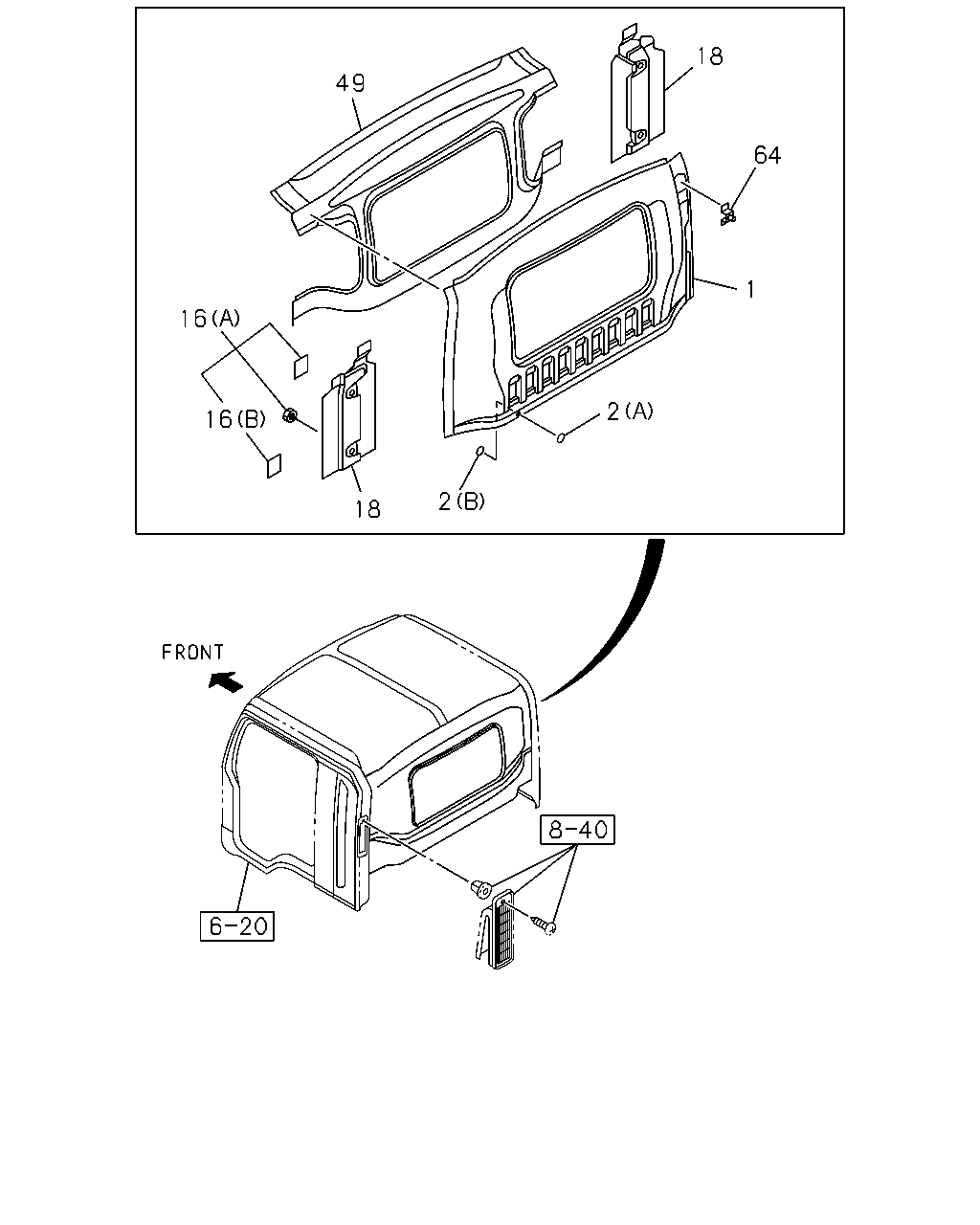

çizim 433953
49 18 64 1 2 2 18 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
CHI 		8-97584-602-3 01 1 1404- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK CHI 		1-76798-019-0 02 1 1404- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=36 T=0.05 BLACK CHI 		5-76777-035-0 02 1 1404- ● ●
16 REINFORCEMENT; BACK OUTER PNL
(A) CHI 		8-97430-111-0 01 1 1404- ● ●
16 REINFORCEMENT; BACK OUTER PNL
(B) CHI 		8-97430-112-0 01 1 1404- ● ●
16 REINFORCEMENT; BACK OUTER PNL
(A) CHI 		8-97430-113-0 01 1 1404- ● ●
16 REINFORCEMENT; BACK OUTER PNL
(B) CHI 		8-97430-114-0 01 1 1404- ● ●
18 REINFORCEMENT; BACK PANEL
CHI 		8-97430-115-0 01 1 1404- ● ●
18 REINFORCEMENT; BACK PANEL
CHI 		8-97430-116-0 01 1 1404- ● ●
49 PANEL; BACK INNER
CHI 		8-97584-610-3 01 1 1404- ● ●
64 BRACKET; AIR INTAKE DUCT
CHI 		8-98081-605-0 01 1 1404- ● ●
