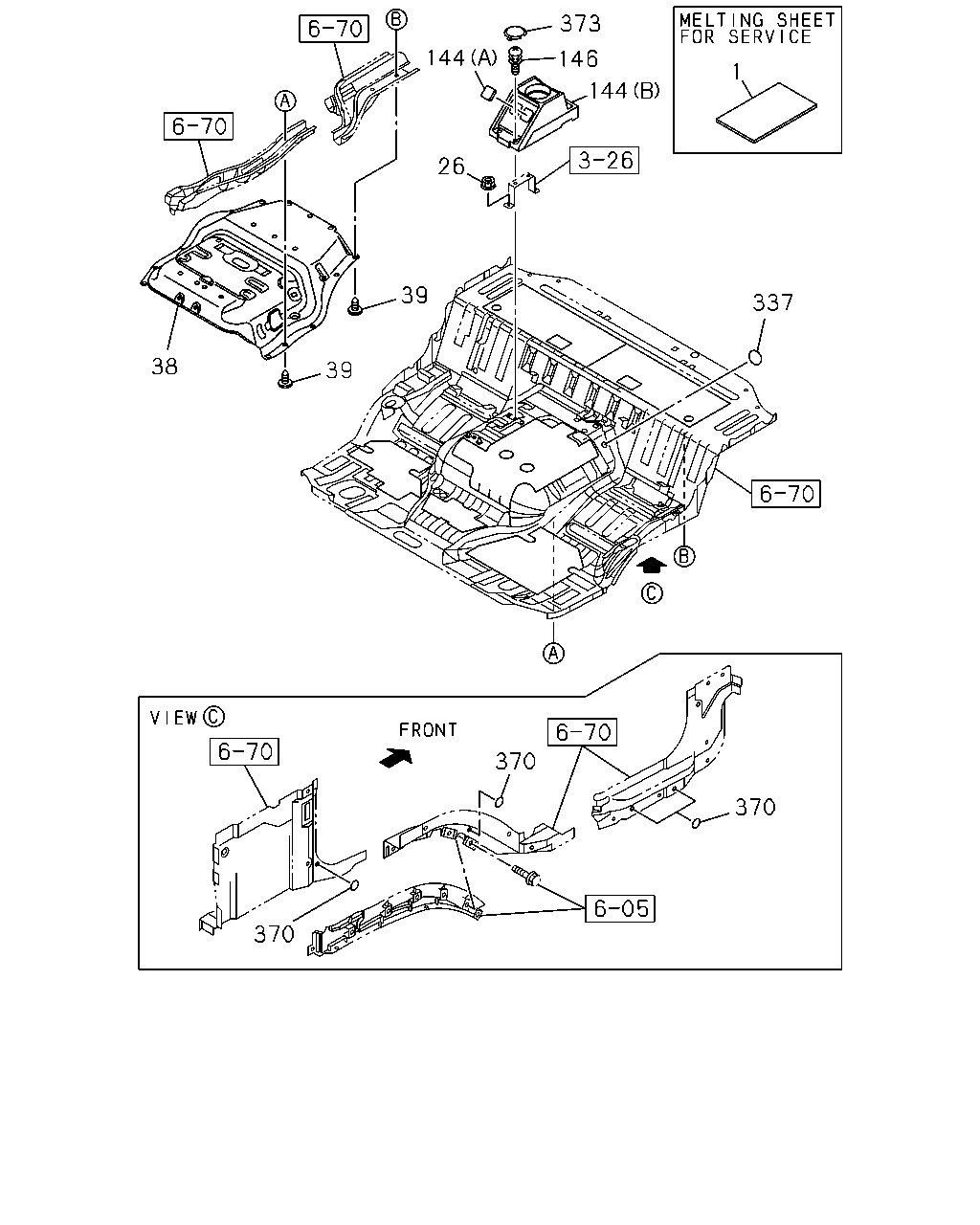

6-76 — FLOOR EQUIPMENT AND SEALING
(#144411) — 11 parça
Tümü
A - FGZ6MX
B - GGZ6MX
144
1
146
373
144
26
39
39
38
337
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY CHI
8-94262-093-0
AR
1
1404-
●
●
26
NUT; FLANGE
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
●
38
INSULATOR; ENG COVER
SPECIAL PACKAGE<7BB> CHI
8-97431-252-0
01
1
1404-
●
●
38
INSULATOR; ENG COVER
EXC. SPECIAL PACKAGE<7BB> CHI
8-97430-054-0
01
1
1404-
●
●
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4 CHI
8-97808-623-0
26
1
1404-
●
●
144
COVER; HAND BRK VLV
(B) CHI
8-97430-967-0
01
1
1404-
●
144
COVER; HAND BRK VLV
(A)
8-97431-192-0
01
1
1404-
●
146
BOLT; COVER BRKT
M6X16 CHI
0-52000-616-0
04
1
1404-
●
●
337
SEAL; CLIP HOLE
OD=25 BLACK CHI
1-76798-019-0
08
1
1404-
●
●
370
SEAL; LOCATION HOLE
OD=30 T=0.8 CHI
8-98230-420-0
08
1
1404-
●
●
373
COVER; HOLE
GRAY CHI
8-97407-951-0
04
1
1404-
●
