6-70 — FLOOR PANEL (#144409) — 58 parça

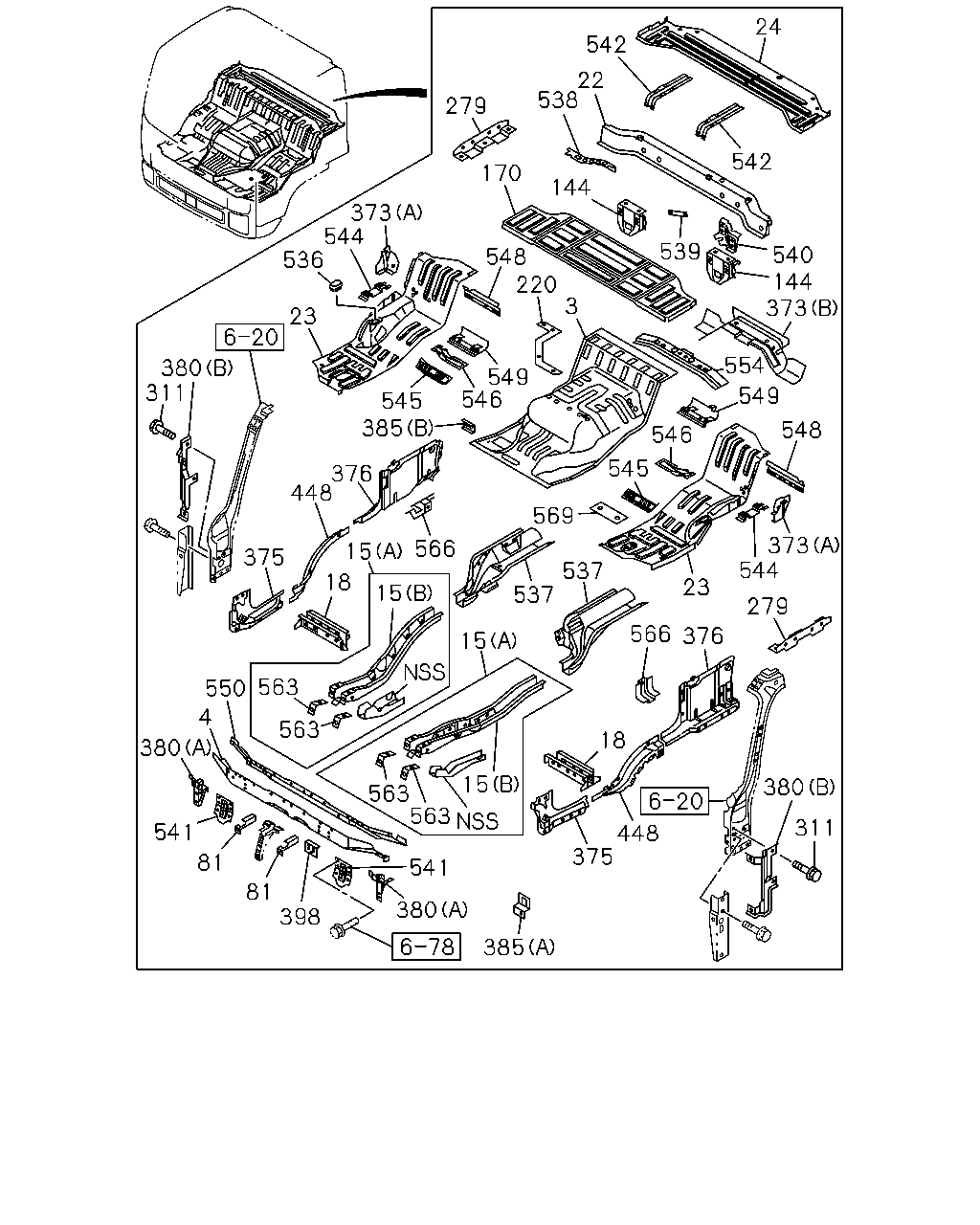

çizim 432705
385 380 398 541 563 563 81 81 541 380 550 563 563 15 375 18 448 380 311 376 566 537 537 15 15 15 18 375 566 376 448 385 545 569 23 279 373 544 548 549 546 545 549 546 380 311 23 536 544 373 170 548 3 220 144 279 538 22 542 24 542 539 540 373 144 554 4
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
CHI 		8-97430-014-0 01 1 1404- ● ●
4 FRAME; FLOOR,FRT 8-97430-031-0 01 1 1404- ● ●
15 FRAME; UNDER
(A) CHI 		8-97430-018-0 01 1 1404- ● ●
15 FRAME; UNDER
(B) CHI 		8-97430-019-0 01 1 1404- ● ●
15 FRAME; UNDER
(A) CHI 		8-97430-027-1 01 1 1404- ● ●
15 FRAME; UNDER
(B) CHI 		8-97430-333-0 01 1 1404- ● ●
18 FRAME; FLOOR,CENTER SIDE
CHI 		8-97430-022-0 01 1 1404- ● ●
18 FRAME; FLOOR,CENTER SIDE
CHI 		8-97430-028-1 01 1 1404- ● ●
22 FRAME; FLOOR REAR
CHI 		8-97584-431-5 01 1 1404- ● ●
23 PANEL; FLOOR,SIDE
CHI 		8-97430-321-0 01 1 1404- ● ●
23 PANEL; FLOOR,SIDE
CHI 		8-97430-324-0 01 1 1404- ● ●
24 PANEL; BED PAN
CHI 		8-97584-378-6 01 1 1404- ● ●
81 BRACKET; HARNESS SUPPORT
CHI 		8-97430-037-0 02 1 1404- ● ●
144 BRACKET; MTG,RR
CHI 		8-97584-432-6 01 1 1404- ● ●
144 BRACKET; MTG,RR
CHI 		8-97589-666-6 01 1 1404- ● ●
170 EXTENSION; RR FLOOR
CHI 		8-97589-207-4 01 1 1404- ● ●
220 PATCH
CHI 		8-97430-015-0 01 1 1404- ● ●
279 REINFORCEMENT
CHI 		8-97430-904-0 02 1 1404- ● ●
311 BOLT; BRKT
M6X16 FLANGE CHI 		0-28650-616-0 04 1 1404- ● ●
373 REINFORCEMENT; SEAT BELT
(B) CHI 		8-97430-880-0 01 1 1404- ● ●
373 REINFORCEMENT; SEAT BELT
(A) CHI 		8-97584-367-2 01 1 1404- ● ●
373 REINFORCEMENT; SEAT BELT
(A) CHI 		8-97584-375-2 01 1 1404- ● ●
375 CLOSING; PILLAR
CHI 		8-97430-040-0 01 1 1404- ● ●
375 CLOSING; PILLAR
CHI 		8-97430-043-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR
CHI 		8-97589-554-4 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR
CHI 		8-97589-556-4 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(A) CHI 		8-97430-033-0 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(A) CHI 		8-97589-708-1 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(B) CHI 		8-97430-539-0 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(B) CHI 		8-97430-538-0 01 1 1404- ● ●
385 BRACKET
(A) CHI 		8-97430-035-0 01 1 1404- ● ●
385 BRACKET
(B) CHI 		8-98053-825-1 01 1 1404- ● ●
398 BRACKET; PIPE SUPPORT
CHI 		8-97589-681-3 01 1 1404- ● ●
448 CLOSING; ROCKER
CHI 		8-97589-551-2 01 1 1404- ● ●
448 CLOSING; ROCKER
CHI 		8-97589-552-2 01 1 1404- ● ●
536 PLUG; CABLE,PTO
CHI 		8-97612-074-1 01 1 1404- ● ●
537 SUPPORT ASM; MTG RR
CHI 		8-97430-327-0 01 1 1404- ● ●
537 SUPPORT ASM; MTG RR
CHI 		8-97430-328-0 01 1 1404- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT
CHI 		8-98098-707-1 01 1 1404- ● ●
539 PATCH ASM; SAFTY HOOK
CHI 		8-97584-440-2 01 1 1404- ● ●
540 BRACKET ASM; CAB LOCK LEVER
CHI 		8-97584-438-1 01 1 1404- ● ●
541 REINFORCEMENT; MTG,FRT
CHI 		8-98076-127-0 02 1 1404- ● ●
542 BOLSTER; BED PAN
CHI 		8-97589-685-1 02 1 1404- ● ●
544 BRACKET; DUMP CONT
CHI 		8-97584-363-1 01 1 1404- ● ●
544 BRACKET; DUMP CONT
CHI 		8-98049-529-0 01 1 1404- ● ●
545 BRACKET; SEAT FRT
CHI 		8-97430-976-0 01 1 1404- ● ●
545 BRACKET; SEAT FRT
CHI 		8-97430-994-0 01 1 1404- ● ●
546 REINFORCEMENT; FLOOR SIDE
CHI 		8-97584-426-0 02 1 1404- ● ●
548 BRACKET; MUD GUARD
CHI 		8-97588-964-1 01 1 1404- ● ●
548 BRACKET; MUD GUARD
CHI 		8-97588-965-1 01 1 1404- ● ●
549 BRACKET; SEAT RR
CHI 		8-97430-322-0 01 1 1404- ● ●
549 BRACKET; SEAT RR
CHI 		8-97430-992-0 01 1 1404- ● ●
550 CLOSING ASM; MTG,FRT
CHI 		8-97589-710-3 01 1 1404- ● ●
554 REINFORCEMENT; FLOOR CENTER
CHI 		8-97430-973-0 01 1 1404- ● ●
563 REINFORCEMENT; MTG FRT,RR
CHI 		8-97589-579-2 04 1 1404- ● ●
566 REINFORCEMENT; FENDER,RR
CHI 		8-97430-041-0 01 1 1404- ● ●
566 REINFORCEMENT; FENDER,RR
CHI 		8-98076-133-0 01 1 1404- ● ●
569 REINFORCEMENT; FRT,ENG HOOD
CHI 		8-98108-382-0 01 1 1404- ● ●
