Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-20 - SIDE PANEL AND STEP
▶
6-20 — SIDE PANEL AND STEP
(#144400) — 73 parça
Tümü
A - FGZ6MX
B - GGZ6MX
◀

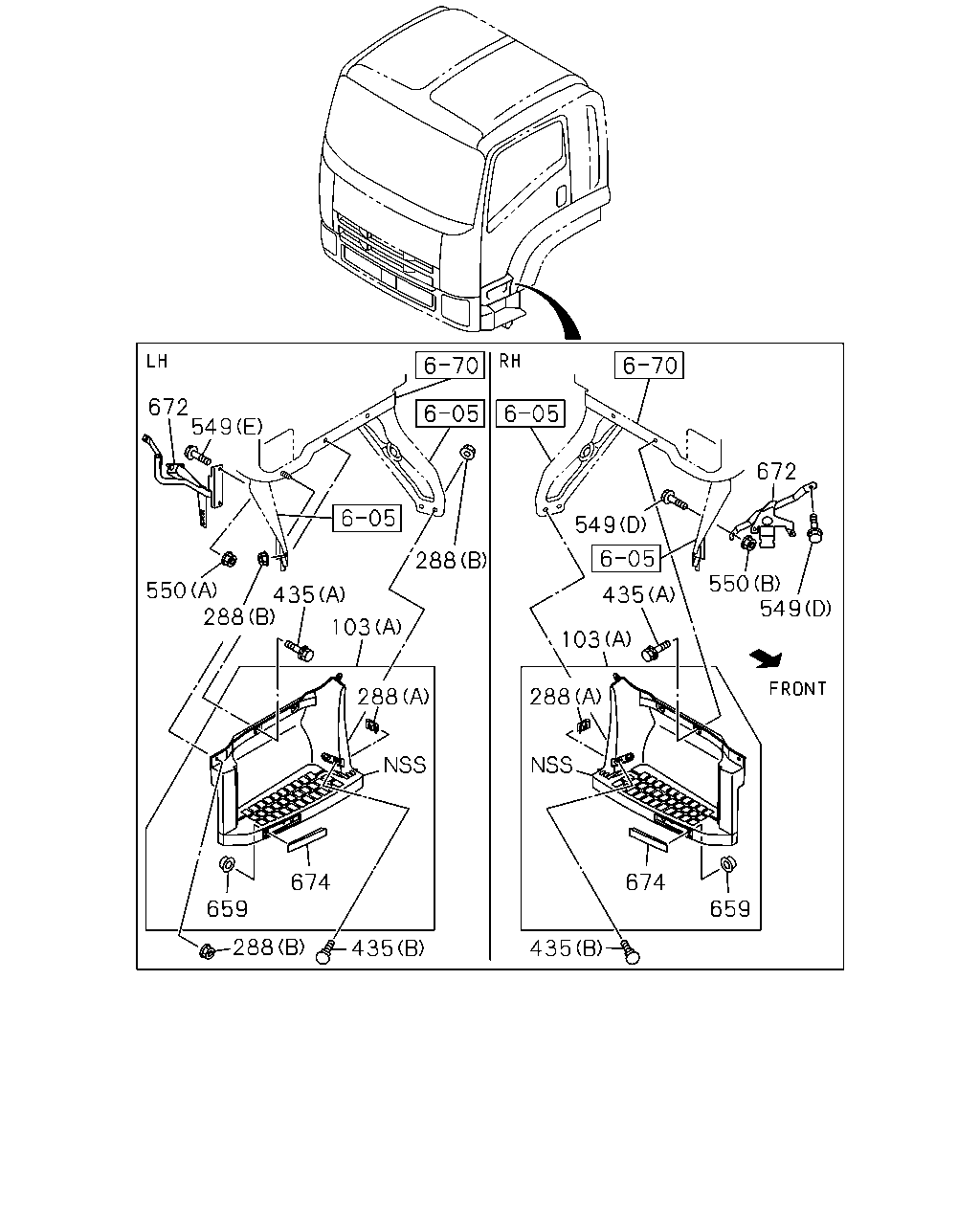

[620A] STEP NO.2 (21 parça)

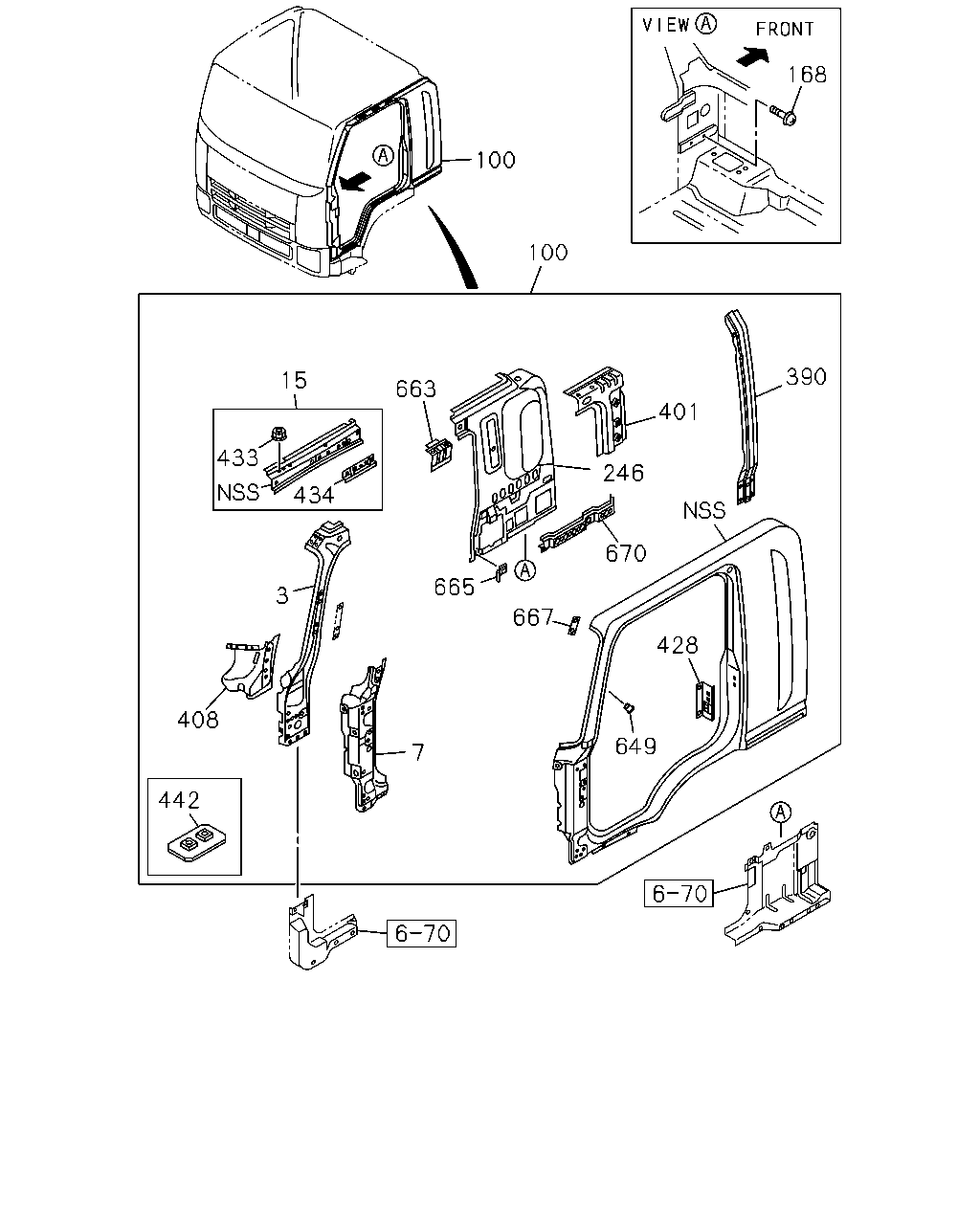

[620A] SIDE PANEL (29 parça)

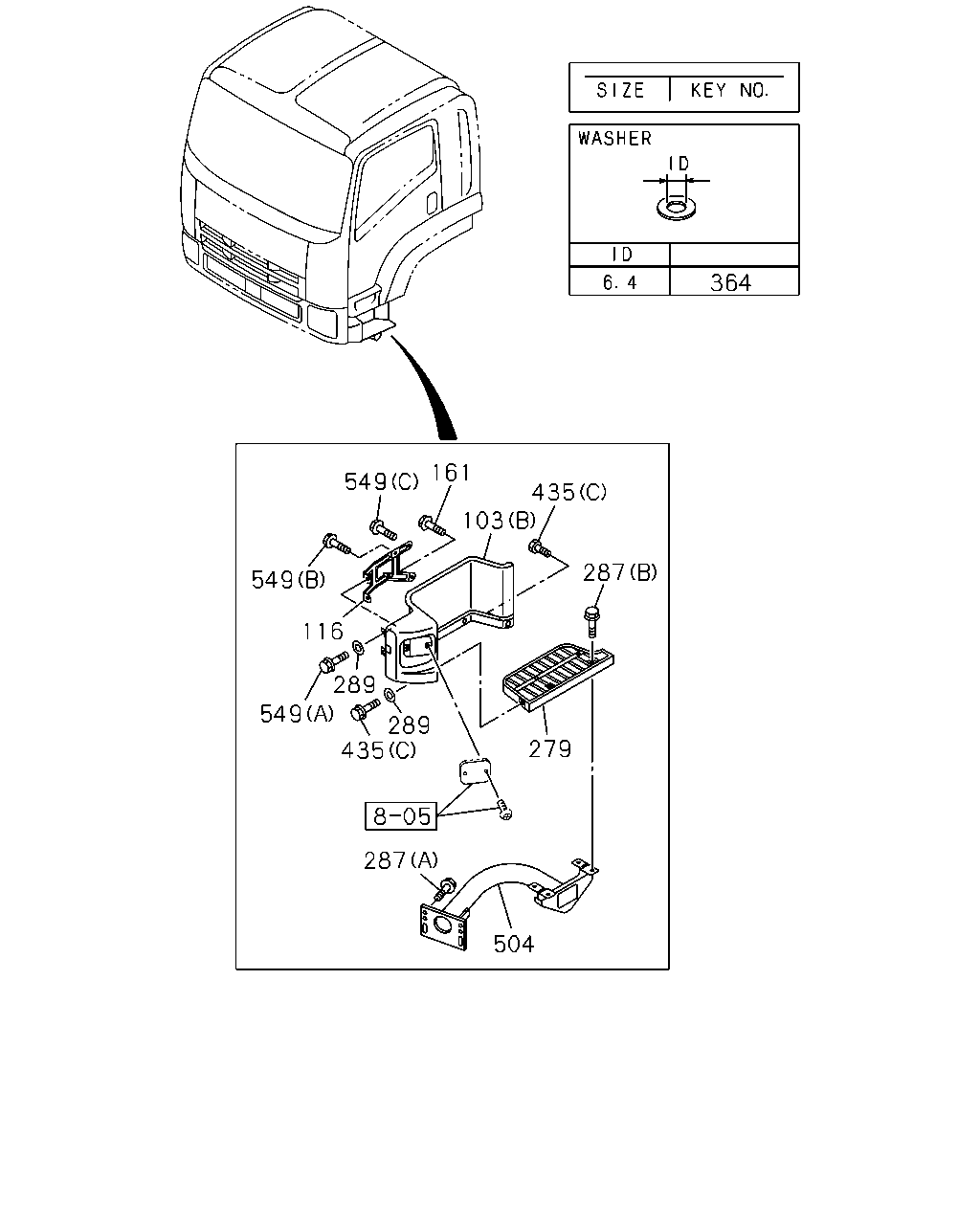

[620A] STEP NO.1 (23 parça)
▶
672
550
549
435
288
103
288
288
674
659
435
288
549
672
550
549
435
103
288
674
659
435
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
103
PLATE; STEP
(B) CHI
8-97430-096-0
01
1
1404-
●
●
103
PLATE; STEP
(B) CHI
8-97430-097-0
01
1
1404-
●
●
103
PLATE; STEP
(A) CHI
8-97430-554-0
01
1
1404-
●
●
103
PLATE; STEP
(A) CHI
8-97430-553-0
01
1
1404-
●
●
288
NUT; STEP
(B) M8 FLANGE CHI
0-91180-108-0
18
1
1404-
●
●
288
NUT; STEP
(A) M8 CHI
8-98040-792-0
02
1
1404-
●
●
435
BOLT; RR STEP
(C) M6X12 FLANGE CHI
0-28050-612-0
06
1
1404-
●
●
435
BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER CHI
8-98059-720-0
04
1
1404-
●
●
435
BOLT; RR STEP
(B) M8X18 CHI
8-98146-670-0
08
1
1404-
●
●
549
BOLT; STAY
(A) M6X16 FLANGE CHI
0-28050-616-0
04
1
1404-
●
●
549
BOLT; STAY
(B) M6X25 FLANGE CHI
0-28050-625-0
02
1
1404-
●
●
549
BOLT; STAY
(C) M8X16 FLANGE CHI
0-28050-816-0
04
1
1404-
●
●
549
BOLT; STAY
(D) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
●
●
549
BOLT; STAY
(E) M6X16 FLANGE CHI
0-28650-616-0
02
1
1404-
●
●
550
NUT; STAY
(A) M6 FLANGE CHI
0-91180-106-0
02
1
1404-
●
●
550
NUT; STAY
(B) M8 FLANGE CHI
0-91180-108-0
01
1
1404-
●
●
659
CLIP; SPRING NUT
CHI
8-97811-510-0
04
1
1404-
●
●
672
STAY; STEP
CHI
8-97430-062-0
01
1
1404-
●
●
672
STAY; STEP
CHI
8-97430-061-0
01
1
1404-
●
●
674
COVER; REFLECTOR
CHI
8-98092-734-0
01
1
1404-
●
●
674
COVER; REFLECTOR
CHI
8-98092-733-0
01
1
1404-
●
●
100
100
401
390
168
246
670
667
428
649
665
663
15
433
434
3
7
408
442
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
PANEL; CLOSING,FRT PILLAR
CHI
8-98058-237-1
01
1
1404-
●
●
3
PANEL; CLOSING,FRT PILLAR
CHI
8-98058-236-1
01
1
1404-
●
●
7
REINFORCEMENT; HINGE
CHI
8-97585-244-4
01
1
1404-
●
●
7
REINFORCEMENT; HINGE
CHI
8-97585-240-3
01
1
1404-
●
●
15
PANEL; CANT RAIL SIDE
CHI
8-97430-046-0
01
1
1404-
●
●
15
PANEL; CANT RAIL SIDE
CHI
8-97430-009-0
01
1
1404-
●
●
100
PANEL ASM; BODY SIDE
CHI
8-97430-044-0
01
1
1404-
●
●
100
PANEL ASM; BODY SIDE
CHI
8-97430-006-0
01
1
1404-
●
●
168
BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET CHI
0-38050-612-0
08
1
1404-
●
●
246
PANEL; RR PILLAR,INNER
CHI
8-97586-158-5
01
1
1404-
●
●
246
PANEL; RR PILLAR,INNER
CHI
8-97586-156-5
01
1
1404-
●
●
390
REINFORCEMENT
CHI
8-97430-109-0
01
1
1404-
●
●
390
REINFORCEMENT
CHI
8-97430-108-0
01
1
1404-
●
●
401
PATCH; CLOSING,FRT PILLAR
CHI
8-97431-031-0
01
1
1404-
●
●
401
PATCH; CLOSING,FRT PILLAR
CHI
8-97430-529-0
01
1
1404-
●
●
408
GUSSET; PILLAR
CHI
8-97430-940-0
01
1
1404-
●
●
408
GUSSET; PILLAR
CHI
8-97430-939-0
01
1
1404-
●
●
428
REINFORCEMENT; DOOR STRIKER
CHI
8-97585-261-4
01
1
1404-
●
●
428
REINFORCEMENT; DOOR STRIKER
CHI
8-97585-260-4
01
1
1404-
●
●
433
NUT; HEADER SHELF
M6
9-09114-086-0
04
1
1404-
●
●
434
PATCH; ASSIST GRIP
CHI
8-98039-020-0
01
1
1404-
●
●
434
PATCH; ASSIST GRIP
CHI
8-98039-019-0
01
1
1404-
●
●
442
PATCH
CHI
8-97430-133-0
04
1
1404-
●
●
649
NUT; POP
M5 POP NUT CHI
8-97249-574-0
02
1
1404-
●
●
663
BRACKET; AIR
CHI
8-97585-208-2
01
1
1404-
●
●
663
BRACKET; AIR
CHI
8-97585-207-2
01
1
1404-
●
●
665
REINFORCEMENT; GRIP,ASSIST
CHI
8-98012-287-1
02
1
1404-
●
●
667
BRACKET; MIRROR
CHI
8-98109-948-0
01
1
1404-
●
●
670
STIFFENER; PANEL,SIDE
CHI
8-98015-044-1
02
1
1404-
●
●
549
161
103
435
287
279
287
504
289
435
289
549
116
549
364
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
103
PLATE; STEP
(B) CHI
8-97430-096-0
01
1
1404-
●
●
103
PLATE; STEP
(B) CHI
8-97430-097-0
01
1
1404-
●
●
103
PLATE; STEP
(A) CHI
8-97430-554-0
01
1
1404-
●
●
103
PLATE; STEP
(A) CHI
8-97430-553-0
01
1
1404-
●
●
116
STAY; 1ST STEP,FRT
8-97431-329-0
01
1
1404-
●
●
116
STAY; 1ST STEP,FRT
8-97431-330-0
01
1
1404-
●
●
161
BOLT; FIX
M8X16 FLANGE CHI
0-28050-816-0
06
1
1404-
●
●
279
BOARD; STEP 1ST
CHI
1-53414-180-0
01
1
1404-
●
●
279
BOARD; STEP 1ST
CHI
1-53414-181-0
01
1
1404-
●
●
287
BOLT; BOARD STEP
(A) M12X30 FLANGE CHI
0-28051-230-0
08
1
1404-
●
●
287
BOLT; BOARD STEP
(B) M8X35 FLANGE CHI
0-28650-835-0
08
1
1404-
●
●
289
WASHER; PL,STEP
ID=6.4 OD=18 CHI
0-91610-706-0
08
1
1404-
●
●
364
WASHER; LK
ID=6.4 OD=18 CHI
0-91610-706-0
02
1
1404-
●
●
435
BOLT; RR STEP
(C) M6X12 FLANGE CHI
0-28050-612-0
06
1
1404-
●
●
435
BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER CHI
8-98059-720-0
04
1
1404-
●
●
435
BOLT; RR STEP
(B) M8X18 CHI
8-98146-670-0
08
1
1404-
●
●
504
STEP
CHI
8-97430-196-0
01
1
1404-
●
●
504
STEP
CHI
8-97430-198-0
01
1
1404-
●
●
549
BOLT; STAY
(A) M6X16 FLANGE CHI
0-28050-616-0
04
1
1404-
●
●
549
BOLT; STAY
(B) M6X25 FLANGE CHI
0-28050-625-0
02
1
1404-
●
●
549
BOLT; STAY
(C) M8X16 FLANGE CHI
0-28050-816-0
04
1
1404-
●
●
549
BOLT; STAY
(D) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
●
●
549
BOLT; STAY
(E) M6X16 FLANGE CHI
0-28650-616-0
02
1
1404-
●
●
