Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
5 - Frame, Cab Mounting
▶

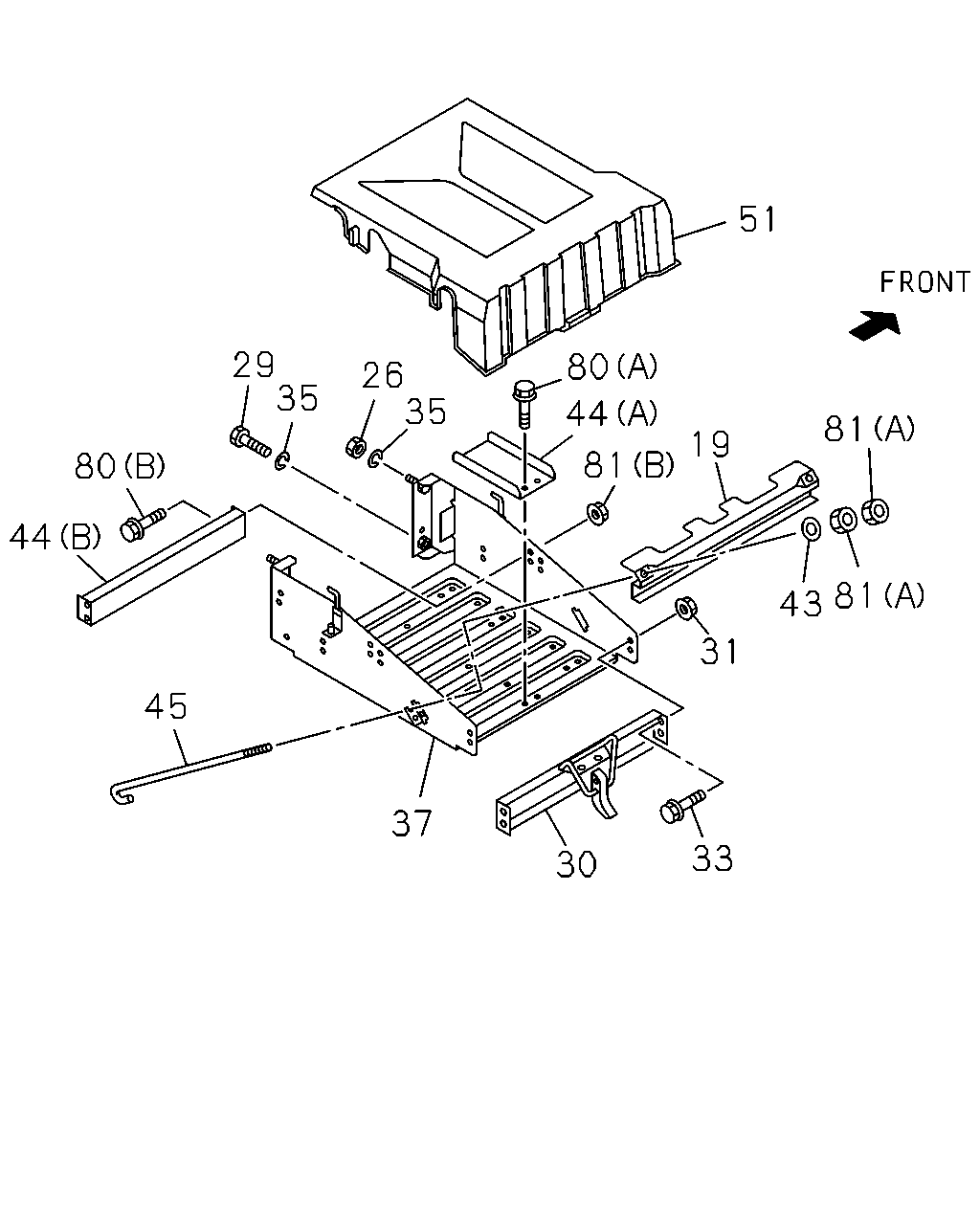

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#144394) — 17 parça
Tümü
A - FGZ6MX
B - GGZ6MX
51
81
81
43
31
33
30
37
45
44
80
29
26
35
80
35
44
81
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
STAY; BATTERY
8-97431-298-0
01
1
1404-
●
●
26
NUT; BRKT
M14 CHI
1-09440-072-0
02
1
1404-
●
●
29
BOLT; BRKT TO FRAME
M14X45 CHI
1-09000-764-0
02
1
1404-
●
●
30
PLATE; BATTERY
CHI
1-53619-085-0
01
1
1404-
●
●
31
NUT; PLATE
M8 FLANGE CHI
0-91180-108-0
04
1
1404-
●
●
33
BOLT; PLATE TO BRKT
M8X20 FLANGE CHI
0-28650-820-0
04
1
1404-
●
●
35
WASHER; PL,BATTERY CARRIER
ID=14.2 CHI
0-91510-514-0
04
1
1404-
●
●
37
BRACKET; BATTERY
8-97431-297-0
01
1
1404-
●
●
43
WASHER; PL,CLAMP
ID=8.4 OD=22 CHI
0-91614-708-0
02
1
1404-
●
●
44
SPACER; BATTERY
(B) CHI
8-98091-941-0
01
1
1404-
●
●
44
SPACER; BATTERY
(A)
8-97431-333-0
01
1
1404-
●
●
45
ROD; TENSION,BATTERY
8-97431-412-0
02
1
1404-
●
●
51
COVER; BATTERY
CHI
1-53612-068-0
01
1
1404-
●
●
80
BOLT; BATTERY
(A) M8X16 FLANGE CHI
0-28050-816-0
02
1
1404-
●
●
80
BOLT; BATTERY
(B) M8X20 FLANGE CHI
0-28050-820-0
04
1
1404-
●
●
81
NUT; BATTERY
(A) M8 CHI
0-91110-508-0
04
1
1404-
●
●
81
NUT; BATTERY
(B) M8 FLANGE CHI
0-91180-108-0
04
1
1404-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
