5-17 — CYLINDER; CAB TILT (#144393) — 26 parça

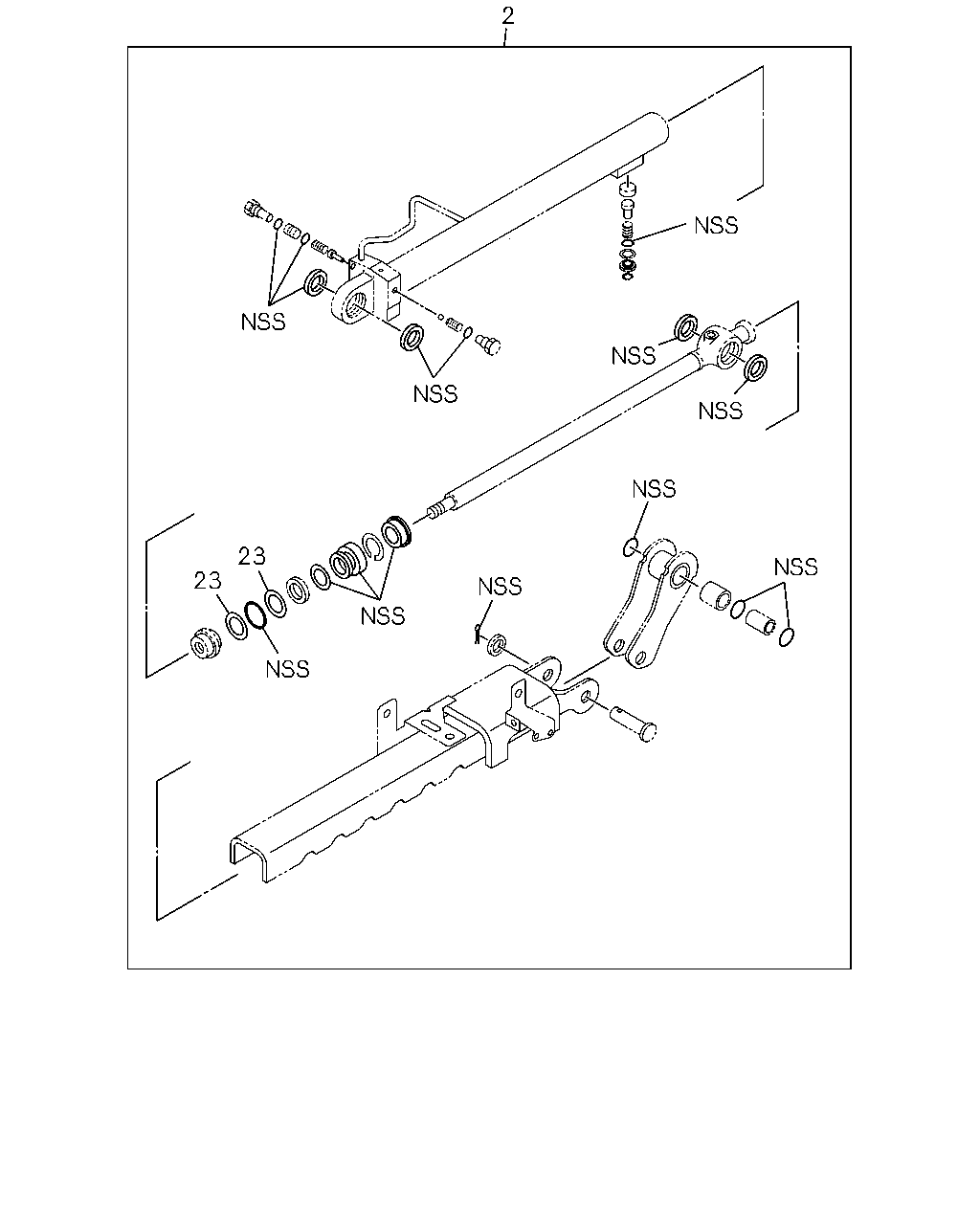

2 23 23

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	REPAIR KIT; OIL CYL CHI	1-85579-068-0	01	1	1404-	●	●
	23	RING; SNAP CHI	1-53457-048-0	02	1	1404-	●	●

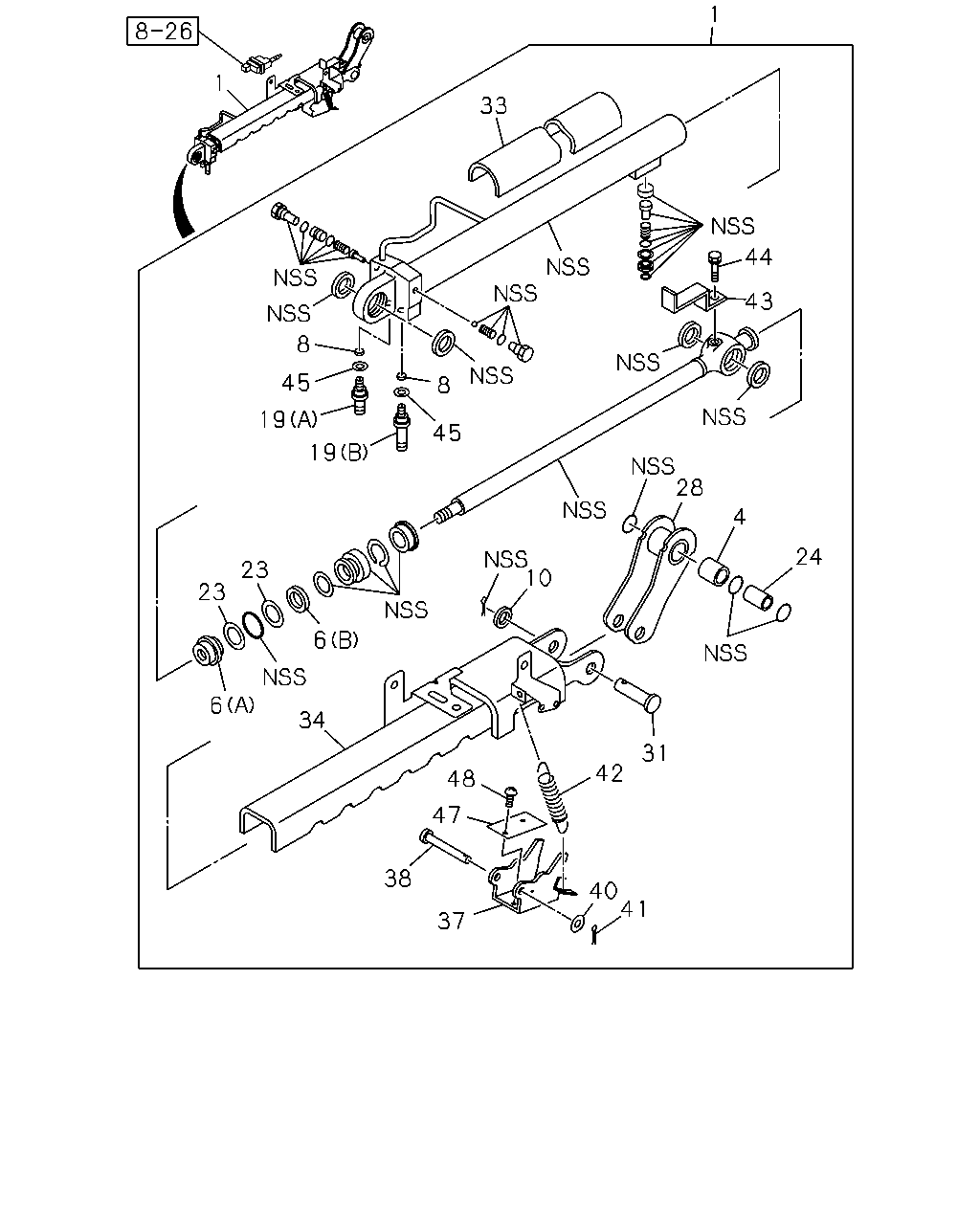

1 44 43 24 4 28 31 42 40 41 37 38 48 47 10 6 34 6 23 23 19 19 45 8 8 45 33 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER; OIL,CAB TILT CHI	8-98198-740-0	01	1	1404-	●	●
4	BUSHING; OIL CYL CHI	1-53458-405-0	01	1	1404-	●	●
6	PISTON; OIL CYL (A) CHI	8-98134-365-0	01	1	1404-	●	●
6	PISTON; OIL CYL (B) CHI	8-98134-367-0	01	1	1404-	●	●
8	FILTER; OIL CYL CHI	1-53458-102-0	02	1	1404-	●	●
10	WASHER; OIL CYL CHI	1-53458-401-0	01	1	1404-	●	●
19	NIPPLE; OIL CYL (A) CHI	1-53457-044-0	01	1	1404-	●	●
19	NIPPLE; OIL CYL (B) CHI	1-53457-045-0	01	1	1404-	●	●
23	RING; SNAP CHI	1-53457-048-0	02	1	1404-	●	●
24	COLLAR; LEVER CHI	1-53458-398-0	01	1	1404-	●	●
28	LEVER; OIL CYL CHI	1-53458-557-1	01	1	1404-	●	●
31	PIN; OIL CYL CHI	1-53457-172-0	01	1	1404-	●	●
33	COVER; CYL CHI	1-53458-556-0	01	1	1404-	●	●
34	STOPPER; OIL CYL CHI	1-53458-555-0	01	1	1404-	●	●
37	LEVER; STOPPER CHI	8-98235-591-0	01	1	1404-	●	●
38	PIN; STOPPER CHI	1-53458-550-0	01	1	1404-	●	●
40	WASHER; STOPPER PIN CHI	1-53458-045-0	01	1	1404-	●	●
41	PIN; SPLIT CHI	1-53458-545-0	01	1	1404-	●	●
42	SPRING; LOCK LEVER CHI	1-53457-168-0	01	1	1404-	●	●
43	PLATE; SW CHI	1-53457-167-0	01	1	1404-	●	●
44	BOLT; SW PLATE M6X12 CHI	1-53458-542-0	01	1	1404-	●	●
45	GASKET; OIL CYL CHI	1-53458-073-0	02	1	1404-	●	●
47	PLATE; THRUST,OIL CYL CHI	1-53457-169-0	01	1	1404-	●	●
48	SCREW; OIL CYL M5X8 CHI	1-53458-005-0	02	1	1404-	●	●
