Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
5 - Frame, Cab Mounting
▶
5-16 - OIL PUMP; CAB TILT
▶
5-16 — OIL PUMP; CAB TILT
(#144392) — 62 parça
Tümü
A - FGZ6MX
B - GGZ6MX
◀
[516A] REPAIR KIT;OIL PUMP (2 parça)

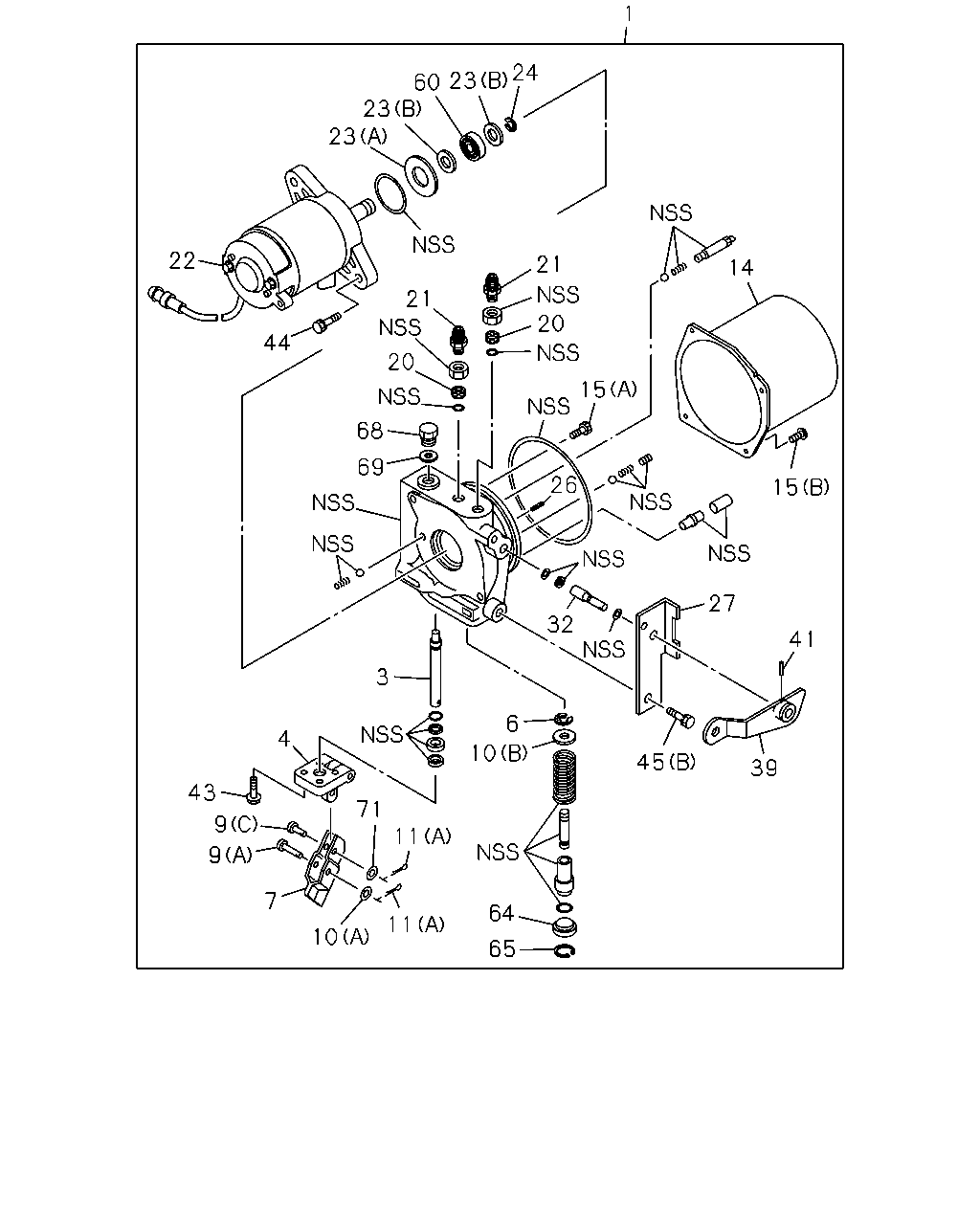

[516A] COMPONENT;OIL PUMP (41 parça)

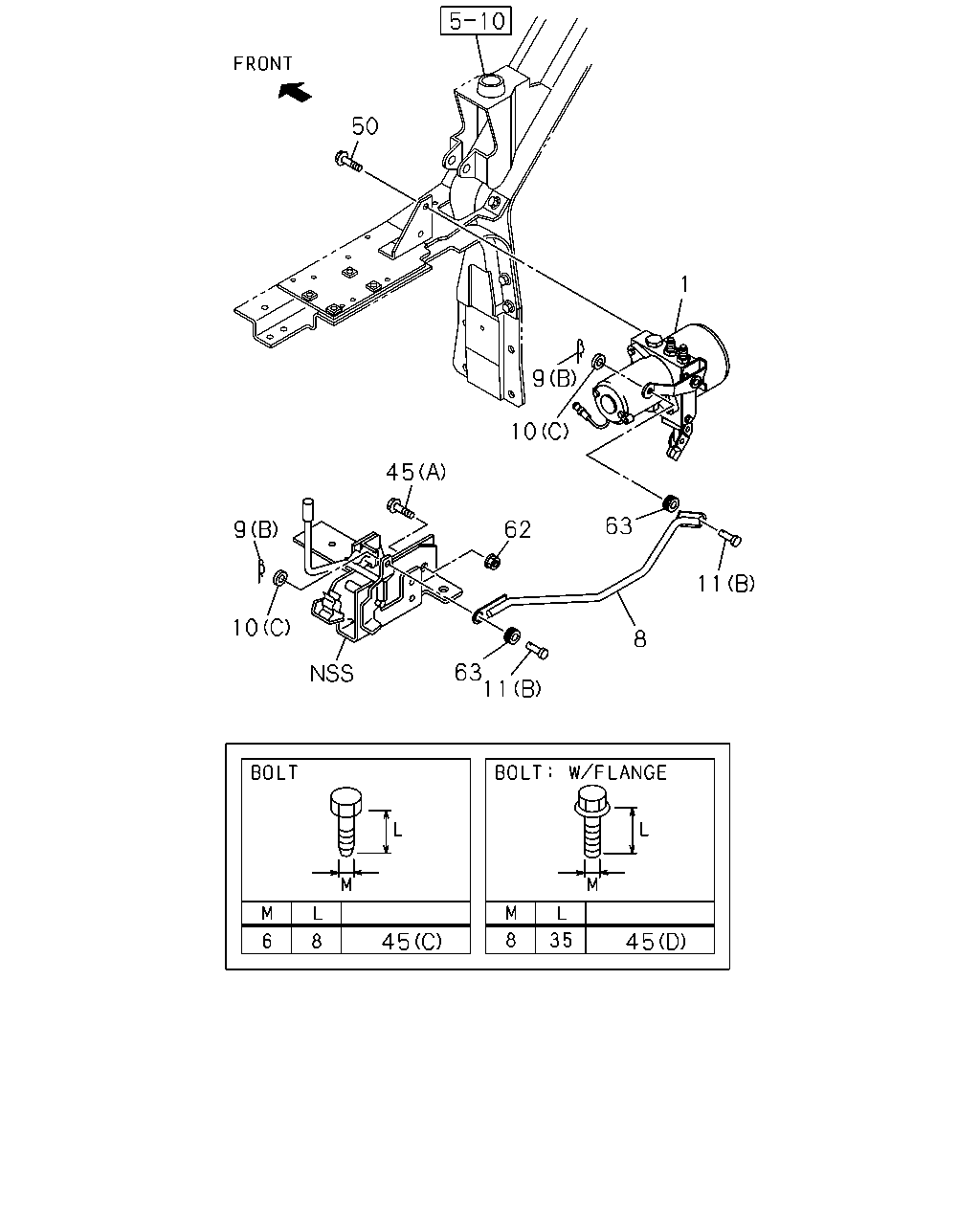

[516A] OIL PUMP AND LEVER FIXING (19 parça)
▶
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; OIL PUMP
CHI
1-85579-069-0
01
1
1404-
●
●
69
GASKET; FILLER PLUG
CHI
1-53458-427-0
01
1
1404-
●
●
24
23
60
23
23
22
44
21
20
21
68
69
20
15
26
15
1
27
41
39
45
32
10
6
64
65
11
11
10
71
7
9
43
9
4
3
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
CHI
8-98237-300-0
01
1
1404-
●
●
3
PISTON; MANUAL
CHI
1-53457-204-0
01
1
1404-
●
●
4
BRACKET; OIL PUMP
CHI
1-53457-205-0
01
1
1404-
●
●
6
RING; SNAP
CHI
1-53457-210-0
01
1
1404-
●
●
7
SOCKET; OIL PUMP
CHI
1-53457-207-0
01
1
1404-
●
●
9
PIN; OIL PUMP
(B) L=27.7 CHI
1-09987-141-0
02
1
1404-
●
●
9
PIN; OIL PUMP
(C) CHI
1-53458-057-0
01
1
1404-
●
●
9
PIN; OIL PUMP
(A) CHI
1-53458-060-0
01
1
1404-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22 CHI
0-91610-708-0
02
1
1404-
●
●
10
WASHER; OIL PUMP
(B) CHI
1-53457-211-0
01
1
1404-
●
●
10
WASHER; OIL PUMP
(A) CHI
1-53458-013-0
01
1
1404-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 CHI
0-82253-817-0
02
1
1404-
●
●
11
PIN; SPLIT,OIL PUMP
(A) CHI
1-53457-209-0
02
1
1404-
●
●
14
RESERVOIR; OIL PUMP
CHI
8-98249-571-0
01
1
1404-
●
●
15
BOLT; RESERVOIR
(B) M5X8 CHI
1-53458-005-0
04
1
1404-
●
●
15
BOLT; RESERVOIR
(A) M5X8 CHI
1-53458-433-0
02
1
1404-
●
●
20
FILTER; OIL PUMP
CHI
1-53457-081-0
02
1
1404-
●
●
21
CONNECTOR; OIL PUMP
M12 CHI
1-53458-941-0
02
1
1404-
●
●
22
MOTOR; OIL PUMP
CHI
1-53457-080-0
01
1
1404-
●
●
23
WASHER; MOTOR
(A) CHI
1-53458-018-0
01
1
1404-
●
●
23
WASHER; MOTOR
(B) CHI
8-97613-686-0
02
1
1404-
●
●
24
RING; SNAP,MOTOR
CHI
1-53458-044-0
01
1
1404-
●
●
26
PIN; SPR,OIL PUMP
CHI
1-53458-038-0
01
1
1404-
●
●
27
COVER; OIL PUMP
CHI
1-53458-568-0
01
1
1404-
●
●
32
VALVE; OIL PUMP
CHI
1-53458-569-0
01
1
1404-
●
●
39
LEVER; OIL PUMP
CHI
1-53458-567-0
01
1
1404-
●
●
41
PIN; SPR,LEVER
CHI
1-53458-019-0
01
1
1404-
●
●
43
BOLT; LEVER
M5X16 CHI
1-53457-206-0
03
1
1404-
●
●
44
BOLT; MOTOR
M6X20 CHI
1-53458-007-0
02
1
1404-
●
●
45
BOLT; COVER
(B) M8X40 FLANGE CHI
0-28050-840-0
01
1
1404-
●
45
BOLT; COVER
(A) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
●
45
BOLT; COVER
(D) M8X35 FLANGE CHI
0-28650-835-0
02
1
1404-
●
●
45
BOLT; COVER
(C) M6X8 CHI
1-53458-004-0
02
1
1404-
●
●
45
BOLT; COVER
(B) M8X40 FLANGE CHI
0-28050-840-0
02
1
1404-
●
45
BOLT; COVER
(A) M8X20 FLANGE CHI
0-28650-820-0
01
1
1404-
●
60
BEARING; OIL PUMP
CHI
1-53458-423-0
01
1
1404-
●
●
64
SLEEVE; OIL PUMP
CHI
8-98249-572-0
01
1
1404-
●
●
65
RING; SNAP,SLEEVE
CHI
1-53458-570-0
01
1
1404-
●
●
68
PLUG; FILLER
CHI
1-53458-428-0
01
1
1404-
●
●
69
GASKET; FILLER PLUG
CHI
1-53458-427-0
01
1
1404-
●
●
71
NUT; PUSH
CHI
1-53457-208-0
01
1
1404-
●
●
50
10
9
1
11
63
8
62
45
9
10
63
11
45
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
CHI
8-98237-300-0
01
1
1404-
●
●
8
LINK; OIL PUMP
CHI
8-98237-301-0
01
1
1404-
●
●
9
PIN; OIL PUMP
(B) L=27.7 CHI
1-09987-141-0
02
1
1404-
●
●
9
PIN; OIL PUMP
(C) CHI
1-53458-057-0
01
1
1404-
●
●
9
PIN; OIL PUMP
(A) CHI
1-53458-060-0
01
1
1404-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22 CHI
0-91610-708-0
02
1
1404-
●
●
10
WASHER; OIL PUMP
(B) CHI
1-53457-211-0
01
1
1404-
●
●
10
WASHER; OIL PUMP
(A) CHI
1-53458-013-0
01
1
1404-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 CHI
0-82253-817-0
02
1
1404-
●
●
11
PIN; SPLIT,OIL PUMP
(A) CHI
1-53457-209-0
02
1
1404-
●
●
45
BOLT; COVER
(B) M8X40 FLANGE CHI
0-28050-840-0
01
1
1404-
●
45
BOLT; COVER
(A) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
●
45
BOLT; COVER
(D) M8X35 FLANGE CHI
0-28650-835-0
02
1
1404-
●
●
45
BOLT; COVER
(C) M6X8 CHI
1-53458-004-0
02
1
1404-
●
●
45
BOLT; COVER
(B) M8X40 FLANGE CHI
0-28050-840-0
02
1
1404-
●
45
BOLT; COVER
(A) M8X20 FLANGE CHI
0-28650-820-0
01
1
1404-
●
50
BOLT; OIL PUMP
M10X16 FLANGE CHI
0-28051-016-0
02
1
1404-
●
●
62
NUT; COVER
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
●
●
63
GROMMET
ID=10 OD=23 T=8 CHI
1-09983-010-0
02
1
1404-
●
●
