Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#144391) — 69 parça
Tümü
A - FGZ6MX
B - GGZ6MX
◀

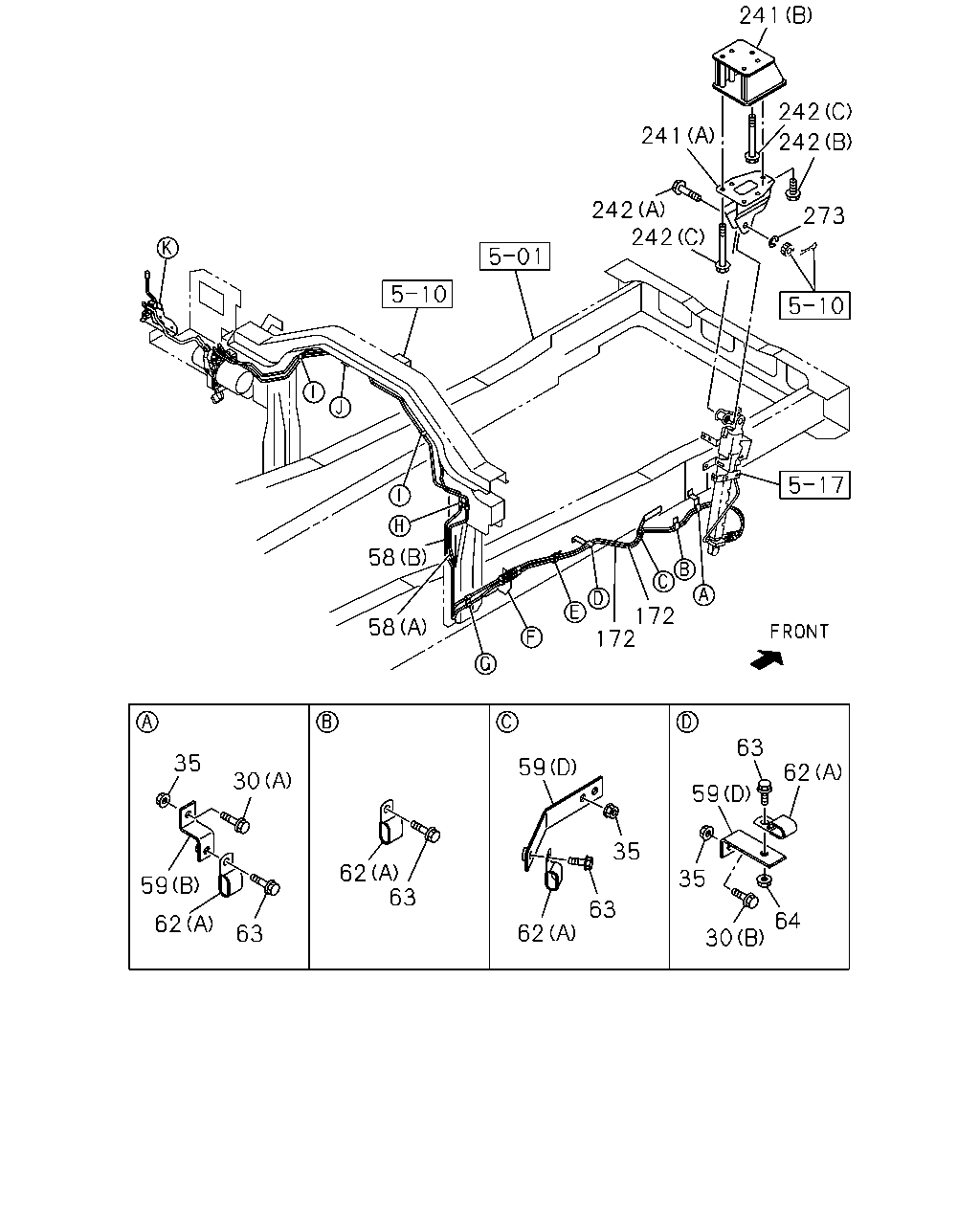

[515A] CAB TILT PIPING NO.1 (24 parça)

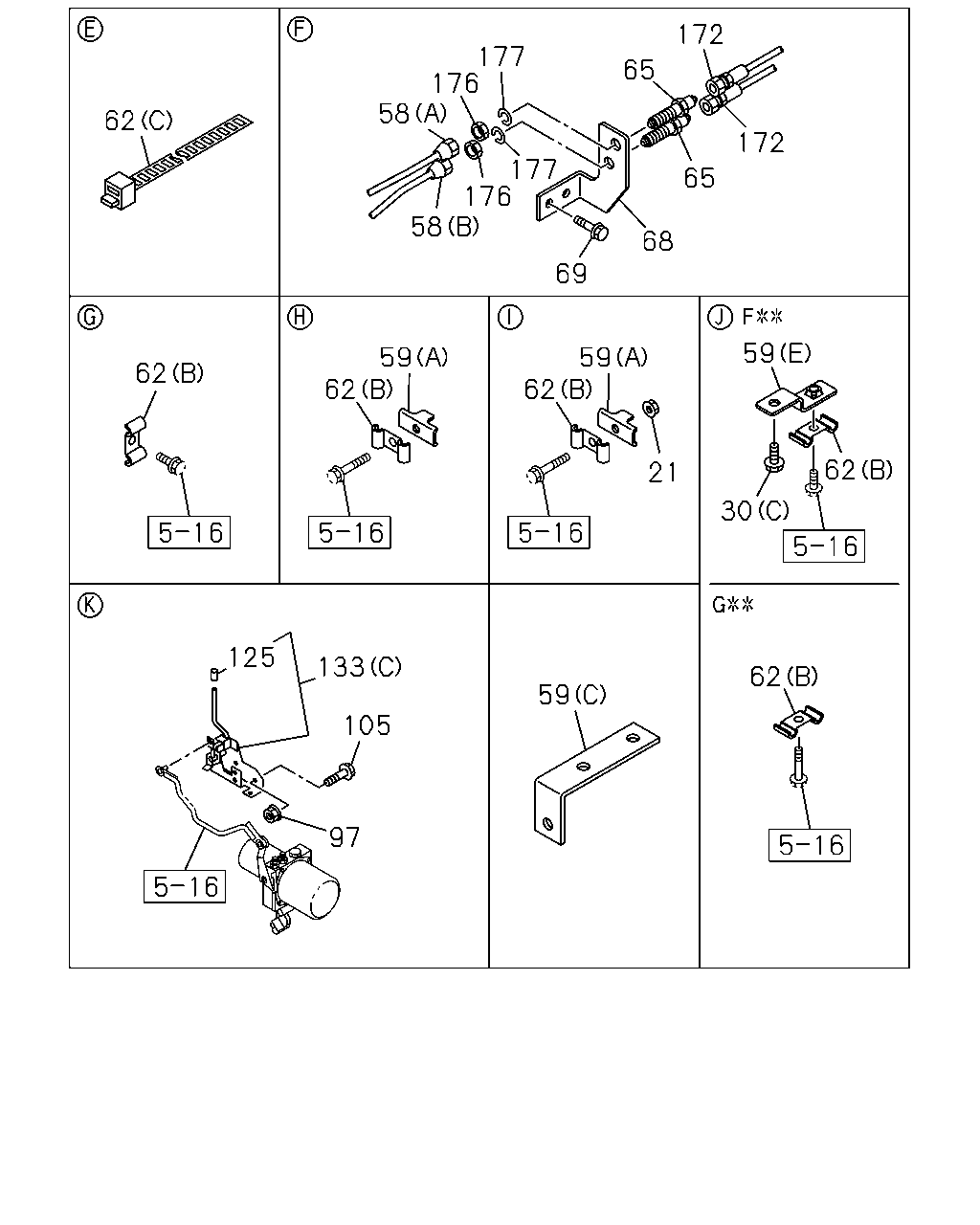

[515A] CAB TILT PIPING NO.2 (27 parça)

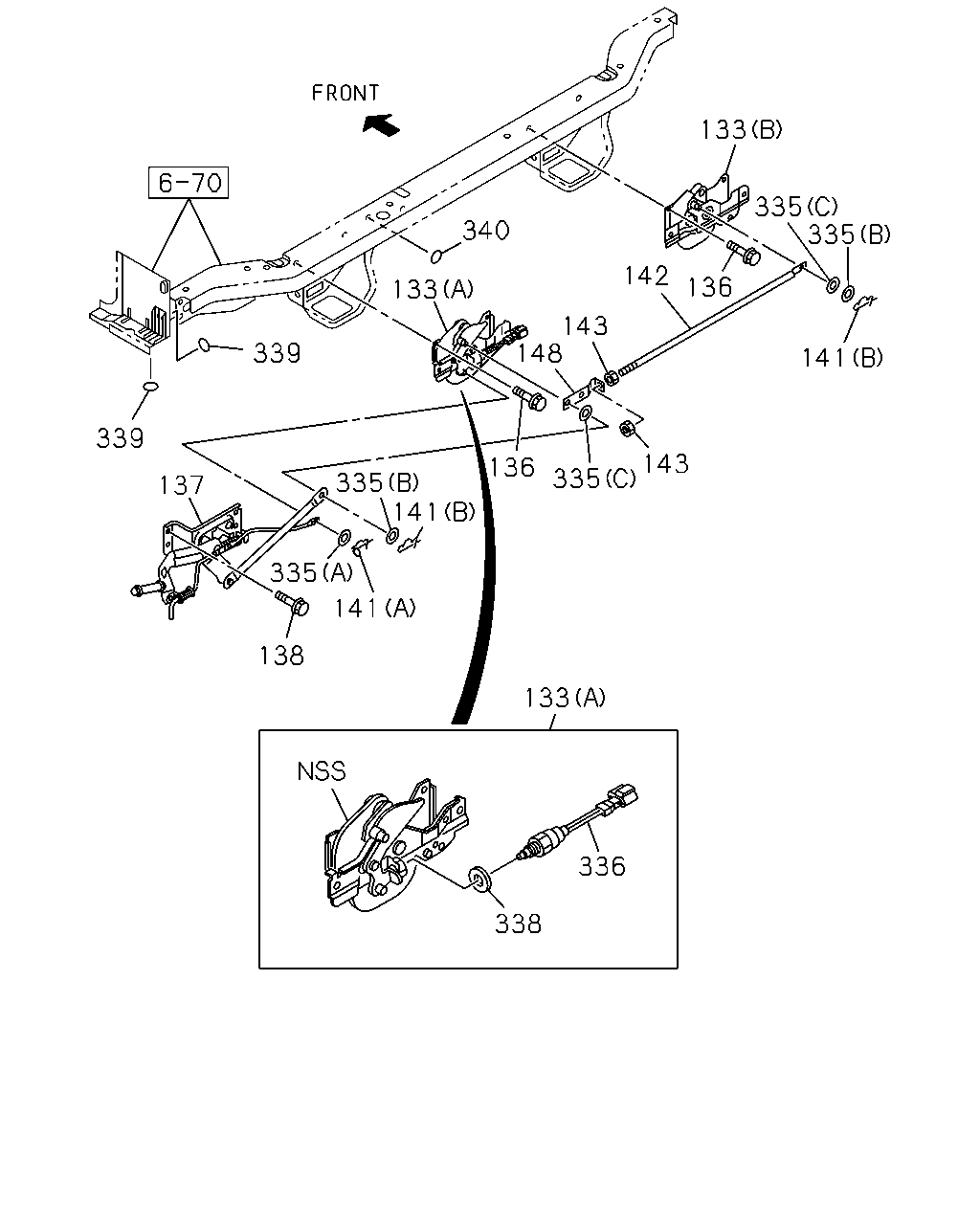

[515A] LOCK;CAB REAR (18 parça)
▶
241
241
242
242
242
242
273
172
172
58
58
35
30
63
62
59
62
63
59
35
63
62
62
63
59
35
30
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
BOLT; BRKT FIX
(C) M10X20 FLANGE CHI
0-28051-020-0
01
1
1404-
●
30
BOLT; BRKT FIX
(B) M8X25 FLANGE CHI
0-28650-825-0
01
1
1404-
●
●
30
BOLT; BRKT FIX
(A) M8X30 FLANGE CHI
0-28650-830-0
01
1
1404-
●
●
35
NUT; BRKT
M8 FLANGE CHI
0-91180-108-0
03
1
1404-
●
●
58
PIPE; OIL,POWER UNIT
(A) L=2446
8-97430-345-0
01
1
1404-
●
●
58
PIPE; OIL,POWER UNIT
(B) L=2442
8-97430-348-0
01
1
1404-
●
●
59
BRACKET; CLIP
(A) CHI
1-47475-427-1
03
1
1404-
●
59
BRACKET; CLIP
(E) CHI
8-97430-349-0
01
1
1404-
●
59
BRACKET; CLIP
(C) L=75 CHI
1-47478-323-0
01
1
1404-
●
●
59
BRACKET; CLIP
(D) CHI
8-97430-343-0
01
1
1404-
●
●
59
BRACKET; CLIP
(B) CHI
8-97624-332-0
01
1
1404-
●
●
59
BRACKET; CLIP
(A) CHI
1-47475-427-1
04
1
1404-
●
62
CLIP; OIL PIPE
(A) ID=11X2 L=20
0-95325-035-0
04
1
1404-
●
●
62
CLIP; OIL PIPE
(B) ID=7 & 7 L=17.5 & 17.5 CHI
1-09700-745-0
05
1
1404-
●
●
62
CLIP; OIL PIPE
(C) L=350 CHI
1-09707-183-0
01
1
1404-
●
●
63
BOLT; CLIP
M8X20 FLANGE CHI
0-28650-820-0
04
1
1404-
●
●
64
NUT; CLIP
M8 FLANGE CHI
0-91180-108-0
01
1
1404-
●
●
172
HOSE; FLEX,OIL TILT
8-97431-504-0
02
1
1404-
●
●
241
BRACKET; POWER CYL UPR,CAB TILT
(A) CHI
8-97430-208-0
01
1
1404-
●
●
241
BRACKET; POWER CYL UPR,CAB TILT
(B) CHI
8-97430-209-1
01
1
1404-
●
●
242
BOLT; POWER CYL BRKT,CAB TILT
(B) M10X25 FLANGE CHI
0-28051-025-0
01
1
1404-
●
●
242
BOLT; POWER CYL BRKT,CAB TILT
(C) M10X140 FLANGE CHI
0-28056-014-0
05
1
1404-
●
●
242
BOLT; POWER CYL BRKT,CAB TILT
(A) M14X70 CHI
1-53458-633-0
01
1
1404-
●
●
273
WASHER; PL,OIL CYL
ID=14.2 CHI
0-91510-814-0
01
1
1404-
●
●
62
62
62
59
125
133
105
97
59
62
21
59
62
59
62
30
172
65
68
69
65
172
177
176
58
58
176
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
NUT
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
●
●
30
BOLT; BRKT FIX
(C) M10X20 FLANGE CHI
0-28051-020-0
01
1
1404-
●
30
BOLT; BRKT FIX
(B) M8X25 FLANGE CHI
0-28650-825-0
01
1
1404-
●
●
30
BOLT; BRKT FIX
(A) M8X30 FLANGE CHI
0-28650-830-0
01
1
1404-
●
●
58
PIPE; OIL,POWER UNIT
(A) L=2446
8-97430-345-0
01
1
1404-
●
●
58
PIPE; OIL,POWER UNIT
(B) L=2442
8-97430-348-0
01
1
1404-
●
●
59
BRACKET; CLIP
(A) CHI
1-47475-427-1
03
1
1404-
●
59
BRACKET; CLIP
(E) CHI
8-97430-349-0
01
1
1404-
●
59
BRACKET; CLIP
(C) L=75 CHI
1-47478-323-0
01
1
1404-
●
●
59
BRACKET; CLIP
(D) CHI
8-97430-343-0
01
1
1404-
●
●
59
BRACKET; CLIP
(B) CHI
8-97624-332-0
01
1
1404-
●
●
59
BRACKET; CLIP
(A) CHI
1-47475-427-1
04
1
1404-
●
62
CLIP; OIL PIPE
(A) ID=11X2 L=20
0-95325-035-0
04
1
1404-
●
●
62
CLIP; OIL PIPE
(B) ID=7 & 7 L=17.5 & 17.5 CHI
1-09700-745-0
05
1
1404-
●
●
62
CLIP; OIL PIPE
(C) L=350 CHI
1-09707-183-0
01
1
1404-
●
●
65
UNION; OIL PIPE
M12 L=66.5 CHI
0-92113-306-0
02
1
1404-
●
●
68
BRACKET; UNION
CHI
8-98147-166-0
01
1
1404-
●
●
69
BOLT; BRKT
M8X30 FLANGE CHI
0-28650-830-0
02
1
1404-
●
●
97
NUT; CAB STAY PIN
ID=9.9 PUSH NUT CHI
8-97022-566-0
02
1
1404-
●
●
105
BOLT; CAB STAY
M8X20 FLANGE CHI
0-28050-820-0
02
1
1404-
●
●
125
GRIP; HAND LEVER,CAB LOCK
ID=9.0 CHI
8-94207-303-0
02
1
1404-
●
●
133
LOCK ASM; CAB
(C) CHI
8-97608-198-0
01
1
1404-
●
●
133
LOCK ASM; CAB
(B) CHI
8-98061-489-1
01
1
1404-
●
●
133
LOCK ASM; CAB
(A)
8-98101-514-1
01
1
1404-
●
●
172
HOSE; FLEX,OIL TILT
8-97431-504-0
02
1
1404-
●
●
176
NUT; UNION
M12 CHI
9-09840-280-0
02
1
1404-
●
●
177
WASHER; LK,UNION
ID=12.2 CHI
0-91510-512-0
02
1
1404-
●
●
340
133
339
339
137
335
141
335
141
138
136
335
148
143
142
133
335
136
335
141
143
133
336
338
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
133
LOCK ASM; CAB
(C) CHI
8-97608-198-0
01
1
1404-
●
●
133
LOCK ASM; CAB
(B) CHI
8-98061-489-1
01
1
1404-
●
●
133
LOCK ASM; CAB
(A)
8-98101-514-1
01
1
1404-
●
●
136
BOLT; CAB LK
M8X20 FLANGE CHI
0-28650-820-0
08
1
1404-
●
●
137
CONTROL UNIT; CAB LOCK
CHI
8-98053-683-2
01
1
1404-
●
●
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE CHI
0-28650-820-0
04
1
1404-
●
●
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3 CHI
8-98039-045-1
01
1
1404-
●
●
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6 CHI
8-98062-280-0
02
1
1404-
●
●
142
ROD; HOOK TO HOOK
CHI
8-97587-990-0
01
1
1404-
●
●
143
NUT; JAW JOINT,HOOK TO HOOK
M10 CHI
0-91110-510-0
02
1
1404-
●
●
148
JOINT; JAW,HOOK TO HOOK
CHI
8-97410-736-0
01
1
1404-
●
●
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 CHI
0-91610-508-0
01
1
1404-
●
●
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26 CHI
0-91610-612-0
02
1
1404-
●
●
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22 CHI
8-98060-839-0
02
1
1404-
●
●
336
SWITCH; CAB LOCK
CHI
8-98091-155-1
01
1
1404-
●
●
338
WASHER; CAB LOCK
ID=17 OD=30 CHI
0-91610-516-0
01
1
1404-
●
●
339
SEAL; TILT HANDLE
OD=25 BLACK CHI
1-76798-019-0
04
1
1404-
●
●
340
SEAL; HOLE
OD=25 BLACK CHI
1-76798-019-0
02
1
1404-
●
●
