Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#144390) — 294 parça

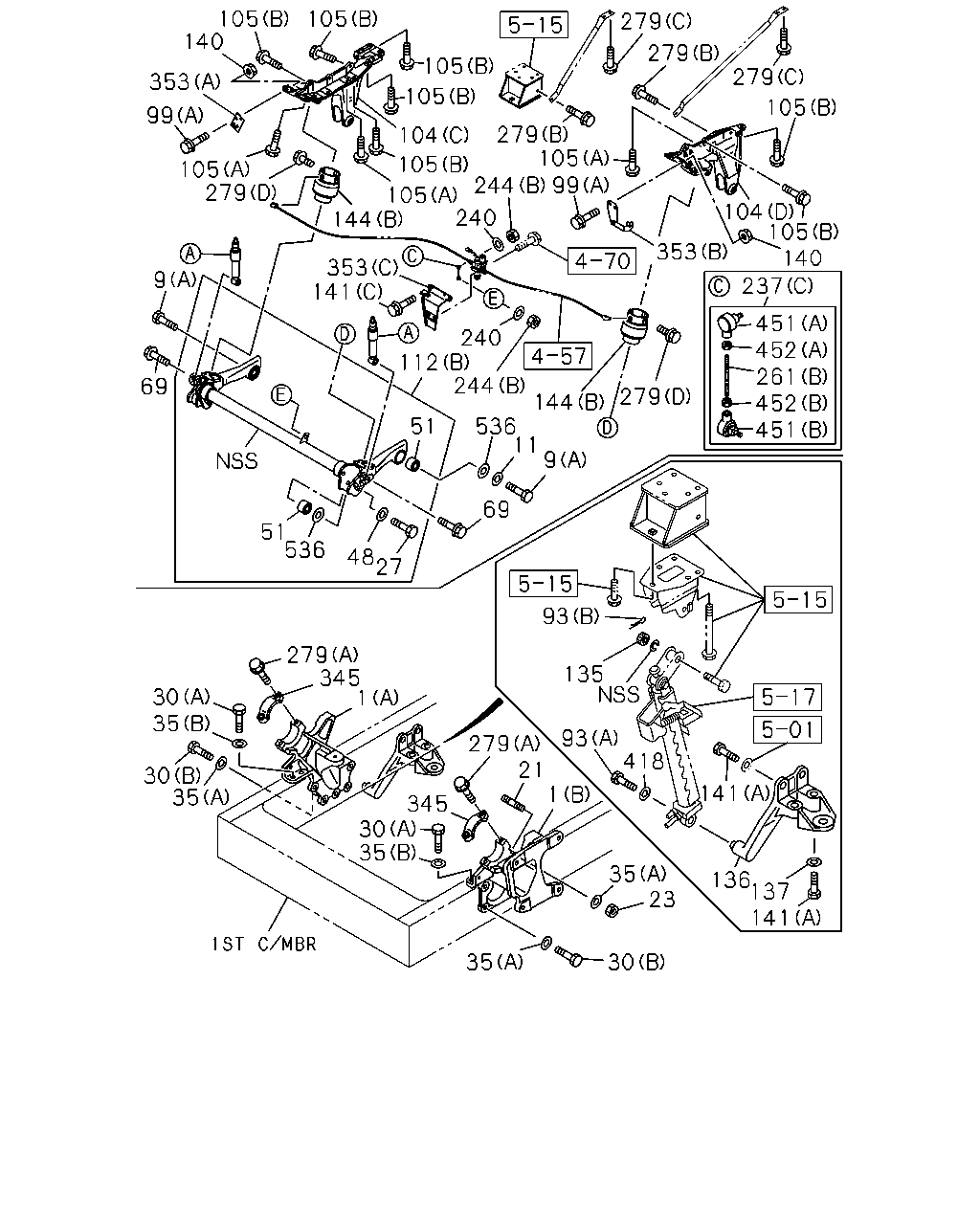

279 279 279 105 104 105 140 237 452 452 261 451 451 353 144 11 69 536 279 9 244 112 51 48 27 536 51 69 9 279 105 99 353 140 105 105 105 105 104 105 105 144 353 141 240 240 105 99 244 279 93 135 93 418 141 136 137 141 23 35 1 21 279 30 35 345 1 345 279 30 35 30 35 35 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (A) CHI	8-97430-155-1	01	1	1404-	●	●
1	BRACKET; CAB MTG (B) CHI	8-97430-810-0	01	1	1404-	●	●
9	BOLT (A) M18X90 CHI	0-10856-890-0	02	1	1404-	●	●
9	BOLT FULL FLOATING CAB<W16> (B) M8X45 FLANGE CHI	0-28050-845-0	02	1	1404-		●
11	WASHER; LK ID=19 OD=30 CHI	1-09503-279-0	02	1	1404-	●	●
21	STUD; BRKT,CAB TILT M16X50 L=74 CHI	1-09300-117-0	01	1	1404-	●	●
23	NUT; MTG BRKT M16 CHI	0-91110-516-0	01	1	1404-	●	●
27	BOLT; BUSHING M18X105 CHI	1-09000-079-2	02	1	1404-	●	●
30	BOLT; CAB FRT FOOT (A) M14X50 CHI	0-20951-450-0	04	1	1404-	●	●
30	BOLT; CAB FRT FOOT (B) M16X60 CHI	0-20951-660-0	10	1	1404-	●	●
35	WASHER; PL,CAB MTG BRKT (A) ID=16.2 CHI	1-09503-316-0	11	1	1404-	●	●
35	WASHER; PL,CAB MTG BRKT (B) ID=15 CHI	8-98010-627-1	04	1	1404-	●	●
48	WASHER; PL ID=19 OD=30 CHI	1-09503-279-0	02	1	1404-	●	●
51	BUSHING; RUBBER CHI	8-98261-197-0	04	1	1404-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION M12X60 FLANGE CHI	0-28051-260-0	02	1	1404-	●	●
93	BOLT; PIN (B) OD=2.8 L=25 CHI	0-81123-025-0	01	1	1404-	●	●
93	BOLT; PIN (A) M10X30 CHI	1-09000-283-0	01	1	1404-	●	●
99	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-	●
99	BOLT; BRKT CAB SUSPENSION-FULL FLOATING<SMK> (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-		●
99	BOLT; BRKT (B) M12X60 FLANGE CHI	0-28051-260-0	04	1	1404-	●	●
99	BOLT; BRKT (C) M10X150 FLANGE CHI	0-28166-015-0	04	1	1404-	●	●
99	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X25 FLANGE CHI	0-28650-825-0	06	1	1404-		●
104	BRACKET; CAB FRAME,CAB FRT MTG (A) CHI	8-97430-199-0	01	1	1404-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION-FULL FLOATING<SMK> (A) CHI	8-97430-199-0	01	1	1404-		●
104	BRACKET; CAB FRAME,CAB FRT MTG (B) CHI	8-97430-201-0	01	1	1404-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION-FULL FLOATING<SMK> (B) CHI	8-97430-201-0	01	1	1404-		●
104	BRACKET; CAB FRAME,CAB FRT MTG FULL FLOATING CAB<W16> (C) CHI	8-97430-200-0	01	1	1404-		●
104	BRACKET; CAB FRAME,CAB FRT MTG FULL FLOATING CAB<W16> (D) CHI	8-97430-202-0	01	1	1404-		●
105	BOLT; BRKT TO CAB FRAME (A) M12X35 FLANGE CHI	0-28651-235-0	08	1	1404-	●	●
105	BOLT; BRKT TO CAB FRAME (B) M10X35 FLANGE CHI	0-28661-035-0	15	1	1404-	●	●
112	ARM ASM; LINK,CAB FRT SUSP (A) CHI	8-97430-206-1	01	1	1404-1404	●
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION-FULL FLOATING<SMK> (A) CHI	8-97430-206-1	01	1	1404-1404		●
112	ARM ASM; LINK,CAB FRT SUSP (A)	8-97431-658-0	01	1	1404-	●
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION-FULL FLOATING<SMK> (A)	8-97431-658-0	01	1	1404-		●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16> (B) CHI	8-97430-207-1	01	1	1404-1404		●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16> (B) CHI	8-97431-657-0	01	1	1404-		●
135	NUT; PIN M14 SLOTTED CHI	0-91116-514-0	01	1	1404-	●	●
136	BRACKET; OIL CYL CHI	8-97430-282-0	01	1	1404-	●
137	WASHER; PL,BRKT ID=15 CHI	8-98010-627-1	04	1	1404-	●	●
140	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-	●	●
140	NUT; BRKT FULL FLOATING CAB<W16> M8 FLANGE CHI	0-91180-108-0	04	1	1404-		●
141	BOLT; BRKT (A) M14X50 CHI	0-20951-450-0	04	1	1404-	●	●
141	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-		●
141	BOLT; BRKT FULL FLOATING CAB<W16> (C) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-		●
144	SPRING; COIL,CAB FRT SUSPENSION (A) CHI	8-98259-510-0	02	1	1404-	●
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING<SMK> (A) CHI	8-98259-510-0	02	1	1404-		●
144	SPRING; COIL,CAB FRT SUSPENSION FULL FLOATING CAB<W16> (B) CHI	1-52110-142-4	02	1	1404-		●
237	ROD ASM; LATERAL (A) CHI	8-98237-283-0	01	1	1404-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (B)	1-33670-407-0	01	1	1404-		●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33671-987-0	01	1	1404-		●
240	WASHER; PL,BRKT FULL FLOATING CAB<W16> ID=5.1 CHI	0-91510-505-0	04	1	1404-		●
244	NUT; LATERAL ROD (A) M16 FLANGE CHI	0-91180-216-0	01	1	1404-	●	●
244	NUT; LATERAL ROD FULL FLOATING CAB<W16> (B) M5 CHI	0-91110-505-0	04	1	1404-		●
261	ROD; LINK FULL FLOATING CAB<W16> (B)	0-84100-506-0	01	1	1404-		●
261	ROD; LINK FULL FLOATING CAB<W16> (A)	9-08410-514-0	01	1	1404-		●
279	BOLT (A) M12X40 FLANGE CHI	0-28061-240-0	04	1	1404-	●	●
279	BOLT SPECIAL PACKAGE<7BB> (B) M8X20 FLANGE CHI	0-28050-820-0	02	1	1404-	●	●
279	BOLT SPECIAL PACKAGE<7BB> (C) M10X25 FLANGE CHI	0-28051-025-0	04	1	1404-	●	●
279	BOLT FULL FLOATING CAB<W16> (D) M8X16 FLANGE CHI	0-28050-816-0	04	1	1404-		●
279	BOLT FULL FLOATING CAB<W16> (E) M8X25 FLANGE CHI	0-28050-825-0	02	1	1404-		●
279	BOLT FULL FLOATING CAB<W16> (F) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-		●
345	CAP; CAB CHI	1-53458-336-3	02	1	1404-	●	●
353	BRACKET (A) CHI	8-97430-203-0	01	1	1404-	●	●
353	BRACKET (B) CHI	8-97431-139-0	01	1	1404-	●	●
353	BRACKET FULL FLOATING CAB<W16> (C) CHI	8-97430-205-0	01	1	1404-		●
353	BRACKET FULL FLOATING CAB<W16> (D)	8-98237-287-0	01	1	1404-		●
353	BRACKET FULL FLOATING CAB<W16> (E)	8-98237-288-1	01	1	1404-		●
418	WASHER; PL,PIN ID=10.5 OD=32 CHI	0-91614-810-0	01	1	1404-	●	●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-2	01	1	1404-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-2	01	1	1404-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-2	01	1	1404-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-2	01	1	1404-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5 CHI	0-91110-505-0	01	1	1404-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5 CHI	0-91110-505-0	01	1	1404-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	1404-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	1404-		●
536	WASHER; SIDE ID=34.5 CHI	1-53458-281-1	04	1	1404-	●	●

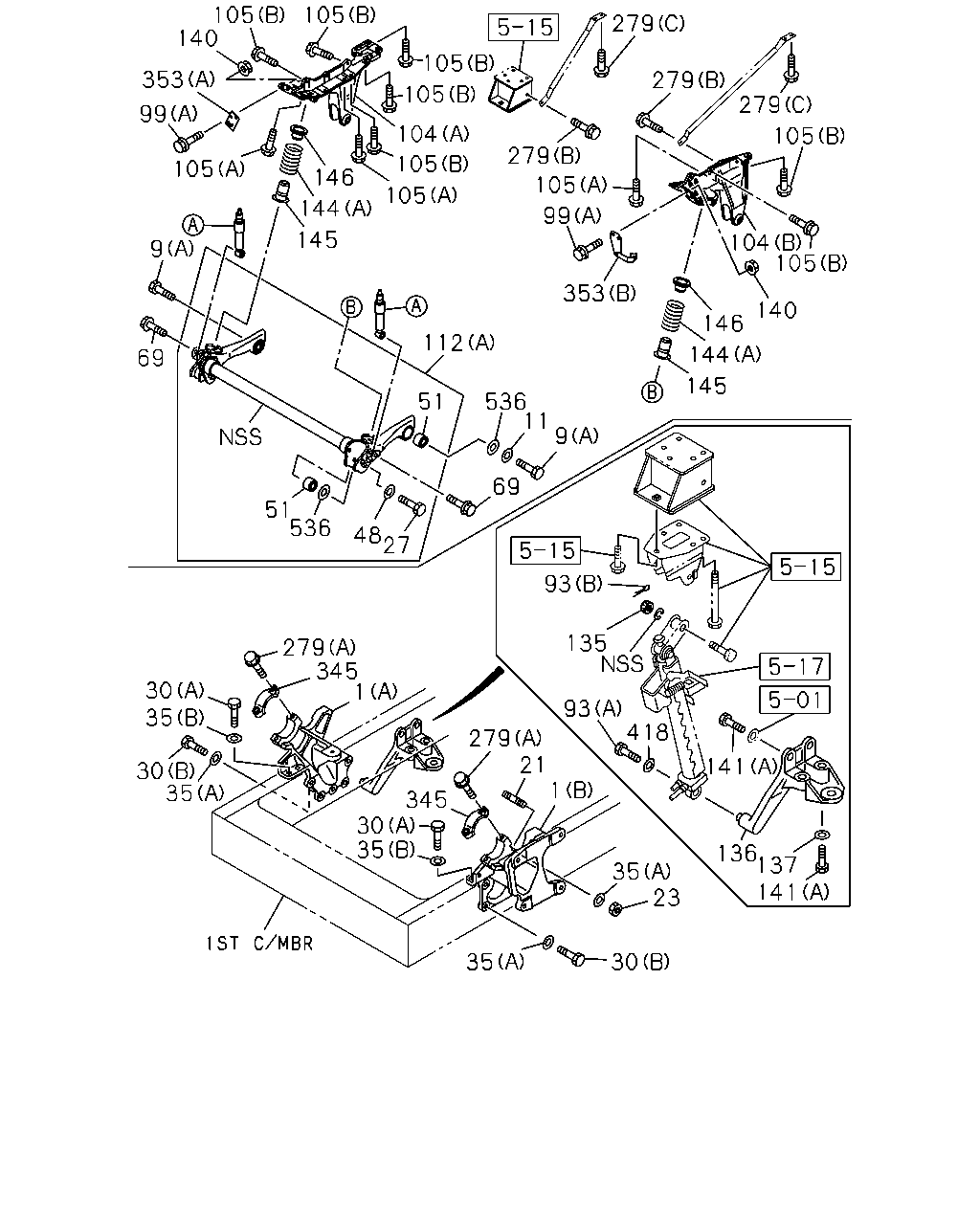

105 105 105 105 105 104 105 146 144 145 105 99 353 140 279 279 279 105 104 105 140 146 145 144 9 11 536 51 112 353 99 105 279 1 345 279 30 35 30 35 30 35 345 279 21 1 418 93 135 93 141 136 137 141 23 35 30 35 69 27 48 536 51 69 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (A) CHI	8-97430-155-1	01	1	1404-	●	●
1	BRACKET; CAB MTG (B) CHI	8-97430-810-0	01	1	1404-	●	●
9	BOLT (A) M18X90 CHI	0-10856-890-0	02	1	1404-	●	●
9	BOLT FULL FLOATING CAB<W16> (B) M8X45 FLANGE CHI	0-28050-845-0	02	1	1404-		●
11	WASHER; LK ID=19 OD=30 CHI	1-09503-279-0	02	1	1404-	●	●
21	STUD; BRKT,CAB TILT M16X50 L=74 CHI	1-09300-117-0	01	1	1404-	●	●
23	NUT; MTG BRKT M16 CHI	0-91110-516-0	01	1	1404-	●	●
27	BOLT; BUSHING M18X105 CHI	1-09000-079-2	02	1	1404-	●	●
30	BOLT; CAB FRT FOOT (A) M14X50 CHI	0-20951-450-0	04	1	1404-	●	●
30	BOLT; CAB FRT FOOT (B) M16X60 CHI	0-20951-660-0	10	1	1404-	●	●
35	WASHER; PL,CAB MTG BRKT (A) ID=16.2 CHI	1-09503-316-0	11	1	1404-	●	●
35	WASHER; PL,CAB MTG BRKT (B) ID=15 CHI	8-98010-627-1	04	1	1404-	●	●
48	WASHER; PL ID=19 OD=30 CHI	1-09503-279-0	02	1	1404-	●	●
51	BUSHING; RUBBER CHI	8-98261-197-0	04	1	1404-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION M12X60 FLANGE CHI	0-28051-260-0	02	1	1404-	●	●
93	BOLT; PIN (B) OD=2.8 L=25 CHI	0-81123-025-0	01	1	1404-	●	●
93	BOLT; PIN (A) M10X30 CHI	1-09000-283-0	01	1	1404-	●	●
99	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-	●
99	BOLT; BRKT CAB SUSPENSION-FULL FLOATING<SMK> (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-		●
99	BOLT; BRKT (B) M12X60 FLANGE CHI	0-28051-260-0	04	1	1404-	●	●
99	BOLT; BRKT (C) M10X150 FLANGE CHI	0-28166-015-0	04	1	1404-	●	●
99	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X25 FLANGE CHI	0-28650-825-0	06	1	1404-		●
104	BRACKET; CAB FRAME,CAB FRT MTG (A) CHI	8-97430-199-0	01	1	1404-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION-FULL FLOATING<SMK> (A) CHI	8-97430-199-0	01	1	1404-		●
104	BRACKET; CAB FRAME,CAB FRT MTG (B) CHI	8-97430-201-0	01	1	1404-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION-FULL FLOATING<SMK> (B) CHI	8-97430-201-0	01	1	1404-		●
104	BRACKET; CAB FRAME,CAB FRT MTG FULL FLOATING CAB<W16> (C) CHI	8-97430-200-0	01	1	1404-		●
104	BRACKET; CAB FRAME,CAB FRT MTG FULL FLOATING CAB<W16> (D) CHI	8-97430-202-0	01	1	1404-		●
105	BOLT; BRKT TO CAB FRAME (A) M12X35 FLANGE CHI	0-28651-235-0	08	1	1404-	●	●
105	BOLT; BRKT TO CAB FRAME (B) M10X35 FLANGE CHI	0-28661-035-0	15	1	1404-	●	●
112	ARM ASM; LINK,CAB FRT SUSP (A) CHI	8-97430-206-1	01	1	1404-1404	●
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION-FULL FLOATING<SMK> (A) CHI	8-97430-206-1	01	1	1404-1404		●
112	ARM ASM; LINK,CAB FRT SUSP (A)	8-97431-658-0	01	1	1404-	●
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION-FULL FLOATING<SMK> (A)	8-97431-658-0	01	1	1404-		●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16> (B) CHI	8-97430-207-1	01	1	1404-1404		●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16> (B) CHI	8-97431-657-0	01	1	1404-		●
135	NUT; PIN M14 SLOTTED CHI	0-91116-514-0	01	1	1404-	●	●
136	BRACKET; OIL CYL CHI	8-97430-282-0	01	1	1404-	●
137	WASHER; PL,BRKT ID=15 CHI	8-98010-627-1	04	1	1404-	●	●
140	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-	●	●
140	NUT; BRKT FULL FLOATING CAB<W16> M8 FLANGE CHI	0-91180-108-0	04	1	1404-		●
141	BOLT; BRKT (A) M14X50 CHI	0-20951-450-0	04	1	1404-	●	●
141	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-		●
141	BOLT; BRKT FULL FLOATING CAB<W16> (C) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-		●
144	SPRING; COIL,CAB FRT SUSPENSION (A) CHI	8-98259-510-0	02	1	1404-	●
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING<SMK> (A) CHI	8-98259-510-0	02	1	1404-		●
144	SPRING; COIL,CAB FRT SUSPENSION FULL FLOATING CAB<W16> (B) CHI	1-52110-142-4	02	1	1404-		●
145	RUBBER; CUSHION,CAB FRT SUSPENSION CHI	1-53366-139-0	02	1	1404-	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING<SMK> CHI	1-53366-139-0	02	1	1404-		●
146	SEAT; SPRING,CAB FRT SUSPENSION CHI	1-53366-138-0	02	1	1404-	●
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING<SMK> CHI	1-53366-138-0	02	1	1404-		●
279	BOLT (A) M12X40 FLANGE CHI	0-28061-240-0	04	1	1404-	●	●
279	BOLT SPECIAL PACKAGE<7BB> (B) M8X20 FLANGE CHI	0-28050-820-0	02	1	1404-	●	●
279	BOLT SPECIAL PACKAGE<7BB> (C) M10X25 FLANGE CHI	0-28051-025-0	04	1	1404-	●	●
279	BOLT FULL FLOATING CAB<W16> (D) M8X16 FLANGE CHI	0-28050-816-0	04	1	1404-		●
279	BOLT FULL FLOATING CAB<W16> (E) M8X25 FLANGE CHI	0-28050-825-0	02	1	1404-		●
279	BOLT FULL FLOATING CAB<W16> (F) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-		●
345	CAP; CAB CHI	1-53458-336-3	02	1	1404-	●	●
353	BRACKET (A) CHI	8-97430-203-0	01	1	1404-	●	●
353	BRACKET (B) CHI	8-97431-139-0	01	1	1404-	●	●
353	BRACKET FULL FLOATING CAB<W16> (C) CHI	8-97430-205-0	01	1	1404-		●
353	BRACKET FULL FLOATING CAB<W16> (D)	8-98237-287-0	01	1	1404-		●
353	BRACKET FULL FLOATING CAB<W16> (E)	8-98237-288-1	01	1	1404-		●
418	WASHER; PL,PIN ID=10.5 OD=32 CHI	0-91614-810-0	01	1	1404-	●	●
536	WASHER; SIDE ID=34.5 CHI	1-53458-281-1	04	1	1404-	●	●

202 202 204 203 65 205 204 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	ABSORBER; SHOCK,CAB FRT SUSPENSION CHI	1-51630-604-1	02	1	1404-	●	●
202	NUT; S/ABS (A) M10 FLANGE CHI	0-91180-110-0	02	1	1404-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	1404-	●	●
203	WASHER; RUBBER,SHOCK (A) CHI	1-51631-005-0	02	1	1404-	●	●
203	WASHER; RUBBER,SHOCK (B) CHI	1-51631-104-0	02	1	1404-	●	●
204	RUBBER; CUSHION,SHOCK CHI	1-51631-004-0	04	1	1404-	●	●
205	WASHER; RUBBER,SHOCK CHI	1-51631-079-0	02	1	1404-	●	●

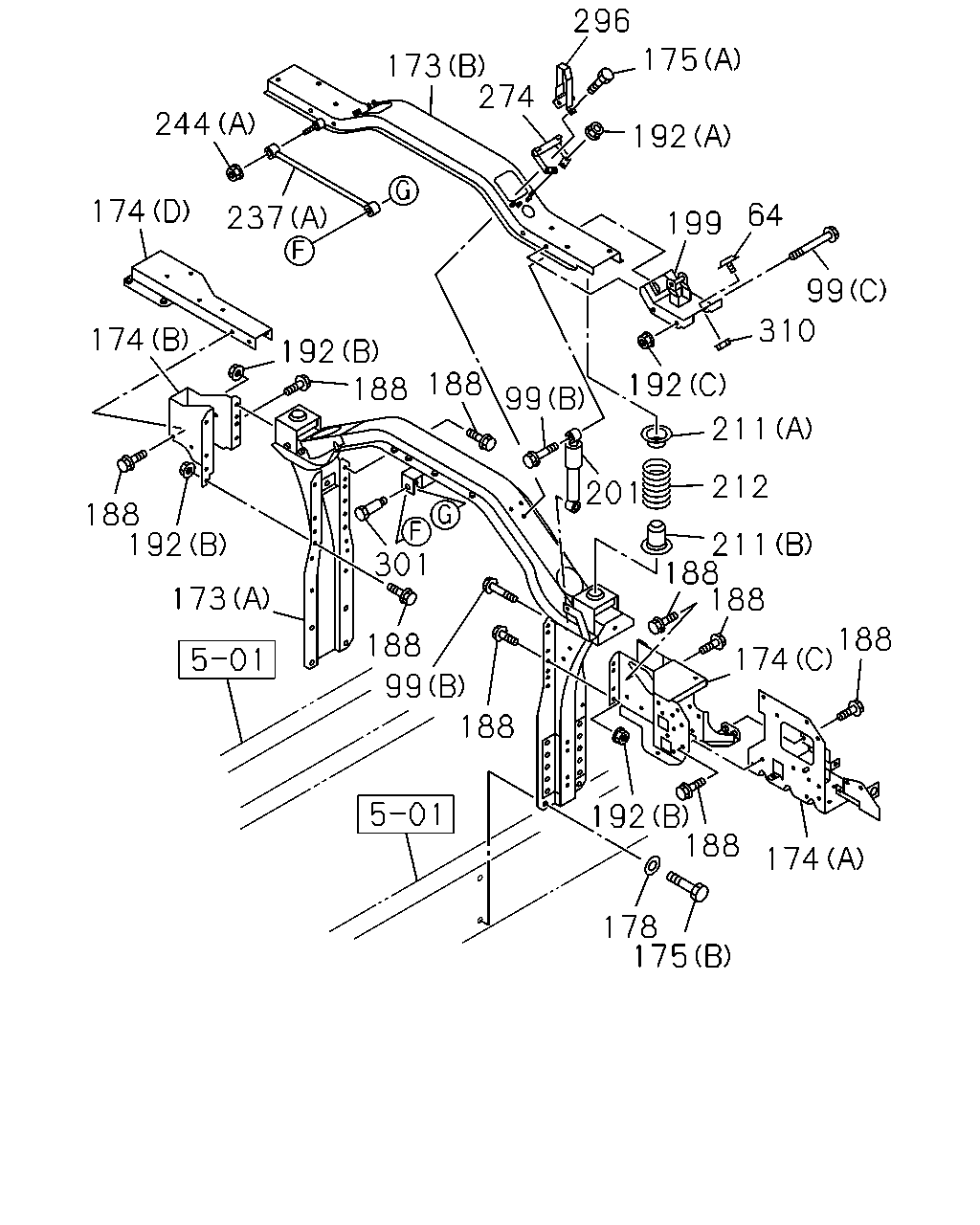

244 174 237 174 188 192 173 301 188 99 188 192 188 174 178 175 174 188 188 188 211 212 211 192 201 99 188 188 192 173 274 296 175 192 199 64 99 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	RUBBER; CUSHION CHI	8-98251-190-0	04	1	1404-	●	●
99	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-	●
99	BOLT; BRKT CAB SUSPENSION-FULL FLOATING<SMK> (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-		●
99	BOLT; BRKT (B) M12X60 FLANGE CHI	0-28051-260-0	04	1	1404-	●	●
99	BOLT; BRKT (C) M10X150 FLANGE CHI	0-28166-015-0	04	1	1404-	●	●
99	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X25 FLANGE CHI	0-28650-825-0	06	1	1404-		●
173	MEMBER; CAB MTG RR (A)	8-97430-158-2	01	1	1404-	●
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING<SMK> (A)	8-97430-158-2	01	1	1404-		●
173	MEMBER; CAB MTG RR (B)	8-97430-160-2	01	1	1404-	●
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING<SMK> (B)	8-97430-160-2	01	1	1404-		●
173	MEMBER; CAB MTG RR FULL FLOATING CAB<W16> (C)	8-97430-159-2	01	1	1404-		●
173	MEMBER; CAB MTG RR FULL FLOATING CAB<W16> (D)	8-97430-161-2	01	1	1404-		●
174	OUTRIGGER (A) CHI	8-97430-162-0	01	1	1404-	●	●
174	OUTRIGGER (B) CHI	8-97430-163-0	01	1	1404-	●	●
174	OUTRIGGER (C) CHI	8-97430-164-0	01	1	1404-	●	●
174	OUTRIGGER (D) CHI	8-98237-297-0	01	1	1404-	●	●
175	BOLT; MEMBER TO FRAME (A) CHI	0-20851-025-0	06	1	1404-	●	●
175	BOLT; MEMBER TO FRAME (B) M14X40 CHI	0-20951-440-0	08	1	1404-	●	●
178	WASHER; LK,MEMBER ID=15 CHI	8-98010-627-1	08	1	1404-	●	●
188	BOLT; OUTRIGGER M10X25 FLANGE CHI	0-28651-025-0	21	1	1404-	●	●
192	NUT; BRKT FIX (A) M8 FLANGE CHI	0-91180-108-0	08	1	1404-	●	●
192	NUT; BRKT FIX (B) M10 FLANGE CHI	0-91180-210-0	09	1	1404-	●	●
192	NUT; BRKT FIX (C) M10 FLANGE CHI	0-91280-210-0	04	1	1404-	●	●
192	NUT; BRKT FIX FULL FLOATING CAB<W16> (A) M8 FLANGE CHI	0-91180-108-0	02	1	1404-		●
199	BRACKET; CAB RR MTG	8-97431-334-0	01	1	1404-	●	●
199	BRACKET; CAB RR MTG	8-97431-335-0	01	1	1404-	●	●
201	ABSORBER ASM; SHOCK,RR MTG CHI	8-98237-282-0	02	1	1404-	●	●
211	RUBBER; CUSHION,S/ABS (B) CHI	1-53366-128-0	02	1	1404-	●
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION-FULL FLOATING<SMK> (B) CHI	1-53366-128-0	02	1	1404-		●
211	RUBBER; CUSHION,S/ABS (A) CHI	1-53366-132-1	02	1	1404-	●
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION-FULL FLOATING<SMK> (A) CHI	1-53366-132-1	02	1	1404-		●
212	SPRING; COIL CHI	1-09580-515-0	02	1	1404-	●
212	SPRING; COIL CAB SUSPENSION-FULL FLOATING<SMK> CHI	1-09580-515-0	02	1	1404-		●
237	ROD ASM; LATERAL (A) CHI	8-98237-283-0	01	1	1404-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (B)	1-33670-407-0	01	1	1404-		●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33671-987-0	01	1	1404-		●
244	NUT; LATERAL ROD (A) M16 FLANGE CHI	0-91180-216-0	01	1	1404-	●	●
244	NUT; LATERAL ROD FULL FLOATING CAB<W16> (B) M5 CHI	0-91110-505-0	04	1	1404-		●
274	PIN CHI	8-98259-740-0	02	1	1404-	●	●
296	STOPPER; UPR CHI	8-98237-280-0	02	1	1404-	●	●
301	PIN; LATERAL ROD M12X57.5 CHI	1-53459-498-1	01	1	1404-	●	●
310	NUT; CUSHION M8 FLANGE CHI	0-91180-108-0	04	1	1404-	●	●

411 411 411 410 411 279 141 99 140 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
99	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-	●
99	BOLT; BRKT CAB SUSPENSION-FULL FLOATING<SMK> (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-		●
99	BOLT; BRKT (B) M12X60 FLANGE CHI	0-28051-260-0	04	1	1404-	●	●
99	BOLT; BRKT (C) M10X150 FLANGE CHI	0-28166-015-0	04	1	1404-	●	●
99	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X25 FLANGE CHI	0-28650-825-0	06	1	1404-		●
140	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-	●	●
140	NUT; BRKT FULL FLOATING CAB<W16> M8 FLANGE CHI	0-91180-108-0	04	1	1404-		●
141	BOLT; BRKT (A) M14X50 CHI	0-20951-450-0	04	1	1404-	●	●
141	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-		●
141	BOLT; BRKT FULL FLOATING CAB<W16> (C) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-		●
192	NUT; BRKT FIX (A) M8 FLANGE CHI	0-91180-108-0	08	1	1404-	●	●
192	NUT; BRKT FIX (B) M10 FLANGE CHI	0-91180-210-0	09	1	1404-	●	●
192	NUT; BRKT FIX (C) M10 FLANGE CHI	0-91280-210-0	04	1	1404-	●	●
192	NUT; BRKT FIX FULL FLOATING CAB<W16> (A) M8 FLANGE CHI	0-91180-108-0	02	1	1404-		●
279	BOLT (A) M12X40 FLANGE CHI	0-28061-240-0	04	1	1404-	●	●
279	BOLT SPECIAL PACKAGE<7BB> (B) M8X20 FLANGE CHI	0-28050-820-0	02	1	1404-	●	●
279	BOLT SPECIAL PACKAGE<7BB> (C) M10X25 FLANGE CHI	0-28051-025-0	04	1	1404-	●	●
279	BOLT FULL FLOATING CAB<W16> (D) M8X16 FLANGE CHI	0-28050-816-0	04	1	1404-		●
279	BOLT FULL FLOATING CAB<W16> (E) M8X25 FLANGE CHI	0-28050-825-0	02	1	1404-		●
279	BOLT FULL FLOATING CAB<W16> (F) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-		●
410	REINFORCEMENT; CAB TILT CHI	8-97430-075-0	01	1	1404-	●	●
410	REINFORCEMENT; CAB TILT SPECIAL PACKAGE<7BB>	8-98054-960-3	01	1	1404-	●	●
411	BOLT; REINFORCEMENT (A) M8X20 FLANGE CHI	0-28650-820-0	03	1	1404-	●	●
411	BOLT; REINFORCEMENT SPECIAL PACKAGE<7BB> (A) M8X20 FLANGE CHI	0-28650-820-0	03	1	1404-	●	●
411	BOLT; REINFORCEMENT (B) M10X30 FLANGE CHI	0-28661-030-0	02	1	1404-	●	●
411	BOLT; REINFORCEMENT SPECIAL PACKAGE<7BB> (B) M10X30 FLANGE CHI	0-28661-030-0	02	1	1404-	●	●

451 452 261 452 451 237 427 520 353 244 174 237 174 192 188 192 173 188 192 188 301 188 99 188 192 188 174 178 175 188 174 188 188 333 201 220 325 325 292 99 310 199 64 99 425 425 279 426 425 292 333 175 192 274 173 296 538 240 244 9 520 520 292 240 244 353 19 520 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BOLT (A) M18X90 CHI	0-10856-890-0	02	1	1404-	●	●
9	BOLT FULL FLOATING CAB<W16> (B) M8X45 FLANGE CHI	0-28050-845-0	02	1	1404-		●
19	NUT FULL FLOATING CAB<W16> M12 FLANGE CHI	0-91180-212-0	01	1	1404-		●
64	RUBBER; CUSHION CHI	8-98251-190-0	04	1	1404-	●	●
99	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-	●
99	BOLT; BRKT CAB SUSPENSION-FULL FLOATING<SMK> (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-		●
99	BOLT; BRKT (B) M12X60 FLANGE CHI	0-28051-260-0	04	1	1404-	●	●
99	BOLT; BRKT (C) M10X150 FLANGE CHI	0-28166-015-0	04	1	1404-	●	●
99	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X25 FLANGE CHI	0-28650-825-0	06	1	1404-		●
173	MEMBER; CAB MTG RR (A)	8-97430-158-2	01	1	1404-	●
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING<SMK> (A)	8-97430-158-2	01	1	1404-		●
173	MEMBER; CAB MTG RR (B)	8-97430-160-2	01	1	1404-	●
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING<SMK> (B)	8-97430-160-2	01	1	1404-		●
173	MEMBER; CAB MTG RR FULL FLOATING CAB<W16> (C)	8-97430-159-2	01	1	1404-		●
173	MEMBER; CAB MTG RR FULL FLOATING CAB<W16> (D)	8-97430-161-2	01	1	1404-		●
174	OUTRIGGER (A) CHI	8-97430-162-0	01	1	1404-	●	●
174	OUTRIGGER (B) CHI	8-97430-163-0	01	1	1404-	●	●
174	OUTRIGGER (C) CHI	8-97430-164-0	01	1	1404-	●	●
174	OUTRIGGER (D) CHI	8-98237-297-0	01	1	1404-	●	●
175	BOLT; MEMBER TO FRAME (A) CHI	0-20851-025-0	06	1	1404-	●	●
175	BOLT; MEMBER TO FRAME (B) M14X40 CHI	0-20951-440-0	08	1	1404-	●	●
178	WASHER; LK,MEMBER ID=15 CHI	8-98010-627-1	08	1	1404-	●	●
188	BOLT; OUTRIGGER M10X25 FLANGE CHI	0-28651-025-0	21	1	1404-	●	●
192	NUT; BRKT FIX (A) M8 FLANGE CHI	0-91180-108-0	08	1	1404-	●	●
192	NUT; BRKT FIX (B) M10 FLANGE CHI	0-91180-210-0	09	1	1404-	●	●
192	NUT; BRKT FIX (C) M10 FLANGE CHI	0-91280-210-0	04	1	1404-	●	●
192	NUT; BRKT FIX FULL FLOATING CAB<W16> (A) M8 FLANGE CHI	0-91180-108-0	02	1	1404-		●
199	BRACKET; CAB RR MTG	8-97431-334-0	01	1	1404-	●	●
199	BRACKET; CAB RR MTG	8-97431-335-0	01	1	1404-	●	●
201	ABSORBER ASM; SHOCK,RR MTG CHI	8-98237-282-0	02	1	1404-	●	●
220	GUIDE; SPR FULL FLOATING CAB<W16>	1-53458-648-1	02	1	1404-		●
237	ROD ASM; LATERAL (A) CHI	8-98237-283-0	01	1	1404-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (B)	1-33670-407-0	01	1	1404-		●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33671-987-0	01	1	1404-		●
240	WASHER; PL,BRKT FULL FLOATING CAB<W16> ID=5.1 CHI	0-91510-505-0	04	1	1404-		●
244	NUT; LATERAL ROD (A) M16 FLANGE CHI	0-91180-216-0	01	1	1404-	●	●
244	NUT; LATERAL ROD FULL FLOATING CAB<W16> (B) M5 CHI	0-91110-505-0	04	1	1404-		●
261	ROD; LINK FULL FLOATING CAB<W16> (B)	0-84100-506-0	01	1	1404-		●
261	ROD; LINK FULL FLOATING CAB<W16> (A)	9-08410-514-0	01	1	1404-		●
274	PIN CHI	8-98259-740-0	02	1	1404-	●	●
279	BOLT (A) M12X40 FLANGE CHI	0-28061-240-0	04	1	1404-	●	●
279	BOLT SPECIAL PACKAGE<7BB> (B) M8X20 FLANGE CHI	0-28050-820-0	02	1	1404-	●	●
279	BOLT SPECIAL PACKAGE<7BB> (C) M10X25 FLANGE CHI	0-28051-025-0	04	1	1404-	●	●
279	BOLT FULL FLOATING CAB<W16> (D) M8X16 FLANGE CHI	0-28050-816-0	04	1	1404-		●
279	BOLT FULL FLOATING CAB<W16> (E) M8X25 FLANGE CHI	0-28050-825-0	02	1	1404-		●
279	BOLT FULL FLOATING CAB<W16> (F) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW CHI	1-09650-430-0	02	1	1404-		●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (B) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1404-		●
296	STOPPER; UPR CHI	8-98237-280-0	02	1	1404-	●	●
301	PIN; LATERAL ROD M12X57.5 CHI	1-53459-498-1	01	1	1404-	●	●
310	NUT; CUSHION M8 FLANGE CHI	0-91180-108-0	04	1	1404-	●	●
325	BOLT; GUIDE NUT FULL FLOATING CAB<W16> (A) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-		●
325	BOLT; GUIDE NUT FULL FLOATING CAB<W16> (B) M8X25 W/LK&PL WASHER CHI	1-09030-027-0	04	1	1404-		●
333	SPRING FULL FLOATING CAB<W16>	1-52110-143-4	02	1	1404-		●
353	BRACKET (A) CHI	8-97430-203-0	01	1	1404-	●	●
353	BRACKET (B) CHI	8-97431-139-0	01	1	1404-	●	●
353	BRACKET FULL FLOATING CAB<W16> (C) CHI	8-97430-205-0	01	1	1404-		●
353	BRACKET FULL FLOATING CAB<W16> (D)	8-98237-287-0	01	1	1404-		●
353	BRACKET FULL FLOATING CAB<W16> (E)	8-98237-288-1	01	1	1404-		●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (C) CHI	8-97431-233-0	01	1	1404-		●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (A)	8-98237-285-0	01	1	1404-		●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (B)	8-98237-286-0	01	1	1404-		●
426	CLIP FULL FLOATING CAB<W16> ID=7 L=20	0-95234-635-0	02	1	1404-		●
427	TUBE FULL FLOATING CAB<W16> SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	1404-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-2	01	1	1404-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-2	01	1	1404-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-2	01	1	1404-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-2	01	1	1404-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5 CHI	0-91110-505-0	01	1	1404-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5 CHI	0-91110-505-0	01	1	1404-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	1404-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	1404-		●
520	ADAPTER FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW CHI	1-09650-430-0	01	1	1404-		●
520	ADAPTER FULL FLOATING CAB<W16> (C)	1-26239-027-0	01	1	1404-		●
520	ADAPTER FULL FLOATING CAB<W16> (B) DIN6 & R1/4 ELBOW	8-97431-410-0	01	1	1404-		●
520	ADAPTER FULL FLOATING CAB<W16> (D)	8-97431-409-0	01	1	1404-		●
538	VALVE ASM; LEVELING FULL FLOATING CAB<W16>	8-98237-292-0	01	1	1404-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
