4-50 — FRONT SUSPENSION (#144382) — 28 parça

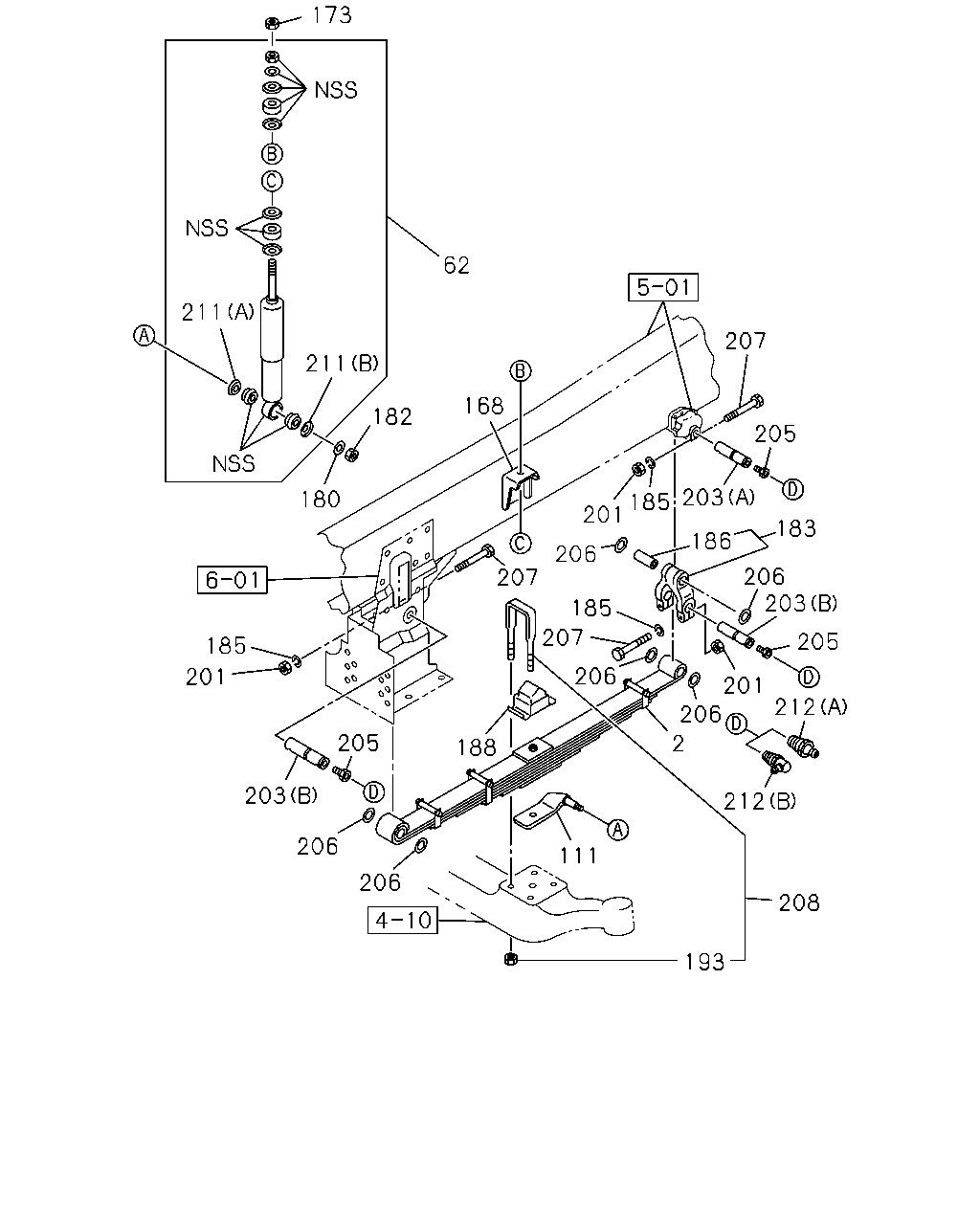

çizim 432364
173 62 211 211 168 182 207 205 203 185 201 206 207 185 186 183 203 206 205 212 212 208 193 111 2 206 207 206 206 206 205 188 201 185 201 180 203
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97431-346-0 02 1 1404- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97431-343-0 01 1 1404- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97431-343-0 01 1 1404- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
CHI 		8-98121-195-0 01 1 1404- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-97431-351-0 01 1 1404- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97431-348-0 01 1 1404- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97431-362-0 01 1 1404- ● ●
173 NUT; S/ABS
M14 CHI 		0-91111-514-0 02 1 1404- ● ●
180 WASHER; PL,PIN
ID=21 CHI 		0-91610-520-0 02 1 1404- ● ●
182 NUT; S/ABS LWR
M20 CHI 		0-91110-520-0 02 1 1404- ● ●
183 SHACKLE; FRT SUSP
CHI 		1-51162-029-5 02 1 1404- ● ●
185 WASHER; LK,PIN
ID=12.2 CHI 		0-91510-612-0 10 1 1404- ● ●
186 BUSHING; SHACKLE
OD=38 CHI 		8-98081-829-0 02 1 1404- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
CHI 		1-51172-085-2 02 1 1404- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
CHI 		1-51172-125-1 02 1 1404- ●
193 NUT; U BOLT
M22 CHI 		8-98179-318-0 08 1 1404- ● ●
201 NUT; PIN LK
M12 CHI 		0-91110-512-0 10 1 1404- ● ●
203 PIN; SPR TO SHACKLE
(A) CHI 		1-51161-031-0 04 1 1404- ● ●
203 PIN; SPR TO SHACKLE
(B) CHI 		8-98198-447-0 02 1 1404- ● ●
205 ATTACHMENT; GREASE NIPPLE
CHI 		9-43165-001-0 06 1 1404- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 CHI 		1-51169-018-0 12 1 1404- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 CHI 		0-10856-280-0 10 1 1404- ● ●
208 U-BOLT SET; FRT SPRING
L=240 		1-87870-376-2 04 1 1404- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 CHI 		9-51631-027-0 02 1 1404- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 CHI 		9-51631-028-0 02 1 1404- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT CHI 		0-90301-410-0 02 1 1404- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 02 1 1404- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW CHI 		0-90301-610-0 02 1 1404- ● ●
