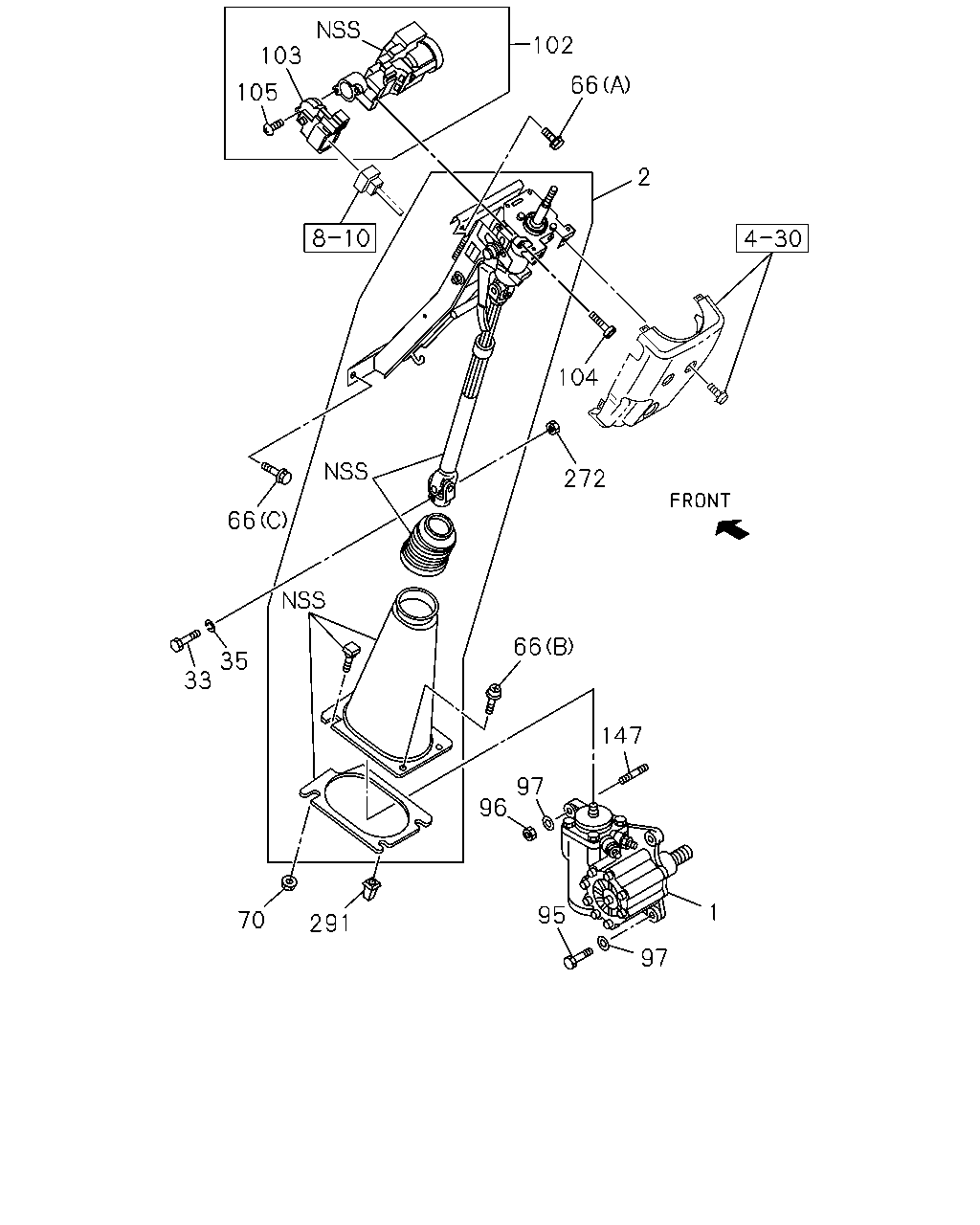

4-31 — STEERING COLUMN AND SHAFT (#144376) — 18 parça

272 66 97 96 147 1 97 95 291 70 33 35 66 103 105 102 66 2 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-957-2	01	1	1404-	●	●
2	SHAFT ASM; STRG CHI	8-97426-561-0	01	1	1404-	●	●
33	BOLT; STRG SHAFT TO UNIT M10X50 CHI	1-09000-786-0	01	1	1404-	●	●
35	WASHER; LK,STRG SHAFT ID=10.2 CHI	0-91510-810-0	01	1	1404-	●	●
66	BOLT; STRG COLUMN (A) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-	●	●
66	BOLT; STRG COLUMN (B) M5X18 TAPPING CHI	0-72180-518-0	02	1	1404-	●	●
66	BOLT; STRG COLUMN (C) M8X25 W/LK&PL WASHER CHI	8-98018-439-0	02	1	1404-	●	●
70	NUT; STRG COLUMN M6 FLANGE W/RUBBER CHI	1-09984-180-0	02	1	1404-	●	●
95	BOLT; STRG UNIT M18X60 CHI	8-98036-497-0	03	1	1404-	●	●
96	NUT; STRG UNIT M18 CHI	0-91110-518-0	01	1	1404-	●	●
97	WASHER; PL,STRG UNIT ID=18 CHI	9-09851-862-0	04	1	1404-	●	●
102	LOCK ASM; STRG CHI	8-98006-150-0	01	1	1404-	●	●
103	SWITCH; IGNITION CHI	8-98045-349-0	01	1	1404-	●	●
104	BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT CHI	8-97321-385-0	02	1	1404-	●	●
105	SCREW; IGN SW CHI	8-98045-346-0	02	1	1404-	●	●
147	STUD; STRG UNIT M18X49 L=76 CHI	1-09300-107-0	01	1	1404-	●	●
272	NUT; SHAFT TO YOKE M10 CHI	0-91110-510-0	01	1	1404-	●	●
291	GROMMET; STRG SHAFT COVER D=7.8X7.8 L=18 NATURAL CHI	8-94279-043-0	02	1	1404-	●	●
