◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#144373) — 73 parça

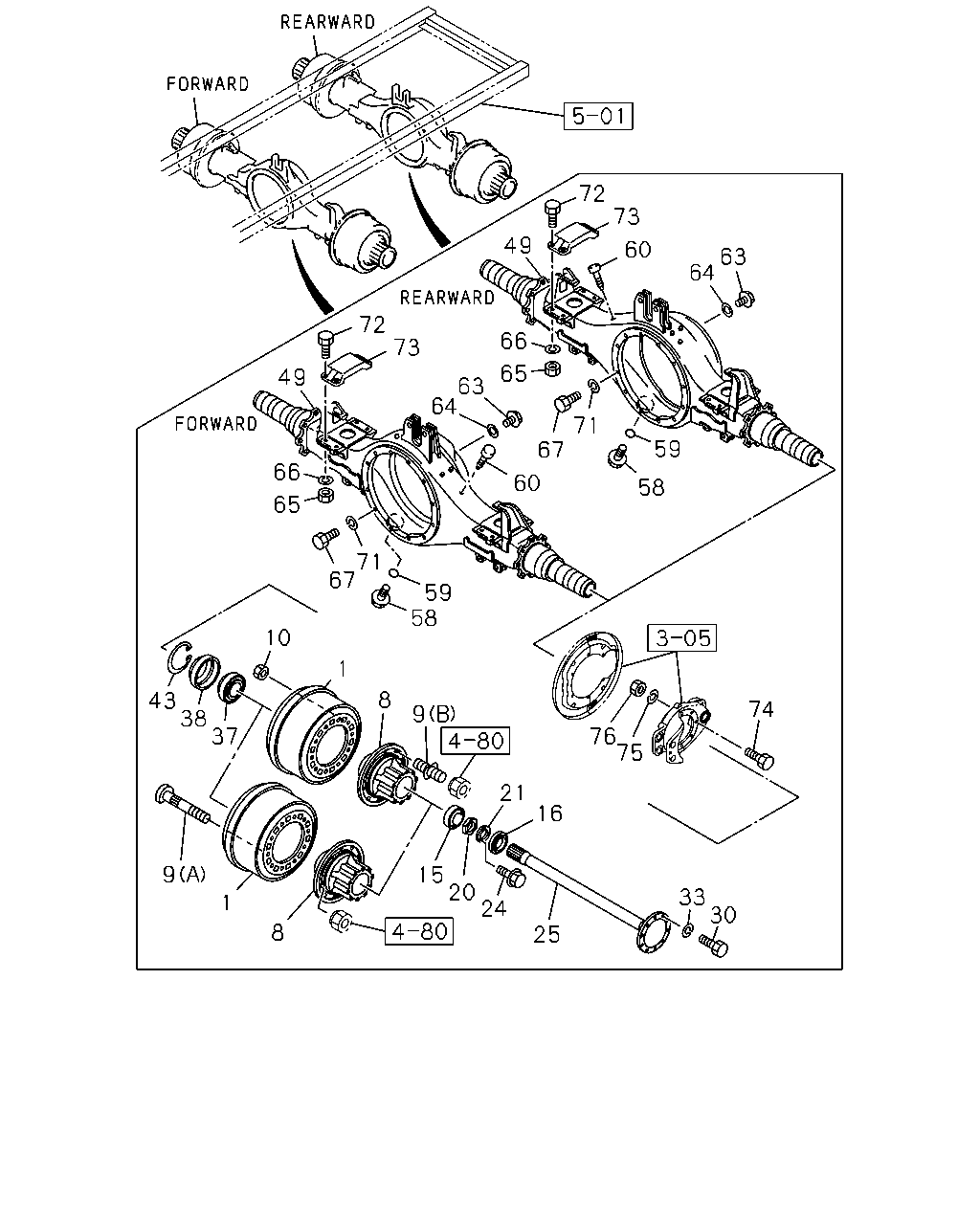

çizim 432076
72 73 60 63 64 59 58 71 65 66 63 67 60 64 73 72 49 66 65 71 67 58 59 74 75 76 30 33 16 21 9 8 1 10 37 38 43 9 1 8 15 20 24 25 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
RR BRK AIR D410-S CAM-180-ML8<B9E> 		1-42315-383-0 02 1 1404- ● ●
1 DRUM; BRK,RR
RR BRK AIR D410-S CAM-180-ML8<B9E> 		1-42315-383-0 02 1 1404- ● ●
1 DRUM; BRK,RR
RR BRK AIR D410-S CAM-220-ML8<B9B> 		1-42315-377-2 02 1 1404- ● ●
1 DRUM; BRK,RR
RR BRK AIR D410-S CAM-220-ML8<B9B> 		1-42315-377-2 02 1 1404- ● ●
8 HUB; RR AXLE 1-42311-085-0 02 1 1404- ● ●
8 HUB; RR AXLE 1-42311-085-0 02 1 1404- ● ●
9 PIN; WHEEL,RR AXLE
RR BRK AIR D410-S CAM-180-ML8<B9E> (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 1404- ● ●
9 PIN; WHEEL,RR AXLE
RR BRK AIR D410-S CAM-180-ML8<B9E> (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 1404- ● ●
9 PIN; WHEEL,RR AXLE
RR BRK AIR D410-S CAM-220-ML8<B9B> (A) M22X93 RH THREAD 		1-42337-066-2 20 1 1404- ● ●
9 PIN; WHEEL,RR AXLE
RR BRK AIR D410-S CAM-220-ML8<B9B> (A) M22X93 RH THREAD 		1-42337-066-2 20 1 1404- ● ●
10 NUT; WHEEL PIN,RR AXLE
RR BRK AIR D410-S CAM-180-ML8<B9E> M22 		1-09400-071-0 20 1 1404- ● ●
10 NUT; WHEEL PIN,RR AXLE
RR BRK AIR D410-S CAM-180-ML8<B9E> M22 		1-09400-071-0 20 1 1404- ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1404- ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1404- ● ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1404- ● ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1404- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 1404- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 1404- ● ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1404- ● ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1404- ● ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1404- ● ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1404- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE CHI 		0-28650-616-0 06 1 1404- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE CHI 		0-28650-616-0 06 1 1404- ● ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH L=990 CHI 		8-98146-166-0 01 1 1404- ● ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH L=990 CHI 		8-98146-166-0 01 1 1404- ● ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH L=1110 CHI 		8-98146-167-0 01 1 1404- ● ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH L=1110 CHI 		8-98146-167-0 01 1 1404- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 1404- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 1404- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 CHI 		0-91510-814-0 20 1 1404- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 CHI 		0-91510-814-0 20 1 1404- ● ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1404- ● ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1404- ● ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1404- ● ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1404- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 1404- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 1404- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 1404- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 1404- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1404- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1404- ● ●
49 CASE; RR AXLE
REARWARD 		1-42190-254-0 01 1 1404- ● ●
49 CASE; RR AXLE
FORWARD CHI 		1-42190-216-0 01 1 1404- ● ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE CHI 		1-09604-023-0 01 1 1404- ● ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE CHI 		1-09604-023-0 01 1 1404- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 1404- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 1404- ● ●
60 BREATHER; RR AXLE CASE
CHI 		1-09893-011-1 02 1 1404- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE CHI 		1-09604-022-0 01 1 1404- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE CHI 		1-09604-022-0 01 1 1404- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 1404- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 1404- ● ●
65 NUT
M14 CHI 		0-91110-514-0 08 1 1404- ● ●
65 NUT
M14 CHI 		0-91110-514-0 08 1 1404- ● ●
66 WASHER; LK
ID=14.2 CHI 		0-91510-814-0 08 1 1404- ● ●
66 WASHER; LK
ID=14.2 CHI 		0-91510-814-0 08 1 1404- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 1404- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 1404- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 CHI 		0-20951-640-0 07 1 1404- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 CHI 		0-20951-640-0 08 1 1404- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 CHI 		0-91510-816-0 12 1 1404- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 CHI 		0-91510-816-0 12 1 1404- ● ●
72 BOLT; PAD FIX
M14X40 CHI 		0-20951-440-0 08 1 1404- ● ●
72 BOLT; PAD FIX
M14X40 CHI 		0-20951-440-0 08 1 1404- ● ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1404- ● ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1404- ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1404- ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1404- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 CHI 		0-91510-814-0 16 1 1404- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 CHI 		0-91510-814-0 16 1 1404- ● ●
76 NUT; RR BRK ASM SETTING
M14 CHI 		0-91110-514-0 16 1 1404- ● ●
76 NUT; RR BRK ASM SETTING
M14 CHI 		0-91110-514-0 16 1 1404- ● ●
