◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#144370) — 118 parça

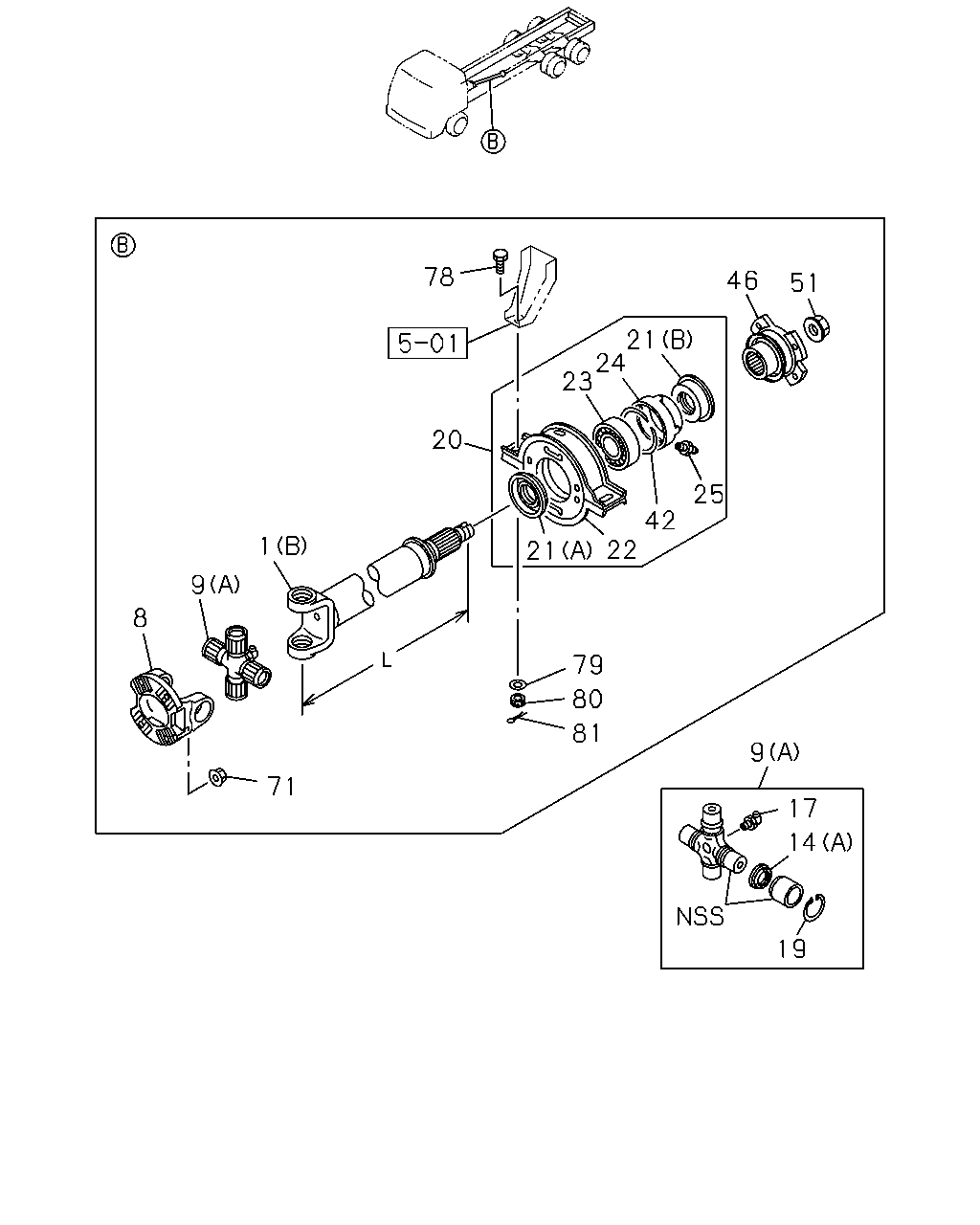

çizim 433027
51 46 21 24 23 20 25 42 22 21 79 80 81 9 14 17 19 71 1 9 8 78
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=1250 CHI 		8-98040-194-0 01 1 1404- ●
1 SHAFT; PROP
(A) L=1735 CHI 		1-37125-311-0 01 1 1404- ●
1 SHAFT; PROP
(C) L=1010 CHI 		1-37125-339-0 01 1 1404- ●
1 SHAFT; PROP
(B) L=1287 CHI 		8-98098-105-0 01 1 1404- ●
8 YOKE; FLANGE,PROP SHAFT
CHI 		1-37211-084-0 02 1 1404- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
CHI 		1-37211-084-0 01 1 1404- ●
9 JOURNAL ASM; PROP SHAFT
(B) CHI 		1-37300-100-1 01 1 1404- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) CHI 		1-37300-112-0 02 1 1404- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) CHI 		1-37300-112-0 01 1 1404- ●
14 COVER; DUST,SPIDER
(A) CHI 		1-37249-133-0 08 1 1404- ● ● ●
14 COVER; DUST,SPIDER
(B) CHI 		1-37319-004-0 08 1 1404- ● ● ●
14 COVER; DUST,SPIDER
(A) CHI 		1-37249-133-0 04 1 1404- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 02 1 1404- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 02 1 1404- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 01 1 1404- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 CHI 		1-09587-103-1 08 1 1404- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 CHI 		1-09587-107-0 08 1 1404- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 CHI 		1-09587-103-1 04 1 1404- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 CHI 		1-09587-107-0 04 1 1404- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 CHI 		1-37510-116-0 01 1 1404- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 CHI 		1-09625-222-1 01 1 1404- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 CHI 		1-09625-622-0 01 1 1404- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
CHI 		1-37516-056-0 01 1 1404- ●
23 BEARING; CENTER,PROP SHAFT
CHI 		1-09800-210-0 01 1 1404- ●
24 RETAINER; CENTER BRG,1ST
CHI 		1-37529-110-0 01 1 1404- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT CHI 		1-09380-006-0 01 1 1404- ●
42 RING; SNAP,CTR BRG
CHI 		1-09587-085-0 01 1 1404- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
CHI 		1-37245-349-0 01 1 1404- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE CHI 		1-09449-040-0 01 1 1404- ●
71 NUT; YOKE
M14 FLANGE CHI 		8-97365-444-0 04 1 1404- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 CHI 		1-09042-030-0 02 1 1404- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 CHI 		1-09503-241-1 02 1 1404- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED CHI 		8-98049-689-0 02 1 1404- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 CHI 		0-81124-025-0 02 1 1404- ●

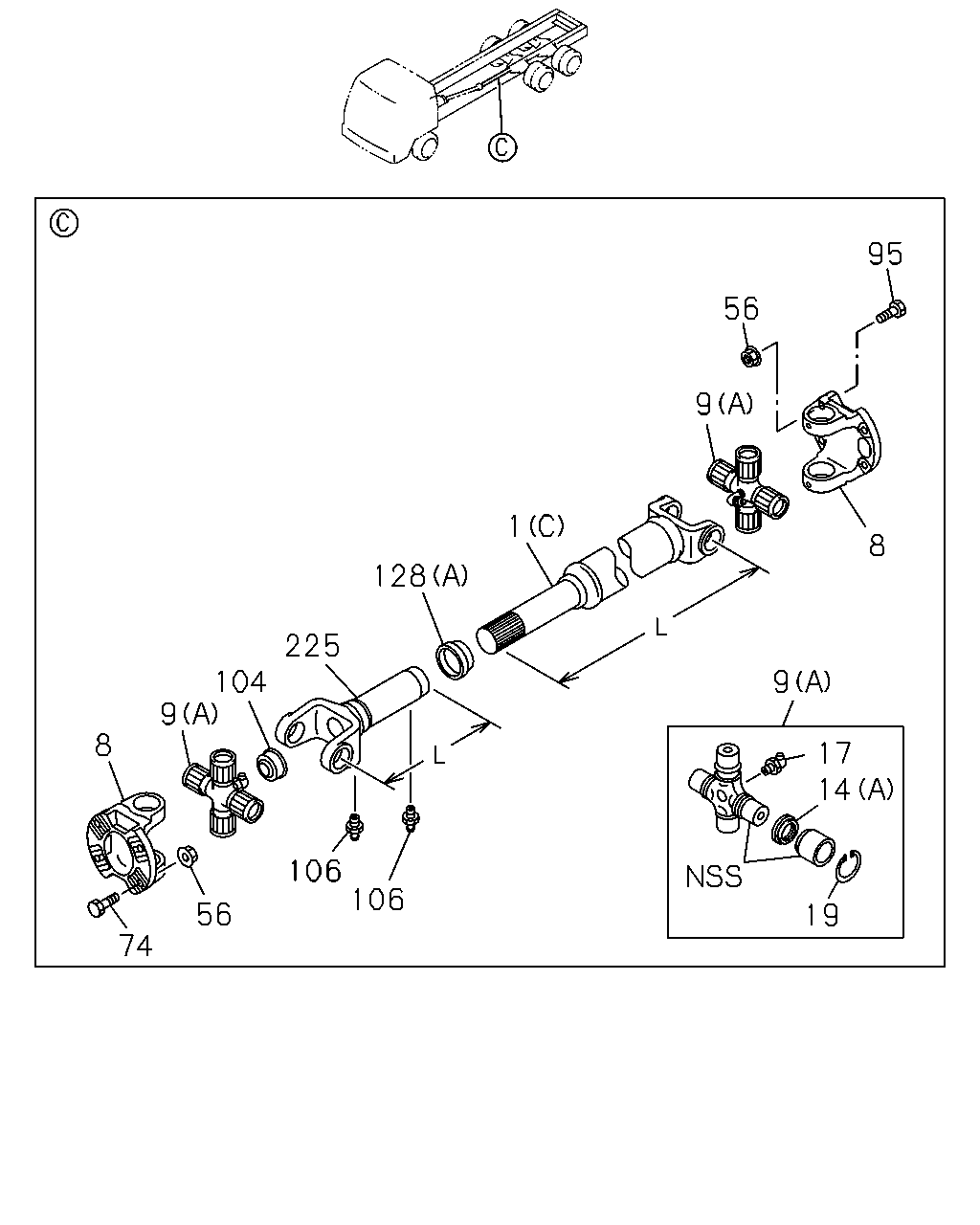

çizim 433085
95 56 9 8 9 14 17 19 106 106 56 74 8 128 225 104 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=1250 CHI 		8-98040-194-0 01 1 1404- ●
1 SHAFT; PROP
(A) L=1735 CHI 		1-37125-311-0 01 1 1404- ●
1 SHAFT; PROP
(C) L=1010 CHI 		1-37125-339-0 01 1 1404- ●
1 SHAFT; PROP
(B) L=1287 CHI 		8-98098-105-0 01 1 1404- ●
8 YOKE; FLANGE,PROP SHAFT
CHI 		1-37211-084-0 02 1 1404- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
CHI 		1-37211-084-0 01 1 1404- ●
9 JOURNAL ASM; PROP SHAFT
(B) CHI 		1-37300-100-1 01 1 1404- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) CHI 		1-37300-112-0 02 1 1404- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) CHI 		1-37300-112-0 01 1 1404- ●
14 COVER; DUST,SPIDER
(A) CHI 		1-37249-133-0 08 1 1404- ● ● ●
14 COVER; DUST,SPIDER
(B) CHI 		1-37319-004-0 08 1 1404- ● ● ●
14 COVER; DUST,SPIDER
(A) CHI 		1-37249-133-0 04 1 1404- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 02 1 1404- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 02 1 1404- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 01 1 1404- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 CHI 		1-09587-103-1 08 1 1404- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 CHI 		1-09587-107-0 08 1 1404- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 CHI 		1-09587-103-1 04 1 1404- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 CHI 		1-09587-107-0 04 1 1404- ●
56 NUT; YOKE
M14 FLANGE CHI 		8-97365-444-0 04 1 1404- ● ● ●
56 NUT; YOKE
M14 FLANGE CHI 		8-97365-444-0 04 1 1404- ●
74 BOLT; YOKE,TRANS
M14X50 CHI 		1-09000-645-0 04 1 1404- ●
95 BOLT; YOKE,FINAL
M14X50 CHI 		1-09000-645-0 04 1 1404- ● ● ●
104 PLUG; SLEEVE YOKE
CHI 		1-09600-049-0 01 1 1404- ● ● ●
104 PLUG; SLEEVE YOKE
CHI 		1-09600-049-0 01 1 1404- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT CHI 		0-90301-410-0 02 1 1404- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT CHI 		0-90301-410-0 01 1 1404- ● ● ●
128 SEAL; SLEEVE
(A) CHI 		1-37247-020-0 01 1 1404- ● ● ●
128 SEAL; SLEEVE
(B) CHI 		8-97603-618-0 01 1 1404- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 CHI 		1-37241-140-0 01 1 1404- ● ● ●

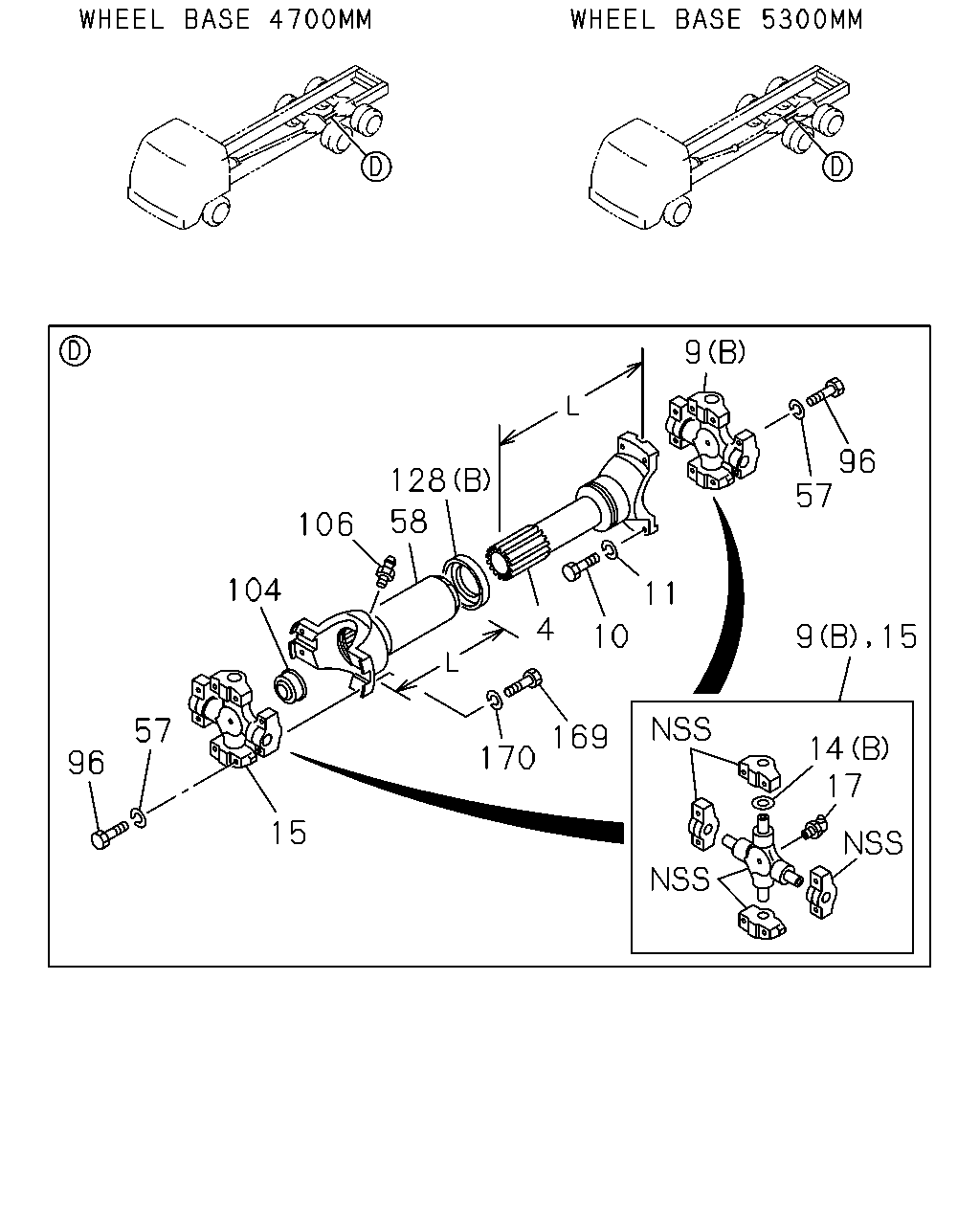

çizim 433110
57 96 9 11 15 9 14 17 170 169 15 57 96 104 106 128 58 4 10
BalonParca AdiParca NoAdetTipApplied Date A B C
4 SHAFT; PROP
L=348 CHI 		1-37171-127-2 01 1 1404- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) CHI 		1-37300-100-1 01 1 1404- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) CHI 		1-37300-112-0 02 1 1404- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) CHI 		1-37300-112-0 01 1 1404- ●
10 BOLT; UJT
M12X45 CHI 		8-98036-382-0 04 1 1404- ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 CHI 		0-91510-612-0 04 1 1404- ● ● ●
14 COVER; DUST,SPIDER
(A) CHI 		1-37249-133-0 08 1 1404- ● ● ●
14 COVER; DUST,SPIDER
(B) CHI 		1-37319-004-0 08 1 1404- ● ● ●
14 COVER; DUST,SPIDER
(A) CHI 		1-37249-133-0 04 1 1404- ●
15 UNIVERSAL CENTER
CHI 		1-37300-100-1 01 1 1404- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 02 1 1404- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 02 1 1404- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 01 1 1404- ●
57 WASHER; LK,YOKE
ID=12.2 CHI 		0-91510-612-0 08 1 1404- ● ● ●
58 FLANGE; SPLINED
L=265 CHI 		1-37245-317-0 01 1 1404- ● ● ●
96 BOLT; PROP SHAFT
M12X45 CHI 		8-98036-382-0 08 1 1404- ● ● ●
104 PLUG; SLEEVE YOKE
CHI 		1-09600-049-0 01 1 1404- ● ● ●
104 PLUG; SLEEVE YOKE
CHI 		1-09600-049-0 01 1 1404- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT CHI 		0-90301-410-0 02 1 1404- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT CHI 		0-90301-410-0 01 1 1404- ● ● ●
128 SEAL; SLEEVE
(A) CHI 		1-37247-020-0 01 1 1404- ● ● ●
128 SEAL; SLEEVE
(B) CHI 		8-97603-618-0 01 1 1404- ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 CHI 		8-98036-382-0 04 1 1404- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 CHI 		0-91510-612-0 04 1 1404- ● ● ●
çizim 433375
56 95 1 128 9 8 9 17 14 19 106 106 71 225 104 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=1250 CHI 		8-98040-194-0 01 1 1404- ●
1 SHAFT; PROP
(A) L=1735 CHI 		1-37125-311-0 01 1 1404- ●
1 SHAFT; PROP
(C) L=1010 CHI 		1-37125-339-0 01 1 1404- ●
1 SHAFT; PROP
(B) L=1287 CHI 		8-98098-105-0 01 1 1404- ●
8 YOKE; FLANGE,PROP SHAFT
CHI 		1-37211-084-0 02 1 1404- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
CHI 		1-37211-084-0 01 1 1404- ●
9 JOURNAL ASM; PROP SHAFT
(B) CHI 		1-37300-100-1 01 1 1404- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) CHI 		1-37300-112-0 02 1 1404- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) CHI 		1-37300-112-0 01 1 1404- ●
14 COVER; DUST,SPIDER
(A) CHI 		1-37249-133-0 08 1 1404- ● ● ●
14 COVER; DUST,SPIDER
(B) CHI 		1-37319-004-0 08 1 1404- ● ● ●
14 COVER; DUST,SPIDER
(A) CHI 		1-37249-133-0 04 1 1404- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 02 1 1404- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 02 1 1404- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES CHI 		0-90301-510-0 01 1 1404- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 CHI 		1-09587-103-1 08 1 1404- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 CHI 		1-09587-107-0 08 1 1404- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 CHI 		1-09587-103-1 04 1 1404- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 CHI 		1-09587-107-0 04 1 1404- ●
56 NUT; YOKE
M14 FLANGE CHI 		8-97365-444-0 04 1 1404- ● ● ●
56 NUT; YOKE
M14 FLANGE CHI 		8-97365-444-0 04 1 1404- ●
71 NUT; YOKE
M14 FLANGE CHI 		8-97365-444-0 04 1 1404- ● ● ●
95 BOLT; YOKE,FINAL
M14X50 CHI 		1-09000-645-0 04 1 1404- ● ● ●
104 PLUG; SLEEVE YOKE
CHI 		1-09600-049-0 01 1 1404- ● ● ●
104 PLUG; SLEEVE YOKE
CHI 		1-09600-049-0 01 1 1404- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT CHI 		0-90301-410-0 02 1 1404- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT CHI 		0-90301-410-0 01 1 1404- ● ● ●
128 SEAL; SLEEVE
(A) CHI 		1-37247-020-0 01 1 1404- ● ● ●
128 SEAL; SLEEVE
(B) CHI 		8-97603-618-0 01 1 1404- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 CHI 		1-37241-140-0 01 1 1404- ● ● ●
