◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#144367) — 185 parça

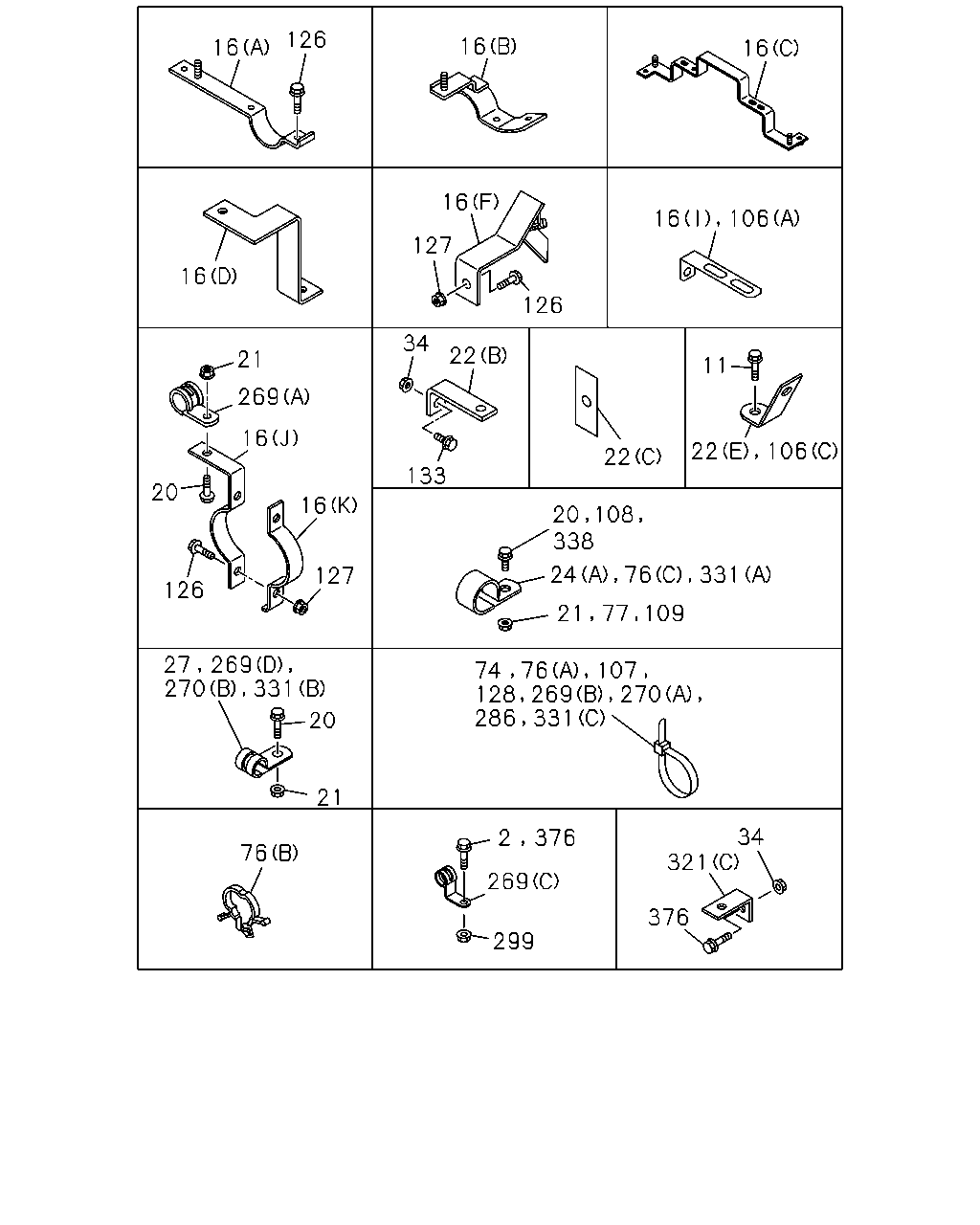

çizim 432753
16 126 16 21 269 16 20 126 127 16 133 34 22 126 127 16 16 27 269 270 331 20 21 76 2 376 269 299 376 321 34 74 128 286 76 269 331 107 270 21 77 109 331 76 24 338 20 108 22 22 106 11 16 106 16
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
11 BOLT; CLIP BRKT
M8X30 FLANGE CHI 		0-28650-830-0 03 1 1404- ● ●
11 BOLT; CLIP BRKT
FULL FLOATING CAB<W16> M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ●
16 BRACKET; PIPE CLIP
(I) L=100 H=30 CHI 		1-47477-645-2 02 1 1404- ●
16 BRACKET; PIPE CLIP
(F) CHI 		1-47471-309-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(A) CHI 		1-47479-856-0 02 1 1404- ● ●
16 BRACKET; PIPE CLIP
(B) CHI 		1-47479-857-0 02 1 1404- ● ●
16 BRACKET; PIPE CLIP
(C) CHI 		1-47479-898-0 02 1 1404- ● ●
16 BRACKET; PIPE CLIP
(H) CHI 		8-98054-389-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(D) CHI 		8-98086-226-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(E) L=150 CHI 		1-47471-217-0 01 1 1404- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 CHI 		1-47477-716-1 01 1 1404- ●
16 BRACKET; PIPE CLIP
(J) 		8-97431-537-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(K) 		8-97431-538-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(J) 		8-97431-537-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(K) 		8-97431-538-0 01 1 1404- ● ●
20 BOLT; CLIP
M8X20 FLANGE CHI 		0-28650-820-0 03 1 1404- ● ●
20 BOLT; CLIP
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ● ●
21 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
21 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 03 1 1404- ● ●
22 BRACKET; CLIP
(B) L=112 CHI 		1-47475-694-1 01 1 1404- ● ●
22 BRACKET; CLIP
(E) CHI 		1-47477-571-3 01 1 1404- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 CHI 		1-47477-716-1 01 1 1404- ● ●
22 BRACKET; CLIP
(C) CHI 		1-47479-554-0 01 1 1404- ● ●
22 BRACKET; CLIP
(C) CHI 		1-47479-554-0 01 1 1404- ●
22 BRACKET; CLIP
(B) L=95 CHI 		1-82699-085-0 01 1 1404- ● ●
22 BRACKET; CLIP
FULL FLOATING CAB<W16> (D) CHI 		1-47477-514-3 01 1 1404- ●
24 CLIP; PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=25 L=50 CHI 		1-09701-019-0 02 1 1404- ●
24 CLIP; PIPE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=25 L=50 CHI 		1-09701-019-0 03 1 1404- ●
24 CLIP; PIPE
(B) ID=25 L=50 CHI 		1-09701-019-0 03 1 1404- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 CHI 		1-09700-606-0 01 1 1404- ● ●
27 CLIP; FLEX HOSE
ID=24 L=27 CHI 		1-09700-809-0 01 1 1404- ● ●
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 03 1 1404- ● ●
74 CLIP; NYLON TUBE
L=350 CHI 		1-09707-183-0 01 1 1404- ● ●
76 CLIP; NYLON TUBE
(A) L=350 CHI 		1-09707-183-0 05 1 1404- ● ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 CHI 		1-09709-297-0 01 1 1404- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 CHI 		8-98009-359-0 01 1 1404- ● ●
77 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404- ● ●
106 BRACKET; TUBE CLIP
(F) L=150 CHI 		1-47471-217-0 01 1 1404- ●
106 BRACKET; TUBE CLIP
(D) CHI 		1-47479-554-0 01 1 1404- ●
106 BRACKET; TUBE CLIP
(F) L=150 CHI 		1-47471-217-0 02 1 1404- ● ●
106 BRACKET; TUBE CLIP
(C) CHI 		1-47477-571-3 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 CHI 		1-47477-645-2 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(E) CHI 		8-97430-375-0 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(G) CHI 		8-97430-380-0 02 1 1404- ● ●
106 BRACKET; TUBE CLIP
(H) CHI 		8-97430-382-0 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(B) L=90 CHI 		1-47477-755-1 03 1 1404- ●
107 CLIP; NYLON TUBE
L=350 CHI 		1-09707-183-0 11 1 1404- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
109 NUT; TUBE CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE CHI 		0-28050-812-0 04 1 1404- ● ●
126 BOLT; CLIP BRKT
M8X45 FLANGE CHI 		0-28050-845-0 01 1 1404- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 06 1 1404- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404- ● ●
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404- ●
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 03 1 1404- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) L=350 CHI 		1-09707-183-0 15 1 1404- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) L=350 CHI 		1-09707-183-0 17 1 1404- ●
128 CLIP; NYLON TUBE
L=350 CHI 		1-09707-183-0 12 1 1404- ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ● ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 06 1 1404- ● ●
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 04 1 1404- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 CHI 		1-09707-183-0 02 1 1404- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 CHI 		1-09707-183-0 05 1 1404- ●
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (D) ID=24 L=27 CHI 		1-09700-809-0 01 1 1404- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=24 L=27 CHI 		1-09700-809-0 01 1 1404- ●
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (C) ID=25 H=30 L=35 CHI 		1-09700-875-0 02 1 1404- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=25 H=30 L=35 CHI 		1-09700-875-0 02 1 1404- ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (C) ID=21 L=30 H=40 CHI 		1-09700-991-1 01 1 1404- ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (D) ID=21 L=24 CHI 		8-98019-191-0 02 1 1404- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 CHI 		1-09700-945-0 06 1 1404- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 CHI 		1-09707-183-0 01 1 1404- ● ●
269 CLIP; BAND,NYLON TUBE
FULL FLOATING CAB<W16> (B) L=350 CHI 		1-09707-183-0 01 1 1404- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 CHI 		1-09707-183-0 13 1 1404- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 CHI 		8-98009-359-0 02 1 1404- ● ●
270 CLIP; NYLON TUBE
(B) ID=18 L=28 CHI 		1-09701-067-0 02 1 1404- ● ●
270 CLIP; NYLON TUBE
(A) L=350 CHI 		1-09707-183-0 02 1 1404- ● ●
286 CLIP; NYLON TUBE
L=350 CHI 		1-09707-183-0 01 1 1404- ●
299 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
321 BRACKET; CLIP
(A) CHI 		8-97430-373-0 01 1 1404- ● ●
321 BRACKET; CLIP
(B) CHI 		8-97430-374-0 01 1 1404- ● ●
321 BRACKET; CLIP
(C) L=65 B=25 CHI 		8-98135-584-0 02 1 1404- ● ●
331 CLIP; NYLON TUBE
(A) ID=16 L=20 CHI 		0-95235-535-0 01 1 1404- ● ●
331 CLIP; NYLON TUBE
(B) ID=18 L=28 CHI 		1-09701-067-0 01 1 1404- ● ●
331 CLIP; NYLON TUBE
(C) L=350 CHI 		1-09707-183-0 05 1 1404- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ● ●
338 BOLT; PIPE CLIP
M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404- ● ●
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28050-820-0 02 1 1404- ● ●
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
376 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404- ● ●
çizim 433170
11 106 16 11 22 297 133 61 279 24 34 127 279 126 133 372 106 379 22 16 101 372 127 16 126 388
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
M8X30 FLANGE CHI 		0-28650-830-0 03 1 1404- ● ●
11 BOLT; CLIP BRKT
FULL FLOATING CAB<W16> M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ●
16 BRACKET; PIPE CLIP
(I) L=100 H=30 CHI 		1-47477-645-2 02 1 1404- ●
16 BRACKET; PIPE CLIP
(F) CHI 		1-47471-309-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(A) CHI 		1-47479-856-0 02 1 1404- ● ●
16 BRACKET; PIPE CLIP
(B) CHI 		1-47479-857-0 02 1 1404- ● ●
16 BRACKET; PIPE CLIP
(C) CHI 		1-47479-898-0 02 1 1404- ● ●
16 BRACKET; PIPE CLIP
(H) CHI 		8-98054-389-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(D) CHI 		8-98086-226-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(E) L=150 CHI 		1-47471-217-0 01 1 1404- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 CHI 		1-47477-716-1 01 1 1404- ●
16 BRACKET; PIPE CLIP
(J) 		8-97431-537-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(K) 		8-97431-538-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(J) 		8-97431-537-0 01 1 1404- ● ●
16 BRACKET; PIPE CLIP
(K) 		8-97431-538-0 01 1 1404- ● ●
22 BRACKET; CLIP
(B) L=112 CHI 		1-47475-694-1 01 1 1404- ● ●
22 BRACKET; CLIP
(E) CHI 		1-47477-571-3 01 1 1404- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 CHI 		1-47477-716-1 01 1 1404- ● ●
22 BRACKET; CLIP
(C) CHI 		1-47479-554-0 01 1 1404- ● ●
22 BRACKET; CLIP
(C) CHI 		1-47479-554-0 01 1 1404- ●
22 BRACKET; CLIP
(B) L=95 CHI 		1-82699-085-0 01 1 1404- ● ●
22 BRACKET; CLIP
FULL FLOATING CAB<W16> (D) CHI 		1-47477-514-3 01 1 1404- ●
24 CLIP; PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=25 L=50 CHI 		1-09701-019-0 02 1 1404- ●
24 CLIP; PIPE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=25 L=50 CHI 		1-09701-019-0 03 1 1404- ●
24 CLIP; PIPE
(B) ID=25 L=50 CHI 		1-09701-019-0 03 1 1404- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 CHI 		1-09700-606-0 01 1 1404- ● ●
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 03 1 1404- ● ●
61 NUT; CLIP FIX
POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ●
61 NUT; CLIP FIX
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE CHI 		0-91180-108-0 03 1 1404- ●
61 NUT; CLIP FIX
M8 FLANGE CHI 		0-91180-108-0 03 1 1404- ●
61 NUT; CLIP FIX
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
101 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404- ● ●
106 BRACKET; TUBE CLIP
(F) L=150 CHI 		1-47471-217-0 01 1 1404- ●
106 BRACKET; TUBE CLIP
(D) CHI 		1-47479-554-0 01 1 1404- ●
106 BRACKET; TUBE CLIP
(F) L=150 CHI 		1-47471-217-0 02 1 1404- ● ●
106 BRACKET; TUBE CLIP
(C) CHI 		1-47477-571-3 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 CHI 		1-47477-645-2 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(E) CHI 		8-97430-375-0 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(G) CHI 		8-97430-380-0 02 1 1404- ● ●
106 BRACKET; TUBE CLIP
(H) CHI 		8-97430-382-0 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(B) L=90 CHI 		1-47477-755-1 03 1 1404- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE CHI 		0-28050-812-0 04 1 1404- ● ●
126 BOLT; CLIP BRKT
M8X45 FLANGE CHI 		0-28050-845-0 01 1 1404- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 06 1 1404- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404- ● ●
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404- ●
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 03 1 1404- ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ● ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 06 1 1404- ● ●
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 04 1 1404- ● ●
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 10 1 1404- ●
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 08 1 1404- ●
297 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
297 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 04 1 1404- ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ●
379 BRACKET; NYLON TUBE
L=60 H=30 CHI 		1-47477-716-1 01 1 1404- ●
388 SEAL
100X40 CHI 		1-72498-022-1 04 1 1404- ● ●

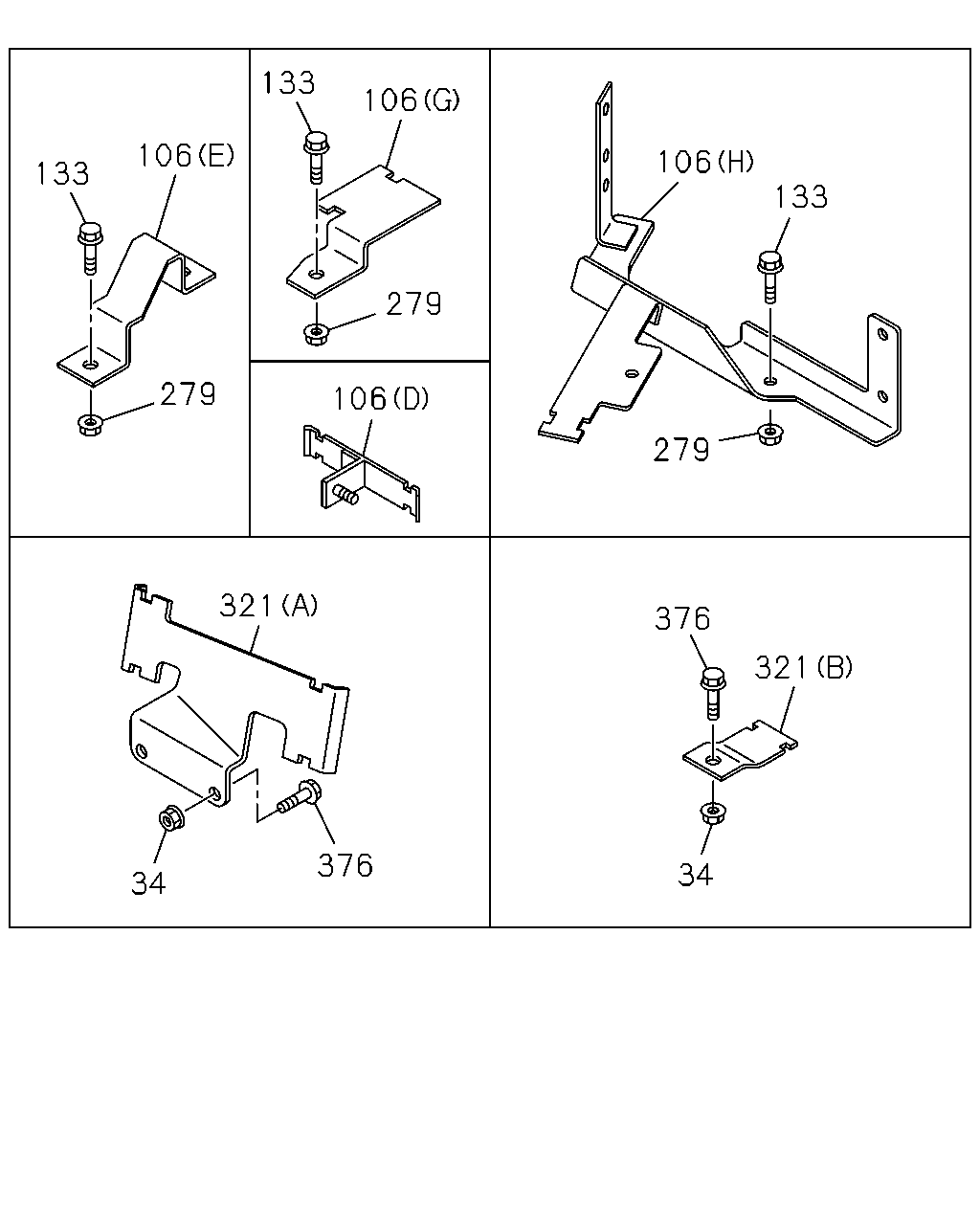

çizim 433261
133 106 279 133 106 279 106 321 34 376 34 321 376 279 133 106
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 03 1 1404- ● ●
106 BRACKET; TUBE CLIP
(F) L=150 CHI 		1-47471-217-0 01 1 1404- ●
106 BRACKET; TUBE CLIP
(D) CHI 		1-47479-554-0 01 1 1404- ●
106 BRACKET; TUBE CLIP
(F) L=150 CHI 		1-47471-217-0 02 1 1404- ● ●
106 BRACKET; TUBE CLIP
(C) CHI 		1-47477-571-3 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 CHI 		1-47477-645-2 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(E) CHI 		8-97430-375-0 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(G) CHI 		8-97430-380-0 02 1 1404- ● ●
106 BRACKET; TUBE CLIP
(H) CHI 		8-97430-382-0 01 1 1404- ● ●
106 BRACKET; TUBE CLIP
(B) L=90 CHI 		1-47477-755-1 03 1 1404- ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ● ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 06 1 1404- ● ●
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 04 1 1404- ● ●
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 10 1 1404- ●
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 08 1 1404- ●
321 BRACKET; CLIP
(A) CHI 		8-97430-373-0 01 1 1404- ● ●
321 BRACKET; CLIP
(B) CHI 		8-97430-374-0 01 1 1404- ● ●
321 BRACKET; CLIP
(C) L=65 B=25 CHI 		8-98135-584-0 02 1 1404- ● ●
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28050-820-0 02 1 1404- ● ●
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
376 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
