◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#144366) — 89 parça
çizim 432456
37 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(A) CHI 		1-09650-222-1 01 1 1404- ●
37 UNION; AIR PIPE
(B) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1404- ●

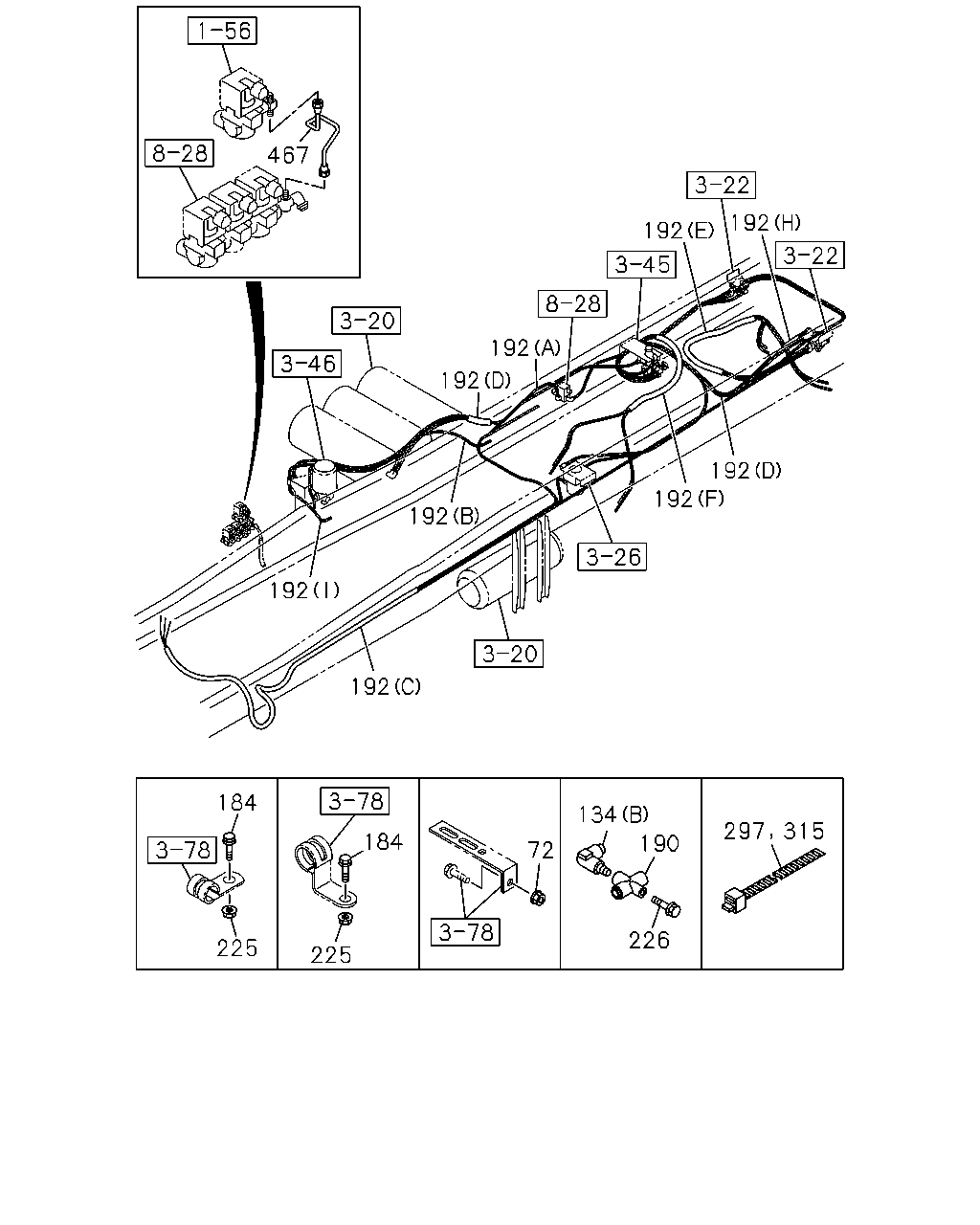

çizim 433138
467 192 192 192 192 192 192 192 192 192 315 297 134 190 226 72 184 225 184 225
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
72 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ●
72 NUT; BRKT
FULL FLOATING CAB<W16> M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ●
134 CONNECTOR
(B) DIN8 & R1/4 ELBOW CHI 		1-09660-649-1 01 1 1404- ●
134 CONNECTOR
(A) 		8-97431-670-0 01 1 1404- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE CHI 		0-28650-820-0 03 1 1404- ● ●
190 UNION; 3 WAY
DIN8 RC1/4 & M8 CHI 		1-09660-735-1 01 1 1404- ●
192 TUBE; NYLON
(G) CHI 		8-97430-076-1 01 1 1404- ●
192 TUBE; NYLON
(G) CHI 		8-97430-077-1 01 1 1404- ●
192 TUBE; NYLON
(I) SERVICED BY L=2000 OD=8 CHI 		1-87410-073-0 01 1 1404- ●
192 TUBE; NYLON
(B) CHI 		8-97431-542-0 01 1 1404- ●
192 TUBE; NYLON
(B) CHI 		8-97431-709-0 01 1 1404- ●
192 TUBE; NYLON
(I) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5300MM(53W) (A) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5900MM(59W) (A) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5300MM(53W) (D) CHI 		8-97431-547-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5900MM(59W) (D) CHI 		8-97431-549-0 01 1 1404- ●
192 TUBE; NYLON
(D) CHI 		8-97431-630-0 01 1 1404- ●
192 TUBE; NYLON
(H) SERVICED BY L=4000 OD=8 CHI 		1-87410-074-0 01 1 1404- ● ●
192 TUBE; NYLON
(F) CHI 		8-97431-553-0 01 1 1404- ● ●
192 TUBE; NYLON
(E) CHI 		8-97431-555-0 01 1 1404- ●
192 TUBE; NYLON
(E) CHI 		8-97431-681-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5300MM(53W) (C) CHI 		8-97431-578-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5900MM(59W) (C) CHI 		8-97431-579-0 01 1 1404- ●
192 TUBE; NYLON
(C) CHI 		8-97431-640-0 01 1 1404- ●
225 NUT; TUBE CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
226 BOLT; UNION
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ●
226 BOLT; UNION
M8X16 FLANGE CHI 		0-28050-816-0 01 1 1404- ● ●
297 CLIP; BAND
L=350 CHI 		1-09707-183-0 01 1 1404- ● ●
315 CLIP
L=350 CHI 		1-09707-183-0 01 1 1404- ●
467 PIPE; AIR,MAG VLV TO MAG VLV
L=236 CHI 		8-97431-235-0 01 1 1404- ● ●

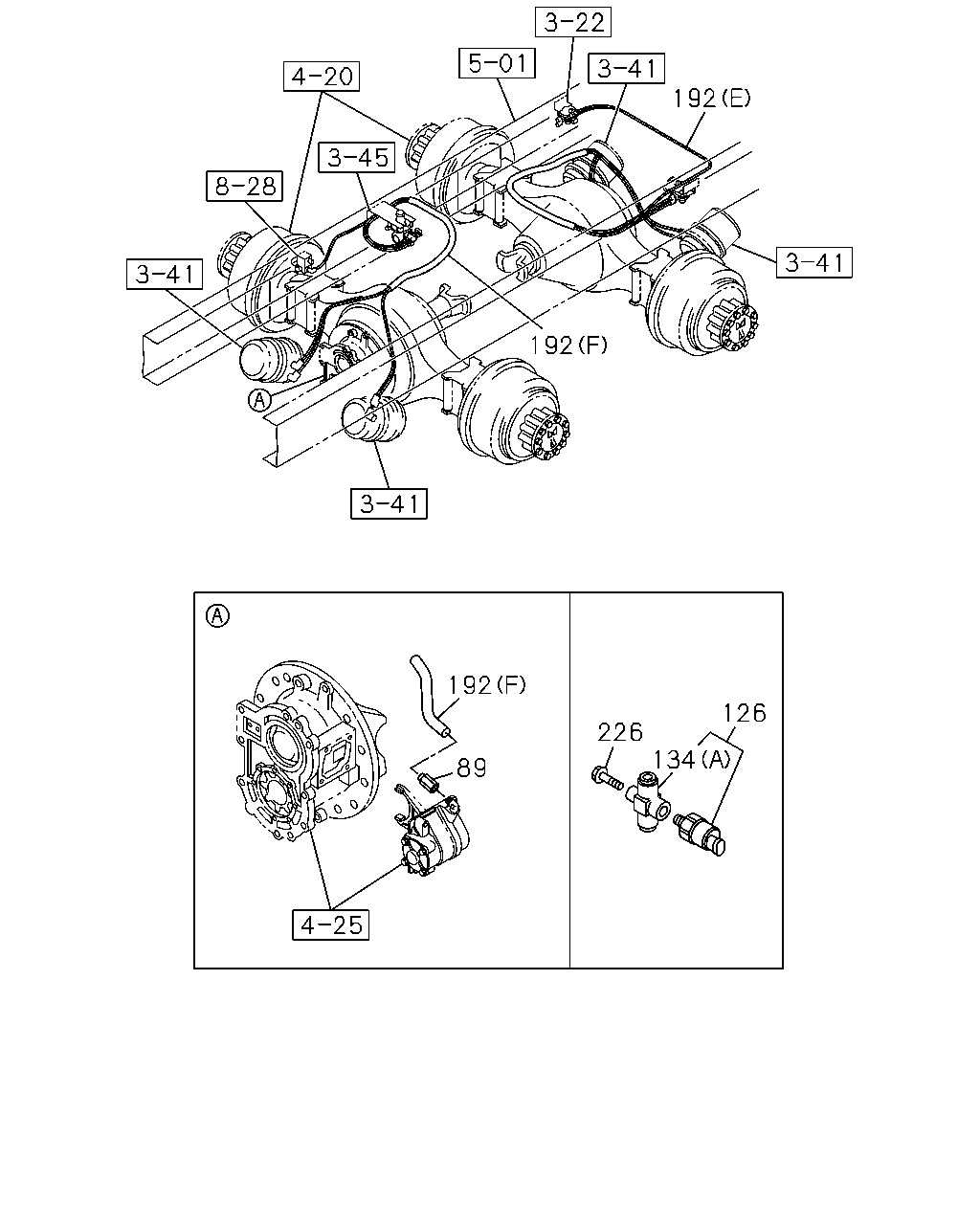

çizim 433203
192 192 192 89 226 126 134
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		8-97431-454-0 01 1 1404- ● ●
126 UNION; NYLON TUBE 8-97431-684-0 01 1 1404- ● ●
134 CONNECTOR
(B) DIN8 & R1/4 ELBOW CHI 		1-09660-649-1 01 1 1404- ●
134 CONNECTOR
(A) 		8-97431-670-0 01 1 1404- ●
192 TUBE; NYLON
(G) CHI 		8-97430-076-1 01 1 1404- ●
192 TUBE; NYLON
(G) CHI 		8-97430-077-1 01 1 1404- ●
192 TUBE; NYLON
(I) SERVICED BY L=2000 OD=8 CHI 		1-87410-073-0 01 1 1404- ●
192 TUBE; NYLON
(B) CHI 		8-97431-542-0 01 1 1404- ●
192 TUBE; NYLON
(B) CHI 		8-97431-709-0 01 1 1404- ●
192 TUBE; NYLON
(I) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5300MM(53W) (A) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5900MM(59W) (A) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5300MM(53W) (D) CHI 		8-97431-547-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5900MM(59W) (D) CHI 		8-97431-549-0 01 1 1404- ●
192 TUBE; NYLON
(D) CHI 		8-97431-630-0 01 1 1404- ●
192 TUBE; NYLON
(H) SERVICED BY L=4000 OD=8 CHI 		1-87410-074-0 01 1 1404- ● ●
192 TUBE; NYLON
(F) CHI 		8-97431-553-0 01 1 1404- ● ●
192 TUBE; NYLON
(E) CHI 		8-97431-555-0 01 1 1404- ●
192 TUBE; NYLON
(E) CHI 		8-97431-681-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5300MM(53W) (C) CHI 		8-97431-578-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5900MM(59W) (C) CHI 		8-97431-579-0 01 1 1404- ●
192 TUBE; NYLON
(C) CHI 		8-97431-640-0 01 1 1404- ●
226 BOLT; UNION
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ●
226 BOLT; UNION
M8X16 FLANGE CHI 		0-28050-816-0 01 1 1404- ● ●

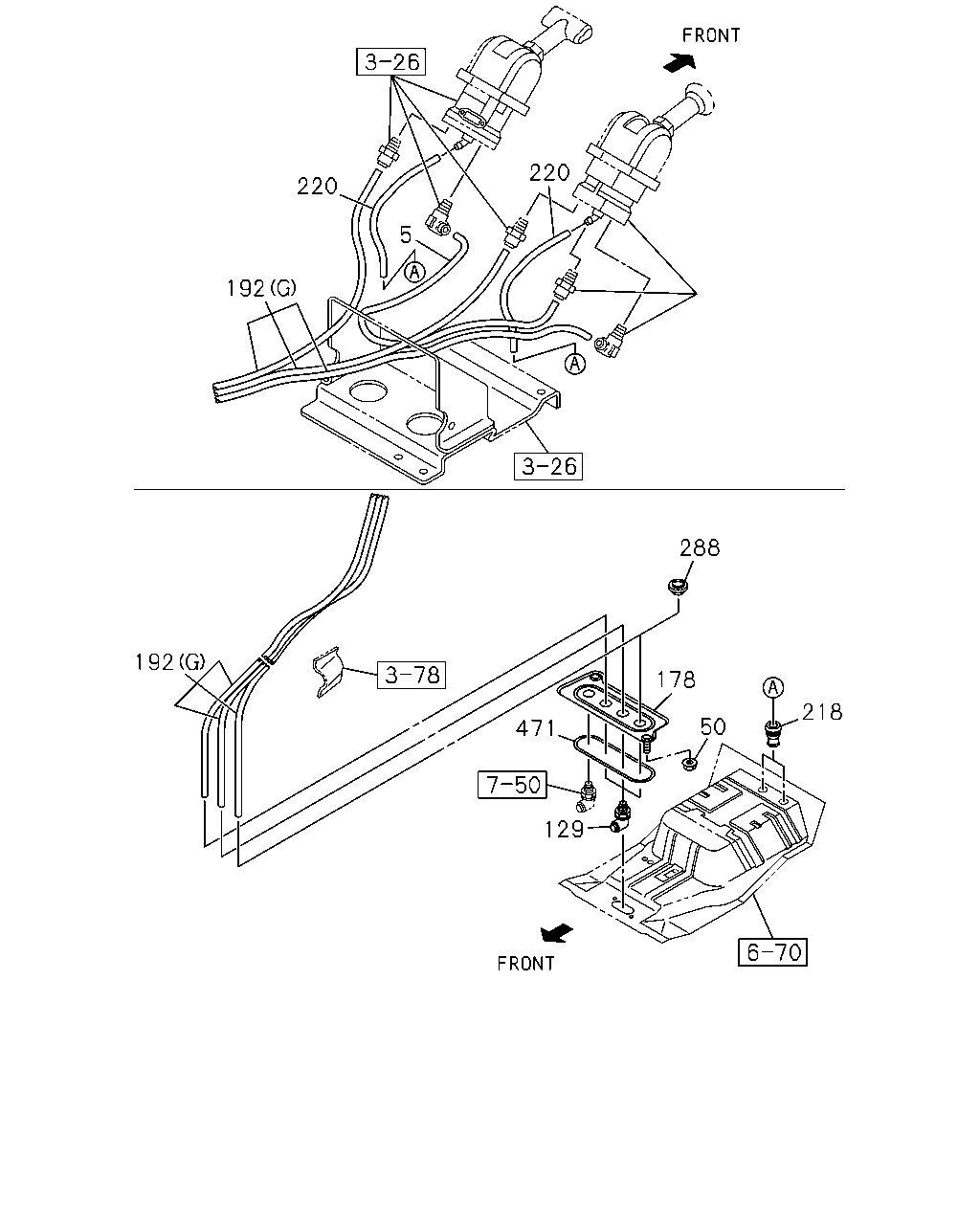

çizim 433411
220 5 220 192 192 471 178 288 218 50 129
BalonParca AdiParca NoAdetTipApplied Date A B
5 PIPE; AIR,UNION TO PARKING VLV 1-09391-018-0 01 1 1404- ●
50 NUT; UNION BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
129 CONNECTOR; NYLON TUBE 8-97431-402-0 01 1 1404- ● ●
129 CONNECTOR; NYLON TUBE 8-97431-402-0 01 1 1404- ●
129 CONNECTOR; NYLON TUBE 8-97431-402-0 02 1 1404- ●
178 BRACKET; UNION
CHI 		8-97430-078-0 01 1 1404- ● ●
192 TUBE; NYLON
(G) CHI 		8-97430-076-1 01 1 1404- ●
192 TUBE; NYLON
(G) CHI 		8-97430-077-1 01 1 1404- ●
192 TUBE; NYLON
(I) SERVICED BY L=2000 OD=8 CHI 		1-87410-073-0 01 1 1404- ●
192 TUBE; NYLON
(B) CHI 		8-97431-542-0 01 1 1404- ●
192 TUBE; NYLON
(B) CHI 		8-97431-709-0 01 1 1404- ●
192 TUBE; NYLON
(I) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5300MM(53W) (A) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5900MM(59W) (A) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5300MM(53W) (D) CHI 		8-97431-547-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5900MM(59W) (D) CHI 		8-97431-549-0 01 1 1404- ●
192 TUBE; NYLON
(D) CHI 		8-97431-630-0 01 1 1404- ●
192 TUBE; NYLON
(H) SERVICED BY L=4000 OD=8 CHI 		1-87410-074-0 01 1 1404- ● ●
192 TUBE; NYLON
(F) CHI 		8-97431-553-0 01 1 1404- ● ●
192 TUBE; NYLON
(E) CHI 		8-97431-555-0 01 1 1404- ●
192 TUBE; NYLON
(E) CHI 		8-97431-681-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5300MM(53W) (C) CHI 		8-97431-578-0 01 1 1404- ●
192 TUBE; NYLON
WHEEL BASE 5900MM(59W) (C) CHI 		8-97431-579-0 01 1 1404- ●
192 TUBE; NYLON
(C) CHI 		8-97431-640-0 01 1 1404- ●
218 GROMMET; VINYL HOSE 8-94107-642-1 01 1 1404- ●
218 GROMMET; VINYL HOSE 8-94107-642-1 02 1 1404- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 CHI 		9-09914-701-0 01 1 1404- ● ●
288 PLUG
OD=24 CHI 		8-94119-796-0 01 1 1404- ●
471 SEAL; BRKT
CHI 		1-79738-832-0 01 1 1404- ● ●
