3-75 — BRAKE PIPING; AIR,FRONT (#144365) — 74 parça

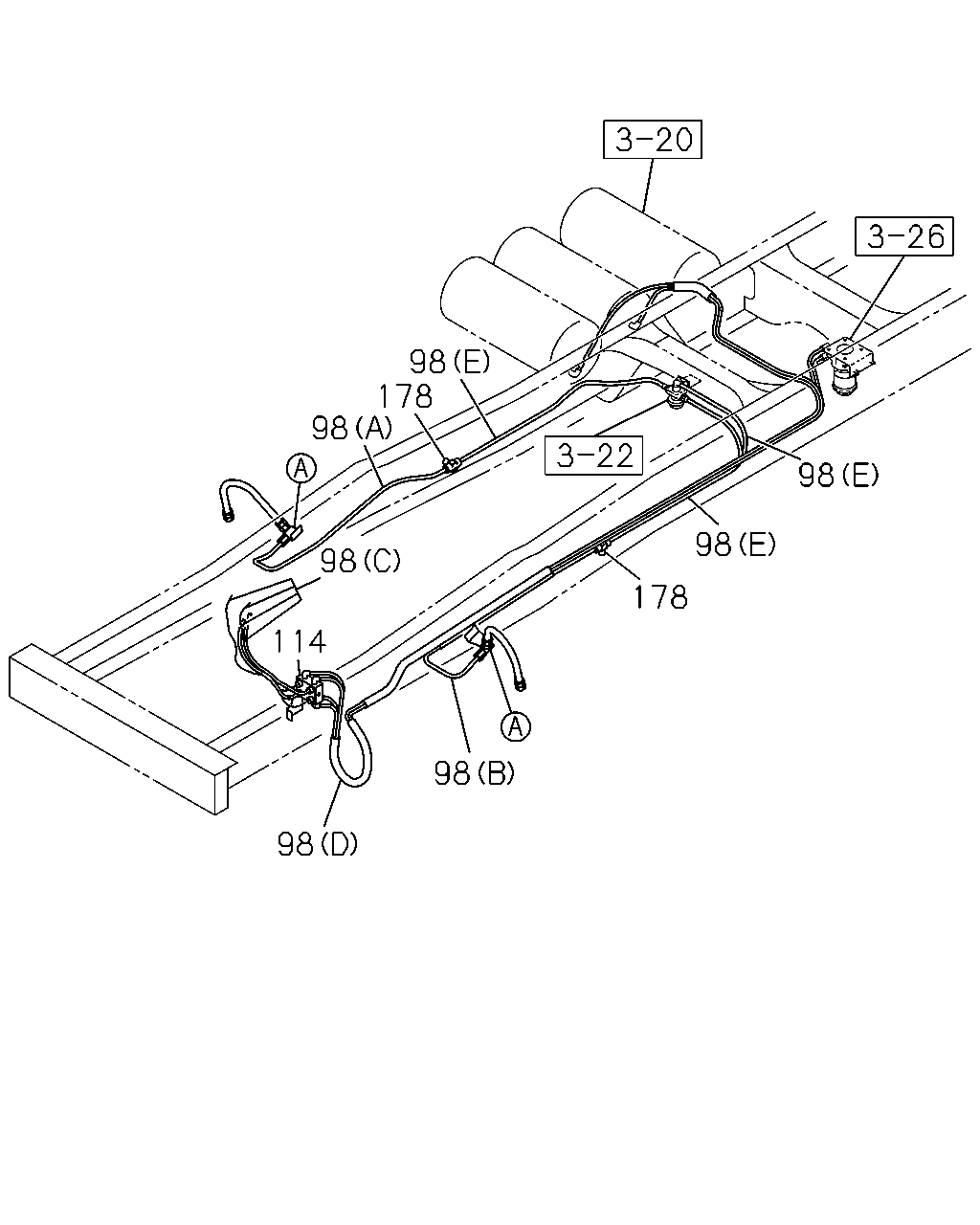

çizim 433051
98 178 98 98 114 98 98 178 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
98 TUBE; NYLON
(B) CHI 		8-97431-609-0 01 1 1404- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ●
98 TUBE; NYLON
(D) CHI 		8-97431-622-0 01 1 1404- ●
98 TUBE; NYLON
WHEEL BASE 5300MM(53W) (D) CHI 		8-97431-606-0 01 1 1404- ●
98 TUBE; NYLON
WHEEL BASE 5900MM(59W) (D) CHI 		8-97431-607-0 01 1 1404- ●
98 TUBE; NYLON
(C) CHI 		8-97431-605-0 01 1 1404- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ● ●
98 TUBE; NYLON
(A) CHI 		8-97431-608-0 01 1 1404- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ● ●
114 UNION; NYLON TUBE 8-97431-471-0 01 1 1404- ● ●
178 UNION 8-97431-456-0 01 1 1404- ● ●
178 UNION 8-97431-456-0 01 1 1404- ● ●

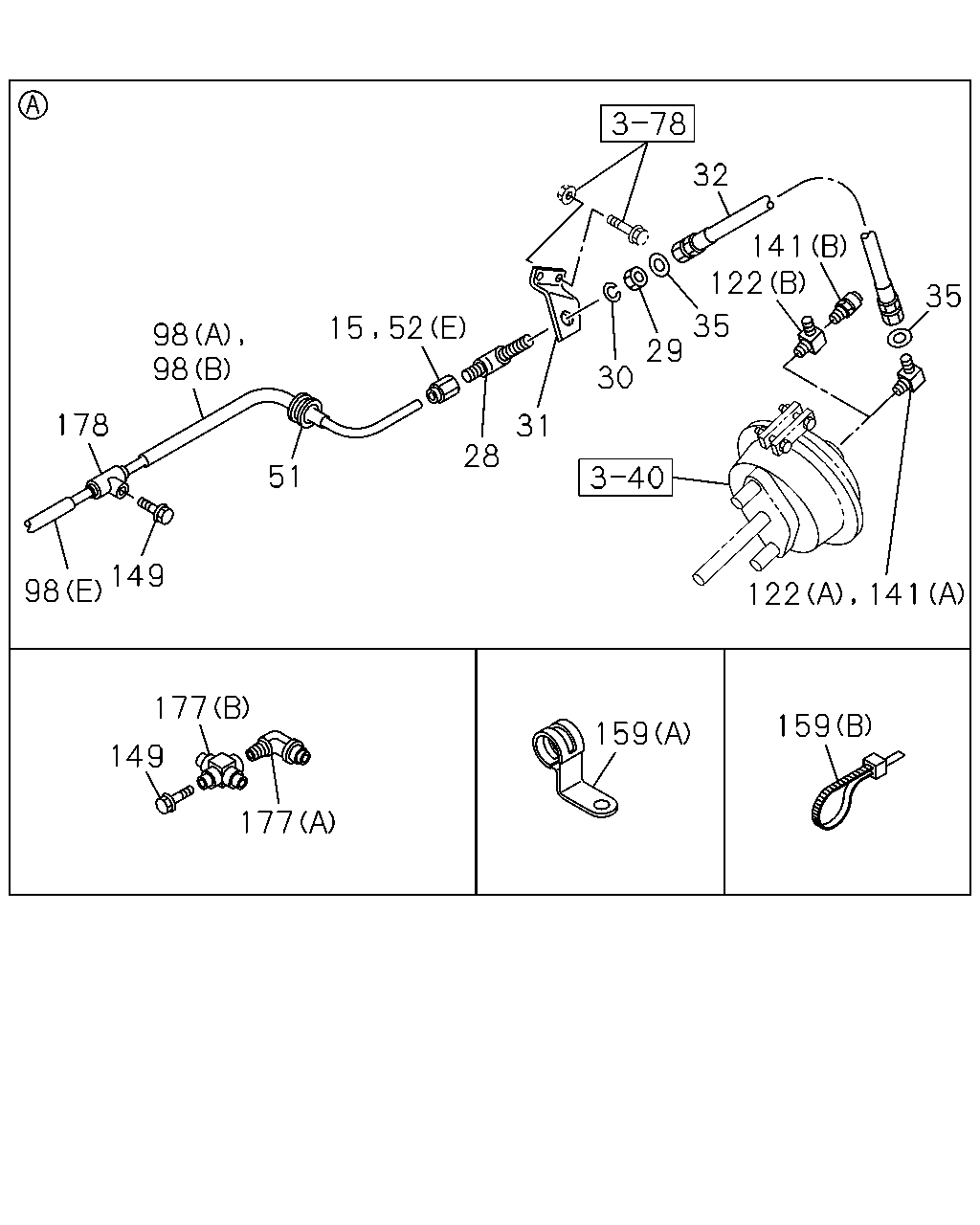

çizim 433053
98 98 178 51 149 98 177 149 177 159 159 122 141 35 141 32 122 35 29 30 31 28 52 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT 		8-97431-455-0 01 1 1404- ● ●
28 NIPPLE; AIR PIPE
CHI 		1-09654-128-1 02 1 1404- ● ●
29 NUT; NIPPLE
M20 CHI 		0-91111-520-0 02 1 1404- ● ●
30 WASHER; LK,NIPPLE
ID=20.2 CHI 		0-91510-520-0 02 1 1404- ● ●
31 BRACKET; NIPPLE
CHI 		8-97430-381-0 02 1 1404- ● ●
32 HOSE; FLEX,FRT
L=500 CHI 		0-57847-500-1 02 1 1404- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 CHI 		9-09572-510-0 04 1 1404- ● ●
51 GROMMET; NYLON TUBE
ID=32 OD=40 T=23 CHI 		1-09332-112-0 01 1 1404- ● ●
51 GROMMET; NYLON TUBE
ID=32 OD=40 T=23 CHI 		1-09332-112-0 01 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		8-97431-446-0 02 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		8-97431-400-0 02 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT 		8-97431-401-0 02 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN12 R1/4 STRAIGHT 		8-97431-451-0 02 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		8-97431-455-0 01 1 1404- ● ●
98 TUBE; NYLON
(B) CHI 		8-97431-609-0 01 1 1404- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ●
98 TUBE; NYLON
(D) CHI 		8-97431-622-0 01 1 1404- ●
98 TUBE; NYLON
WHEEL BASE 5300MM(53W) (D) CHI 		8-97431-606-0 01 1 1404- ●
98 TUBE; NYLON
WHEEL BASE 5900MM(59W) (D) CHI 		8-97431-607-0 01 1 1404- ●
98 TUBE; NYLON
(C) CHI 		8-97431-605-0 01 1 1404- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ● ●
98 TUBE; NYLON
(A) CHI 		8-97431-608-0 01 1 1404- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ● ●
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 ELBOW CHI 		1-09660-684-0 01 1 1404- ● ●
122 CONNECTOR; FLEX HOSE
(B) 		1-09661-592-0 01 1 1404- ● ●
141 CONNECTOR; TEST
(B) 		1-47459-013-1 01 1 1404- ● ●
141 CONNECTOR; TEST
(A) M20 & PT3/8 ELBOW CHI 		1-09660-684-0 01 1 1404- ● ●
141 CONNECTOR; TEST
(A) M20 & PT3/8 ELBOW CHI 		1-09660-684-0 01 1 1404- ● ●
149 BOLT; UNION
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ● ●
149 BOLT; UNION
M8X16 FLANGE CHI 		0-28050-816-0 01 1 1404- ● ●
159 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) (B) L=350 CHI 		1-09707-183-0 30 1 1404- ●
159 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (B) L=350 CHI 		1-09707-183-0 32 1 1404- ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 CHI 		1-09700-994-0 02 1 1404- ● ●
159 CLIP; NYLON TUBE
(B) L=350 CHI 		1-09707-183-0 21 1 1404- ●
177 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1404- ●
177 CONNECTOR
(B) 		8-97431-670-0 01 1 1404- ●
178 UNION 8-97431-456-0 01 1 1404- ● ●
178 UNION 8-97431-456-0 01 1 1404- ● ●

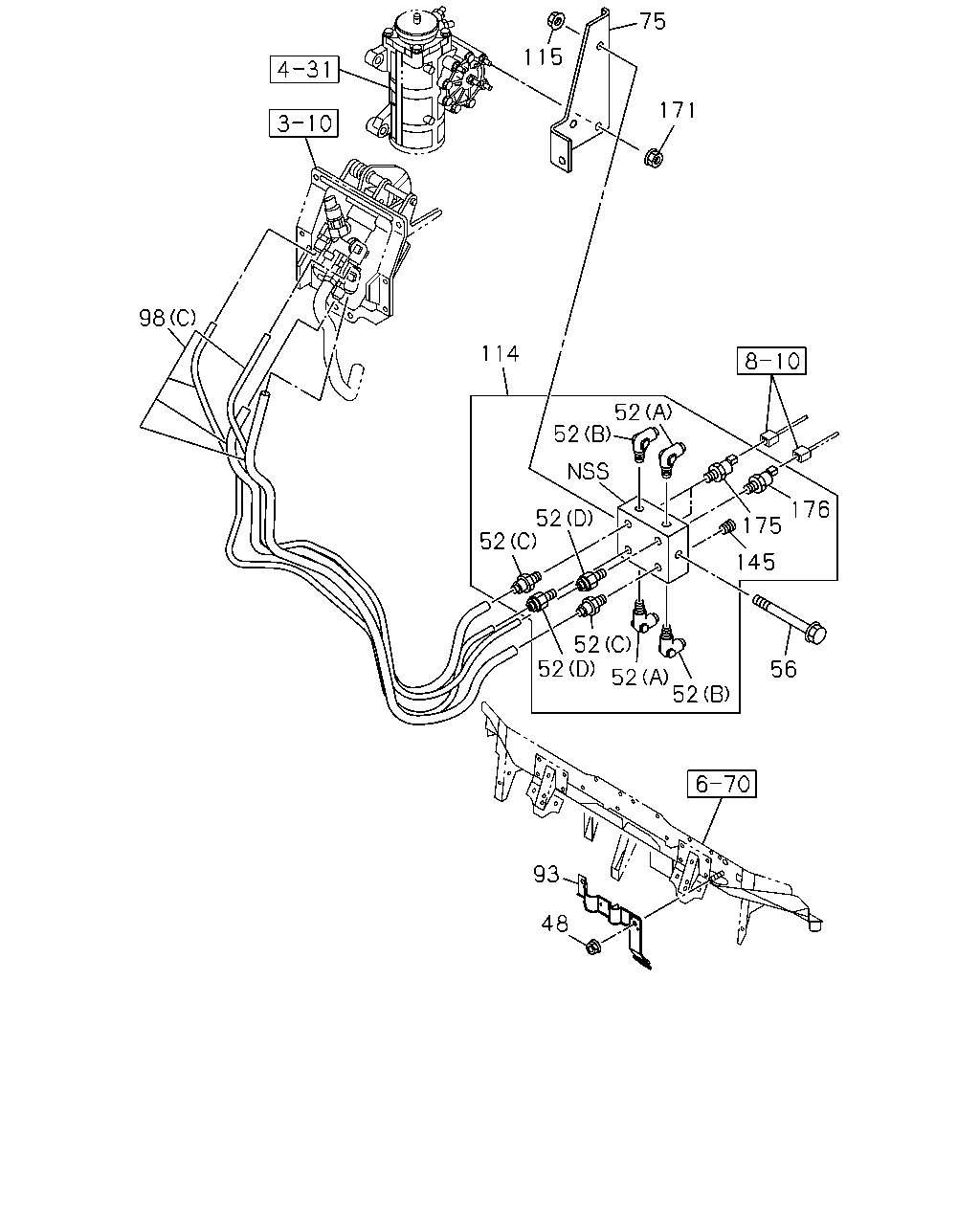

çizim 433409
75 171 115 98 114 52 52 52 52 52 52 52 52 145 176 175 56 93 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE CHI 		0-91180-106-0 02 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		8-97431-446-0 02 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		8-97431-400-0 02 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT 		8-97431-401-0 02 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN12 R1/4 STRAIGHT 		8-97431-451-0 02 1 1404- ● ●
52 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		8-97431-455-0 01 1 1404- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE CHI 		0-28050-800-0 01 1 1404- ● ●
75 BRACKET; UNION
CHI 		8-97430-371-0 01 1 1404- ● ●
93 BRACKET; UNION,TUBE
CHI 		8-98112-515-1 01 1 1404- ● ●
98 TUBE; NYLON
(B) CHI 		8-97431-609-0 01 1 1404- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ●
98 TUBE; NYLON
(D) CHI 		8-97431-622-0 01 1 1404- ●
98 TUBE; NYLON
WHEEL BASE 5300MM(53W) (D) CHI 		8-97431-606-0 01 1 1404- ●
98 TUBE; NYLON
WHEEL BASE 5900MM(59W) (D) CHI 		8-97431-607-0 01 1 1404- ●
98 TUBE; NYLON
(C) CHI 		8-97431-605-0 01 1 1404- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ● ●
98 TUBE; NYLON
(A) CHI 		8-97431-608-0 01 1 1404- ● ●
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404- ● ●
114 UNION; NYLON TUBE 8-97431-471-0 01 1 1404- ● ●
115 NUT; TUBE UNION
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1404- ● ●
171 NUT; BRACKET
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 CHI 		1-80220-023-1 02 1 1404- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 CHI 		8-98010-857-0 01 1 1404- ● ●
