◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#144364) — 98 parça

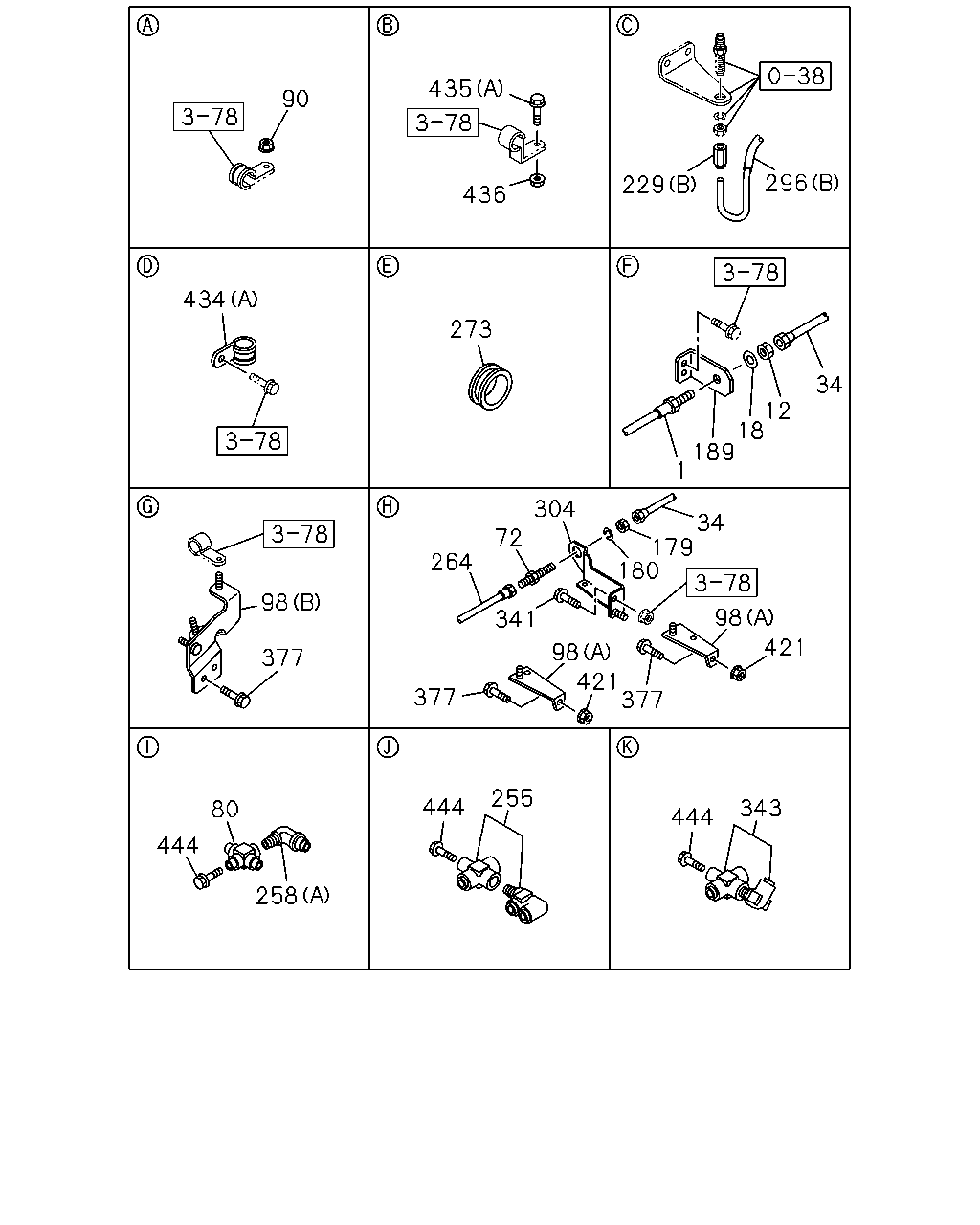

çizim 432526
90 435 436 229 296 34 12 18 189 1 34 179 180 98 421 98 421 377 341 304 72 264 377 273 434 98 377 343 444 255 444 258 80 444
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97431-507-0 01 1 1404- ● ●
12 NUT; UNION
M22 CHI 		0-91111-522-0 01 1 1404- ● ●
18 WASHER; LK,UNION
ID=22.5 CHI 		0-91510-522-0 01 1 1404- ● ●
34 PIPE; AIR
L=1287 CHI 		8-97620-985-0 01 1 1404- ●
34 PIPE; AIR
L=1258 CHI 		8-97618-580-0 01 1 1404- ●
72 UNION; AIR PIPE
M22 CHI 		0-92123-315-0 01 1 1404- ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 CHI 		1-09660-735-1 01 1 1404- ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 CHI 		1-09660-735-1 01 1 1404- ● ●
90 NUT; TUBE CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
98 BRACKET; AIR PIPE
(A) CHI 		8-97609-096-0 02 1 1404- ● ●
98 BRACKET; AIR PIPE
(B) CHI 		8-97610-999-0 01 1 1404- ● ●
179 NUT; UNION
M22 CHI 		0-91111-522-0 01 1 1404- ● ●
180 WASHER; LK,UNION
ID=22.5 CHI 		0-91510-522-0 01 1 1404- ● ●
189 BRACKET; FLEX HOSE
CHI 		1-47479-473-0 01 1 1404- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		8-97431-454-0 01 1 1404- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		8-97431-585-0 01 1 1404- ● ●
255 UNION; NYLON TUBE 8-97431-545-0 01 1 1404- ● ●
258 CONNECTOR; NYLON TUBE
POWER TAKE OFF-FLYWHEEL(6SZ) (A) DIN8 & R1/4 ELBOW CHI 		1-09660-649-1 01 1 1404- ●
258 CONNECTOR; NYLON TUBE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) DIN8 R1/4 STRAIGHT CHI 		1-09660-647-1 01 1 1404- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT CHI 		1-09660-647-1 01 1 1404- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (B) PT1/4 4WAY CHI 		1-09660-358-0 01 1 1404- ● ●
264 HOSE; FLEX
WHEEL BASE 5900MM(59W) L=1176 		8-97431-586-0 01 1 1404- ●
264 HOSE; FLEX
L=1176 		8-97431-586-0 01 1 1404- ●
264 HOSE; FLEX
WHEEL BASE 5300MM(53W) L=1026 		8-97431-587-0 01 1 1404- ●
273 GROMMET
ID=32 OD=40 T=18 CHI 		1-09891-003-0 01 1 1404- ● ●
296 TUBE; NYLON
(D) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ● ●
296 TUBE; NYLON
(A) CHI 		8-97431-509-0 01 1 1404- ●
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=12 CHI 		1-87410-069-0 01 1 1404- ● ●
296 TUBE; NYLON
(A) CHI 		8-97431-676-0 01 1 1404- ●
296 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 CHI 		1-87410-070-0 01 1 1404- ●
296 TUBE; NYLON
(B) CHI 		8-97431-582-0 01 1 1404- ● ●
304 BRACKET; UNION
CHI 		8-97610-362-1 01 1 1404- ● ●
341 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404- ● ●
343 UNION; NYLON TUBE 8-97431-544-0 01 1 1404- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
377 BOLT; BRKT FIX
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404- ● ●
421 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
434 CLIP
(A) ID=18 L=28 CHI 		1-09701-067-0 01 1 1404- ● ●
434 CLIP
(B) L=350 CHI 		1-09707-183-0 03 1 1404- ● ●
434 CLIP
FULL FLOATING CAB<W16> (C) ID=7 L=16 CHI 		0-95234-622-0 01 1 1404- ●
434 CLIP
FULL FLOATING CAB<W16> (D) 		1-09987-161-0 01 1 1404- ●
435 BOLT; CLIP
(A) M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ● ●
435 BOLT; CLIP
FULL FLOATING CAB<W16> (B) M6X16 FLANGE CHI 		0-28650-616-0 01 1 1404- ●
436 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
444 BOLT; UNION
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
444 BOLT; UNION
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ● ●
444 BOLT; UNION
M8X16 FLANGE CHI 		0-28050-816-0 01 1 1404- ● ●

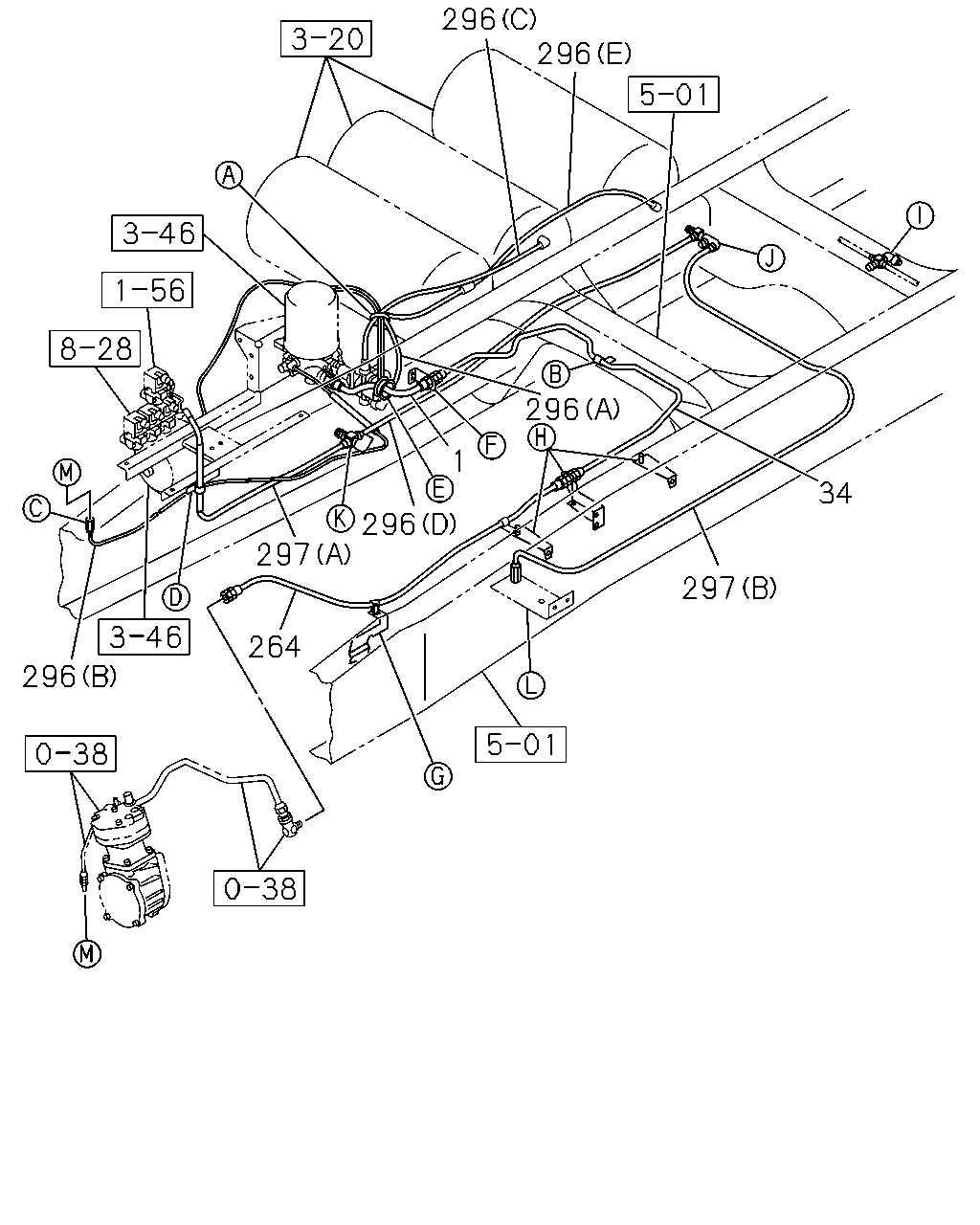

çizim 433201
296 296 264 297 296 1 296 297 34 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97431-507-0 01 1 1404- ● ●
34 PIPE; AIR
L=1287 CHI 		8-97620-985-0 01 1 1404- ●
34 PIPE; AIR
L=1258 CHI 		8-97618-580-0 01 1 1404- ●
264 HOSE; FLEX
WHEEL BASE 5900MM(59W) L=1176 		8-97431-586-0 01 1 1404- ●
264 HOSE; FLEX
L=1176 		8-97431-586-0 01 1 1404- ●
264 HOSE; FLEX
WHEEL BASE 5300MM(53W) L=1026 		8-97431-587-0 01 1 1404- ●
296 TUBE; NYLON
(D) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404- ● ●
296 TUBE; NYLON
(A) CHI 		8-97431-509-0 01 1 1404- ●
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=12 CHI 		1-87410-069-0 01 1 1404- ● ●
296 TUBE; NYLON
(A) CHI 		8-97431-676-0 01 1 1404- ●
296 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 CHI 		1-87410-070-0 01 1 1404- ●
296 TUBE; NYLON
(B) CHI 		8-97431-582-0 01 1 1404- ● ●
297 TUBE; NYLON
FULL FLOATING CAB<W16> (C) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1404- ●
297 TUBE; NYLON
(A) CHI 		8-97431-540-0 01 1 1404- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 CHI 		1-87411-007-0 01 1 1404- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 CHI 		1-87411-007-0 01 1 1404- ●

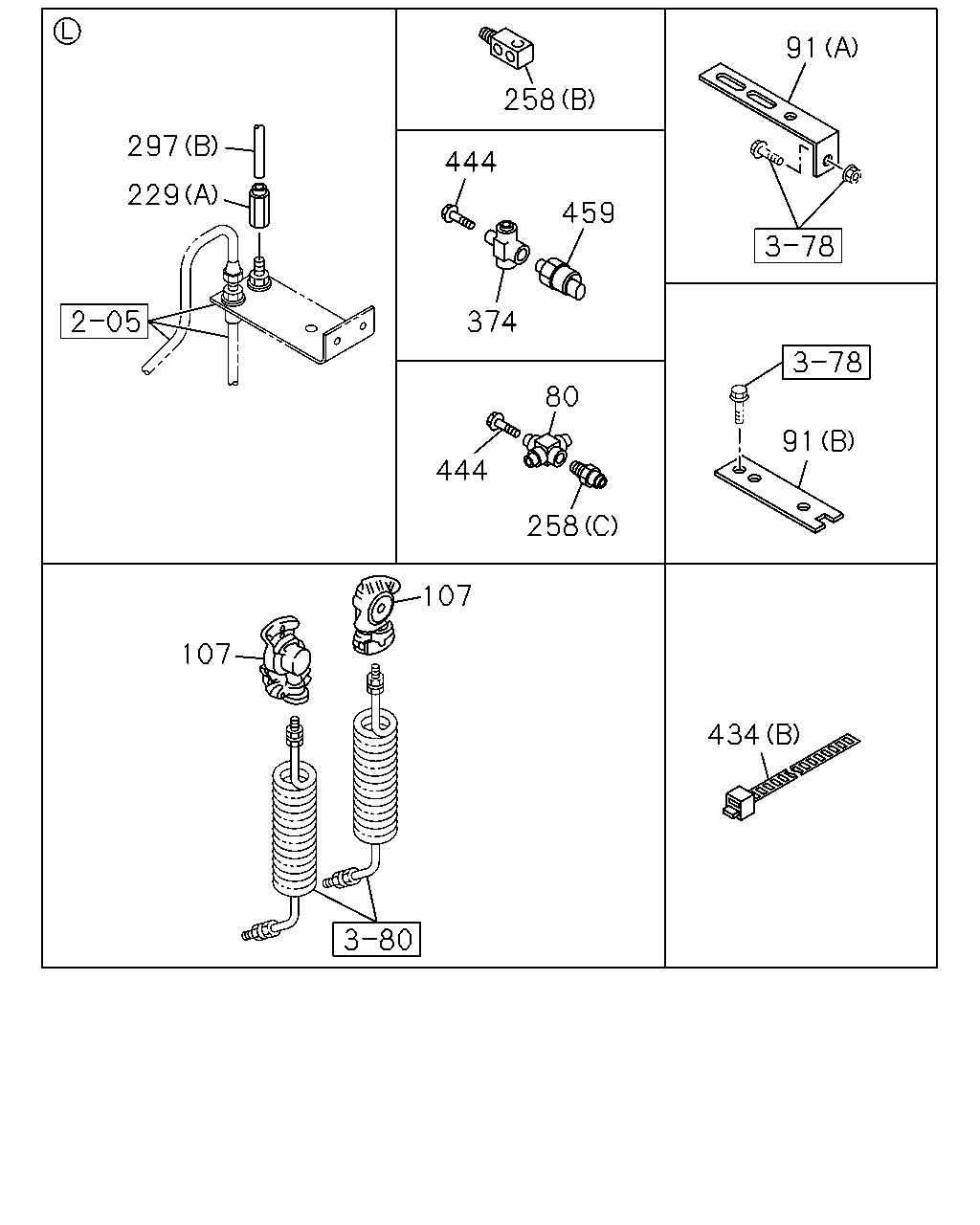

çizim 433286
297 229 444 258 459 374 80 444 258 107 107 91 91 434
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 RC1/4 & M8 CHI 		1-09660-735-1 01 1 1404- ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 CHI 		1-09660-735-1 01 1 1404- ● ●
91 BRACKET; TUBE CLIP
(A) L=100 H=30 CHI 		1-47477-645-2 02 1 1404- ● ●
91 BRACKET; TUBE CLIP
(B) 		8-97431-488-0 01 1 1404- ● ●
107 COUPLING; SERVICE
EMERGENCY CHI 		1-47478-210-0 01 1 1404- ●
107 COUPLING; SERVICE
SERVICE CHI 		1-47478-211-0 01 1 1404- ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		8-97431-454-0 01 1 1404- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		8-97431-585-0 01 1 1404- ● ●
258 CONNECTOR; NYLON TUBE
POWER TAKE OFF-FLYWHEEL(6SZ) (A) DIN8 & R1/4 ELBOW CHI 		1-09660-649-1 01 1 1404- ●
258 CONNECTOR; NYLON TUBE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) DIN8 R1/4 STRAIGHT CHI 		1-09660-647-1 01 1 1404- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT CHI 		1-09660-647-1 01 1 1404- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (B) PT1/4 4WAY CHI 		1-09660-358-0 01 1 1404- ● ●
297 TUBE; NYLON
FULL FLOATING CAB<W16> (C) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1404- ●
297 TUBE; NYLON
(A) CHI 		8-97431-540-0 01 1 1404- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 CHI 		1-87411-007-0 01 1 1404- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 CHI 		1-87411-007-0 01 1 1404- ●
374 CONNECTOR
DIN8 RC1/4 & M8 		8-97431-457-0 01 1 1404- ● ●
434 CLIP
(A) ID=18 L=28 CHI 		1-09701-067-0 01 1 1404- ● ●
434 CLIP
(B) L=350 CHI 		1-09707-183-0 03 1 1404- ● ●
434 CLIP
FULL FLOATING CAB<W16> (C) ID=7 L=16 CHI 		0-95234-622-0 01 1 1404- ●
434 CLIP
FULL FLOATING CAB<W16> (D) 		1-09987-161-0 01 1 1404- ●
444 BOLT; UNION
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
444 BOLT; UNION
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ● ●
444 BOLT; UNION
M8X16 FLANGE CHI 		0-28050-816-0 01 1 1404- ● ●
459 SWITCH; PRESS
STAMP 5.5 CHI 		8-97609-249-0 01 1 1404- ● ●

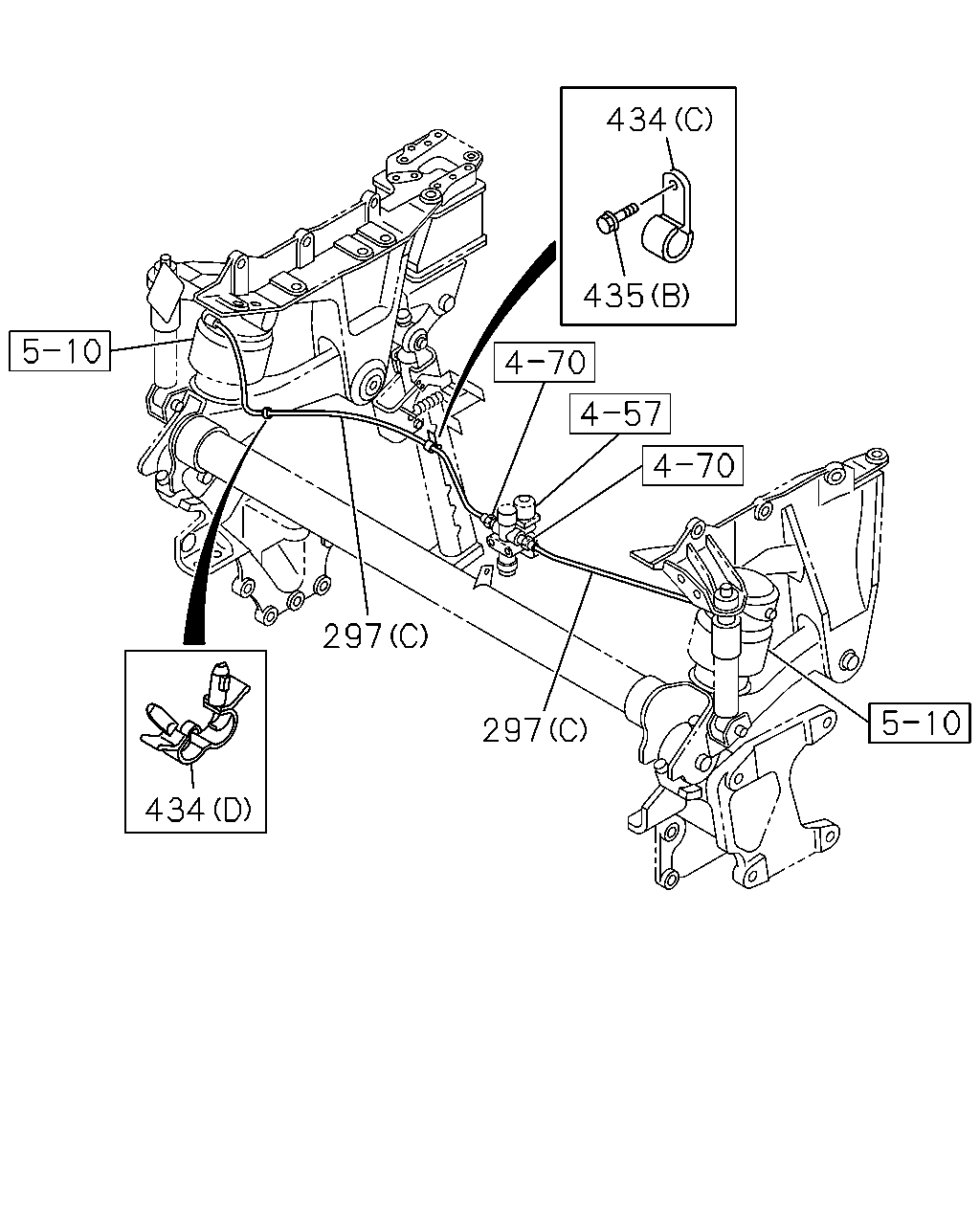

çizim 433339
434 435 297 297 434
BalonParca AdiParca NoAdetTipApplied Date A B
297 TUBE; NYLON
FULL FLOATING CAB<W16> (C) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1404- ●
297 TUBE; NYLON
(A) CHI 		8-97431-540-0 01 1 1404- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 CHI 		1-87411-007-0 01 1 1404- ● ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 CHI 		1-87411-007-0 01 1 1404- ●
434 CLIP
(A) ID=18 L=28 CHI 		1-09701-067-0 01 1 1404- ● ●
434 CLIP
(B) L=350 CHI 		1-09707-183-0 03 1 1404- ● ●
434 CLIP
FULL FLOATING CAB<W16> (C) ID=7 L=16 CHI 		0-95234-622-0 01 1 1404- ●
434 CLIP
FULL FLOATING CAB<W16> (D) 		1-09987-161-0 01 1 1404- ●
435 BOLT; CLIP
(A) M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ● ●
435 BOLT; CLIP
FULL FLOATING CAB<W16> (B) M6X16 FLANGE CHI 		0-28650-616-0 01 1 1404- ●
