Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶
3-45 — LOAD SENSING PROPORTIONING VALVE
(#144361) — 36 parça
Tümü
A - FGZ6MX
B - GGZ6MX
◀

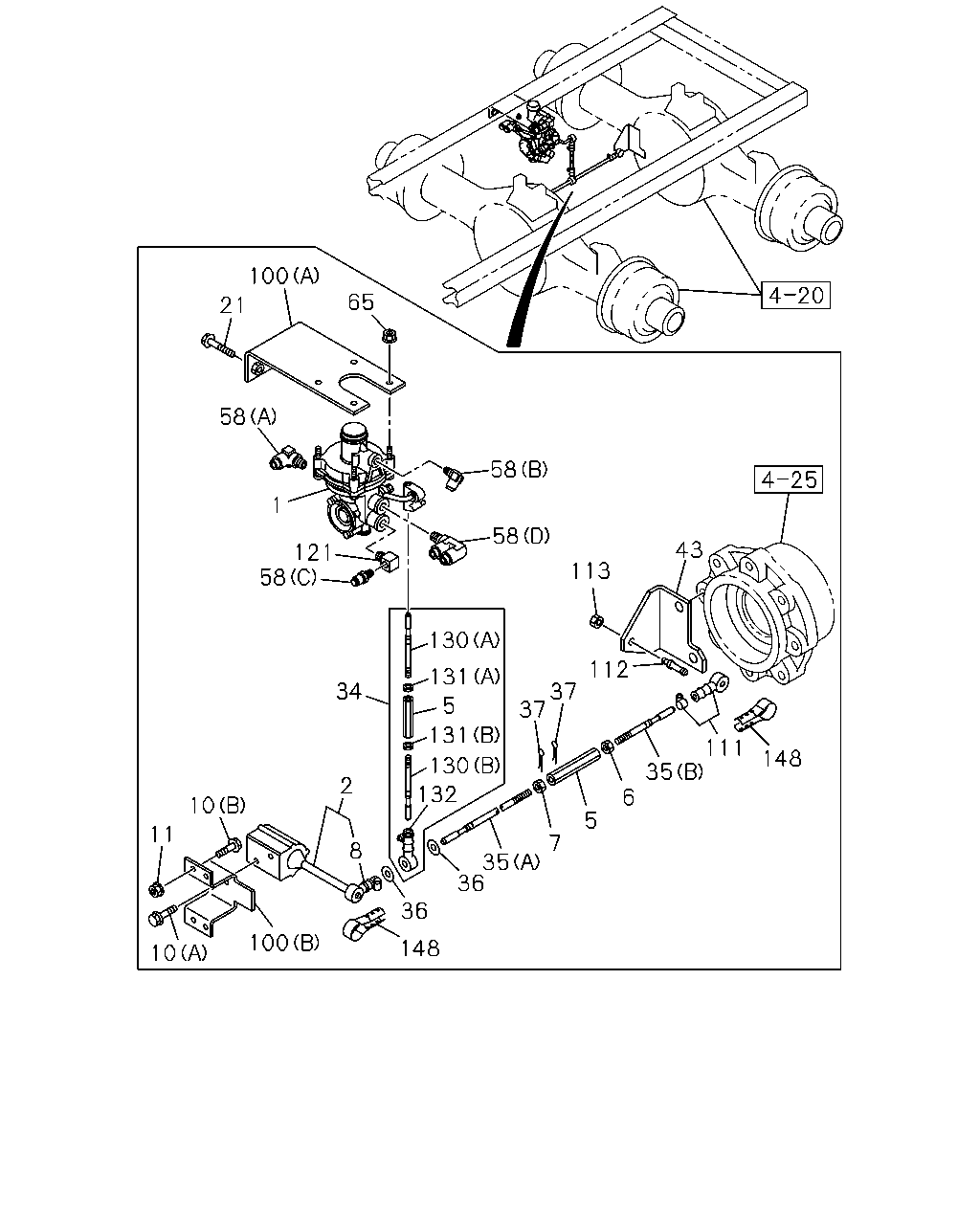

[345A] FIXING (33 parça)

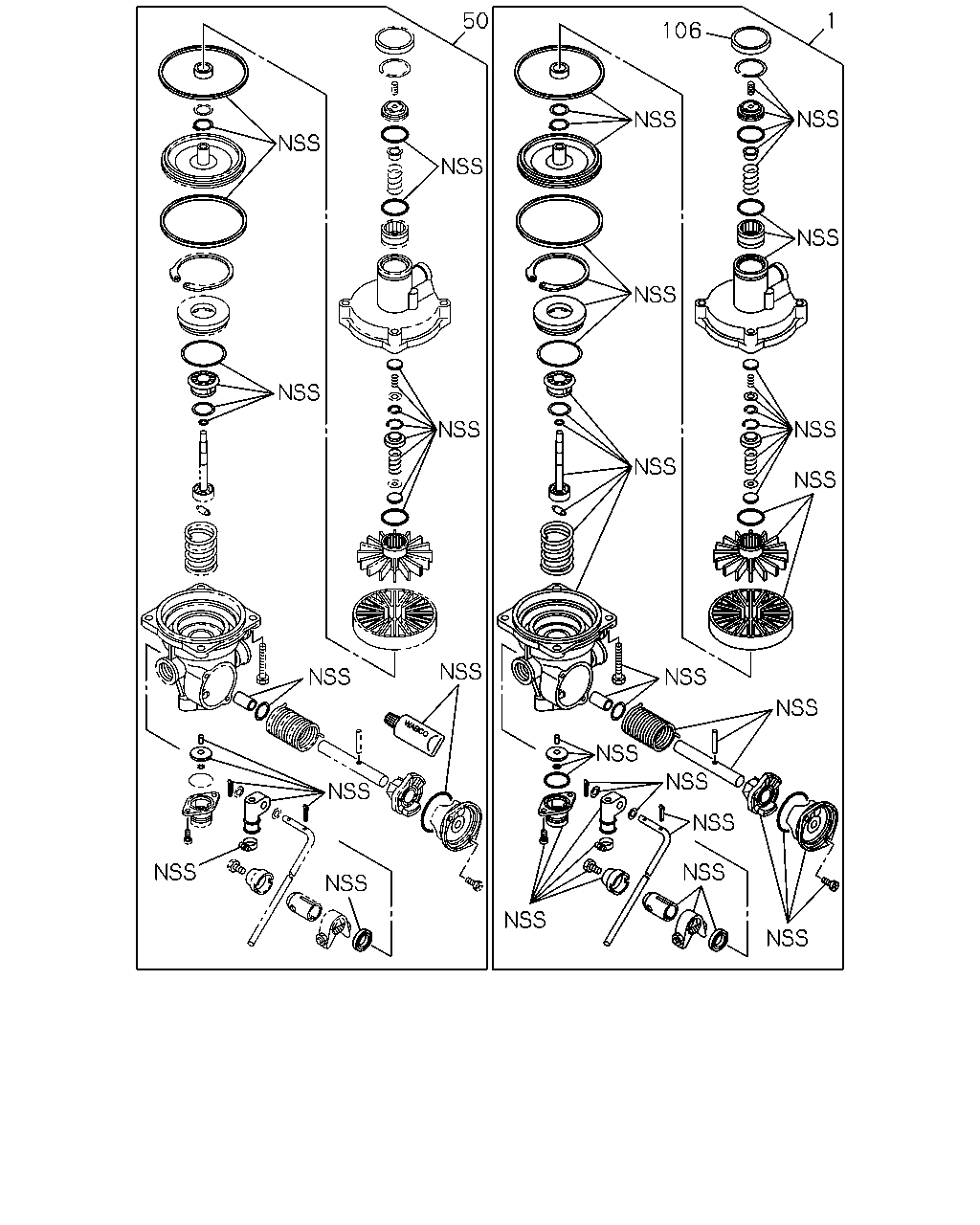

[345A] COMPONENT AND REPAIR KIT (3 parça)
▶
65
100
21
58
1
121
58
58
58
113
112
43
111
148
35
37
37
130
131
5
131
130
132
35
6
5
7
2
8
34
36
148
100
10
11
10
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE ASM; LOAD SENSING PROPORTIONING
8-97431-419-0
01
1
1404-
●
●
2
DAMPER
CHI
1-47725-047-0
01
1
1404-
●
●
5
JOINT
CHI
1-09768-091-0
02
1
1404-
●
●
6
NUT; LK,UPR
M8 CHI
0-91111-508-0
01
1
1404-
●
●
7
NUT; LK,LWR
LH THREAD CHI
1-09409-002-0
01
1
1404-
●
●
8
ROD END
CHI
1-47723-001-0
01
1
1404-
●
●
10
BOLT; BRKT
(A) M8X12 FLANGE CHI
0-28050-812-0
02
1
1404-
●
●
10
BOLT; BRKT
(B) M8X25 FLANGE CHI
0-28650-825-0
04
1
1404-
●
●
11
NUT; BRKT
M8 FLANGE CHI
0-91180-208-0
04
1
1404-
●
●
21
BOLT; BRKT
M8X25 FLANGE CHI
0-28650-825-0
02
1
1404-
●
●
34
ROD; LEVER TO ROD,LSPV
CHI
1-47725-046-0
01
1
1404-
●
●
35
ROD; LINK,LSPV
(B) CHI
1-09765-282-0
01
1
1404-
●
●
35
ROD; LINK,LSPV
(A) CHI
1-09765-318-0
01
1
1404-
●
●
36
WASHER; PL,ROD
ID=8.4 OD=16 CHI
0-91610-508-0
02
1
1404-
●
●
37
PIN; SPLIT,ROD
OD=1.8 L=25 CHI
0-81122-025-0
02
1
1404-
●
●
43
BRACKET; DAMPER TO AXLE
CHI
1-42129-517-0
01
1
1404-
●
●
58
CONNECTOR; LSPV
(C) DIN8 R1/4 STRAIGHT
8-97431-401-0
01
1
1404-
●
●
58
CONNECTOR; LSPV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW
8-97431-450-0
01
1
1404-
●
●
58
CONNECTOR; LSPV
(B) DIN8 & R1/4 ELBOW
8-97431-400-0
01
1
1404-
●
●
58
CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW
8-97431-399-0
01
1
1404-
●
●
65
NUT; LSPV
M8 FLANGE CHI
0-91180-108-0
04
1
1404-
●
●
100
BRACKET; LSPV
(B) CHI
1-42129-511-0
01
1
1404-
●
●
100
BRACKET; LSPV
(A) CHI
1-47471-208-0
01
1
1404-
●
●
111
RUBBER; JOINT,LSPV
CHI
1-47723-001-0
01
1
1404-
●
●
112
PIN; JOINT RUBBER
CHI
1-09744-123-0
01
1
1404-
●
●
113
NUT; JOINT RUBBER
M8 FLANGE CHI
0-91180-108-0
01
1
1404-
●
●
121
ADAPTER
PT1/4 & PT3/8 2WAY CHI
1-09660-809-0
01
1
1404-
●
●
130
ROD; JOINT
(B) CHI
1-09765-283-0
01
1
1404-
●
●
130
ROD; JOINT
(A) CHI
1-09765-290-0
01
1
1404-
●
●
131
NUT; JOINT
(B) LH THREAD CHI
1-09409-002-0
01
1
1404-
●
●
131
NUT; JOINT
(A) CHI
1-48119-089-0
01
1
1404-
●
●
132
RUBBER ASM; CONN
CHI
1-47723-001-0
02
1
1404-
●
●
148
COVER; JOINT RUBBER
CHI
1-47729-058-0
02
1
1404-
●
●
50
106
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE ASM; LOAD SENSING PROPORTIONING
8-97431-419-0
01
1
1404-
●
●
50
REPAIR KIT; LSPV
CHI
1-85576-393-0
01
1
1404-
●
●
106
COVER; PISTON
CHI
1-47729-001-0
01
1
1404-
●
●
