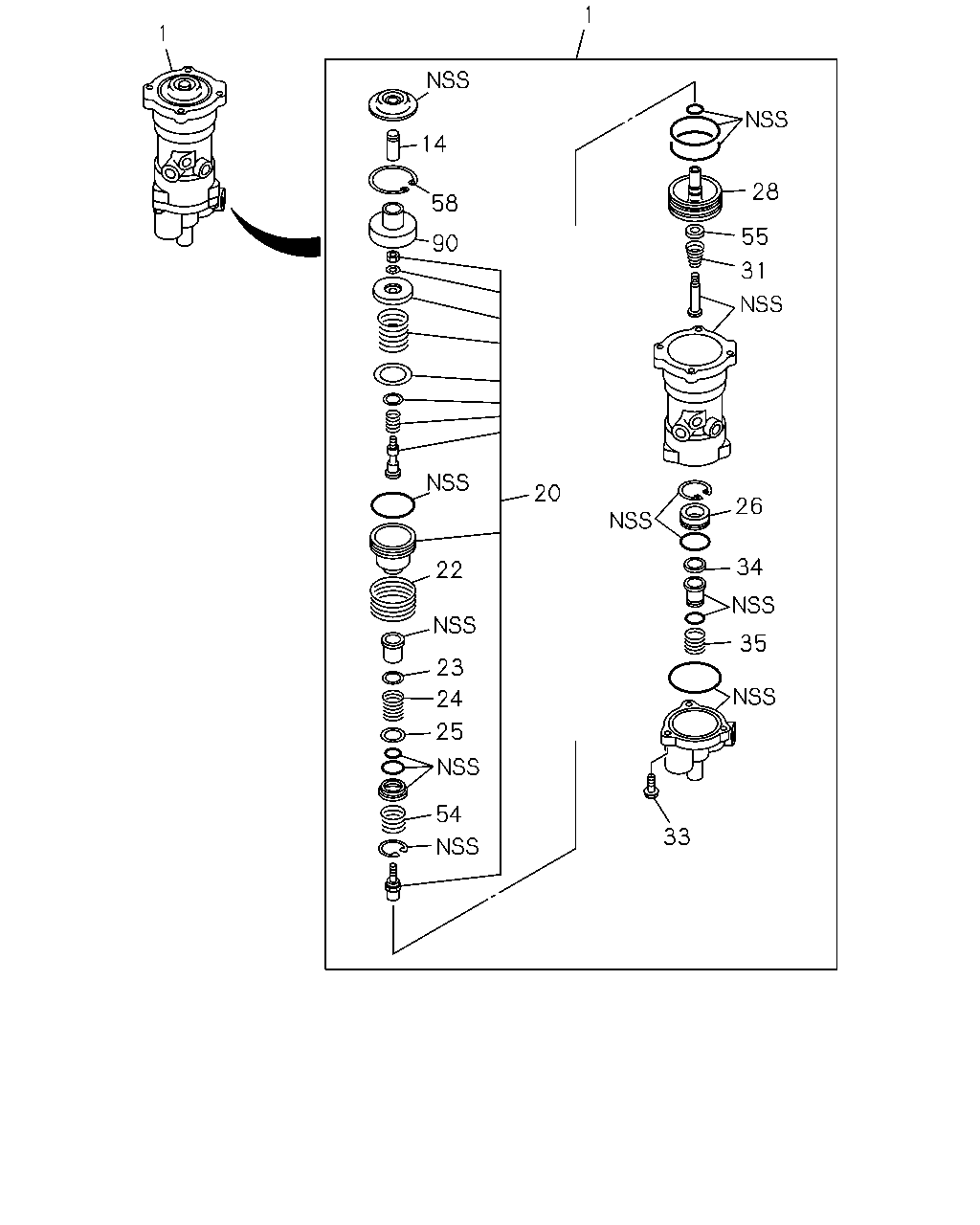

3-34 — BRAKE VALVE; AIR (#144358) — 19 parça

1 1 14 58 90 28 55 31 20 22 23 24 25 54 26 34 35 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; BRK CHI	8-98222-788-0	01	1	1404-	●	●
14	PLUNGER; BRK VLV CHI	1-48119-641-0	01	1	1404-	●	●
20	PISTON; UPR,BRK VLV CHI	1-48119-651-0	01	1	1404-	●	●
22	SPRING; PISTON,LWR,BRK VLV CHI	1-48123-076-0	01	1	1404-	●	●
23	WASHER; UPR,BRK VLV CHI	1-48129-299-0	01	1	1404-	●	●
24	SPRING; UPR,BRK VLV CHI	1-48123-077-0	01	1	1404-	●	●
25	WASHER; PISTON,BRK VLV CHI	1-48129-300-0	01	1	1404-	●	●
26	RETAINER; VLV,BRK VLV CHI	1-48129-308-0	01	1	1404-	●	●
28	PISTON; LWR,BRK VLV CHI	1-48129-302-0	01	1	1404-	●	●
31	SPRING; VLV,BRK VLV CHI	1-48123-079-0	01	1	1404-	●	●
33	BOLT; BODY,BRK VLV CHI	1-48119-213-0	03	1	1404-	●	●
34	RETAINER; VLV,BRK VLV CHI	1-48129-307-0	01	1	1404-	●	●
35	SPRING; VLV,BRK VLV CHI	1-48123-078-0	01	1	1404-	●	●
54	SPRING; PISTON,UPR,BRK VLV CHI	1-48123-075-0	01	1	1404-	●	●
55	RETAINER; PLATE,BRK VLV CHI	1-48129-305-0	01	1	1404-	●	●
58	RING; RET,EXH,BRK VLV CHI	1-48219-198-0	01	1	1404-	●	●
90	GUIDE; PLUNGER CHI	1-48119-642-0	01	1	1404-	●	●

2 58

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	REPAIR KIT; BRK VLV CHI	8-98222-820-0	01	1	1404-	●	●
	58	RING; RET,EXH,BRK VLV CHI	1-48219-198-0	01	1	1404-	●	●
