Sayfa 3-05 - Isuzu EPC

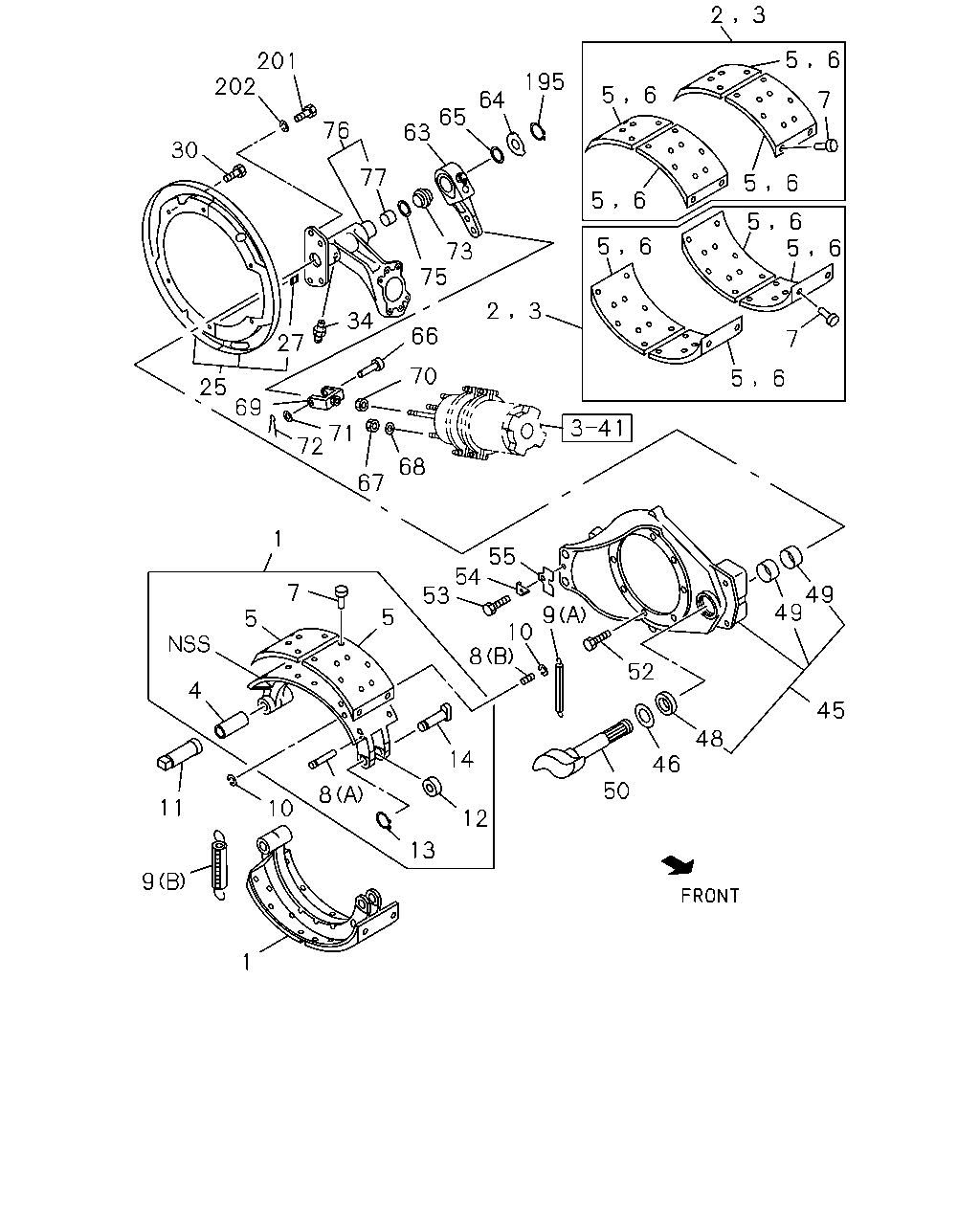

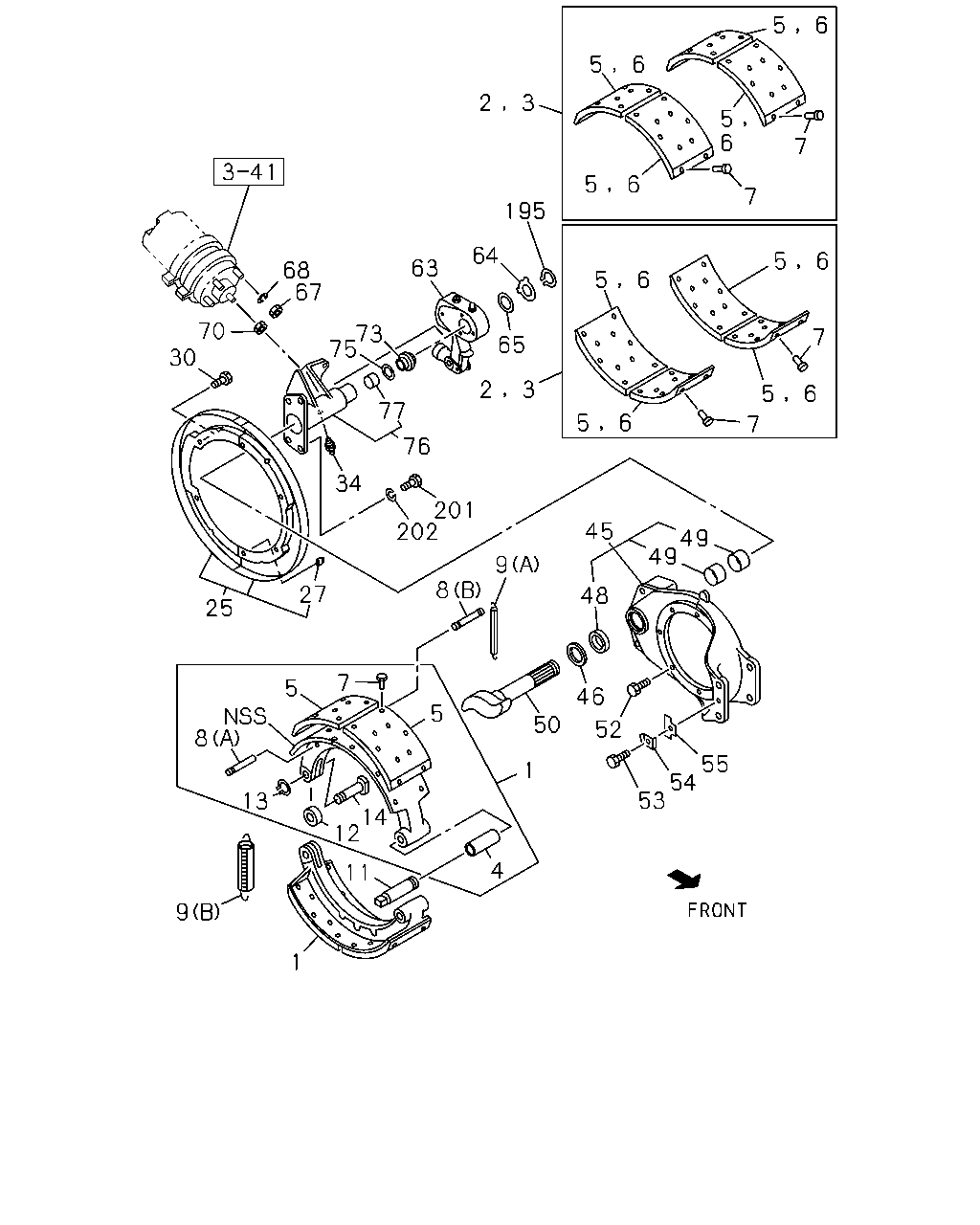

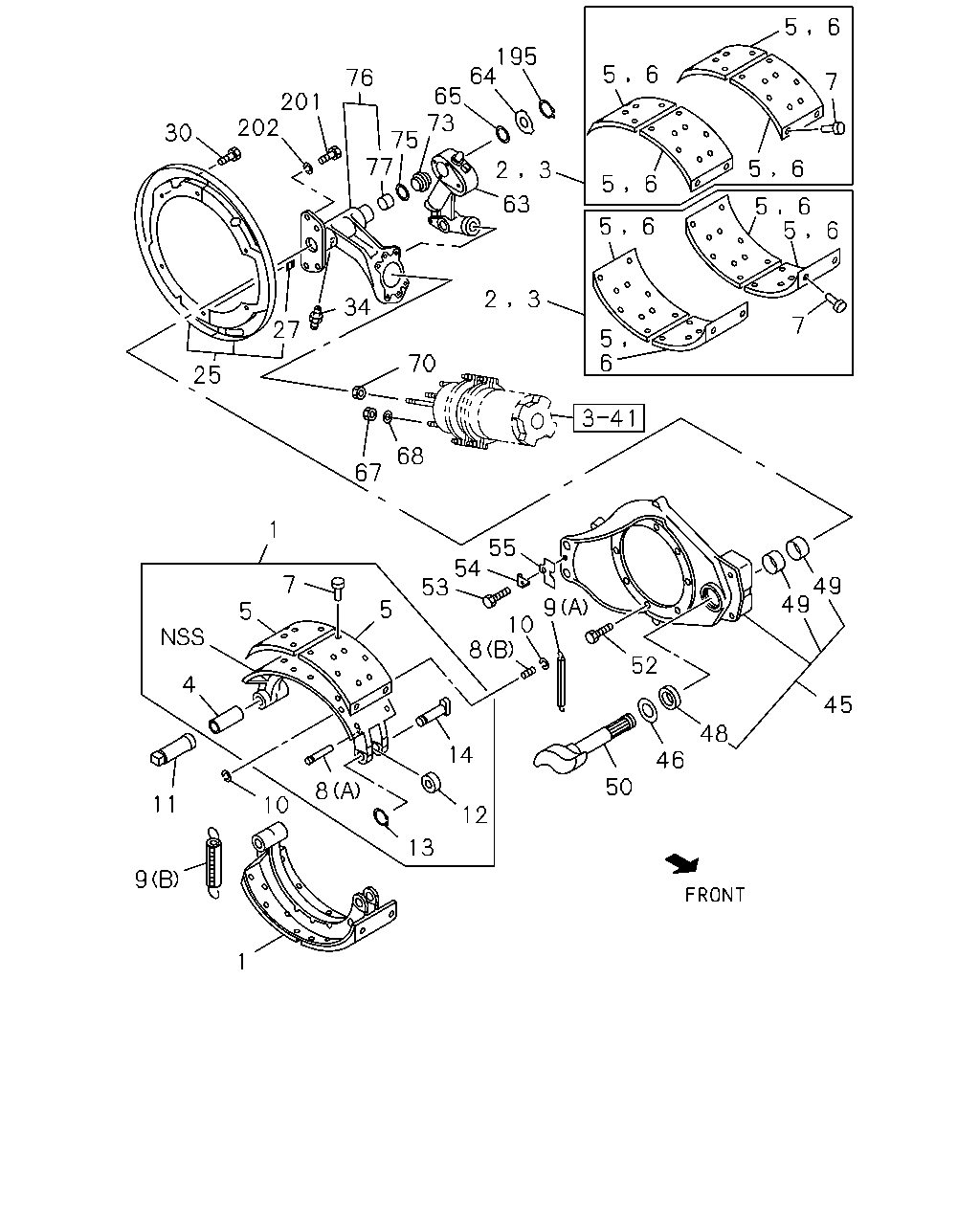

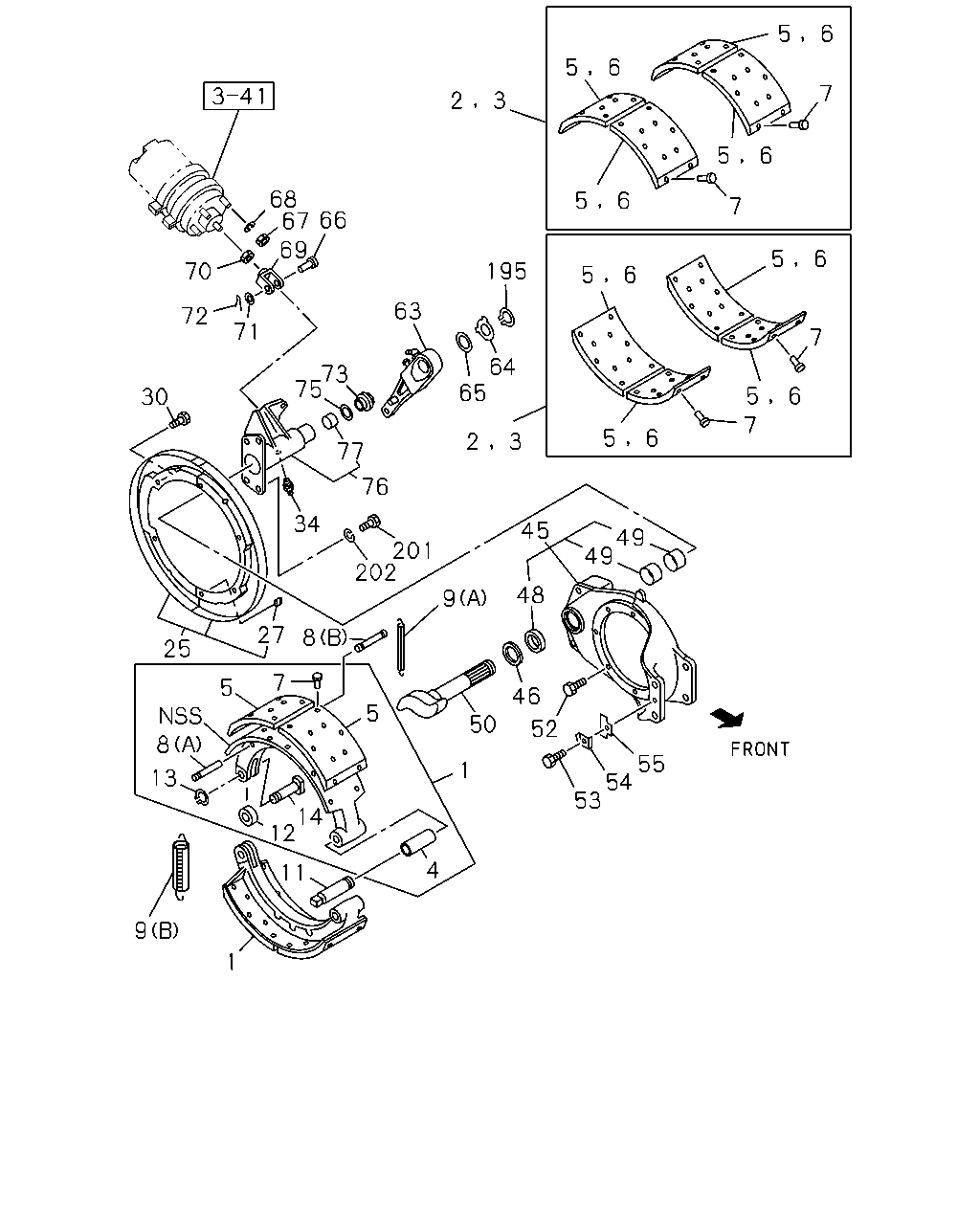

3-05 — REAR WHEEL BRAKE (#144353) — 758 parça

6 7 6 5 5 7 6 5 6 5 6 5 6 5 5 6 7 5 6 7 3 2 195 63 64 65 2 3 66 67 68 69 70 72 73 75 76 77 34 30 71 201 202 8 9 45 49 49 48 46 50 52 55 54 53 4 1 5 7 27 25 5 8 13 12 11 14 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR FORWARD LEADING	1-47120-336-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-713-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-713-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-337-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-714-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-714-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-338-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-715-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-715-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-339-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-716-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-716-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD TRAILING	1-47120-341-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-341-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-341-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD TRAILING	1-47120-343-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-343-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-343-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD LEADING	1-47170-398-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-398-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-398-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD LEADING	1-47170-399-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-399-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-399-0	01	1	1405-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-521-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-521-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-523-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-523-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-319-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-319-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-435-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-435-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-522-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-522-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-524-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-524-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-320-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-320-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-436-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-436-0	01	1	1404-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1404-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1404-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-797-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-797-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD TRAILING T=16	1-47125-436-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-799-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-799-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD TRAILING	1-47125-440-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-440-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-440-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD LEADING	1-47126-712-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-712-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-712-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-798-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-798-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD TRAILING T=17	1-47125-438-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-800-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-800-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD TRAILING	1-47125-442-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-442-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-442-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD TRAILING W/INDICATOR HOLE	1-47125-446-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD LEADING	1-47126-713-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-713-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-713-0	04	1	1405-	●	●
7	RIVET; LINING,RR BRK FORWARD L=18.5	1-09732-034-0	AR	1	1404-1404	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> L=18.5	1-09732-034-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> L=18.5	1-09732-034-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK REARWARD L=19.5	1-09732-035-0	AR	1	1404-1404	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B> L=19.5	1-09732-035-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B> L=19.5	1-09732-035-0	AR	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) REARWARD	1-09744-074-0	04	1	1404-1404	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09744-074-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09744-074-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) FORWARD	1-47119-021-0	04	1	1404-1404	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-47119-021-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-47119-021-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	1404-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	1404-	●	●
9	SPRING; RETURN,BRK SHOE (B) FORWARD	1-09583-175-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-09583-175-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-09583-175-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (A) FORWARD	1-09583-196-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (A)	1-09583-196-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (A)	1-09583-196-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (A) REARWARD	1-09583-210-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (A)	1-09583-210-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (A)	1-09583-210-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (B) REARWARD	1-09583-277-2	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09583-277-2	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09583-277-2	02	1	1405-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1404-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1404-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	1404-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	1404-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	1404-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	1404-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	1404-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47151-462-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47151-462-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47151-487-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47151-487-1	02	1	1404-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	01	1	1404-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	01	1	1404-	●	●
30	BOLT; DRUM COVER REARWARD M10X16 W/LK WASHER	0-50541-016-0	12	1	1404-1404	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-220-ML8<B9B> M10X16 W/LK WASHER	0-50541-016-0	12	1	1405-	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-220-ML8<B9B> M10X16 W/LK WASHER	0-50541-016-0	12	1	1405-	●	●
30	BOLT; DRUM COVER FORWARD M10X12	1-47159-187-0	12	1	1404-1404	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-180-ML8<B9E> M10X12	1-47159-187-0	12	1	1405-	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-180-ML8<B9E> M10X12	1-47159-187-0	12	1	1405-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	1404-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	1404-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	1404-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	1404-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	1404-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	1404-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	1404-1404	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	1404-1404	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47146-003-1	04	1	1405-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47141-067-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47141-067-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47141-068-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47141-068-0	02	1	1404-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	1404-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	1404-	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1404-	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1404-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1404-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1404-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	1404-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD RH,REARWARD LH	1-48270-046-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD RH,REARWARD LH	1-48270-046-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> FORWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> FORWARD	1-48270-076-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-076-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-076-0	01	1	1404-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-022-0	02	1	1404-1404	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47149-022-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47149-022-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-054-0	02	1	1404-1404	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47149-054-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47149-054-0	02	1	1405-	●	●
65	SPACER; SLACK ADJ,BRK	1-47143-011-0	02	1	1404-	●	●
65	SPACER; SLACK ADJ,BRK	1-47143-011-0	02	1	1404-	●	●
66	PIN; JAW JOINT BRAKE ADJUSTER MANUAL<BJR>	1-09744-088-0	02	1	1404-	●	●
66	PIN; JAW JOINT BRAKE ADJUSTER MANUAL<BJR>	1-09744-088-0	02	1	1404-	●	●
67	NUT; POWER CHAMBER FIX M16 CHI	0-91110-516-0	08	1	1404-	●	●
67	NUT; POWER CHAMBER FIX M16 CHI	0-91110-516-0	08	1	1404-	●	●
68	WASHER; LK,CHAMBER ID=16.2 CHI	0-91510-816-0	08	1	1404-	●	●
68	WASHER; LK,CHAMBER ID=16.2 CHI	0-91510-816-0	08	1	1404-	●	●
69	JOINT; JAW BRAKE ADJUSTER MANUAL<BJR>	1-09768-060-1	02	1	1404-	●	●
69	JOINT; JAW BRAKE ADJUSTER MANUAL<BJR>	1-09768-060-1	02	1	1404-	●	●
70	NUT; LK,JAW JOINT M16 CHI	0-91111-516-0	02	1	1404-	●	●
70	NUT; LK,JAW JOINT M16 CHI	0-91111-516-0	02	1	1404-	●	●
71	WASHER; PL,JAW JOINT BRAKE ADJUSTER MANUAL<BJR>	0-91610-616-0	02	1	1404-	●	●
71	WASHER; PL,JAW JOINT BRAKE ADJUSTER MANUAL<BJR>	0-91610-616-0	02	1	1404-	●	●
72	PIN; SPLIT BRAKE ADJUSTER MANUAL<BJR> OD=3.7 L=28 CHI	0-81124-028-0	02	1	1404-	●	●
72	PIN; SPLIT BRAKE ADJUSTER MANUAL<BJR> OD=3.7 L=28 CHI	0-81124-028-0	02	1	1404-	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-010-0	02	1	1404-1404	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47143-010-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47143-010-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-016-0	02	1	1404-1404	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47143-016-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47143-016-0	02	1	1405-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	1404-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-250-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-250-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-251-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-251-0	01	1	1404-	●	●
77	BUSHING	1-47146-003-1	02	1	1404-	●	●
77	BUSHING	1-47146-003-1	02	1	1404-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	1404-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	1404-	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35 CHI	0-20851-435-0	08	1	1404-	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35 CHI	0-20851-435-0	08	1	1404-	●	●
202	WASHER; LK,BRKT ID=14.2 CHI	0-91510-514-0	08	1	1404-	●	●
202	WASHER; LK,BRKT ID=14.2 CHI	0-91510-514-0	08	1	1404-	●	●

55 54 53 52 46 50 48 49 49 45 9 8 1 5 7 5 25 27 202 201 76 34 4 14 12 11 1 9 13 8 77 75 73 63 2 3 5 6 7 5 6 7 6 5 6 65 64 195 2 3 5 6 7 7 6 5 6 5 5 6 68 67 70 30 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR FORWARD LEADING	1-47120-336-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-713-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-713-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-337-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-714-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-714-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-338-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-715-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-715-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-339-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-716-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-716-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD TRAILING	1-47120-341-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-341-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-341-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD TRAILING	1-47120-343-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-343-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-343-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD LEADING	1-47170-398-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-398-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-398-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD LEADING	1-47170-399-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-399-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-399-0	01	1	1405-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-521-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-521-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-523-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-523-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-319-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-319-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-435-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-435-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-522-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-522-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-524-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-524-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-320-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-320-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-436-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-436-0	01	1	1404-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1404-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1404-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-797-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-797-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD TRAILING T=16	1-47125-436-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-799-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-799-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD TRAILING	1-47125-440-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-440-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-440-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD LEADING	1-47126-712-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-712-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-712-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-798-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-798-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD TRAILING T=17	1-47125-438-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-800-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-800-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD TRAILING	1-47125-442-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-442-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-442-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD TRAILING W/INDICATOR HOLE	1-47125-446-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD LEADING	1-47126-713-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-713-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-713-0	04	1	1405-	●	●
7	RIVET; LINING,RR BRK FORWARD L=18.5	1-09732-034-0	AR	1	1404-1404	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> L=18.5	1-09732-034-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> L=18.5	1-09732-034-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK REARWARD L=19.5	1-09732-035-0	AR	1	1404-1404	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B> L=19.5	1-09732-035-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B> L=19.5	1-09732-035-0	AR	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) REARWARD	1-09744-074-0	04	1	1404-1404	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09744-074-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09744-074-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) FORWARD	1-47119-021-0	04	1	1404-1404	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-47119-021-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-47119-021-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	1404-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	1404-	●	●
9	SPRING; RETURN,BRK SHOE (B) FORWARD	1-09583-175-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-09583-175-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-09583-175-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (A) FORWARD	1-09583-196-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (A)	1-09583-196-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (A)	1-09583-196-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (A) REARWARD	1-09583-210-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (A)	1-09583-210-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (A)	1-09583-210-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (B) REARWARD	1-09583-277-2	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09583-277-2	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09583-277-2	02	1	1405-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1404-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1404-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	1404-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	1404-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	1404-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	1404-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	1404-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47151-462-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47151-462-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47151-487-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47151-487-1	02	1	1404-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	01	1	1404-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	01	1	1404-	●	●
30	BOLT; DRUM COVER REARWARD M10X16 W/LK WASHER	0-50541-016-0	12	1	1404-1404	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-220-ML8<B9B> M10X16 W/LK WASHER	0-50541-016-0	12	1	1405-	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-220-ML8<B9B> M10X16 W/LK WASHER	0-50541-016-0	12	1	1405-	●	●
30	BOLT; DRUM COVER FORWARD M10X12	1-47159-187-0	12	1	1404-1404	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-180-ML8<B9E> M10X12	1-47159-187-0	12	1	1405-	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-180-ML8<B9E> M10X12	1-47159-187-0	12	1	1405-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	1404-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	1404-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	1404-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	1404-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	1404-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	1404-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	1404-1404	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	1404-1404	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47146-003-1	04	1	1405-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47141-067-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47141-067-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47141-068-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47141-068-0	02	1	1404-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	1404-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	1404-	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1404-	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1404-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1404-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1404-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	1404-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD RH,REARWARD LH	1-48270-046-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD RH,REARWARD LH	1-48270-046-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> FORWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> FORWARD	1-48270-076-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-076-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-076-0	01	1	1404-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-022-0	02	1	1404-1404	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47149-022-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47149-022-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-054-0	02	1	1404-1404	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47149-054-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47149-054-0	02	1	1405-	●	●
65	SPACER; SLACK ADJ,BRK	1-47143-011-0	02	1	1404-	●	●
65	SPACER; SLACK ADJ,BRK	1-47143-011-0	02	1	1404-	●	●
67	NUT; POWER CHAMBER FIX M16 CHI	0-91110-516-0	08	1	1404-	●	●
67	NUT; POWER CHAMBER FIX M16 CHI	0-91110-516-0	08	1	1404-	●	●
68	WASHER; LK,CHAMBER ID=16.2 CHI	0-91510-816-0	08	1	1404-	●	●
68	WASHER; LK,CHAMBER ID=16.2 CHI	0-91510-816-0	08	1	1404-	●	●
70	NUT; LK,JAW JOINT M16 CHI	0-91111-516-0	02	1	1404-	●	●
70	NUT; LK,JAW JOINT M16 CHI	0-91111-516-0	02	1	1404-	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-010-0	02	1	1404-1404	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47143-010-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47143-010-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-016-0	02	1	1404-1404	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47143-016-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47143-016-0	02	1	1405-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	1404-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-250-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-250-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-251-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-251-0	01	1	1404-	●	●
77	BUSHING	1-47146-003-1	02	1	1404-	●	●
77	BUSHING	1-47146-003-1	02	1	1404-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	1404-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	1404-	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35 CHI	0-20851-435-0	08	1	1404-	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35 CHI	0-20851-435-0	08	1	1404-	●	●
202	WASHER; LK,BRKT ID=14.2 CHI	0-91510-514-0	08	1	1404-	●	●
202	WASHER; LK,BRKT ID=14.2 CHI	0-91510-514-0	08	1	1404-	●	●

1 9 11 4 5 1 7 5 14 12 13 8 10 50 46 48 52 9 10 8 45 49 49 55 54 53 67 68 70 2 3 5 6 7 6 5 6 5 5 6 6 5 5 6 7 6 5 6 5 195 64 65 73 75 77 76 201 202 30 25 27 34 63 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR FORWARD LEADING	1-47120-336-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-713-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-713-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-337-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-714-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-714-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-338-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-715-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-715-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-339-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-716-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-716-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD TRAILING	1-47120-341-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-341-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-341-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD TRAILING	1-47120-343-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-343-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-343-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD LEADING	1-47170-398-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-398-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-398-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD LEADING	1-47170-399-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-399-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-399-0	01	1	1405-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-521-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-521-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-523-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-523-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-319-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-319-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-435-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-435-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-522-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-522-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-524-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-524-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-320-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-320-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-436-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-436-0	01	1	1404-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1404-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1404-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-797-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-797-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD TRAILING T=16	1-47125-436-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-799-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-799-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD TRAILING	1-47125-440-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-440-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-440-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD LEADING	1-47126-712-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-712-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-712-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-798-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-798-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD TRAILING T=17	1-47125-438-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-800-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-800-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD TRAILING	1-47125-442-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-442-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-442-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD TRAILING W/INDICATOR HOLE	1-47125-446-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD LEADING	1-47126-713-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-713-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-713-0	04	1	1405-	●	●
7	RIVET; LINING,RR BRK FORWARD L=18.5	1-09732-034-0	AR	1	1404-1404	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> L=18.5	1-09732-034-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> L=18.5	1-09732-034-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK REARWARD L=19.5	1-09732-035-0	AR	1	1404-1404	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B> L=19.5	1-09732-035-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B> L=19.5	1-09732-035-0	AR	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) REARWARD	1-09744-074-0	04	1	1404-1404	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09744-074-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09744-074-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) FORWARD	1-47119-021-0	04	1	1404-1404	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-47119-021-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-47119-021-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	1404-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	1404-	●	●
9	SPRING; RETURN,BRK SHOE (B) FORWARD	1-09583-175-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-09583-175-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-09583-175-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (A) FORWARD	1-09583-196-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (A)	1-09583-196-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (A)	1-09583-196-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (A) REARWARD	1-09583-210-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (A)	1-09583-210-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (A)	1-09583-210-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (B) REARWARD	1-09583-277-2	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09583-277-2	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09583-277-2	02	1	1405-	●	●
10	RING; SNAP,SPR PIN ID=10 CHI	0-91805-510-0	08	1	1404-1404	●	●
10	RING; SNAP,SPR PIN RR BRK AIR D410-S CAM-180-ML8<B9E> ID=10 CHI	0-91805-510-0	08	1	1405-	●	●
10	RING; SNAP,SPR PIN RR BRK AIR D410-S CAM-180-ML8<B9E> ID=10 CHI	0-91805-510-0	08	1	1405-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1404-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1404-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	1404-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	1404-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	1404-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	1404-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	1404-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47151-462-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47151-462-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47151-487-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47151-487-1	02	1	1404-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	01	1	1404-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	01	1	1404-	●	●
30	BOLT; DRUM COVER REARWARD M10X16 W/LK WASHER	0-50541-016-0	12	1	1404-1404	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-220-ML8<B9B> M10X16 W/LK WASHER	0-50541-016-0	12	1	1405-	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-220-ML8<B9B> M10X16 W/LK WASHER	0-50541-016-0	12	1	1405-	●	●
30	BOLT; DRUM COVER FORWARD M10X12	1-47159-187-0	12	1	1404-1404	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-180-ML8<B9E> M10X12	1-47159-187-0	12	1	1405-	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-180-ML8<B9E> M10X12	1-47159-187-0	12	1	1405-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	1404-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	1404-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	1404-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	1404-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	1404-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	1404-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	1404-1404	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	1404-1404	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47146-003-1	04	1	1405-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47141-067-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47141-067-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47141-068-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47141-068-0	02	1	1404-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	1404-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	1404-	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1404-	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1404-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1404-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1404-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	1404-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD RH,REARWARD LH	1-48270-046-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD RH,REARWARD LH	1-48270-046-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> FORWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> FORWARD	1-48270-076-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-076-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-076-0	01	1	1404-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-022-0	02	1	1404-1404	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47149-022-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47149-022-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-054-0	02	1	1404-1404	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47149-054-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47149-054-0	02	1	1405-	●	●
65	SPACER; SLACK ADJ,BRK	1-47143-011-0	02	1	1404-	●	●
65	SPACER; SLACK ADJ,BRK	1-47143-011-0	02	1	1404-	●	●
67	NUT; POWER CHAMBER FIX M16 CHI	0-91110-516-0	08	1	1404-	●	●
67	NUT; POWER CHAMBER FIX M16 CHI	0-91110-516-0	08	1	1404-	●	●
68	WASHER; LK,CHAMBER ID=16.2 CHI	0-91510-816-0	08	1	1404-	●	●
68	WASHER; LK,CHAMBER ID=16.2 CHI	0-91510-816-0	08	1	1404-	●	●
70	NUT; LK,JAW JOINT M16 CHI	0-91111-516-0	02	1	1404-	●	●
70	NUT; LK,JAW JOINT M16 CHI	0-91111-516-0	02	1	1404-	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-010-0	02	1	1404-1404	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47143-010-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47143-010-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-016-0	02	1	1404-1404	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47143-016-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47143-016-0	02	1	1405-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	1404-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-250-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-250-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-251-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-251-0	01	1	1404-	●	●
77	BUSHING	1-47146-003-1	02	1	1404-	●	●
77	BUSHING	1-47146-003-1	02	1	1404-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	1404-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	1404-	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35 CHI	0-20851-435-0	08	1	1404-	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35 CHI	0-20851-435-0	08	1	1404-	●	●
202	WASHER; LK,BRKT ID=14.2 CHI	0-91510-514-0	08	1	1404-	●	●
202	WASHER; LK,BRKT ID=14.2 CHI	0-91510-514-0	08	1	1404-	●	●

45 49 49 48 46 50 52 9 10 55 54 53 8 14 12 13 1 9 10 11 8 5 7 5 1 4 68 67 71 72 70 3 2 66 75 73 195 64 65 63 77 76 201 202 30 34 27 25 69 5 6 7 6 5 6 6 5 5 6 6 5 5 5 6 3 2 6 5 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR FORWARD LEADING	1-47120-336-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-713-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-713-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-337-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-714-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-714-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-338-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-715-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47120-715-0	01	1	1405-	●	●
1	SHOE; BRK,RR FORWARD TRAILING	1-47120-339-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-716-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47120-716-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD TRAILING	1-47120-341-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-341-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-341-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD TRAILING	1-47120-343-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-343-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47120-343-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD LEADING	1-47170-398-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-398-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-398-0	01	1	1405-	●	●
1	SHOE; BRK,RR REARWARD LEADING	1-47170-399-0	01	1	1404-1404	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-399-0	01	1	1405-	●	●
1	SHOE; BRK,RR RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47170-399-0	01	1	1405-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-521-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-521-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-523-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-523-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-319-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-319-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-435-0	01	1	1404-	●	●
2	LINING SET; RR BRK,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-435-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-522-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-88310-522-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-524-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-88310-524-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-320-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-88310-320-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-436-0	01	1	1404-	●	●
3	LINING SET; RR BRK,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-88311-436-0	01	1	1404-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1404-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1404-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-797-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-797-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD TRAILING T=16	1-47125-436-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-799-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-799-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD TRAILING	1-47125-440-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-440-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-440-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD FORWARD LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD LEADING	1-47126-712-0	04	1	1404-1404	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-712-0	04	1	1405-	●	●
5	LINING; RR BRK SHOE,STANDARD RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-712-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-798-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING	1-47125-798-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD TRAILING T=17	1-47125-438-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-800-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING	1-47125-800-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD TRAILING	1-47125-442-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-442-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING	1-47125-442-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE FORWARD TRAILING W/INDICATOR HOLE	1-47125-446-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD LEADING	1-47126-713-0	04	1	1404-1404	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-713-0	04	1	1405-	●	●
6	LINING; RR BRK SHOE,OVER SIZE RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING	1-47126-713-0	04	1	1405-	●	●
7	RIVET; LINING,RR BRK FORWARD L=18.5	1-09732-034-0	AR	1	1404-1404	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> L=18.5	1-09732-034-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> L=18.5	1-09732-034-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK REARWARD L=19.5	1-09732-035-0	AR	1	1404-1404	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B> L=19.5	1-09732-035-0	AR	1	1405-	●	●
7	RIVET; LINING,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B> L=19.5	1-09732-035-0	AR	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) REARWARD	1-09744-074-0	04	1	1404-1404	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09744-074-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09744-074-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) FORWARD	1-47119-021-0	04	1	1404-1404	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-47119-021-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-47119-021-0	04	1	1405-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	1404-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	1404-	●	●
9	SPRING; RETURN,BRK SHOE (B) FORWARD	1-09583-175-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-09583-175-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (B)	1-09583-175-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (A) FORWARD	1-09583-196-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (A)	1-09583-196-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-180-ML8<B9E> (A)	1-09583-196-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (A) REARWARD	1-09583-210-0	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (A)	1-09583-210-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (A)	1-09583-210-0	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE (B) REARWARD	1-09583-277-2	02	1	1404-1404	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09583-277-2	02	1	1405-	●	●
9	SPRING; RETURN,BRK SHOE RR BRK AIR D410-S CAM-220-ML8<B9B> (B)	1-09583-277-2	02	1	1405-	●	●
10	RING; SNAP,SPR PIN ID=10 CHI	0-91805-510-0	08	1	1404-1404	●	●
10	RING; SNAP,SPR PIN RR BRK AIR D410-S CAM-180-ML8<B9E> ID=10 CHI	0-91805-510-0	08	1	1405-	●	●
10	RING; SNAP,SPR PIN RR BRK AIR D410-S CAM-180-ML8<B9E> ID=10 CHI	0-91805-510-0	08	1	1405-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1404-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1404-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	1404-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	1404-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	1404-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	1404-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	1404-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47151-462-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47151-462-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47151-487-1	02	1	1404-	●	●
25	COVER SET; RR BRK DRUM RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47151-487-1	02	1	1404-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	01	1	1404-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	01	1	1404-	●	●
30	BOLT; DRUM COVER REARWARD M10X16 W/LK WASHER	0-50541-016-0	12	1	1404-1404	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-220-ML8<B9B> M10X16 W/LK WASHER	0-50541-016-0	12	1	1405-	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-220-ML8<B9B> M10X16 W/LK WASHER	0-50541-016-0	12	1	1405-	●	●
30	BOLT; DRUM COVER FORWARD M10X12	1-47159-187-0	12	1	1404-1404	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-180-ML8<B9E> M10X12	1-47159-187-0	12	1	1405-	●	●
30	BOLT; DRUM COVER RR BRK AIR D410-S CAM-180-ML8<B9E> M10X12	1-47159-187-0	12	1	1405-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	1404-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	1404-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	1404-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	1404-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	1404-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	1404-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	1404-1404	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	1404-1404	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47146-003-1	04	1	1405-	●	●
49	BUSHING; CM/SHF,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47146-003-1	04	1	1405-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47141-067-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47141-067-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47141-068-0	02	1	1404-	●	●
50	CAMSHAFT; BRK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47141-068-0	02	1	1404-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	1404-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	1404-	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1404-	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1404-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1404-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1404-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	1404-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD LH,REARWARD RH	1-48270-045-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD RH,REARWARD LH	1-48270-046-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> FORWARD RH,REARWARD LH	1-48270-046-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> FORWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-075-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> FORWARD	1-48270-076-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-076-0	01	1	1404-	●	●
63	ADJUSTER ASM; SLACK,RR BRK RR BRK AIR D410-S CAM-180-ML8<B9E> AUTO ADJUSTER BRAKE<BCU> REARWARD	1-48270-076-0	01	1	1404-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-022-0	02	1	1404-1404	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47149-022-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47149-022-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-054-0	02	1	1404-1404	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47149-054-0	02	1	1405-	●	●
64	PLATE; STOPPER,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47149-054-0	02	1	1405-	●	●
65	SPACER; SLACK ADJ,BRK	1-47143-011-0	02	1	1404-	●	●
65	SPACER; SLACK ADJ,BRK	1-47143-011-0	02	1	1404-	●	●
66	PIN; JAW JOINT BRAKE ADJUSTER MANUAL<BJR>	1-09744-088-0	02	1	1404-	●	●
66	PIN; JAW JOINT BRAKE ADJUSTER MANUAL<BJR>	1-09744-088-0	02	1	1404-	●	●
67	NUT; POWER CHAMBER FIX M16 CHI	0-91110-516-0	08	1	1404-	●	●
67	NUT; POWER CHAMBER FIX M16 CHI	0-91110-516-0	08	1	1404-	●	●
68	WASHER; LK,CHAMBER ID=16.2 CHI	0-91510-816-0	08	1	1404-	●	●
68	WASHER; LK,CHAMBER ID=16.2 CHI	0-91510-816-0	08	1	1404-	●	●
69	JOINT; JAW BRAKE ADJUSTER MANUAL<BJR>	1-09768-060-1	02	1	1404-	●	●
69	JOINT; JAW BRAKE ADJUSTER MANUAL<BJR>	1-09768-060-1	02	1	1404-	●	●
70	NUT; LK,JAW JOINT M16 CHI	0-91111-516-0	02	1	1404-	●	●
70	NUT; LK,JAW JOINT M16 CHI	0-91111-516-0	02	1	1404-	●	●
71	WASHER; PL,JAW JOINT BRAKE ADJUSTER MANUAL<BJR>	0-91610-616-0	02	1	1404-	●	●
71	WASHER; PL,JAW JOINT BRAKE ADJUSTER MANUAL<BJR>	0-91610-616-0	02	1	1404-	●	●
72	PIN; SPLIT BRAKE ADJUSTER MANUAL<BJR> OD=3.7 L=28 CHI	0-81124-028-0	02	1	1404-	●	●
72	PIN; SPLIT BRAKE ADJUSTER MANUAL<BJR> OD=3.7 L=28 CHI	0-81124-028-0	02	1	1404-	●	●
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-010-0	02	1	1404-1404	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47143-010-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-180-ML8<B9E>	1-47143-010-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-016-0	02	1	1404-1404	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47143-016-0	02	1	1405-	●	●
73	COLLAR; FELT RING,CM/SHF RR BRK AIR D410-S CAM-220-ML8<B9B>	1-47143-016-0	02	1	1405-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	1404-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-250-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-250-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-251-0	01	1	1404-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-251-0	01	1	1404-	●	●
77	BUSHING	1-47146-003-1	02	1	1404-	●	●
77	BUSHING	1-47146-003-1	02	1	1404-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	1404-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	1404-	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35 CHI	0-20851-435-0	08	1	1404-	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35 CHI	0-20851-435-0	08	1	1404-	●	●
202	WASHER; LK,BRKT ID=14.2 CHI	0-91510-514-0	08	1	1404-	●	●
202	WASHER; LK,BRKT ID=14.2 CHI	0-91510-514-0	08	1	1404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
